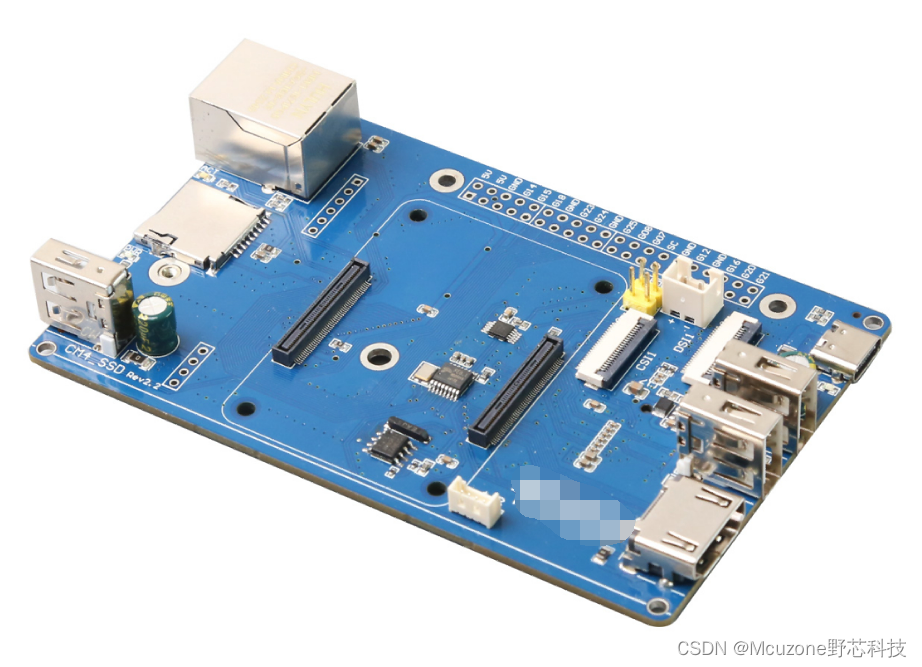

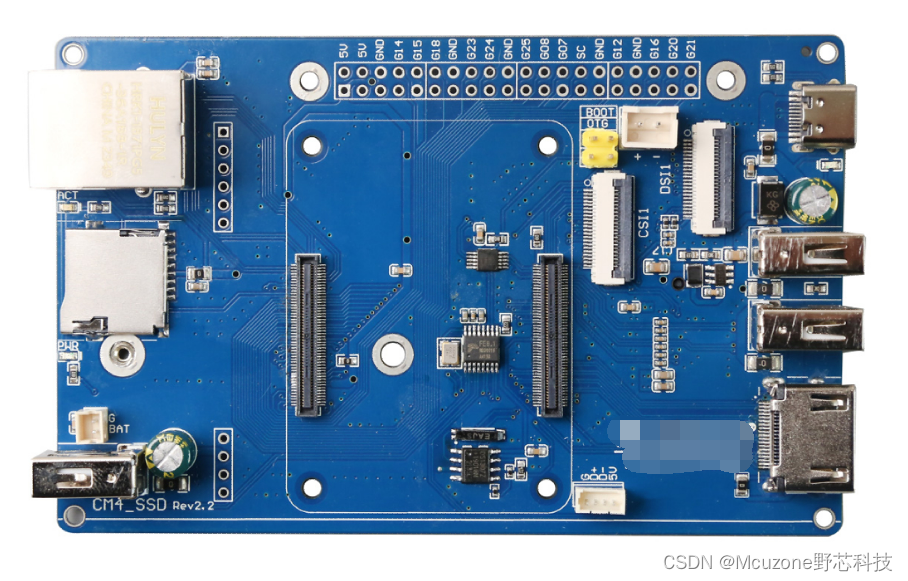

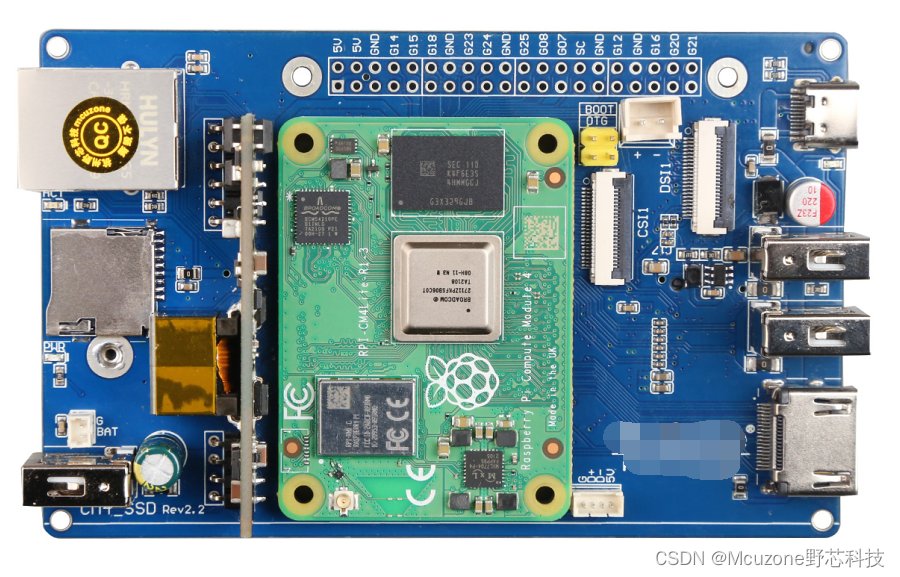

CM4_SSD_PoE, CM4 SSD expansion board with PoE module
1, original Giga ethernet, full-size HDMI output, TF for booting, CSI1 and DSI1, 40Pin GPIO;

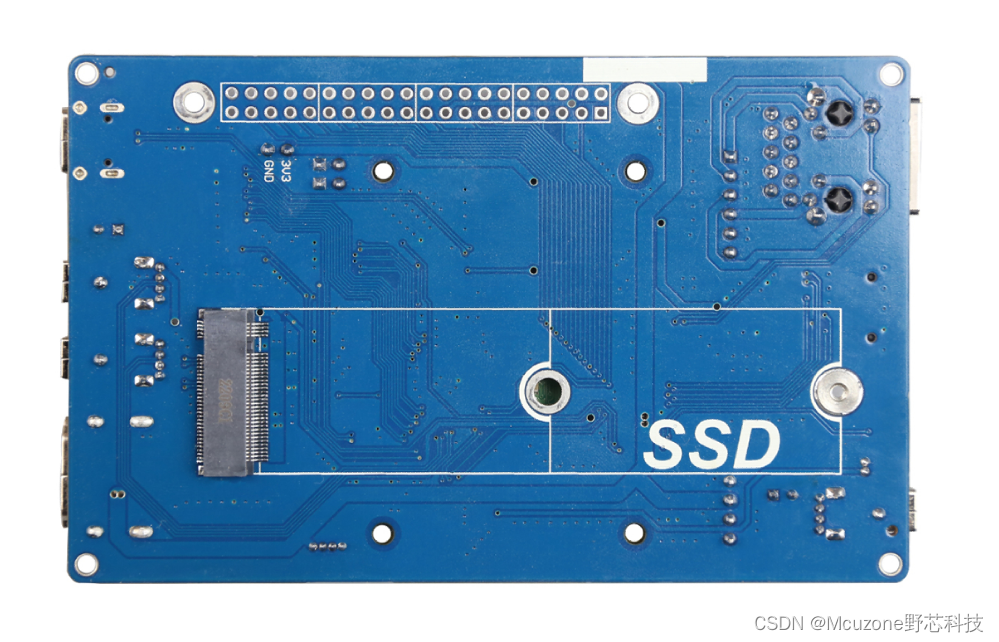

2, support 2242/2280 size SSD, PCIE x1 Gen2, support boot from SSD or SSD works as mass storage only;
3, 3xUSB2.0 HS Host, 1x1.25mm 4Pin USB for CM4 size 4G module mounting on the CM4;

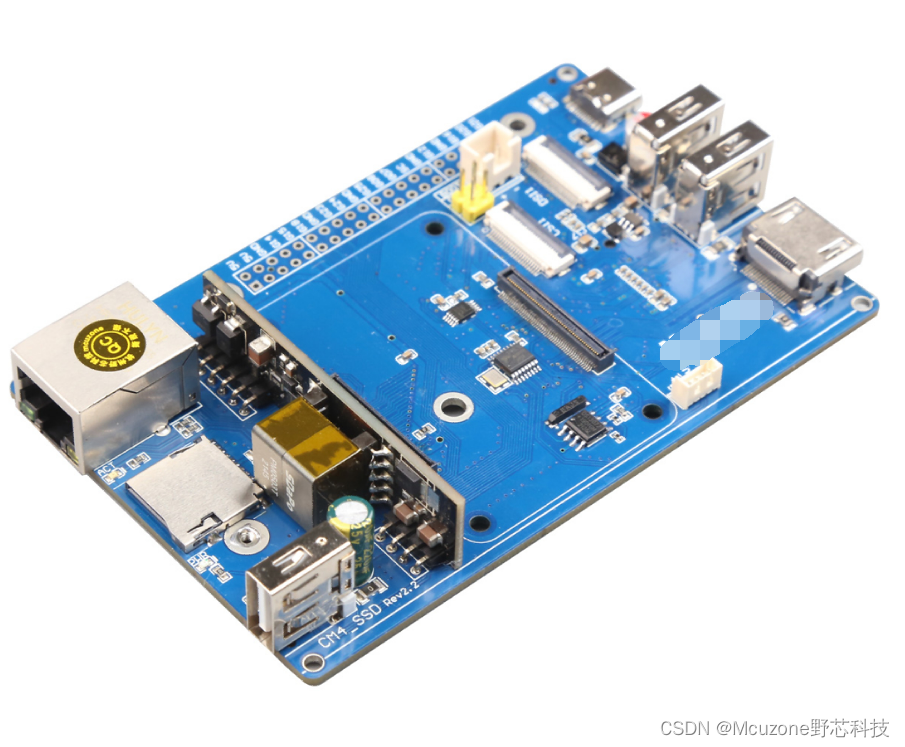

4, PoE module, up to 5V 2.4A;
5, on board RTC with battery interface;
6, independence OTG and BOOT jumper, the USB could works as device(USB gadget);

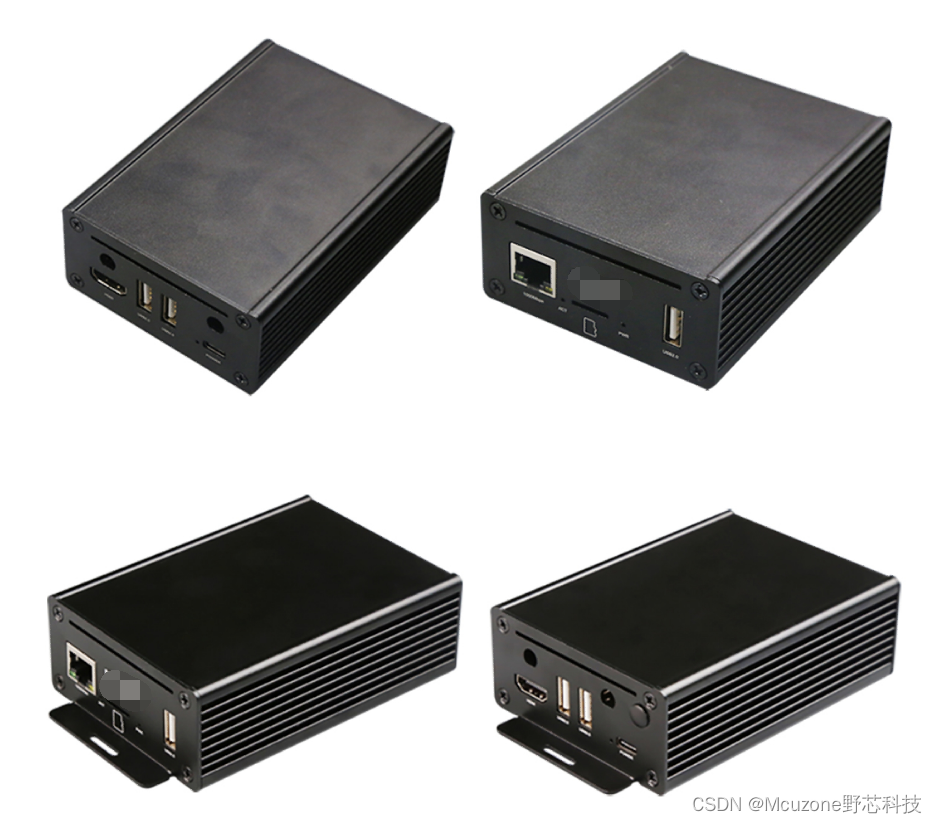

7, optional metal case;
