unity接在线科大讯飞语音合成(Windows)

1、首先下载讯飞在线语音合成SDK,解压,可以先看下SDK中的C语言写的例子

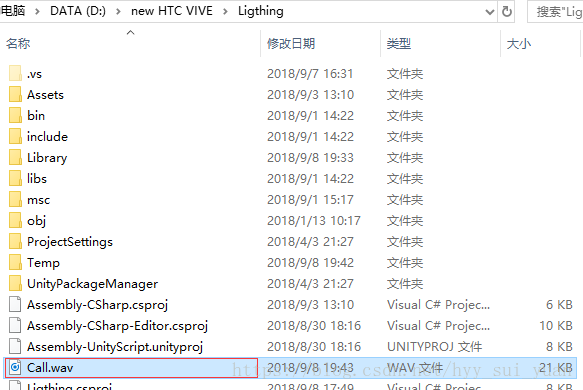

2、将SDK中的bin 、include、libs拷贝到unity工程中,如图所示:

3、接着开始写代码(一共三个脚本)

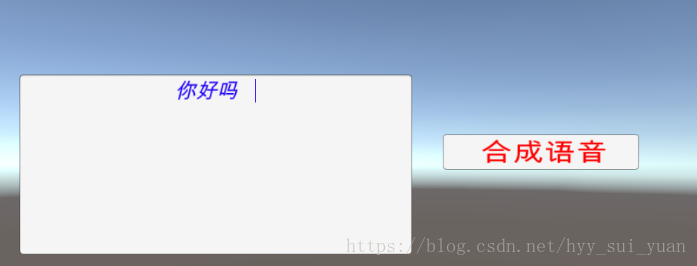

UIManager:

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;
using UnityEngine.Events;

public class UIManager : MonoBehaviour {

    public InputField field;

    public void InputTextForAudio() {
        string str = field.text;//得到需要转换语音的文本
        field.text = null;//将需要转换语音的文本清空
        //调用写好的语音合成函数
        if (str != null||!("".Equals(str))) {
            Test.ButtonCreateAudio(str);
        }
    }
}

Test:

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Linq;
using System.Text;
using TTS;//TTS是自己封装的dll,里面封装了错误编号,以及需要的结构体,在debug路径下
using System.IO;
using System.Runtime.InteropServices;

using System.Threading;

public class Test {

    public static void ButtonCreateAudio(string str) {
        int ret = 0;
        IntPtr session_ID;
        //APPID请勿随意改动
        string login_configs = "appid = 5ac9f8d1";//登录参数,自己注册后获取的appid
        string text = str;//text是待合成文本
        string filename = "Call.wav"; //合成的语音文件名
        uint audio_len = 0;
        SynthStatus synth_status = SynthStatus.MSP_TTS_FLAG_STILL_HAVE_DATA;
        ret = mscdll.MSPLogin(null,null, login_configs);//第一个参数为用户名,第二个参数为密码,第三个参数是登录参数,用户名和密码需要在http://open.voicecloud.cn
                                                                         //MSPLogin方法返回失败
        if (ret != (int)ErrorCode.MSP_SUCCESS)
        {
            Debug.Log("登录失败" + ret);
            return;
        }
      string _params = "engine_type =cloud ,voice_name=xiaoyan, text_encoding = UTF8,sample_rate = 16000";
        session_ID = mscdll.QTTSSessionBegin(_params, ref ret);
        //QTTSSessionBegin方法返回失败
        if (ret != (int)ErrorCode.MSP_SUCCESS)
        {
            Debug.Log("会话开始失败!" + ret);
            ret = mscdll.MSPLogout();//退出登录
            return;
        }
        ret = mscdll.QTTSTextPut(Marshal.PtrToStringAnsi(session_ID), text, (uint)Encoding.Default.GetByteCount(text), string.Empty);
        //QTTSTextPut方法返回失败
        if (ret != (int)ErrorCode.MSP_SUCCESS)
        {
            Debug.Log("放入文本失败" + ret);
            ret = mscdll.QTTSSessionEnd(Marshal.PtrToStringAnsi(session_ID), "");//结束会话
            ret = mscdll.MSPLogout();//退出登录
            return;
        }
        //内存流可直接在内存进行读写,不需要临时缓冲区或者临时文件
        MemoryStream memoryStream = new MemoryStream();

        memoryStream.Write(new byte[44], 0, 44);//为结构体开辟空间,后面用来存储音频文件结构体
        while (true)
        {
            IntPtr source = mscdll.QTTSAudioGet(Marshal.PtrToStringAnsi(session_ID), ref audio_len, ref synth_status, ref ret);
            byte[] array = new byte[(int)audio_len];
            if (audio_len > 0)
            {
                Marshal.Copy(source, array, 0, (int)audio_len);
            }
            memoryStream.Write(array, 0, (int)audio_len);//将合成的音频字节数据存放到内存流中
            Thread.Sleep(150);//防止CPU频繁占用
            if (synth_status == SynthStatus.MSP_TTS_FLAG_DATA_END || ret != 0)
                break;
        }
        WAVE_Header wave_Header = getWave_Header((int)memoryStream.Length);
        byte[] array2 = StructToBytes(wave_Header);
        memoryStream.Position = 0L;//将指针定位到开头
        memoryStream.Write(array2, 0, array2.Length);//存储结构体的字节数组
        memoryStream.Position = 0L;//将指针定位到开头
        if (filename != null)
        {
            //通过文件名创建音频文件流
            FileStream fileStream = new FileStream(filename, FileMode.Create, FileAccess.Write);
            memoryStream.WriteTo(fileStream);//将内存流中的数据写入到文件流,文件流写入到音频文件中I
            memoryStream.Close();//关闭流
            fileStream.Close();
        }
        ret = mscdll.QTTSSessionEnd(Marshal.PtrToStringAnsi(session_ID), "");//结束会话
        ret = mscdll.MSPLogout();//退出登录
        Debug.Log("会话结束");
        Debug.Log("退出登录");
    }
    /// <summary>
    /// 结构体转字符串
    /// </summary>
    /// <param name="structure"></param>
    /// <returns></returns>
    private static byte[] StructToBytes(object structure)
    {
        int num = Marshal.SizeOf(structure);
        IntPtr intPtr = Marshal.AllocHGlobal(num);
        byte[] result;
        try
        {
            Marshal.StructureToPtr(structure, intPtr, false);
            byte[] array = new byte[num];
            Marshal.Copy(intPtr, array, 0, num);
            result = array;
        }
        finally
        {
            Marshal.FreeHGlobal(intPtr);
        }
        return result;
    }

    /// <summary>
    /// 结构体初始化赋值
    /// </summary>
    /// <param name="data_len"></param>
    /// <returns></returns>
    private static WAVE_Header getWave_Header(int data_len)
    {
        return new WAVE_Header
        {
            RIFF_ID = 1179011410,//相当于SDK例子中的"RIFF",只是转换成了对应的ASCL值
            File_Size = data_len -8,
            RIFF_Type = 1163280727,
            FMT_ID = 544501094,
            FMT_Size = 16,
            FMT_Tag = 1,
            FMT_Channel = 1,
            FMT_SamplesPerSec = 16000,
            AvgBytesPerSec = 32000,
            BlockAlign = 2,
            BitsPerSample = 16,
            DATA_ID = 1635017060,
            DATA_Size = data_len-44
        };
    }
    /// <summary>
    /// 语音音频头
    /// </summary>
    private struct WAVE_Header
    {
        public int RIFF_ID;
        public int File_Size;
        public int RIFF_Type;
        public int FMT_ID;
        public int FMT_Size;
        public short FMT_Tag;
        public ushort FMT_Channel;
        public int FMT_SamplesPerSec;
        public int AvgBytesPerSec;
        public ushort BlockAlign;
        public ushort BitsPerSample;
        public int DATA_ID;
        public int DATA_Size;
    }
}

MSC:

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Runtime.InteropServices;

namespace TTS
{
    public enum ErrorCode
    {
        MSP_SUCCESS = 0,
        MSP_ERROR_FAIL = -1,
        MSP_ERROR_EXCEPTION = -2,

        /* General errors 10100(0x2774) */
        MSP_ERROR_GENERAL = 10100,     /* 0x2774 */
        MSP_ERROR_OUT_OF_MEMORY = 10101,     /* 0x2775 */
        MSP_ERROR_FILE_NOT_FOUND = 10102,     /* 0x2776 */
        MSP_ERROR_NOT_SUPPORT = 10103,     /* 0x2777 */
        MSP_ERROR_NOT_IMPLEMENT = 10104,     /* 0x2778 */
        MSP_ERROR_ACCESS = 10105,     /* 0x2779 */
        MSP_ERROR_INVALID_PARA = 10106,     /* 0x277A */
        MSP_ERROR_INVALID_PARA_VALUE = 10107,     /* 0x277B */
        MSP_ERROR_INVALID_HANDLE = 10108,     /* 0x277C */
        MSP_ERROR_INVALID_DATA = 10109,     /* 0x277D */
        MSP_ERROR_NO_LICENSE = 10110,     /* 0x277E */
        MSP_ERROR_NOT_INIT = 10111,     /* 0x277F */
        MSP_ERROR_NULL_HANDLE = 10112,     /* 0x2780 */
        MSP_ERROR_OVERFLOW = 10113,     /* 0x2781 */
        MSP_ERROR_TIME_OUT = 10114,     /* 0x2782 */
        MSP_ERROR_OPEN_FILE = 10115,     /* 0x2783 */
        MSP_ERROR_NOT_FOUND = 10116,     /* 0x2784 */
        MSP_ERROR_NO_ENOUGH_BUFFER = 10117,     /* 0x2785 */
        MSP_ERROR_NO_DATA = 10118,     /* 0x2786 */
        MSP_ERROR_NO_MORE_DATA = 10119,     /* 0x2787 */
        MSP_ERROR_SKIPPED = 10120,     /* 0x2788 */
        MSP_ERROR_ALREADY_EXIST = 10121,     /* 0x2789 */
        MSP_ERROR_LOAD_MODULE = 10122,     /* 0x278A */
        MSP_ERROR_BUSY = 10123,     /* 0x278B */
        MSP_ERROR_INVALID_CONFIG = 10124,     /* 0x278C */
        MSP_ERROR_VERSION_CHECK = 10125,     /* 0x278D */
        MSP_ERROR_CANCELED = 10126,     /* 0x278E */
        MSP_ERROR_INVALID_MEDIA_TYPE = 10127,     /* 0x278F */
        MSP_ERROR_CONFIG_INITIALIZE = 10128,     /* 0x2790 */
        MSP_ERROR_CREATE_HANDLE = 10129,     /* 0x2791 */
        MSP_ERROR_CODING_LIB_NOT_LOAD = 10130,     /* 0x2792 */

        /* Error codes of network 10200(0x27D8)*/
        MSP_ERROR_NET_GENERAL = 10200,     /* 0x27D8 */
        MSP_ERROR_NET_OPENSOCK = 10201,     /* 0x27D9 */   /* Open socket */
        MSP_ERROR_NET_CONNECTSOCK = 10202,     /* 0x27DA */   /* Connect socket */
        MSP_ERROR_NET_ACCEPTSOCK = 10203,     /* 0x27DB */   /* Accept socket */
        MSP_ERROR_NET_SENDSOCK = 10204,     /* 0x27DC */   /* Send socket data */
        MSP_ERROR_NET_RECVSOCK = 10205,     /* 0x27DD */   /* Recv socket data */
        MSP_ERROR_NET_INVALIDSOCK = 10206,     /* 0x27DE */   /* Invalid socket handle */
        MSP_ERROR_NET_BADADDRESS = 10207,     /* 0x27EF */   /* Bad network address */
        MSP_ERROR_NET_BINDSEQUENCE = 10208,     /* 0x27E0 */   /* Bind after listen/connect */
        MSP_ERROR_NET_NOTOPENSOCK = 10209,     /* 0x27E1 */   /* Socket is not opened */
        MSP_ERROR_NET_NOTBIND = 10210,     /* 0x27E2 */   /* Socket is not bind to an address */
        MSP_ERROR_NET_NOTLISTEN = 10211,     /* 0x27E3 */   /* Socket is not listenning */
        MSP_ERROR_NET_CONNECTCLOSE = 10212,     /* 0x27E4 */   /* The other side of connection is closed */
        MSP_ERROR_NET_NOTDGRAMSOCK = 10213,     /* 0x27E5 */   /* The socket is not datagram type */

        /* Error codes of mssp message 10300(0x283C) */
        MSP_ERROR_MSG_GENERAL = 10300,     /* 0x283C */
        MSP_ERROR_MSG_PARSE_ERROR = 10301,     /* 0x283D */
        MSP_ERROR_MSG_BUILD_ERROR = 10302,     /* 0x283E */
        MSP_ERROR_MSG_PARAM_ERROR = 10303,     /* 0x283F */
        MSP_ERROR_MSG_CONTENT_EMPTY = 10304,     /* 0x2840 */
        MSP_ERROR_MSG_INVALID_CONTENT_TYPE = 10305,     /* 0x2841 */
        MSP_ERROR_MSG_INVALID_CONTENT_LENGTH = 10306,     /* 0x2842 */
        MSP_ERROR_MSG_INVALID_CONTENT_ENCODE = 10307,     /* 0x2843 */
        MSP_ERROR_MSG_INVALID_KEY = 10308,     /* 0x2844 */
        MSP_ERROR_MSG_KEY_EMPTY = 10309,     /* 0x2845 */
        MSP_ERROR_MSG_SESSION_ID_EMPTY = 10310,     /* 0x2846 */
        MSP_ERROR_MSG_LOGIN_ID_EMPTY = 10311,     /* 0x2847 */
        MSP_ERROR_MSG_SYNC_ID_EMPTY = 10312,     /* 0x2848 */
        MSP_ERROR_MSG_APP_ID_EMPTY = 10313,     /* 0x2849 */
        MSP_ERROR_MSG_EXTERN_ID_EMPTY = 10314,     /* 0x284A */
        MSP_ERROR_MSG_INVALID_CMD = 10315,     /* 0x284B */
        MSP_ERROR_MSG_INVALID_SUBJECT = 10316,     /* 0x284C */
        MSP_ERROR_MSG_INVALID_VERSION = 10317,     /* 0x284D */
        MSP_ERROR_MSG_NO_CMD = 10318,     /* 0x284E */
        MSP_ERROR_MSG_NO_SUBJECT = 10319,     /* 0x284F */
        MSP_ERROR_MSG_NO_VERSION = 10320,     /* 0x2850 */
        MSP_ERROR_MSG_MSSP_EMPTY = 10321,     /* 0x2851 */
        MSP_ERROR_MSG_NEW_RESPONSE = 10322,     /* 0x2852 */
        MSP_ERROR_MSG_NEW_CONTENT = 10323,     /* 0x2853 */
        MSP_ERROR_MSG_INVALID_SESSION_ID = 10324,     /* 0x2854 */

        /* Error codes of DataBase 10400(0x28A0)*/
        MSP_ERROR_DB_GENERAL = 10400,     /* 0x28A0 */
        MSP_ERROR_DB_EXCEPTION = 10401,     /* 0x28A1 */
        MSP_ERROR_DB_NO_RESULT = 10402,     /* 0x28A2 */
        MSP_ERROR_DB_INVALID_USER = 10403,     /* 0x28A3 */
        MSP_ERROR_DB_INVALID_PWD = 10404,     /* 0x28A4 */
        MSP_ERROR_DB_CONNECT = 10405,     /* 0x28A5 */
        MSP_ERROR_DB_INVALID_SQL = 10406,     /* 0x28A6 */
        MSP_ERROR_DB_INVALID_APPID = 10407,    /* 0x28A7 */

        /* Error codes of Resource 10500(0x2904)*/
        MSP_ERROR_RES_GENERAL = 10500,     /* 0x2904 */
        MSP_ERROR_RES_LOAD = 10501,     /* 0x2905 */   /* Load resource */
        MSP_ERROR_RES_FREE = 10502,     /* 0x2906 */   /* Free resource */
        MSP_ERROR_RES_MISSING = 10503,     /* 0x2907 */   /* Resource File Missing */
        MSP_ERROR_RES_INVALID_NAME = 10504,     /* 0x2908 */   /* Invalid resource file name */
        MSP_ERROR_RES_INVALID_ID = 10505,     /* 0x2909 */   /* Invalid resource ID */
        MSP_ERROR_RES_INVALID_IMG = 10506,     /* 0x290A */   /* Invalid resource image pointer */
        MSP_ERROR_RES_WRITE = 10507,     /* 0x290B */   /* Write read-only resource */
        MSP_ERROR_RES_LEAK = 10508,     /* 0x290C */   /* Resource leak out */
        MSP_ERROR_RES_HEAD = 10509,     /* 0x290D */   /* Resource head currupt */
        MSP_ERROR_RES_DATA = 10510,     /* 0x290E */   /* Resource data currupt */
        MSP_ERROR_RES_SKIP = 10511,     /* 0x290F */   /* Resource file skipped */

        /* Error codes of TTS 10600(0x2968)*/
        MSP_ERROR_TTS_GENERAL = 10600,     /* 0x2968 */
        MSP_ERROR_TTS_TEXTEND = 10601,     /* 0x2969 */  /* Meet text end */
        MSP_ERROR_TTS_TEXT_EMPTY = 10602,     /* 0x296A */  /* no synth text */

        /* Error codes of Recognizer 10700(0x29CC) */
        MSP_ERROR_REC_GENERAL = 10700,     /* 0x29CC */
        MSP_ERROR_REC_INACTIVE = 10701,     /* 0x29CD */
        MSP_ERROR_REC_GRAMMAR_ERROR = 10702,     /* 0x29CE */
        MSP_ERROR_REC_NO_ACTIVE_GRAMMARS = 10703,     /* 0x29CF */
        MSP_ERROR_REC_DUPLICATE_GRAMMAR = 10704,     /* 0x29D0 */
        MSP_ERROR_REC_INVALID_MEDIA_TYPE = 10705,     /* 0x29D1 */
        MSP_ERROR_REC_INVALID_LANGUAGE = 10706,     /* 0x29D2 */
        MSP_ERROR_REC_URI_NOT_FOUND = 10707,     /* 0x29D3 */
        MSP_ERROR_REC_URI_TIMEOUT = 10708,     /* 0x29D4 */
        MSP_ERROR_REC_URI_FETCH_ERROR = 10709,     /* 0x29D5 */

        /* Error codes of Speech Detector 10800(0x2A30) */
        MSP_ERROR_EP_GENERAL = 10800,     /* 0x2A30 */
        MSP_ERROR_EP_NO_SESSION_NAME = 10801,     /* 0x2A31 */
        MSP_ERROR_EP_INACTIVE = 10802,     /* 0x2A32 */
        MSP_ERROR_EP_INITIALIZED = 10803,     /* 0x2A33 */

        /* Error codes of TUV */
        MSP_ERROR_TUV_GENERAL = 10900,     /* 0x2A94 */
        MSP_ERROR_TUV_GETHIDPARAM = 10901,     /* 0x2A95 */   /* Get Busin Param huanid*/
        MSP_ERROR_TUV_TOKEN = 10902,     /* 0x2A96 */   /* Get Token */
        MSP_ERROR_TUV_CFGFILE = 10903,     /* 0x2A97 */   /* Open cfg file */
        MSP_ERROR_TUV_RECV_CONTENT = 10904,     /* 0x2A98 */   /* received content is error */
        MSP_ERROR_TUV_VERFAIL = 10905,     /* 0x2A99 */   /* Verify failure */

        /* Error codes of IMTV */
        MSP_ERROR_IMTV_SUCCESS = 11000,     /* 0x2AF8 */   /* 成功 */
        MSP_ERROR_IMTV_NO_LICENSE = 11001,     /* 0x2AF9 */   /* 试用次数结束,用户需要付费 */
        MSP_ERROR_IMTV_SESSIONID_INVALID = 11002,     /* 0x2AFA */   /* SessionId失效,需要重新登录通行证 */
        MSP_ERROR_IMTV_SESSIONID_ERROR = 11003,     /* 0x2AFB */   /* SessionId为空,或者非法 */
        MSP_ERROR_IMTV_UNLOGIN = 11004,     /* 0x2AFC */   /* 未登录通行证 */
        MSP_ERROR_IMTV_SYSTEM_ERROR = 11005,     /* 0x2AFD */   /* 系统错误 */

        /* Error codes of HCR */
        MSP_ERROR_HCR_GENERAL = 11100,
        MSP_ERROR_HCR_RESOURCE_NOT_EXIST = 11101,

        /* Error codes of http 12000(0x2EE0) */
        MSP_ERROR_HTTP_BASE = 12000,    /* 0x2EE0 */

        /*Error codes of ISV */
        MSP_ERROR_ISV_NO_USER = 13000,    /* 32C8 */    /* the user doesn't exist */
    }
    #region TTS枚举常量
    /// <summary>
    /// vol参数的枚举常量
    /// </summary>
    public enum enuVol
    {
        x_soft,
        soft,
        medium,
        loud,
        x_loud
    }

    /// <summary>
    /// speed语速参数的枚举常量
    /// </summary>
    public enum enuSpeed
    {
        x_slow,
        slow,
        medium,
        fast,
        x_fast
    }
    /// <summary>
    /// speeker朗读者枚举常量
    /// </summary>
    public enum enuSpeeker
    {
        小燕_青年女声_中英文_普通话 = 0,
        小宇_青年男声_中英文_普通话,
        凯瑟琳_青年女声_英语,
        亨利_青年男声_英语,
        玛丽_青年女声_英语,
        小研_青年女声_中英文_普通话,
        小琪_青年女声_中英文_普通话,
        小峰_青年男声_中英文_普通话,
        小梅_青年女声_中英文_粤语,
        小莉_青年女声_中英文_台普,
        小蓉_青年女声_汉语_四川话,
        小芸_青年女声_汉语_东北话,
        小坤_青年男声_汉语_河南话,
        小强_青年男声_汉语_湖南话,
        小莹_青年女声_汉语_陕西话,
        小新_童年男声_汉语_普通话,
        楠楠_童年女声_汉语_普通话,
        老孙_老年男声_汉语_普通话
    }

    public enum SynthStatus
    {
        MSP_TTS_FLAG_STILL_HAVE_DATA = 1,
        MSP_TTS_FLAG_DATA_END = 2,
        MSP_TTS_FLAG_CMD_CANCELED = 0
    }
    #endregion
    public class mscdll
    {

        #region TTS dll import

		[DllImport("msc_x64", CallingConvention = CallingConvention.StdCall)]
		public static extern int MSPLogin(string usr, string pwd, string parameters);

		[DllImport("msc_x64", CallingConvention = CallingConvention.Winapi)]
        public static extern int MSPLogout();

		[DllImport("msc_x64", CallingConvention = CallingConvention.Winapi)]
        public static extern IntPtr QTTSSessionBegin(string _params, ref int errorCode);

		[DllImport("msc_x64", CallingConvention = CallingConvention.Winapi)]
        public static extern int QTTSTextPut(string sessionID, string textString, uint textLen, string _params);

		[DllImport("msc_x64", CallingConvention = CallingConvention.Winapi)]
        public static extern IntPtr QTTSAudioGet(string sessionID, ref uint audioLen, ref SynthStatus synthStatus, ref int errorCode);

		[DllImport("msc_x64", CallingConvention = CallingConvention.Winapi)]
        public static extern IntPtr QTTSAudioInfo(string sessionID);

		[DllImport("msc_x64", CallingConvention = CallingConvention.Winapi)]
        public static extern int QTTSSessionEnd(string sessionID, string hints);
        #endregion
    }
}

4、unity端输入截屏:

5、合成的音频文件在项目的根目录下:

最后总结一下自己遇到的错误:

1、登录失败:

原因1:MCS与APPID不匹配

原因2:语音识别过程中出错,没有正常退出登录,此时需要重启unity(大多数是这个原因)

2、中文乱码问题:刚开始没选择编码方式,结果中文识别乱码,然后选择utf8编码方式,正确合成语音

3、最大的问题,至今没解决,unity端合成中文缺少最后面一部分,英文和数字正常,在单独的C#端也正常

解决办法:如果要合成中文,有多少中文汉字就在句子后面加多少个空格(这种解决办法很不理想,但至今没找到合理的办法)

欢迎提问,顺便考虑下解决问题3

demo地址:https://download.youkuaiyun.com/download/hyy_sui_yuan/10654175

评论 30
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
