PeerAuthentication详解

 欢迎关注我的公众号：

 目前刚开始写一个月，一共写了18篇原创文章，文章目录如下：

istio多集群探秘，部署了50次多集群后我得出的结论

istio多集群链路追踪，附实操视频

istio防故障利器，你知道几个,istio新手不要读，太难！

istio业务权限控制，原来可以这么玩

istio实现非侵入压缩，微服务之间如何实现压缩

不懂envoyfilter也敢说精通istio系列-http-rbac-不要只会用AuthorizationPolicy配置权限

不懂envoyfilter也敢说精通istio系列-02-http-corsFilter-不要只会vs

不懂envoyfilter也敢说精通istio系列-03-http-csrf filter-再也不用再代码里写csrf逻辑了

不懂envoyfilter也敢说精通istio系列http-jwt_authn-不要只会RequestAuthorization

不懂envoyfilter也敢说精通istio系列-05-fault-filter-故障注入不止是vs

不懂envoyfilter也敢说精通istio系列-06-http-match-配置路由不只是vs

不懂envoyfilter也敢说精通istio系列-07-负载均衡配置不止是dr

不懂envoyfilter也敢说精通istio系列-08-连接池和断路器

不懂envoyfilter也敢说精通istio系列-09-http-route filter

不懂envoyfilter也敢说精通istio系列-network filter-redis proxy

不懂envoyfilter也敢说精通istio系列-network filter-HttpConnectionManager

不懂envoyfilter也敢说精通istio系列-ratelimit-istio ratelimit完全手册

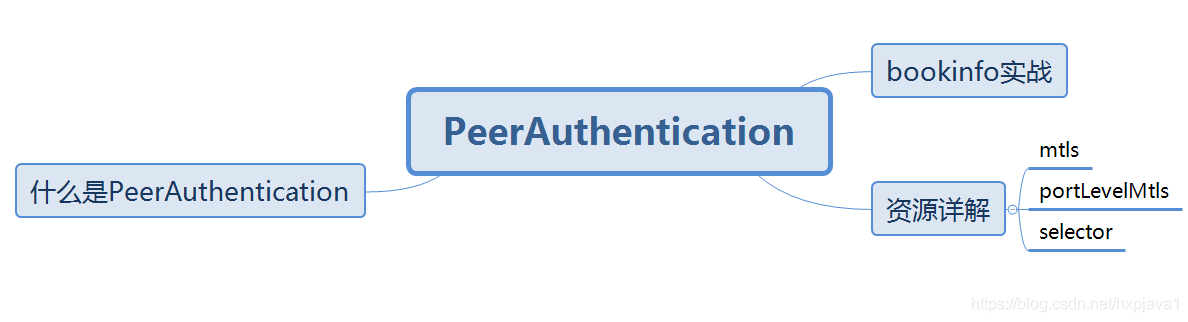

学习目标

什么是PeerAuthentication

PeerAuthentication defines how traffic will be（mtls） tunneled (or not) to the sidecar.

资源详解

Field	Type	Description	Required
selector	WorkloadSelector	The selector determines the workloads to apply the ChannelAuthentication on. If not set, the policy will be applied to all workloads in the same namespace as the policy.	No
mtls	MutualTLS	Mutual TLS settings for workload. If not defined, inherit from parent.	No
portLevelMtls	map	Port specific mutual TLS settings.	No

没有selector

全局有效

pa-default-global.yaml

apiVersion: security.istio.io/v1beta1
kind: PeerAuthentication
metadata:
  name: default
  namespace: istio-system
spec:
  mtls:
    mode: STRICT

For mesh level, put the policy in root-namespace according to your Istio installation.

默认工作负载都启用mtls

关闭productpage mtls

dr-productpage-mtls-disable.yaml

apiVersion: networking.istio.io/v1beta1
kind: DestinationRule
metadata:
  name: productpage
spec:
  host: productpage
  subsets:
  - labels:
      version: v1
    name: v1
  trafficPolicy:
    tls:
      mode: DISABLE

访问失败

名称空间有效

pa-default.yaml

apiVersion: security.istio.io/v1beta1
kind: PeerAuthentication
metadata:
  name: default
spec:
  mtls:
    mode: STRICT

selector

pa-productpage-selector.yaml

apiVersion: security.istio.io/v1beta1
kind: PeerAuthentication
metadata:
  name: productpage
spec:
  selector:
    matchLabels:
      app: productpage
  mtls:
    mode: STRICT

mtls

PeerAuthentication.MutualTLS.Mode

Name	Description
UNSET	Inherit from parent, if has one. Otherwise treated as PERMISSIVE.
DISABLE	Connection is not tunneled.
PERMISSIVE	Connection can be either plaintext or mTLS tunnel.
STRICT	Connection is an mTLS tunnel (TLS with client cert must be presented).

mode

UNSET

pa-productpage-mode-UNSET.yaml

apiVersion: security.istio.io/v1beta1
kind: PeerAuthentication
metadata:
  name: productpage
spec:
  selector:
    matchLabels:
      app: productpage
  mtls:
    mode: UNSET

DISABLE

pa-productpage-mode-DISABLE.yaml

apiVersion: security.istio.io/v1beta1
kind: PeerAuthentication
metadata:
  name: productpage
spec:
  selector:
    matchLabels:
      app: productpage
  mtls:
    mode: DISABLE

PERMISSIVE

pa-productpage-mode-PERMISSIVE.yaml

apiVersion: security.istio.io/v1beta1
kind: PeerAuthentication
metadata:
  name: productpage
spec:
  selector:
    matchLabels:
      app: productpage
  mtls:
    mode: PERMISSIVE

STRICT

pa-productpage-mode-STRICT.yaml

apiVersion: security.istio.io/v1beta1
kind: PeerAuthentication
metadata:
  name: productpage
spec:
  selector:
    matchLabels:
      app: productpage
  mtls:
    mode: STRICT

portLevelMtls

pa-productpage-portLevelMtls.yaml

apiVersion: security.istio.io/v1beta1
kind: PeerAuthentication
metadata:
  name: productpage
spec:
  selector:
    matchLabels:
      app: productpage
  mtls:
    mode: STRICT
  portLevelMtls:
    9080:
      mode: DISABLE
