现在趋向于前台和后台分层开发

前端调用后台接口获取数据,然后在页面展示.

但是有时候前台(静态资源)和后台联调时很麻烦:

(1)后台依赖协作方,里面的内容很难遍历各种情况;

(2)后台的数据修改起来很麻烦,因为我们没法直接修改数据库,因为数据库在协作方那里.

所以我想到了一个解决方法:stub

stub,说白了,就是造假数据

当然假数据符合协作方的API文档规范

因为通常情况下,需求出来后,协作方接口正在开发,但是我们应用需要调用协作方接口进行开发

但是总不能等着他们开发完成吧

所以让他们先出API文档,然后我们根据API文档搞假数据来开发

先看下我是如何操作的.

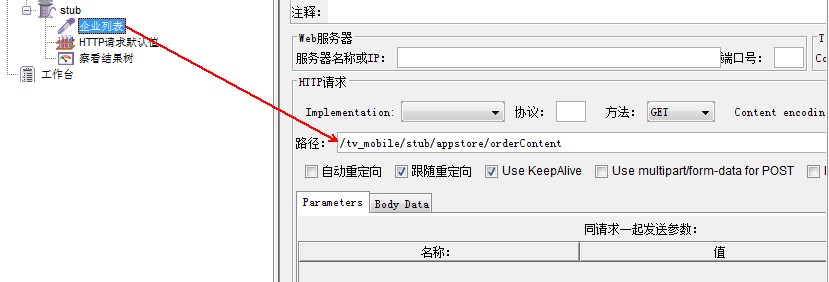

我使用JMeter进行接口测试

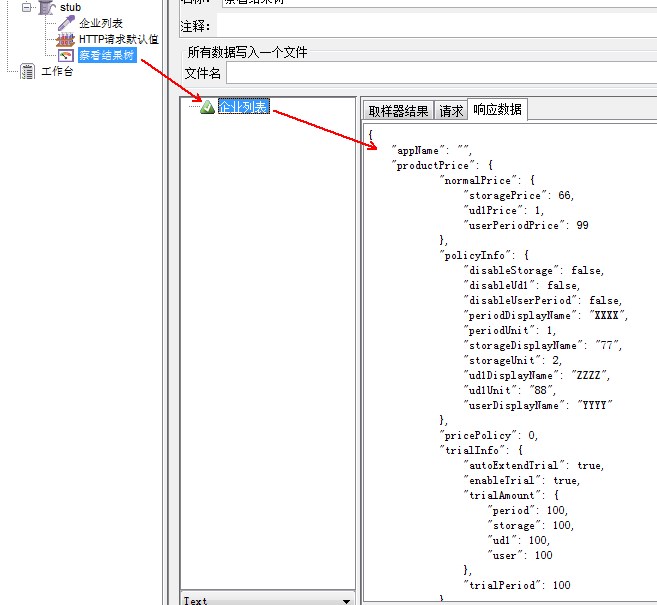

执行结果如下:

但是,你们知道返回的数据来自哪里吗?

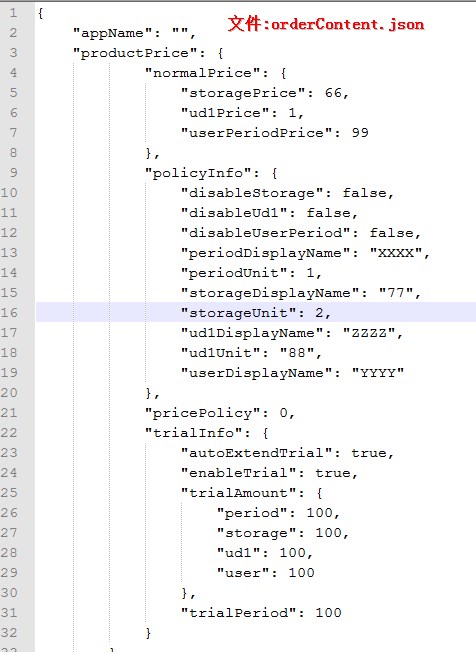

来自于如下文件:

orderContent.json的内容就是返回结果:

所以你想要返回什么内容,就可以直接修改对应的.json 文件.

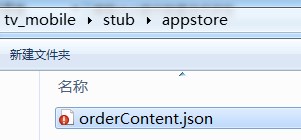

规范:

比如你访问路径:/tv_mobile/stub/appstore/orderContent

那么stub目录下面一定有一个文件夹叫appstore,appstore 下面一定有一个文件orderContent.json

再比如你访问路径:/tv_mobile/stub/orgList

那么stub目录下面一定有一个文件叫orgList.json

项目使用spring MVC 框架

核心控制器:

package com.web.controller.comm;

import java.io.FileInputStream;
import java.io.IOException;

import javax.servlet.http.HttpServletRequest;

import org.apache.log4j.Logger;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;

import com.common.util.SystemHWUtil;
import com.common.util.WebServletUtil;
import com.io.hw.file.util.FileUtils;
import com.util.JSONPUtil;

/***
 * 用于stub
 *
 * @author huangweii 2015年5月29日
 */
@Controller
@RequestMapping("/stub")
public class StubController {
	protected Logger logger = Logger.getLogger(this.getClass());
	public static final String stub_folder = "stub/";
	public static final String stub_file_Suffix = ".json";

	/***
	 *
	 * @param request
	 * @param action
	 * @param callback
	 * @return
	 */
	@ResponseBody
	@RequestMapping(value = "/{action}", produces = SystemHWUtil.RESPONSE_CONTENTTYPE_JSON_UTF)
	public String corsJsonSimple(HttpServletRequest request,
			@PathVariable String action, String callback) {
		String content = null;
		content = stub(request, stub_folder + action + stub_file_Suffix);
		return JSONPUtil.getJsonP(content, callback);
	}

	/***
	 *
	 * @param request
	 * @param namespace
	 * @param action
	 * @param callback
	 * @return
	 */
	@ResponseBody
	@RequestMapping(value = "/{namespace}/{action}", produces = SystemHWUtil.RESPONSE_CONTENTTYPE_JSON_UTF)
	public String corsJsonSimple(HttpServletRequest request,
			@PathVariable String namespace, @PathVariable String action,
			String callback) {
		String content = null;
		content = stub(request, stub_folder + namespace + "/" + action
				+ stub_file_Suffix);
		return JSONPUtil.getJsonP(content, callback);
	}
	private String stub(HttpServletRequest request, String path) {
		return stub(request, path, SystemHWUtil.CURR_ENCODING);
	}
	/***
	 * 读取文件
	 * @param request
	 * @param path
	 * @param charset
	 * @return
	 */
	private String stub(HttpServletRequest request, String path,String charset) {
		String content = null;
		try {
			String realPath2 = WebServletUtil.getRealPath(request, path);
			java.io.InputStream input = new FileInputStream(realPath2);
			content = FileUtils.getFullContent2(input,charset);
		} catch (java.io.FileNotFoundException ex) {
			ex.printStackTrace();
		} catch (IOException e) {
			e.printStackTrace();
		}
		return content;
	}

}

核心方法:

/**
	 * 获取相对地址的绝对地址
	 *
	 * @param request
	 * @param relativePath
	 * @return
	 */
	public static String getRealPath(HttpServletRequest request, String relativePath) {
		return request.getSession().getServletContext().getRealPath(relativePath);
	}

--------控制器更新了 2016-01-24--------

package oa.web.controller.common;

import com.common.util.SystemHWUtil;
import com.common.util.WebServletUtil;
import com.io.hw.file.util.FileUtils;
import com.io.hw.json.HWJacksonUtils;
import com.string.widget.util.ValueWidget;
import org.apache.log4j.Logger;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;

import javax.servlet.http.HttpServletRequest;
import java.io.FileInputStream;
import java.io.IOException;

/***
 * 用于stub
 *
 * @author huangweii 2015年5月29日
 */
@Controller
@RequestMapping("/stub")
public class StubController {
    public static final String stub_folder = "stub/";
    public static final String stub_file_Suffix = ".json";
    protected Logger logger = Logger.getLogger(this.getClass());

    /***
     * @param request
     * @param action
     * @param callback
     * @return
     */
    @ResponseBody
    @RequestMapping(value = "/{action}", produces = SystemHWUtil.RESPONSE_CONTENTTYPE_JSON_UTF)
    public String corsJsonSimple(HttpServletRequest request,
                                 @PathVariable String action, String callback, String charset) {
        return stubAction(request, stub_folder + action + stub_file_Suffix, callback, charset);
    }

    /***
     * @param request
     * @param namespace
     * @param action
     * @param callback
     * @return
     */
    @ResponseBody
    @RequestMapping(value = "/{namespace}/{action}", produces = SystemHWUtil.RESPONSE_CONTENTTYPE_JSON_UTF)
    public String corsJsonSimple(HttpServletRequest request,
                                 @PathVariable String namespace, @PathVariable String action,
                                 String callback
            , String charset) {
        return stubAction(request, stub_folder + namespace + "/" + action
                + stub_file_Suffix, callback, charset);
    }

    private String stubAction(HttpServletRequest request, String actionPath, String callback, String charset) {
        if (ValueWidget.isNullOrEmpty(charset)) {
            charset = SystemHWUtil.CURR_ENCODING;
        }
        String content = stub(request, actionPath, charset);
        logger.info(SystemHWUtil.CRLF + content);
        return HWJacksonUtils.getJsonP(content, callback);
    }


    @ResponseBody
    @RequestMapping(value = "/{group}/{namespace}/{action}", produces = SystemHWUtil.RESPONSE_CONTENTTYPE_JSON_UTF)
    public String stubAction(HttpServletRequest request,
                             @PathVariable String group,
                             @PathVariable String namespace, @PathVariable String action,
                             String callback
            , String charset) {
        return stubAction(request, stub_folder + group + "/" + namespace + "/" + action
                + stub_file_Suffix, callback, charset);
    }

    @ResponseBody
    @RequestMapping(value = "/{version}/{group}/{namespace}/{action}", produces = SystemHWUtil.RESPONSE_CONTENTTYPE_JSON_UTF)
    public String stubAction(HttpServletRequest request,
                             @PathVariable String version,
                             @PathVariable String group,
                             @PathVariable String namespace, @PathVariable String action,
                             String callback
            , String charset) {
        return stubAction(request, stub_folder + version + "/" + group + "/" + namespace + "/" + action
                + stub_file_Suffix, callback, charset);
    }

    private String stub(HttpServletRequest request, String path) {
        return stub(request, path, SystemHWUtil.CURR_ENCODING);
    }

    /***
     * 读取文件
     *
     * @param request
     * @param path
     * @param charset
     * @return
     */
    private String stub(HttpServletRequest request, String path, String charset) {
        String content = null;
        try {
            String realPath2 = WebServletUtil.getRealPath(request, path);
            java.io.InputStream input = new FileInputStream(realPath2);
            content = FileUtils.getFullContent2(input, charset, true);
        } catch (java.io.FileNotFoundException ex) {
            ex.printStackTrace();
        } catch (IOException e) {
            e.printStackTrace();
        }
        return content;
    }

}
