本文详细分析了Firefox OS中b2g进程的启动过程，从物理按键触发到b2g进程启动，再到libxul和b2g.js的加载。b2g进程在启动时进行XPCOM初始化，预加载动态链接库，并通过fork创建子进程Nuwa，为上层应用提供支持。整个流程涉及b2g.sh脚本、XPCOMGlueStartup、LoadLibxul等多个关键步骤。
之前看的是init到系统启动到system app再到system app 将其他核心应用启动起来的过程。那么支持上层应用的底层（gecko 层的这些组件又做了什么呢？）
启动过程总览：
物理按键---->固件（firmware）--->(加载/启动)内核（kernel）---->init进程--->解析init.rc/init.b2g.rc(有b2g.sh)---->b2g.sh--->system/b2g/b2g(可执行文件由gecko/b2g/...生成)--->(something i need to study now!!!)--->libxul(.so)--->b2g.js--->shell.html--->shell.js(SystemAppFrame(id=systemapp),load blank.html into this iframe)--->system app--->core app(homescreen ect...)
而另一条线即是，b2g(可执行文件被执行之后（b2g进程）做了哪些支撑工作)
b2g进程底层做的工作。
理清：
XPCOM的初始化，
以及如何支持上层的应用（有点大了）。
init进程启动许多进程，其中之一就是gecko的入口b2g,实际就是通过运行b2g.sh脚本执行了b2g可执行文件，b2g是gecko/b2g/app/B2GLoader.cpp编译生成的。
主要分析b2g进程做了什么，从而支撑上层应用正常运行。
gecko/xpcom/build/nsXULAppAPI.h
/**
* Begin an XUL application. Does not return until the user exits the
* application.
*
* @param argc/argv Command-line parameters to pass to the application. On
* Windows, these should be in UTF8. On unix-like platforms
* these are in the "native" character set.
*
* @param aAppData Information about the application to be run.
*
* @param aFlags Platform specific flags.
*
* @return A native result code suitable for returning from main().
*
* @note If the binary is linked against the standalone XPCOM glue,
* XPCOMGlueStartup() should be called before this method.
*/
XRE_API(int,
XRE_main, (int argc, char* argv[], const nsXREAppData* aAppData,
uint32_t aFlags))
XRE_API()定义在xrecore.h中
gecko/xpcom/build/xrecore.h
#include "nscore.h"
/**
* Import/export macros for libXUL APIs.
*/
#ifdef XPCOM_GLUE
#define XRE_API(type, name, params) \
typedef type (NS_FROZENCALL * name##Type) params; \
extern name##Type name NS_HIDDEN;
#elif defined(IMPL_LIBXUL)
#define XRE_API(type, name, params) EXPORT_XPCOM_API(type) name params;
#else
#define XRE_API(type, name, params) IMPORT_XPCOM_API(type) name params;
#endif
gecko/xpcom/base/nscore.h
/* Core XPCOM declarations. */
/*----------------------------------------------------------------------*/
/* Import/export defines */
...
#define EXPORT_XPCOM_API(type) NS_EXTERN_C NS_EXPORT type NS_FROZENCALL
#define IMPORT_XPCOM_API(type) NS_EXTERN_C NS_IMPORT type NS_FROZENCALL
#define GLUE_XPCOM_API(type) NS_EXTERN_C NS_HIDDEN_(type) NS_FROZENCALL
#ifdef IMPL_LIBXUL
#define XPCOM_API(type) EXPORT_XPCOM_API(type)
#elif defined(XPCOM_GLUE)
#define XPCOM_API(type) GLUE_XPCOM_API(type)
#else
#define XPCOM_API(type) IMPORT_XPCOM_API(type)
#endif
gecko/xpcom/build/nsXPCOMCID.h 定义XPCOM核心CID。
main 函数主要执行3个大模块的函数：
ReserveFileDescriptors(reservedFds);
bool ok = LoadStaticData(argc, argv);
return RunProcesses(argc, argv, reservedFds); b2g进程与Nuwa之间具体如何通过ipc进行 通信并使nuwa创建出新进程
（0）main()如下：
/**
* B2G Loader is responsible for loading the b2g process and the
* Nuwa process. It forks into the parent process, for the b2g
* process, and the child process, for the Nuwa process.
*
* The loader loads libxul and performs initialization of static data
* before forking, so relocation of libxul and static data can be
* shared between the b2g process, the Nuwa process, and the content
* processes.
*/
int
main(int argc, const char* argv[])
{
// argc :1
// argv :system/b2g/b2g
/**
* Reserve file descriptors before loading static data.
*/
FdArray reservedFds;
ReserveFileDescriptors(reservedFds);
/*
* Before fork(), libxul and static data of Gecko are loaded for
* sharing.
*/
bool ok = LoadStaticData(argc, argv);
if (!ok) {
return 255;
}
return RunProcesses(argc, argv, reservedFds);
}
（1） ReserveFileDescriptors(reservedFds);
保留文件描述符（5个吗）。为什么？以供后用？3-7？
（2） bool ok = LoadStaticData(argc, argv);
1.1 主要分析loadstaticdata部分，它是在runprocesses前要做的工作，主要是loadlibxul,和xre_procloaderpreload。前者load了libxul具体是去调xpcomglue相关的enablepreload,startup,loadxulfunction等，这几个的具体工作还需继续，总体来说就是执行了xpcom相关的几个重要函数。xre_procloaderpreload的主要任务则是在xpcom初始化之前加载好xpt接口信息。
加载固定的数据
static bool
LoadStaticData(int argc, const char *argv[])
{
P_LOGI( );
char xpcomPath[MAXPATHLEN];
bool ok = GetXPCOMPath(argv[0], xpcomPath, MAXPATHLEN);
NS_ENSURE_TRUE(ok, false);
ok = LoadLibxul(xpcomPath);
NS_ENSURE_TRUE(ok, false);
char progDir[MAXPATHLEN];
ok = GetDirnameSlash(xpcomPath, progDir, MAXPATHLEN);
NS_ENSURE_TRUE(ok, false);
nsCOMPtr<nsIFile> appini = GetAppIni(argc, argv);
const nsXREAppData *appData;
if (appini) {
nsresult rv =
XRE_CreateAppData(appini, const_cast<nsXREAppData**>(&appData));
NS_ENSURE_SUCCESS(rv, false);
} else {
appData = &sAppData;
}
XRE_ProcLoaderPreload(progDir, appData);
if (appini) {
XRE_FreeAppData(const_cast<nsXREAppData*>(appData));
}
return true;
}
LoadStaticData
主要看
{
ok = LoadLibxul(xpcomPath);
XRE_ProcLoaderPreload(progDir, appData);// toolkit/xre/nsEmbedFunctions.cpp and xpcom/build/nsXULAppAPI.h
}
XRE_ProcLoaderPreload()用于加载XPT接口模块库，PreloadXPT().
#ifdef MOZ_B2G_LOADER
extern const nsXREAppData* gAppData;
/**
* Preload static data of Gecko for B2G loader.
*
* This function is supposed to be called before XPCOM is initialized.
* For now, this function preloads
* - XPT interface Information
*/
void
XRE_ProcLoaderPreload(const char* aProgramDir, const nsXREAppData* aAppData)
{
void PreloadXPT(nsIFile *);
nsresult rv;
nsCOMPtr<nsIFile> omnijarFile;
rv = NS_NewNativeLocalFile(nsCString(aProgramDir),
true,
getter_AddRefs(omnijarFile));
MOZ_RELEASE_ASSERT(NS_SUCCEEDED(rv));
rv = omnijarFile->AppendNative(NS_LITERAL_CSTRING(NS_STRINGIFY(OMNIJAR_NAME)));
MOZ_RELEASE_ASSERT(NS_SUCCEEDED(rv));
/*
* gAppData is required by nsXULAppInfo. The manifest parser
* evaluate flags with the information from nsXULAppInfo.
*/
gAppData = aAppData;
PreloadXPT(omnijarFile);
gAppData = nullptr;
}
#endif /* MOZ_B2G_LOADER */

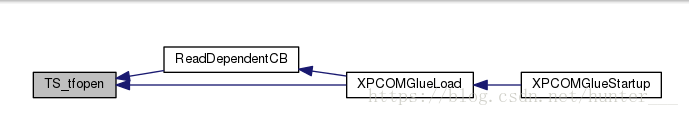

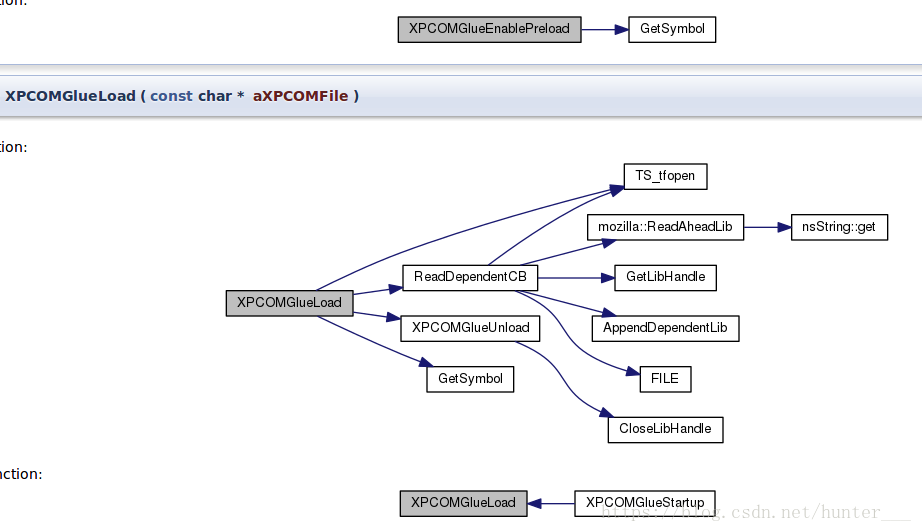

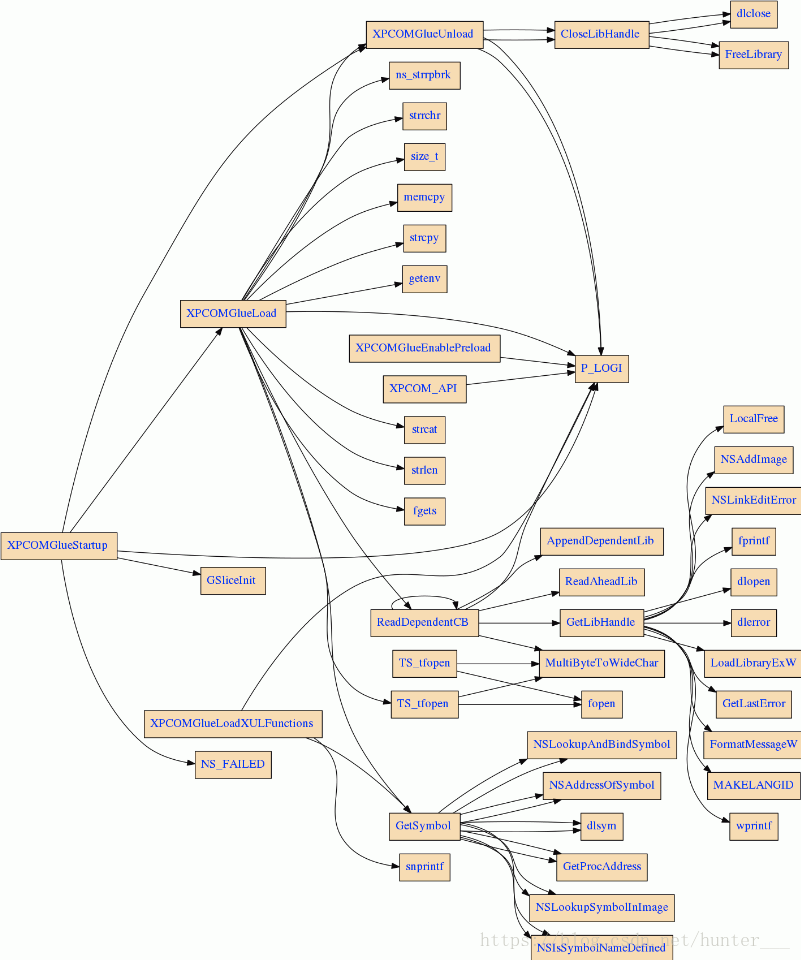

LoadLibxul:
#ifdef XPCOM_GLUE
/**
* The following functions are only available in the standalone glue.
*/
/**
* Enabled preloading of dynamically loaded libraries
*/
extern "C" NS_HIDDEN_(void) XPCOMGlueEnablePreload();
/**
* Initialize the XPCOM glue by dynamically linking against the XPCOM
* shared library indicated by xpcomFile.
*/
extern "C" NS_HIDDEN_(nsresult) XPCOMGlueStartup(const char* aXPCOMFile);
typedef void (*NSFuncPtr)();
struct nsDynamicFunctionLoad
{
const char* functionName;
NSFuncPtr* function;
};
/**

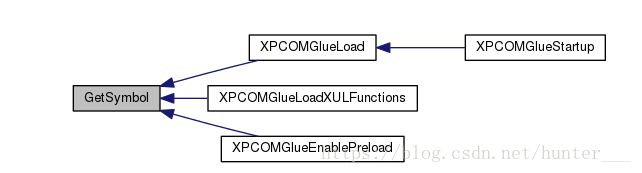

* Dynamically load functions from libxul.
*
* @throws NS_ERROR_NOT_INITIALIZED if XPCOMGlueStartup() was not called or
* if the libxul DLL was not found.
* @throws NS_ERROR_LOSS_OF_SIGNIFICANT_DATA if only some of the required
* functions were found.
*/
extern "C" NS_HIDDEN_(nsresult)
XPCOMGlueLoadXULFunctions(const nsDynamicFunctionLoad* aSymbols);
Enabled preloading of dynamically loaded libraries，使预加载动态链接库。
extern "C" NS_HIDDEN_(void) XPCOMGlueEnablePreload();
NS_HIDDEN_(nsresult) XPCOMGlueStartup(const char* aXPCOMFile);
通过动态链接XPCOM 共享库来初始化由xpcomFile指示的XPCOM glue。
sed -n 898,935p toolkit/xre/nsEmbedFunctions.cpp
#ifdef MOZ_B2G_LOADER
extern const nsXREAppData* gAppData;
/**
* Preload static data of Gecko for B2G loader.
*
* This function is supposed to be called before XPCOM is initialized.
* For now, this function preloads
* - XPT interface Information
*/
void
XRE_ProcLoaderPreload(const char* aProgramDir, const nsXREAppData* aAppData)
{
void PreloadXPT(nsIFile *);
nsresult rv;
nsCOMPtr<nsIFile> omnijarFile;
rv = NS_NewNativeLocalFile(nsCString(aProgramDir),
true,
getter_AddRefs(omnijarFile));
MOZ_RELEASE_ASSERT(NS_SUCCEEDED(rv));
rv = omnijarFile->AppendNative(NS_LITERAL_CSTRING(NS_STRINGIFY(OMNIJAR_NAME)));
MOZ_RELEASE_ASSERT(NS_SUCCEEDED(rv));
/*
* gAppData is required by nsXULAppInfo. The manifest parser
* evaluate flags with the information from nsXULAppInfo.
*/
gAppData = aAppData;
PreloadXPT(omnijarFile);
gAppData = nullptr;
}
#endif /* MOZ_B2G_LOADER */
（3）RunProcesses()如下：
1.1 主要分析runprocesses部分，runprocesses中xreprocloaderservicerun会被server process调用，当它接收到load请求时就会执行content process的主函数。而procloaderclientinit则是被b2g loader调用，用于初始化client 端，然后runprocesses调用b2g_main启动b2g进程。
目的：
/**
* Fork and run parent and child process.
* The parent is the b2g process and child for Nuwa.
*/
一开始就有一个进程？init？fork出b2g,b2g fork nuwa???who fork them? B2GLoader程序？
XRE_ProcLoaderServiceRun(getppid(), childSock, argc, argv,..);运行服务端进程(被server process 调用)（ipc/glue/ProcessUtils_linux.cpp）
XRE_ProcLoaderClientInit(childPid, parentSock, aReservedFds);客户端进程（b2g process）初始化
b2g_main(...);具体工作是：启动b2g 进程
static int
RunProcesses(int argc, const char *argv[], FdArray& aReservedFds)
{//fork process here
P_LOGI("enter RunProcesses");
/*
* The original main() of the b2g process. It is renamed to
* b2g_main() for the b2g loader.
*/
int b2g_main(int argc, const char *argv[]);//just define
//P_LOGI("call-e b2g_main");
int ipcSockets[2] = {-1, -1};
int r = socketpair(AF_LOCAL, SOCK_STREAM, 0, ipcSockets);
ASSERT(r == 0);
int parentSock = ipcSockets[0];
int childSock = ipcSockets[1];
r = fcntl(parentSock, F_SETFL, O_NONBLOCK);
ASSERT(r != -1);
r = fcntl(childSock, F_SETFL, O_NONBLOCK);
ASSERT(r != -1);
pid_t pid = fork();
ASSERT(pid >= 0);
bool isChildProcess = pid == 0;
close(isChildProcess ? parentSock : childSock);
if (isChildProcess) {
P_LOGI("isChildProcess is not null,return XRE_ProcLoaderServiceRun");
/* The Nuwa process */
/* This provides the IPC service of loading Nuwa at the process.
* The b2g process would send a IPC message of loading Nuwa
* as the replacement of forking and executing plugin-container.
*/
return XRE_ProcLoaderServiceRun(getppid(), childSock, argc, argv,
aReservedFds);
}
// Reap zombie child process.
struct sigaction sa;
sa.sa_handler = SIG_IGN;
sigemptyset(&sa.sa_mask);
sa.sa_flags = 0;
sigaction(SIGCHLD, &sa, nullptr);
// The b2g process
int childPid = pid;
P_LOGI("the b2g process pid:%d",pid);
//P_LOGI("call-s XRE_ProcLoaderClientIni");
XRE_ProcLoaderClientInit(childPid, parentSock, aReservedFds);
//from xpcom/build/nsXULAppAPI.h to load/define ipc client of the process?
//P_LOGI("call-e XRE_ProcLoaderClientInit");
P_LOGI("call-s b2g_main");
return b2g_main(argc, argv);
}
gecko/ipc/glue/ProcessUtils_linux.cpp
#ifdef MOZ_B2G_LOADER
void
XRE_ProcLoaderClientInit(pid_t aPeerPid, int aChannelFd, FdArray& aReservedFds)
{
// We already performed fork(). It's safe to free the "danger zone" of file
// descriptors .
mozilla::ipc::CloseFileDescriptors(aReservedFds);
mozilla::ipc::ProcLoaderClientInit(aPeerPid, aChannelFd);
}
int
XRE_ProcLoaderServiceRun(pid_t aPeerPid, int aFd,
int aArgc, const char *aArgv[],
FdArray& aReservedFds)
{
return mozilla::ipc::ProcLoaderServiceRun(aPeerPid, aFd,
aArgc, aArgv,
aReservedFds);
}
#endif /* MOZ_B2G_LOADER */

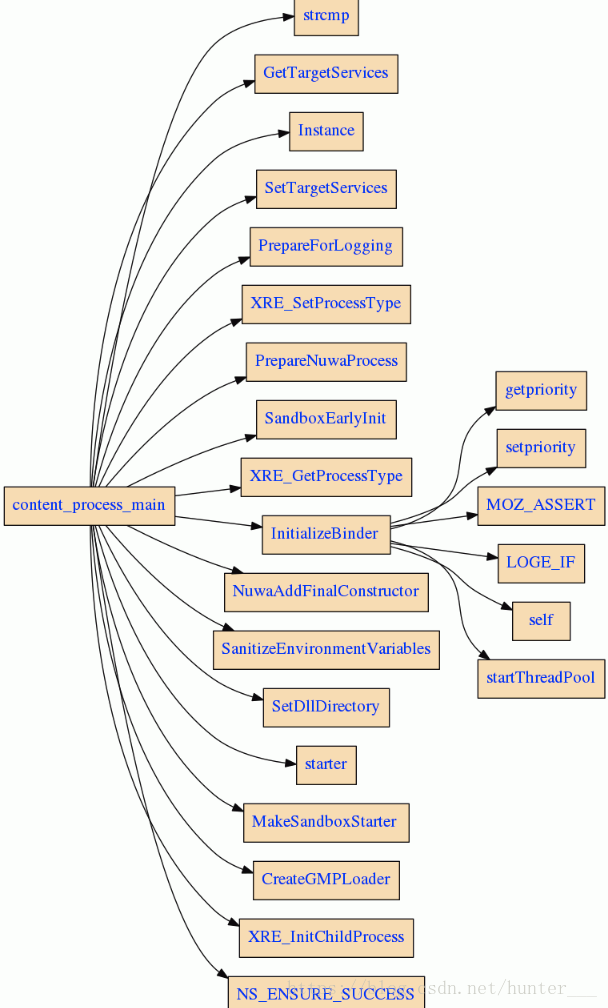

b2g loader 如何工作：
/**
* How does B2G Loader Work?
*
* <<parent process>> <<child process>>
* ProcLoaderParent -----> ProcLoaderChild
* ^ |
* | load() | content_process_main()
* | V
* ProcLoaderClient Nuwa/plugin-container
* ^
* | ProcLoaderLoad()
* ...
* ContentParent
*
*
* B2G loader includes an IPC protocol PProcLoader for communication
* between client (parent) and server (child). The b2g process is the
* client. It requests the server to load/start the Nuwa process with
* the given arguments, env variables, and file descriptors.
*
* ProcLoaderClientInit() is called by B2G loader to initialize the
* client side, the b2g process. Then the b2g_main() is called to
* start b2g process.
*
* ProcLoaderClientGeckoInit() is called by XRE_main() to create the
* parent actor, |ProcLoaderParent|, of PProcLoader for servicing the
* request to run Nuwa process later once Gecko has been initialized.
*
* ProcLoaderServiceRun() is called by the server process. It starts
* an IOThread and event loop to serve the |ProcLoaderChild|
* implmentation of PProcLoader protocol as the child actor. Once it
* recieves a load() request, it stops the IOThread and event loop,
* then starts running the main function of the content process with
* the given arguments.
*
* NOTE: The server process serves at most one load() request.
*/
目的：
/**
* Fork and run parent and child process.
* The parent is the b2g process and child for Nuwa.
*/
Runprocesses
{
return XRE_ProcLoaderServiceRun(getppid(), childSock, argc, argv,
aReservedFds);
XRE_ProcLoaderClientInit(childPid, parentSock, aReservedFds);
return b2g_main(argc, argv);
}
谁调了这个mian???
ipc/app/MozillaRuntimeMain.cpp
#include "../contentproc/plugin-container.cpp"
int
main(int argc, char *argv[]) {
return content_process_main(argc, argv);
}
plugin-container.cpp
conentprocessmain()
gecko/xpcom/glue/standalone/nsXPCOMGlue.cpp
LoadStaticData()--->Loadlibxul() ---->xpcomgluestartup()
参考：
写的很清楚：
Firefox OS启动过程分析－b2g进程启动
2015年09月16日 16:06:28
阅读数：1113
b2g启动时，运行”/system/b2g/b2g”，入口在”gecko/b2g/app/B2GLoader.cpp”中，如下：
int
main(int argc, const char* argv[])
{
/**
* Reserve file descriptors before loading static data.
*/
FdArray reservedFds;
ReserveFileDescriptors(reservedFds);
/*
* Before fork(), libxul and static data of Gecko are loaded for
* sharing.
*/
bool ok = LoadStaticData(argc, argv);
if (!ok) {
return 255;
}
return RunProcesses(argc, argv, reservedFds);代码执行流程如下所示：
main() (b2g/app/B2GLoader.cpp)
|
|-ReserveFileDescriptors
|
|-LoadStaticData
|
|-RunProcesses
|
|-fork
|
|-XRE_ProcLoaderServiceRun (child(nuwa) process)
|
|-b2g_main (parent(b2g) process) (b2g/app/nsBrowserApp.cpp)
|
|-android::ProcessState::self()->startThreadPool();
|
|-(void)setsid();
|
|-do_main
|
|-mozilla::StartBootAnimation();
|
|-XRE_main
|
|-XREMain::XRE_main
|
|-new ScopedAppData(aAppData);
|
|-XREMain::XRE_mainInit
|
|-XREMain::XRE_mainStartup
|
|-mScopedXPCOM = MakeUnique<ScopedXPCOMStartup>();
|
|-mScopedXPCOM->Initialize(); (toolkit/xre/nsAppRunner.cpp)
| |
| |-NS_InitXPCOM2 (xpcom/build/XPCOMInit.cpp)
| |
| |-sMessageLoop = new MessageLoopForUI(MessageLoop::TYPE_MOZILLA_UI);
| |
| |-ioThread = MakeUnique<BrowserProcessSubThread>(BrowserProcessSubThread::IO);
| |-ioThread->StartWithOptions
| |
| |-nsThreadManager::get()->Init();
| |
| |-nsTimerImpl::Startup();
| |
| |-nsComponentManagerImpl::gComponentManager = new nsComponentManagerImpl();
| |
| |-nsCycleCollector_init
| |
| |-nsCycleCollector_startup
| |
| |-JS_Init
| |
| |-nsComponentManagerImpl::gComponentManager->Init();(xpcom/components/nsComponentManager.cpp)
| | |
| | |-nsComponentManagerImpl::InitializeStaticModules()
| | |
| | |-RegisterModule(...)
| | |
| | |-greOmnijar =mozilla::Omnijar::GetReader(mozilla::Omnijar::GRE);
| | |
| | |-cl->location.Init(greOmnijar, "chrome.manifest");
| | |
| | |-nsComponentManagerImpl::RereadChromeManifests
| | |
| | |-nsComponentManagerImpl::RegisterManifest
| | |
| | |-DoRegisterManifest
| | |
| | |-ParseManifest
| | |
| | |-...
| | |
| | |-nsComponentManagerImpl::ManifestContract
| |
| |-XPTInterfaceInfoManager::GetSingleton();
| |
| |-nsDirectoryService::gService->RegisterCategoryProviders();
| |
| |-SharedThreadPool::InitStatics();
| |
| |-AbstractThread::InitStatics();
| |
| |-mozilla::scache::StartupCache::GetSingleton();
| |
| |-mozilla::AvailableMemoryTracker::Activate();
| |
| |-NS_CreateServicesFromCategory(...)
| |
| |-mozilla::HangMonitor::Startup();
| |
| |-mozilla::BackgroundHangMonitor::Startup();
| |
| |-sMainHangMonitor = new mozilla::BackgroundHangMonitor
|
|-XREMain::XRE_mainRun()
|
|-mozilla::ipc::ProcLoaderClientGeckoInit();
|
|-mScopedXPCOM->SetWindowCreator(mNativeApp);
|
|-startupNotifier->Observe(nullptr, APPSTARTUP_TOPIC, nullptr);
|
|-mDirProvider.DoStartup();
|
|-cmdLine->Init(...)
|
|-obsService->NotifyObservers(cmdLine, "command-line-startup", nullptr);
|
|-appStartup->CreateHiddenWindow();
|
|-obsService->NotifyObservers(nullptr, "final-ui-startup", nullptr);
|
|-cmdLine->Run(); (toolkit/components/commandlines/nsCommandLine.cpp)
| |
| |- nsCommandLine::EnumerateValidators
| |
| |-nsCommandLine::EnumerateHandlers
| |
| |-EnumRun
| |
| |-nsICommandLineHandler->Handle (first page will be loaded in here)
|
|-mNativeApp->Enable();
|
|-appStartup->Run(); (toolkit/components/startup/nsAppStartup.cpp)
|
|-mAppShell->Run(); (widget/gonk/nsAppShell.cpp->widget/nsBaseAppShell.cpp)
|
|-MessageLoop::current()->Run(); // run forever~~~~~
b2g进程启动中，会做以下几件事：
1. 在加载库文件之前保留5个文件描述符（从STDERR_FILENO+1开始）
FdArray reservedFds;
ReserveFileDescriptors(reservedFds);2.加载进程间能共享的各种数据（主要加载libxul等各种共享库，从Omnijar文件中加载各种模块的xpt信息），这样可以节约些内存。
bool ok = LoadStaticData(argc, argv);3.开始fork进程。父亲就是b2g进程，儿子就是nuwa进程（后续再讲）。其中b2g进程具有系统root权限，负责处理系统的io，显示，操作底层硬件等。
在b2g进程中运行后，需要初始化xpcom，即调用：
rv = NS_InitXPCOM2(&mServiceManager,gDirServiceProvider->GetAppDir(), gDirServiceProvider);最后，b2g进程会进入一个message loop中，等待处理各种请求：
appStartup->Run();Firefox OS中进程可以分为三类：b2g进程，nuwa进程，以及content进程。其中content进程都是由nuwa进程生成的（当然在nuwa进程未ready，但又需要fork进程的时候，有可能会由b2g进程直接生成）。
nuwa进程是如何创建新进程？b2g是如何加载第一个程序(system)的？后续文章中进行讲解。
个人分类： Gecko
扫一扫
618
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
