【Spring】【05】AOP底层实现

1.EnableAspectJAutoProxy开启AOP @Import引入AspectJAutoProxyRegistrar，AspectJAutoProxyRegistrar实现ImportBeanDefinitionRegistrar向IOC容器中注入BeanPostProcessor AnnotationAwareAspectJAutoProxyCreator

Springboot的化会通过AopAutoConfiguration自动注入

AopAutoConfiguration

@Configuration
@ConditionalOnClass({ EnableAspectJAutoProxy.class, Aspect.class, Advice.class,
		AnnotatedElement.class })
@ConditionalOnProperty(prefix = "spring.aop", name = "auto", havingValue = "true", matchIfMissing = true)
public class AopAutoConfiguration {

	@Configuration
	@EnableAspectJAutoProxy(proxyTargetClass = false)
	@ConditionalOnProperty(prefix = "spring.aop", name = "proxy-target-class", havingValue = "false", matchIfMissing = false)
	public static class JdkDynamicAutoProxyConfiguration {

	}

	@Configuration
	@EnableAspectJAutoProxy(proxyTargetClass = true)
	@ConditionalOnProperty(prefix = "spring.aop", name = "proxy-target-class", havingValue = "true", matchIfMissing = true)
	public static class CglibAutoProxyConfiguration {

	}
}

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Import(AspectJAutoProxyRegistrar.class)
public @interface EnableAspectJAutoProxy {


class AspectJAutoProxyRegistrar implements ImportBeanDefinitionRegistrar {

	@Override
	public void registerBeanDefinitions(
			AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) {

		AopConfigUtils.registerAspectJAnnotationAutoProxyCreatorIfNecessary(registry);
		。。。
	}
}

public abstract class AopConfigUtils {
	@Nullable
	public static BeanDefinition registerAspectJAnnotationAutoProxyCreatorIfNecessary(BeanDefinitionRegistry registry) {
		return registerAspectJAnnotationAutoProxyCreatorIfNecessary(registry, null);
	}

	@Nullable
	public static BeanDefinition registerAspectJAnnotationAutoProxyCreatorIfNecessary(BeanDefinitionRegistry registry,
			@Nullable Object source) {

		return registerOrEscalateApcAsRequired(AnnotationAwareAspectJAutoProxyCreator.class, registry, source);
	}
}

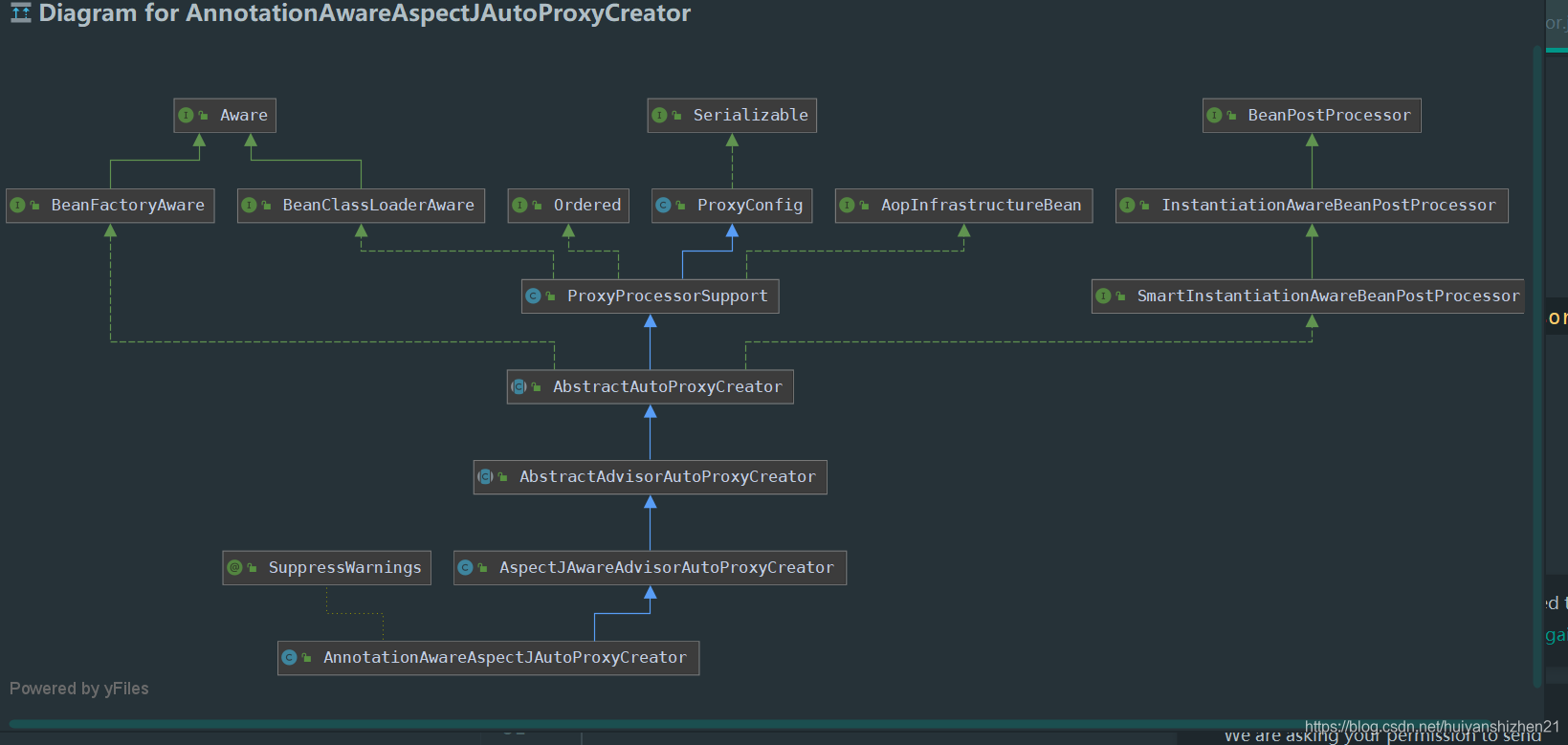

2.AnnotationAwareAspectJAutoProxyCreator

2.1AnnotationAwareAspectJAutoProxyCreator是InstantiationAwareBeanPostProcessor的子类，在bean实例化之前会调用postProcessBeforeInstantiation方法解析所有的切面注解，解析成顾问集合

public abstract class AbstractAutowireCapableBeanFactory extends AbstractBeanFactory
		implements AutowireCapableBeanFactory {
	@Override
	protected Object createBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)
			throws BeanCreationException {
createBean(java.lang.String, org.springframework.beans.factory.support.RootBeanDefinition, java.lang.Object[]){
	try {
			// Give BeanPostProcessors a chance to return a proxy instead of the target bean instance.
			Object bean = resolveBeforeInstantiation(beanName, mbdToUse);
			if (bean != null) {
				return bean;
			}
		}

}

    @Nullable
	protected Object resolveBeforeInstantiation(String beanName, RootBeanDefinition mbd) {
		Object bean = null;
		if (!Boolean.FALSE.equals(mbd.beforeInstantiationResolved)) {
			// Make sure bean class is actually resolved at this point.
			if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
				Class<?> targetType = determineTargetType(beanName, mbd);
				if (targetType != null) {
					bean = applyBeanPostProcessorsBeforeInstantiation(targetType, beanName);
					if (bean != null) {
						bean = applyBeanPostProcessorsAfterInitialization(bean, beanName);
					}
				}
			}
			mbd.beforeInstantiationResolved = (bean != null);
		}
		return bean;
	}

    @Nullable
	protected Object applyBeanPostProcessorsBeforeInstantiation(Class<?> beanClass, String beanName) {
		for (BeanPostProcessor bp : getBeanPostProcessors()) {
			if (bp instanceof InstantiationAwareBeanPostProcessor) {
				InstantiationAwareBeanPostProcessor ibp = (InstantiationAwareBeanPostProcessor) bp;
				Object result = ibp.postProcessBeforeInstantiation(beanClass, beanName);
				if (result != null) {
					return result;
				}
			}
		}
		return null;
	}
}

InstantiationAwareBeanPostProcessor
public abstract class AbstractAutoProxyCreator extends ProxyProcessorSupport
		implements SmartInstantiationAwareBeanPostProcessor, BeanFactoryAware {
	@Override
	public Object postProcessBeforeInstantiation(Class<?> beanClass, String beanName) throws BeansException {
		Object cacheKey = getCacheKey(beanClass, beanName);

		if (!StringUtils.hasLength(beanName) || !this.targetSourcedBeans.contains(beanName)) {
			if (this.advisedBeans.containsKey(cacheKey)) {
				return null;
			}
			if (isInfrastructureClass(beanClass) || shouldSkip(beanClass, beanName)) {
				this.advisedBeans.put(cacheKey, Boolean.FALSE);
				return null;
			}
		}
		...
	}

	protected boolean shouldSkip(Class<?> beanClass, String beanName) {
		return false;
	}
}
public class AspectJAwareAdvisorAutoProxyCreator extends AbstractAdvisorAutoProxyCreator {
	@Override
	protected boolean shouldSkip(Class<?> beanClass, String beanName) {
		// TODO: Consider optimization by caching the list of the aspect names
		List<Advisor> candidateAdvisors = findCandidateAdvisors();
		for (Advisor advisor : candidateAdvisors) {
			if (advisor instanceof AspectJPointcutAdvisor) {
				if (((AbstractAspectJAdvice) advisor.getAdvice()).getAspectName().equals(beanName)) {
					return true;
				}
			}
		}
		return super.shouldSkip(beanClass, beanName);
	}
}

2.2 AnnotationAwareAspectJAutoProxyCreator是BeanPostProcessor的子类， 在初始化方法调用之后执行postProcessAfterInitialization方法添加动态代理

org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#doCreateBean{
	Object exposedObject = bean;
	try {
		populateBean(beanName, mbd, instanceWrapper);
		exposedObject = initializeBean(beanName, exposedObject, mbd);
	}
}

org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#initializeBean
(java.lang.String, java.lang.Object, org.springframework.beans.factory.support.RootBeanDefinition){
	if (mbd == null || !mbd.isSynthetic()) {
		wrappedBean = applyBeanPostProcessorsAfterInitialization(wrappedBean, beanName);
	}
}


public abstract class AbstractAutoProxyCreator extends ProxyProcessorSupport
		implements SmartInstantiationAwareBeanPostProcessor, BeanFactoryAware {
	@Override
	public Object postProcessAfterInitialization(@Nullable Object bean, String beanName) throws BeansException {
		if (bean != null) {
			Object cacheKey = getCacheKey(bean.getClass(), beanName);
			if (!this.earlyProxyReferences.contains(cacheKey)) {
				return wrapIfNecessary(bean, beanName, cacheKey);
			}
		}
		return bean;
	}

	protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
		if (StringUtils.hasLength(beanName) && this.targetSourcedBeans.contains(beanName)) {
			return bean;
		}
		if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) {
			return bean;
		}
		if (isInfrastructureClass(bean.getClass()) || shouldSkip(bean.getClass(), beanName)) {
			this.advisedBeans.put(cacheKey, Boolean.FALSE);
			return bean;
		}

		// Create proxy if we have advice.
		Object[] specificInterceptors = getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, null);
		if (specificInterceptors != DO_NOT_PROXY) {
			this.advisedBeans.put(cacheKey, Boolean.TRUE);
			Object proxy = createProxy(
					bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));
			this.proxyTypes.put(cacheKey, proxy.getClass());
			return proxy;
		}

		this.advisedBeans.put(cacheKey, Boolean.FALSE);
		return bean;
	}


}

2.3AnnotationAwareAspectJAutoProxyCreator是SmartInstantiationAwareBeanPostProcessor的子类， 当碰到循环依赖的时候，三级缓存的回调方法中会被调用

org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#doCreateBean{
	// Eagerly cache singletons to be able to resolve circular references
	// even when triggered by lifecycle interfaces like BeanFactoryAware.
	boolean earlySingletonExposure = (mbd.isSingleton() && this.allowCircularReferences &&
			isSingletonCurrentlyInCreation(beanName));
	if (earlySingletonExposure) {
		if (logger.isDebugEnabled()) {
			logger.debug("Eagerly caching bean '" + beanName +
					"' to allow for resolving potential circular references");
		}
		addSingletonFactory(beanName, () -> getEarlyBeanReference(beanName, mbd, bean));
	}
}

org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#getEarlyBeanReference{
	Object exposedObject = bean;
	if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
		for (BeanPostProcessor bp : getBeanPostProcessors()) {
			if (bp instanceof SmartInstantiationAwareBeanPostProcessor) {
				SmartInstantiationAwareBeanPostProcessor ibp = (SmartInstantiationAwareBeanPostProcessor) bp;
				exposedObject = ibp.getEarlyBeanReference(exposedObject, beanName);
			}
		}
	}
	return exposedObject;
}

public class DefaultSingletonBeanRegistry extends SimpleAliasRegistry implements SingletonBeanRegistry {
	private final Map<String, ObjectFactory<?>> singletonFactories = new HashMap<>(16);
	org.springframework.beans.factory.support.DefaultSingletonBeanRegistry#getSingleton(java.lang.String, boolean){
		Object singletonObject = this.singletonObjects.get(beanName);
		if (singletonObject == null && isSingletonCurrentlyInCreation(beanName)) {
			synchronized (this.singletonObjects) {
				singletonObject = this.earlySingletonObjects.get(beanName);
				if (singletonObject == null && allowEarlyReference) {
					ObjectFactory<?> singletonFactory = this.singletonFactories.get(beanName);
					if (singletonFactory != null) {
						singletonObject = singletonFactory.getObject();
						this.earlySingletonObjects.put(beanName, singletonObject);
						this.singletonFactories.remove(beanName);
					}
				}
			}
		}
		return singletonObject;
	}
}
