mmap函数分析

• 一、内存使用方法

• 二、mmap的系统调用

一、内存使用方法

---

1.创建/删除内存映射

#include <sys/mman.h>
void *mmap(void *addr，size_t length，int prot，int flags，int fd，off_t offset);
int munmap(void *addr, size_t len);

mmap：进程创建匿名的内存映射，把内存的物理页映射到进程的虚拟地址空间。进程把文件映射到进程的虚拟地址空间，可以像访问内存一样访问文件，不需要调用系统调用read()/write()访问文件，从而避免用户模式和内核模式之间的切换，提高读写文件速度（感兴趣的可以搜索下“零拷贝机制”）。两个进程针对同一个文件创建共享的内存映射，实现共享内存。

mumap：该调用在进程地址空间中解除一个映射关系， addr 是调用 mmap() 时返回的地址， len 是映射区的大小。当映射关系解除后，对原来映射地址的访问将导致段错误发生。

2.设置虚拟内存区域的访问权限

#include <sys/mman.h>
int mprotect(void *addr, size_t len, int prot);

mprotect：把自 start 开始的、长度为 len 的内存区的保护属性修改为 prot 指定的值。 prot 可以取以下几个值，并且可以用“|”将几个属性合起来使用：

1）PROT_READ：表示内存段内的内容可写；

2）PROT_WRITE：表示内存段内的内容可读；

3）PROT_EXEC：表示内存段中的内容可执行；

4）PROT_NONE：表示内存段中的内容根本没法访问。

注意：指定的内存区间必须包含整个内存页（4K）。区间开始的地址 start 必须是一个内存页的起始地址，并且区间长度 len 必须是页大小的整数倍。

二、mmap的系统调用

---

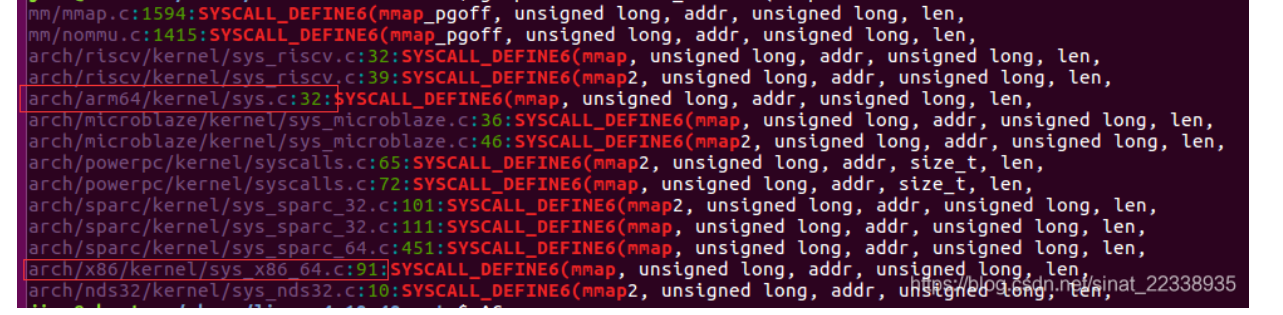

1. 查找mmap在内核中的系统调用函数 （ 基于4.19.40 ），首先在应用层参考上面解析编写一个mmap使用代码，然后编译成程序，在使用strace工具跟踪其函数调用，可以发现mmap也是调用底层的mmap系统调用，然后我们寻找一下底层的带6个参数的mmap系统调用有哪些：

可以看到，arm64和X86的系统调用位于不同文件。

1.mmap的系统调用 x86的位于arch/x86/kernel/sys_x86_64.c文件，如下所示：

SYSCALL_DEFINE6(mmap, unsigned long, addr, unsigned long, len,  unsigned long, prot, unsigned long, flags,  unsigned long, fd, unsigned long, off)
{
    long error;
    error = -EINVAL; //检查偏移是不是页的整数倍，如果不是页的整数倍，直接返回-EINVAL //如果是也得整数倍，那么把偏移转换成页为单位的偏移，然后继续往下走
     if (off & ~PAGE_MASK)
         goto out;
     error = ksys_mmap_pgoff(addr, len, prot, flags, fd, off >> PAGE_SHIFT);
out:
    return error;
}

arm64的位于arch/arm64/kernel/sys.c文件，如下所示：

SYSCALL_DEFINE6(mmap, unsigned long, addr, unsigned long, len,  unsigned long, prot, unsigned long, flags,  unsigned long, fd, off_t, off)
{ //检查偏移是不是页的整数倍，如果不是页的整数倍，直接返回-EINVAL //如果是也得整数倍，那么把偏移转换成页为单位的偏移，然后继续往下走
    if (offset_in_page(off) != 0)
        return -EINVAL;
    return ksys_mmap_pgoff(addr, len, prot, flags, fd, off >> PAGE_SHIFT);
}

然后都是进入ksys_mmap_pgoff：

unsigned long ksys_mmap_pgoff(unsigned long addr, unsigned long len,         unsigned long prot, unsigned long flags,         unsigned long fd, unsigned long pgoff)
{
     struct file *file = NULL;
     unsigned long retval;
     if (!(flags & MAP_ANONYMOUS)) {
      //如果不是匿名映射
      audit_mmap_fd(fd, flags);
      file = fget(fd);//文件映射，根据文件描述符在进程的打开文件表中找到file实例
      if (!file)
        return -EBADF;
      if (is_file_hugepages(file))
        len = ALIGN(len, huge_page_size(hstate_file(file)));
        retval = -EINVAL;
        if (unlikely(flags & MAP_HUGETLB && !is_file_hugepages(file)))
             goto out_fput;
     } else if (flags & MAP_HUGETLB) {
        //如果是匿名巨型页映射
        struct user_struct *user = NULL;
        struct hstate *hs;
        hs = hstate_sizelog((flags >> MAP_HUGE_SHIFT) & MAP_HUGE_MASK);
        if (!hs)
            return -EINVAL;
        len = ALIGN(len, huge_page_size(hs));
        /*   * VM_NORESERVE is used because the reservations will be   * taken when vm_ops->mmap() is called   * A dummy user value is used because we are not locking   * memory so no accounting is necessary   */
        //在hugetlbfs文件系统中创建文件“anon_hugepage”
        file = hugetlb_file_setup(HUGETLB_ANON_FILE, len,    VM_NORESERVE,    &user, HUGETLB_ANONHUGE_INODE,    (flags >> MAP_HUGE_SHIFT) & MAP_HUGE_MASK);
        if (IS_ERR(file))
            return PTR_ERR(file);
        }
         flags &= ~(MAP_EXECUTABLE | MAP_DENYWRITE);
        retval = vm_mmap_pgoff(file, addr, len, prot, flags, pgoff);
out_fput:
     if (file)
        fput(file);
    return retval;
}

然后进入vm_mmap_pgoff：

unsigned long vm_mmap_pgoff(struct file *file, unsigned long addr, unsigned long len, unsigned long prot, unsigned long flag, unsigned long pgoff)
{
    unsigned long ret;
    struct mm_struct *mm = current->mm;
    unsigned long populate;
    LIST_HEAD(uf);
    //初始化userfaultfd链表
    ret = security_mmap_file(file, prot, flag);
    //security linux安全相关的，一般不会开，返回值为0
    if (!ret) {
    if (down_write_killable(&mm->mmap_sem))//以写者身份申请读写信号量
        return -EINTR;
    ret = do_mmap_pgoff(file, addr, len, prot, flag, pgoff,//创建内存映射主要工作在此函数中进行
    &populate, &uf);
    up_write(&mm->mmap_sem);//释放读写信号量
    userfaultfd_unmap_complete(mm, &uf);//等待userfaultfd处理完成
    if (populate)
    mm_populate(ret, populate);//如果调用者要求把也锁定在内存中，或要求
    }
    return ret;
}

再来看下最重要的do_mmap_pgoff函数：

static inline unsigned longdo_mmap_pgoff(struct file *file, unsigned long addr, unsigned long len, unsigned long prot, unsigned long flags, unsigned long pgoff, unsigned long *populate, struct list_head *uf)
{
    return do_mmap(file, addr, len, prot, flags, 0, pgoff, populate, uf);
}

然后进入do_mmap：

/* * The caller must hold down_write(&current->mm->mmap_sem). */
unsigned long do_mmap(struct file *file, unsigned long addr,   unsigned long len, unsigned long prot,   unsigned long flags, vm_flags_t vm_flags,   unsigned long pgoff, unsigned long *populate,   struct list_head *uf)
{
    struct mm_struct *mm = current->mm;
    int pkey = 0;
    *populate = 0;
    if (!len)
        return -EINVAL;
   /*  * Does the application expect PROT_READ to imply PROT_EXEC?  *  * (the exception is when the underlying filesystem is noexec  *  mounted, in which case we dont add PROT_EXEC.)  */
    //如果进程带有READ_IMPLIES_EXEC标记且文件系统是可执行的，则这段内存空间使用READ的属性会附带增加EXEC属性。
     if ((prot & PROT_READ) && (current->personality & READ_IMPLIES_EXEC))
     if (!(file && path_noexec(&file->f_path)))
     prot |= PROT_EXEC;
    /* force arch specific MAP_FIXED handling in get_unmapped_area */
    if (flags & MAP_FIXED_NOREPLACE)  flags |= MAP_FIXED;
    //如果不是使用固定地址，则使用的addr会进行向下页对齐
    if (!(flags & MAP_FIXED))
     addr = round_hint_to_min(addr);
     /* Careful about overflows.. */
    len = PAGE_ALIGN(len);
    //申请内存大小页对齐
    if (!len)  return -ENOMEM;
    /* offset overflow? */
    if ((pgoff + (len >> PAGE_SHIFT)) < pgoff)//判断申请的内存是否溢出
        return -EOVERFLOW;
    /* Too many mappings? */
    if (mm->map_count > sysctl_max_map_count)//判断内存映射次数是否达到上限
        return -ENOMEM;
    /* Obtain the address to map to. we verify (or select) it and ensure  * that it represents a valid section of the address space.  */
    addr = get_unmapped_area(file, addr, len, pgoff, flags);//获取未映射的地址空间并且验证它
    if (offset_in_page(addr))
        return addr;
    if (flags & MAP_FIXED_NOREPLACE) {
        struct vm_area_struct *vma = find_vma(mm, addr);
        if (vma && vma->vm_start < addr + len)   return -EEXIST;
     }
    if (prot == PROT_EXEC) {
        pkey = execute_only_pkey(mm);
        if (pkey < 0)   pkey = 0;
    }
/* Do simple checking here so the lower-level routines won't have  * to. we assume access permissions have been handled by the open  * of the memory object, so we don't do any here.  */
     //计算虚拟内存的标志并且下面做一些简单的检查
    vm_flags |= calc_vm_prot_bits(prot, pkey) | calc_vm_flag_bits(flags) |   mm->def_flags | VM_MAYREAD | VM_MAYWRITE | VM_MAYEXEC;
    if (flags & MAP_LOCKED)
        if (!can_do_mlock())
            return -EPERM;
    if (mlock_future_check(mm, vm_flags, len))
        return -EAGAIN;
    //从下面的代码可以看到，各种映射之间，主要是vm_flag之间的差别
    if (file) {
        struct inode *inode = file_inode(file);
        unsigned long flags_mask;
        if (!file_mmap_ok(file, inode, pgoff, len))
            return -EOVERFLOW;
        flags_mask = LEGACY_MAP_MASK | file->f_op->mmap_supported_flags;
        switch (flags & MAP_TYPE) {
            case MAP_SHARED:
/*    * Force use of MAP_SHARED_VALIDATE with non-legacy    * flags. E.g. MAP_SYNC is dangerous to use with    * MAP_SHARED as you don't know which consistency model    * you will get. We silently ignore unsupported flags    * with MAP_SHARED to preserve backward compatibility.    */
                flags &= LEGACY_MAP_MASK;
                /* fall through */
            case MAP_SHARED_VALIDATE:
                if (flags & ~flags_mask)
                    return -EOPNOTSUPP;
                if ((prot&PROT_WRITE) && !(file->f_mode&FMODE_WRITE))
                    return -EACCES;
  /*    * Make sure we don't allow writing to an append-only    * file..    */
                if (IS_APPEND(inode) && (file->f_mode & FMODE_WRITE))
                    return -EACCES;
 /*    * Make sure there are no mandatory locks on the file.    */
                if (locks_verify_locked(file))
                    return -EAGAIN;
                vm_flags |= VM_SHARED | VM_MAYSHARE;
                if (!(file->f_mode & FMODE_WRITE))
                    vm_flags &= ~(VM_MAYWRITE | VM_SHARED);
        /* fall through */
            case MAP_PRIVATE:
                if (!(file->f_mode & FMODE_READ))
                    return -EACCES;
                if (path_noexec(&file->f_path)) {
                     if (vm_flags & VM_EXEC)
                        return -EPERM;
                    vm_flags &= ~VM_MAYEXEC;
                 }
                if (!file->f_op->mmap)
                    return -ENODEV;
                if (vm_flags & (VM_GROWSDOWN|VM_GROWSUP))
                    return -EINVAL;
                    break;
            default:
                return -EINVAL;
             }
        } else {
        switch (flags & MAP_TYPE) {
            case MAP_SHARED:
                if (vm_flags & (VM_GROWSDOWN|VM_GROWSUP))
                    return -EINVAL;
            /*    * Ignore pgoff.    */
                 pgoff = 0;
                vm_flags |= VM_SHARED | VM_MAYSHARE;
                 break;
            case MAP_PRIVATE:
            /*    * Set pgoff according to addr for anon_vma.    */
                pgoff = addr >> PAGE_SHIFT;
                 break;
            default:
                return -EINVAL;
            }
        }
     /*  * Set 'VM_NORESERVE' if we should not account for the  * memory use of this mapping.  */
       if (flags & MAP_NORESERVE) {
         /* We honor MAP_NORESERVE if allowed to overcommit */
             if (sysctl_overcommit_memory != OVERCOMMIT_NEVER)
                vm_flags |= VM_NORESERVE;
         /* hugetlb applies strict overcommit unless MAP_NORESERVE */
            if (file && is_file_hugepages(file))
                vm_flags |= VM_NORESERVE;
         }
        addr = mmap_region(file, addr, len, vm_flags, pgoff, uf);//真正创建虚拟内存区域
         if (!IS_ERR_VALUE(addr) &&     ((vm_flags & VM_LOCKED) ||      (flags & (MAP_POPULATE | MAP_NONBLOCK)) == MAP_POPULATE))
             *populate = len;
        return addr;
}

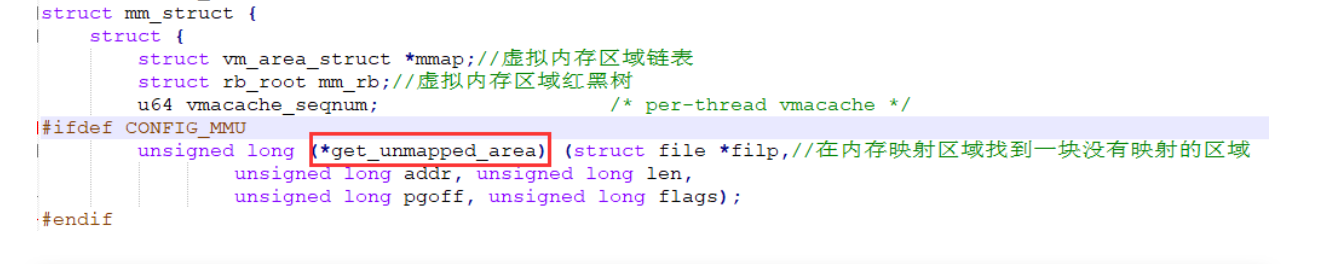

do_mmap_pgoff这个函数主要做了两件事，get_unmapped_area获取未映射地址，mmap_region映射。 先看下get_unmapped_area ，他是先找到mm_struct的get_unmapped_area成员，再去执行他：

unsigned longget_unmapped_area(struct file *file, unsigned long addr, unsigned long len,  unsigned long pgoff, unsigned long flags)
{
    ......
    get_area = current->mm->get_unmapped_area;
    ......
    addr = get_area(file, addr, len, pgoff, flags);
    ......
}

再看mmap_region的实现：

unsigned long mmap_region(struct file *file, unsigned long addr,  unsigned long len, vm_flags_t vm_flags, unsigned long pgoff,  struct list_head *uf)
{
       struct mm_struct *mm = current->mm;
       struct vm_area_struct *vma, *prev;
       int error;
       struct rb_node **rb_link, *rb_parent;
       unsigned long charged = 0;
       /* Check against address space limit. */ //检查进程虚拟内存限制
       if (!may_expand_vm(mm, vm_flags, len >> PAGE_SHIFT)) {
            unsigned long nr_pages;
        /*   * MAP_FIXED may remove pages of mappings that intersects with   * requested mapping. Account for the pages it would unmap.   */
            nr_pages = count_vma_pages_range(mm, addr, addr + len);
            if (!may_expand_vm(mm, vm_flags,     (len >> PAGE_SHIFT) - nr_pages))
            return -ENOMEM;
}
        /* Clear old maps */
    //检查是否和旧的虚拟内存区域有重叠并且把重叠部分释放掉
    while (find_vma_links(mm, addr, addr + len, &prev, &rb_link,         &rb_parent)) {
     if (do_munmap(mm, addr, len, uf))
         return -ENOMEM;
 }
    /*  * Private writable mapping: check memory availability  */
    //如果有私有的可写的内存映射，可以先修改标志位
    if (accountable_mapping(file, vm_flags)) {
        charged = len >> PAGE_SHIFT;
        if (security_vm_enough_memory_mm(mm, charged))
            return -ENOMEM;
        vm_flags |= VM_ACCOUNT; }
    /*  * Can we just expand an old mapping?  */
    //如果可以和已有的虚拟内存合并，则合并并且使用该vma，然后结束
    vma = vma_merge(mm, prev, addr, addr + len, vm_flags,   NULL, file, pgoff, NULL, NULL_VM_UFFD_CTX);
    if (vma)
        goto out;
    //如果不可以合并，继续往下走
 /*  * Determine the object being mapped and call the appropriate  * specific mapper. the address has already been validated, but  * not unmapped, but the maps are removed from the list.  */
    //创建一个虚拟内存区域，也就是申请一个vma
    vma = vm_area_alloc(mm);
    if (!vma) {
        error = -ENOMEM;
        goto unacct_error;
}
    vma->vm_start = addr;
    vma->vm_end = addr + len;
    vma->vm_flags = vm_flags;
    vma->vm_page_prot = vm_get_page_prot(vm_flags);
    vma->vm_pgoff = pgoff;
    if (file) {
    //文件映射
    if (vm_flags & VM_DENYWRITE) {
        error = deny_write_access(file);
        if (error)
            goto free_vma;
    }
    if (vm_flags & VM_SHARED) {
         error = mapping_map_writable(file->f_mapping);
        if (error)
            goto allow_write_and_free_vma;
        }
       /* ->mmap() can change vma->vm_file, but must guarantee that   * vma_link() below can deny write-access if VM_DENYWRITE is set   * and map writably if VM_SHARED is set. This usually means the   * new file must not have been exposed to user-space, yet.   */
     vma->vm_file = get_file(file);
     error = call_mmap(file, vma);
    //调用文件系统提供的文件映射函数
    if (error)
        goto unmap_and_free_vma;
    /* Can addr have changed??   *   * Answer: Yes, several device drivers can do it in their   *       f_op->mmap method. -DaveM   * Bug: If addr is changed, prev, rb_link, rb_parent should   *      be updated for vma_link()   */
     WARN_ON_ONCE(addr != vma->vm_start);
    //文件系统提供的文件映射函数可能会修改映射的一些参数。在这里需要在调用vma_link前回置
    addr = vma->vm_start;  vm_flags = vma->vm_flags;
    } else if (vm_flags & VM_SHARED) {
      //匿名映射
    error = shmem_zero_setup(vma);
    //这里是映射到了/dev/zero这个文件，很巧妙，不需要提前将页面清0
    if (error)
        goto free_vma;
    } else {
        vma_set_anonymous(vma);
     }
    vma_link(mm, vma, prev, rb_link, rb_parent);
    //将vma链接回进程的mm_struct结构体中 /* Once vma denies write, undo our temporary denial count */
    if (file) {
        if (vm_flags & VM_SHARED)
            mapping_unmap_writable(file->f_mapping);
        if (vm_flags & VM_DENYWRITE)
            allow_write_access(file);
     }
    file = vma->vm_file;
    out:
    perf_event_mmap(vma);
    //perf在这里安插了个event
    vm_stat_account(mm, vm_flags, len >> PAGE_SHIFT);
    //进程内存状态统计，在开启了proc才会有
    if (vm_flags & VM_LOCKED) {
        if ((vm_flags & VM_SPECIAL) || vma_is_dax(vma) ||     is_vm_hugetlb_page(vma) ||     vma == get_gate_vma(current->mm))   vma->vm_flags &= VM_LOCKED_CLEAR_MASK;
        else
            mm->locked_vm += (len >> PAGE_SHIFT);
     }
    if (file)
        uprobe_mmap(vma);
/*  * New (or expanded) vma always get soft dirty status.  * Otherwise user-space soft-dirty page tracker won't  * be able to distinguish situation when vma area unmapped,  * then new mapped in-place (which must be aimed as  * a completely new data area).  */
    vma->vm_flags |= VM_SOFTDIRTY;
   //设置标志位为脏状态
    vma_set_page_prot(vma);//新映射的区域必须将其设置为一个全新的数据区域（脏）
        return addr;
unmap_and_free_vma:
    vma->vm_file = NULL;
    fput(file);
/* Undo any partial mapping done by a device driver. */
    unmap_region(mm, vma, prev, vma->vm_start, vma->vm_end);
    charged = 0;
    if (vm_flags & VM_SHARED)
        mapping_unmap_writable(file->f_mapping);
allow_write_and_free_vma:
    if (vm_flags & VM_DENYWRITE)
        allow_write_access(file);
free_vma:
    vm_area_free(vma);
unacct_error:
    if (charged)
        vm_unacct_memory(charged);
     return error;
}

再看看匿名映射的函数shmem_zero_setup到底做了什么，其实匿名页实际也映射了文件，只是映射到了/dev/zero上，这样有个好处是，不需要对所有页面进行提前置0，只有当访问到某具体页面的时候才会申请一个0页。

/** * shmem_zero_setup - setup a shared anonymous mapping * @vma: the vma to be mmapped is prepared by do_mmap_pgoff */
int shmem_zero_setup(struct vm_area_struct *vma){
    struct file *file;
    loff_t size = vma->vm_end - vma->vm_start;
/*  * Cloning a new file under mmap_sem leads to a lock ordering conflict  * between XFS directory reading and selinux: since this file is only  * accessible to the user through its mapping, use S_PRIVATE flag to  * bypass file security, in the same way as shmem_kernel_file_setup().  */
    file = shmem_kernel_file_setup("dev/zero", size, vma->vm_flags);
    if (IS_ERR(file))
        return PTR_ERR(file);
    if (vma->vm_file)
        fput(vma->vm_file);
    vma->vm_file = file;
    vma->vm_ops = &shmem_vm_ops;
    if (IS_ENABLED(CONFIG_TRANSPARENT_HUGE_PAGECACHE) &&   ((vma->vm_start + ~HPAGE_PMD_MASK) & HPAGE_PMD_MASK) <   (vma->vm_end & HPAGE_PMD_MASK)) {
     khugepaged_enter(vma, vma->vm_flags);
    }
    return 0;
}

其实说白了，mmap就是在进程mm中创建或者扩展一个vma映射到某个文件，而共享、私有、文件、匿名这些mmap所具有的属性是在哪里体现的呢？上面的源码在不断的设置一些标记位，这些标记位就决定了进程在访问这些内存时内核的行为，mmap仅负责创建一个映射而已。

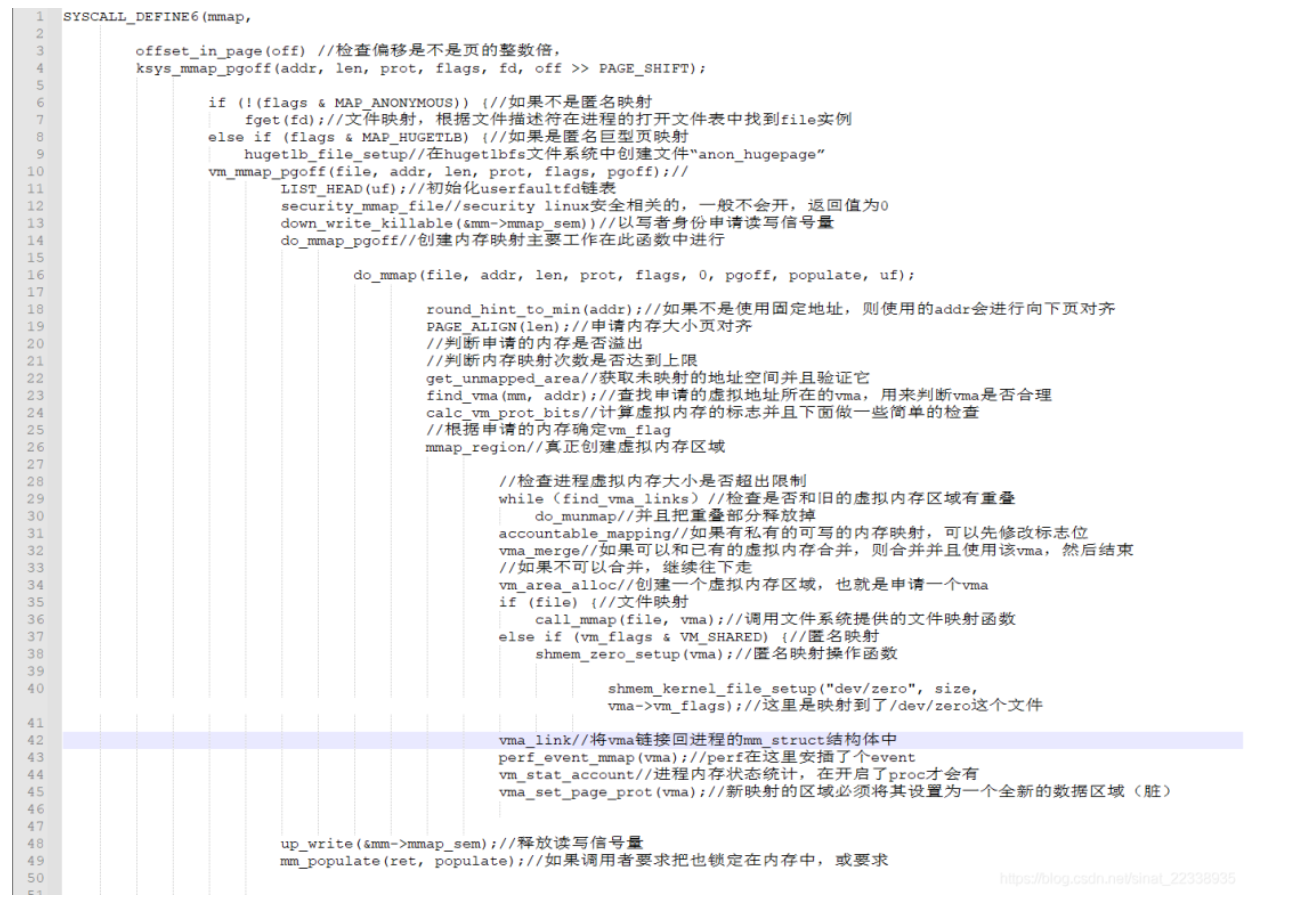

下面是mmap系统调用的函数调用以及返回情况说明：

SYSCALL_DEFINE6(mmap,

  offset_in_page(off) //检查偏移是不是页的整数倍，
  ksys_mmap_pgoff(addr, len, prot, flags, fd, off >> PAGE_SHIFT);

    if (!(flags & MAP_ANONYMOUS)) {//如果不是匿名映射
     fget(fd);//文件映射，根据文件描述符在进程的打开文件表中找到file实例
    else if (flags & MAP_HUGETLB) {//如果是匿名巨型页映射
     hugetlb_file_setup//在hugetlbfs文件系统中创建文件“anon_hugepage”
    vm_mmap_pgoff(file, addr, len, prot, flags, pgoff);//
      LIST_HEAD(uf);//初始化userfaultfd链表
      security_mmap_file//security linux安全相关的，一般不会开，返回值为0
      down_write_killable(&mm->mmap_sem))//以写者身份申请读写信号量
      do_mmap_pgoff//创建内存映射主要工作在此函数中进行

        do_mmap(file, addr, len, prot, flags, 0, pgoff, populate, uf);

          round_hint_to_min(addr);//如果不是使用固定地址，则使用的addr会进行向下页对齐
          PAGE_ALIGN(len);//申请内存大小页对齐
          //判断申请的内存是否溢出
          //判断内存映射次数是否达到上限
          get_unmapped_area//获取未映射的地址空间并且验证它
          find_vma(mm, addr);//查找申请的虚拟地址所在的vma，用来判断vma是否合理
          calc_vm_prot_bits//计算虚拟内存的标志并且下面做一些简单的检查
          //根据申请的内存确定vm_flag
          mmap_region//真正创建虚拟内存区域

            //检查进程虚拟内存大小是否超出限制
            while（find_vma_links）//检查是否和旧的虚拟内存区域有重叠
             do_munmap//并且把重叠部分释放掉
            accountable_mapping//如果有私有的可写的内存映射，可以先修改标志位
            vma_merge//如果可以和已有的虚拟内存合并，则合并并且使用该vma，然后结束
            //如果不可以合并，继续往下走
            vm_area_alloc//创建一个虚拟内存区域，也就是申请一个vma
            if (file) {//文件映射
             call_mmap(file, vma);//调用文件系统提供的文件映射函数
            else if (vm_flags & VM_SHARED) {//匿名映射
             shmem_zero_setup(vma);//匿名映射操作函数

               shmem_kernel_file_setup("dev/zero", size, vma->vm_flags);//这里是映射到了/dev/zero这个文件

            vma_link//将vma链接回进程的mm_struct结构体中
            perf_event_mmap(vma);//perf在这里安插了个event
            vm_stat_account//进程内存状态统计，在开启了proc才会有
            vma_set_page_prot(vma);//新映射的区域必须将其设置为一个全新的数据区域（脏）


      up_write(&mm->mmap_sem);//释放读写信号量
      mm_populate(ret, populate);//如果调用者要求把也锁定在内存中，或要求
