布局类(104)：【例】Dynamic Layouts Example [官翻]

Dynamic Layouts Example

演示如何在运行的应用程序中重新定位小部件。

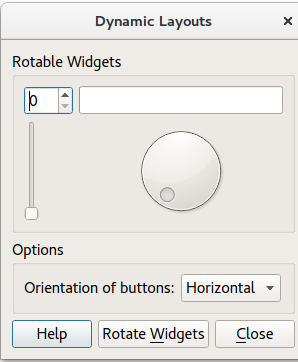

动态布局在运行的应用程序中实现动态放置的小部件。小部件的位置取决于选择水平还是垂直。

main.cpp

#include <QApplication>
#include "dialog.h"

int main(int argc, char *argv[])
{
    QApplication app(argc, argv);
    Dialog dialog;
#ifdef Q_OS_ANDROID
    dialog.showMaximized();
#else
    dialog.show();
#endif

    return app.exec();
}

Dialog.h

#ifndef DIALOG_H
#define DIALOG_H

#include <QtWidgets>

class Dialog : public QDialog
{
    Q_OBJECT

public:
    Dialog(QWidget *parent = 0);

private slots:
    void buttonsOrientationChanged(int index);
    void rotateWidgets();
    void help();

private:
    void createRotatableGroupBox();
    void createOptionsGroupBox();
    void createButtonBox();

    QGroupBox *rotatableGroupBox;
    QQueue<QWidget *> rotatableWidgets;

    QGroupBox *optionsGroupBox;
    QLabel *buttonsOrientationLabel;
    QComboBox *buttonsOrientationComboBox;

    QDialogButtonBox *buttonBox;
    QPushButton *closeButton;
    QPushButton *helpButton;
    QPushButton *rotateWidgetsButton;

    QGridLayout *mainLayout;
    QGridLayout *rotatableLayout;
    QGridLayout *optionsLayout;
};

#endif // DIALOG_H

Dialog.cpp

#include <QtWidgets>

#include "dialog.h"

Dialog::Dialog(QWidget *parent)
    : QDialog(parent)
{
    createRotatableGroupBox();
    createOptionsGroupBox();
    createButtonBox();

    mainLayout = new QGridLayout;
    mainLayout->addWidget(rotatableGroupBox, 0, 0);
    mainLayout->addWidget(optionsGroupBox, 1, 0);
    mainLayout->addWidget(buttonBox, 2, 0);
    setLayout(mainLayout);

    mainLayout->setSizeConstraint(QLayout::SetMinimumSize);

    setWindowTitle(tr("Dynamic Layouts"));
}
// 槽函数  垂直和水平布局的变化
void Dialog::buttonsOrientationChanged(int index)
{
    mainLayout->setSizeConstraint(QLayout::SetNoConstraint);
    setMinimumSize(0, 0);

    Qt::Orientation orientation = Qt::Orientation(
            buttonsOrientationComboBox->itemData(index).toInt());

    if (orientation == buttonBox->orientation())     // buttonBox的方向
        return;

    mainLayout->removeWidget(buttonBox);

    int spacing = mainLayout->spacing();

    QSize oldSizeHint = buttonBox->sizeHint() + QSize(spacing, spacing);
    buttonBox->setOrientation(orientation);
    QSize newSizeHint = buttonBox->sizeHint() + QSize(spacing, spacing);

    if (orientation == Qt::Horizontal) {        // 硬编码，呵呵
        mainLayout->addWidget(buttonBox, 2, 0);
        resize(size() + QSize(-oldSizeHint.width(), newSizeHint.height()));
    } else {
        mainLayout->addWidget(buttonBox, 0, 3, 2, 1);
        resize(size() + QSize(newSizeHint.width(), -oldSizeHint.height()));
    }

    mainLayout->setSizeConstraint(QLayout::SetDefaultConstraint);
}

/* 旋转控件 */
void Dialog::rotateWidgets()
{
    Q_ASSERT(rotatableWidgets.count() % 2 == 0); // 必须是偶数

    for (QWidget *widget : qAsConst(rotatableWidgets))
        rotatableLayout->removeWidget(widget);      // 先从布局删除

    rotatableWidgets.enqueue(rotatableWidgets.dequeue()); // 把头放入尾部

    const int n = rotatableWidgets.count();
    for (int i = 0; i < n / 2; ++i) {    // 按修改后的顺序进行网格布局，实现了旋转功能
        rotatableLayout->addWidget(rotatableWidgets[n - i - 1], 0, i);
        rotatableLayout->addWidget(rotatableWidgets[i], 1, i);
    }
}

void Dialog::help()
{
    QMessageBox::information(this, tr("Dynamic Layouts Help"),
                               tr("This example shows how to change layouts "
                                  "dynamically."));
}

/* 创建一个可旋转的组框，然后添加QSpinBox、QSlider、QDial、QProgressBar */
void Dialog::createRotatableGroupBox()
{
    rotatableGroupBox = new QGroupBox(tr("Rotatable Widgets"));

    rotatableWidgets.enqueue(new QSpinBox);  // 加入到rotatableWidgets队列
    rotatableWidgets.enqueue(new QSlider);
    rotatableWidgets.enqueue(new QDial);
    rotatableWidgets.enqueue(new QProgressBar);

    int n = rotatableWidgets.count();
    for (int i = 0; i < n; ++i) { // 技巧：将当前控件的信号 关联到 其他控件的槽函数
        connect(rotatableWidgets[i], SIGNAL(valueChanged(int)),
                rotatableWidgets[(i + 1) % n], SLOT(setValue(int)));
    }

    rotatableLayout = new QGridLayout;
    rotatableGroupBox->setLayout(rotatableLayout);

    rotateWidgets();
}
/* 创建选项组 一个标签、一个组合框 */
void Dialog::createOptionsGroupBox()
{
    optionsGroupBox = new QGroupBox(tr("Options"));

    buttonsOrientationLabel = new QLabel(tr("Orientation of buttons:"));

    buttonsOrientationComboBox = new QComboBox;
    buttonsOrientationComboBox->addItem(tr("Horizontal"), Qt::Horizontal);
    buttonsOrientationComboBox->addItem(tr("Vertical"), Qt::Vertical);

    connect(buttonsOrientationComboBox,
            QOverload<int>::of(&QComboBox::currentIndexChanged),
            this,     &Dialog::buttonsOrientationChanged);

    optionsLayout = new QGridLayout;
    optionsLayout->addWidget(buttonsOrientationLabel, 0, 0);
    optionsLayout->addWidget(buttonsOrientationComboBox, 0, 1);
    optionsLayout->setColumnStretch(2, 1);
    optionsGroupBox->setLayout(optionsLayout);
}
/* 创建按钮组 对话框按钮组 */
void Dialog::createButtonBox()
{
    buttonBox = new QDialogButtonBox;

    closeButton = buttonBox->addButton(QDialogButtonBox::Close); //标准关闭按钮
    helpButton = buttonBox->addButton(QDialogButtonBox::Help);   //标准帮助按钮

    rotateWidgetsButton = buttonBox->addButton(tr("Rotate &Widgets"),  //标准操作按钮
                                               QDialogButtonBox::ActionRole);

    connect(rotateWidgetsButton, &QPushButton::clicked, this, &Dialog::rotateWidgets);
    connect(closeButton, &QPushButton::clicked, this, &Dialog::close);
    connect(helpButton, &QPushButton::clicked, this, &Dialog::help);
}

总结

QGridLayout 这个布局使用起来非常方便，由此例可见一斑。
