OLHWDB数据集 PTTS格式解析

一.数据格式

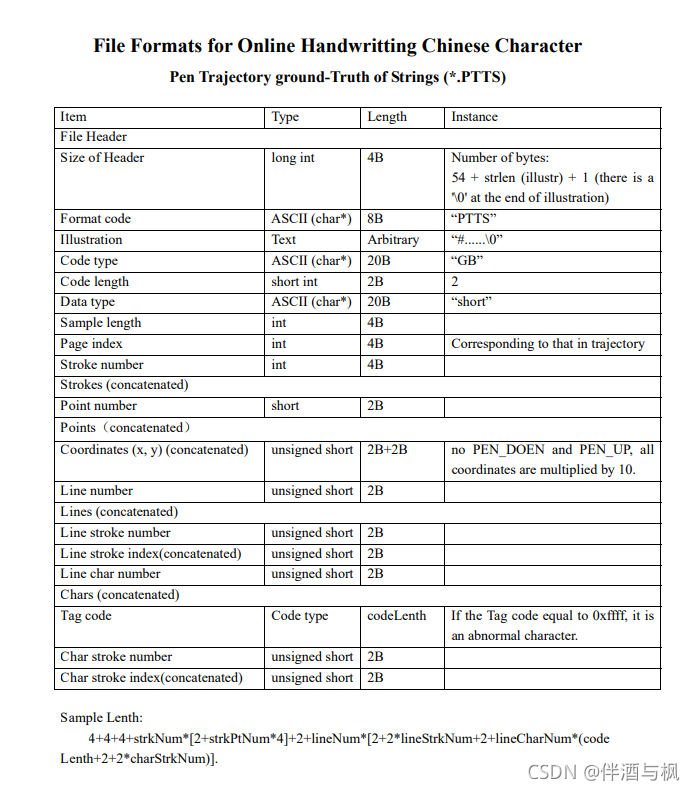

        其实.ptts文件就是个二进制文件，只要按照规则读就行了，难度不是很大。数据格式如下：

 二.主要代码

def read_ptts_from_dir(ptts_dir):
    with open(ptts_dir, 'rb') as f:
        header_size = struct.unpack('l', f.read(4))[0]
        #print(header_size)
        Format_code = f.read(8)
        #print(Format_code)
        Ill = f.read(header_size - 54)
        #print(Ill)
        code_type = f.read(20)
        #print(code_type)
        code_length = struct.unpack('h',f.read(2))[0]
        #print(code_length)
        data_type = f.read(20)
        #print(data_type)
        sample_length = struct.unpack('i', f.read(4))[0]
        #print(sample_length)
        page_index = struct.unpack('i',f.read(4))[0]
        #print(page_index)
        stroke_num = struct.unpack('i', f.read(4))[0]
        #print('笔画数：%d' %stroke_num)
        traj = []
        point_num = []
        for i in range(stroke_num):
            pointnum = struct.unpack('h', f.read(2))[0]
            point_num.append(pointnum)
            #print('采样点数:%d' %pointnum)
            #traj = []
            for j in range(pointnum):
                x = struct.unpack('H', f.read(2))[0]
                y = struct.unpack('H', f.read(2))[0]
                traj.append([x, y])
        #print(traj)
        line_num = struct.unpack('H', f.read(2))[0]
        #print('行数:%d' %line_num)
        tagcode = []
        char_stroke_index = []
        line_char_nmu_index = []
        char_stroke_num_index = []
        for i in range(line_num):
            line_stroke_nmu = struct.unpack('H', f.read(2))[0]
            #print('行笔画数：%d' %line_stroke_nmu)
            line_stroke_index = []
            for j in range(line_stroke_nmu):
                stroke_index = struct.unpack('H', f.read(2))[0]
                line_stroke_index.append(stroke_index)
            #print(line_stroke_index)
            line_char_nmu = struct.unpack('H', f.read(2))[0]
            line_char_nmu_index.append(line_char_nmu)
            #print('该行有：%d字符' %line_char_nmu)
            for char in range(line_char_nmu):
                tag_code = f.read(code_length)
                tag_code = tag_code.decode('gb18030')
                tag_code = tag_code.replace('\x00', '')
                tagcode.append(tag_code)
                char_stroke_num = struct.unpack('H', f.read(2))[0]
                char_stroke_num_index.append(char_stroke_num)
                #print('字符笔画数为：%d' %char_stroke_num)
                char_stroke_index_1 = []
                for index in range(char_stroke_num):
                    char_stroke_index_0 = struct.unpack('H', f.read(2))[0]
                    char_stroke_index_1.append(char_stroke_index_0)
                char_stroke_index.append(char_stroke_index_1)

        f.close()
    return stroke_num, point_num, traj, line_num, line_char_nmu_index, char_stroke_num_index, char_stroke_index, tagcode

 三.结果

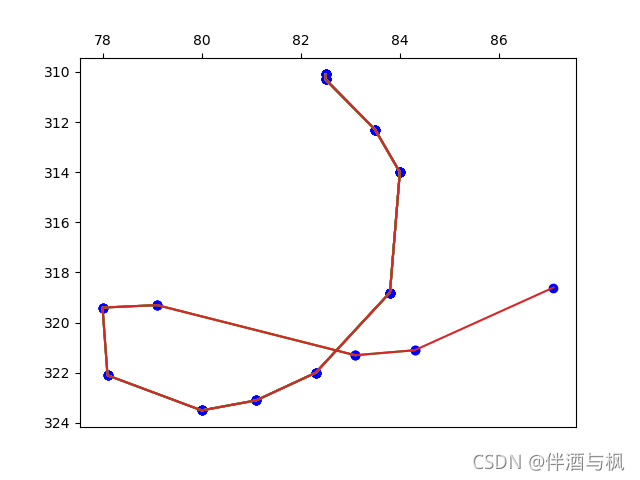

①ground truth

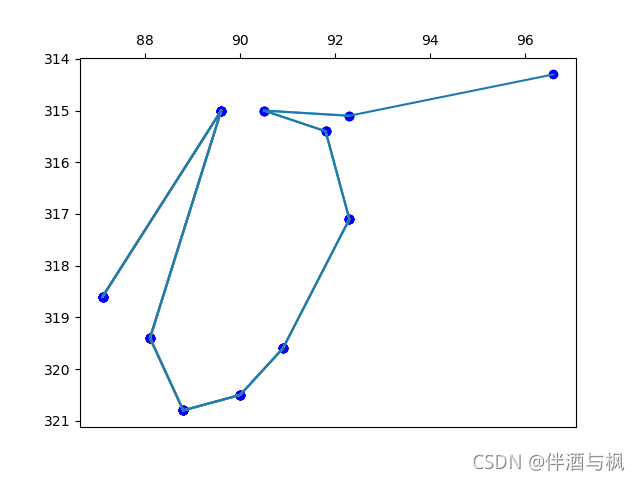

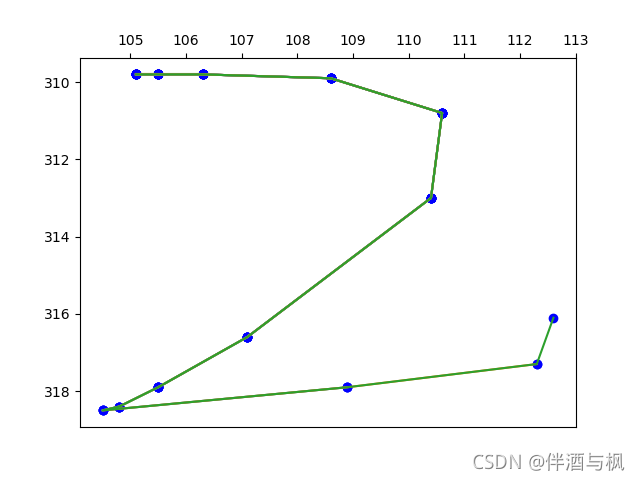

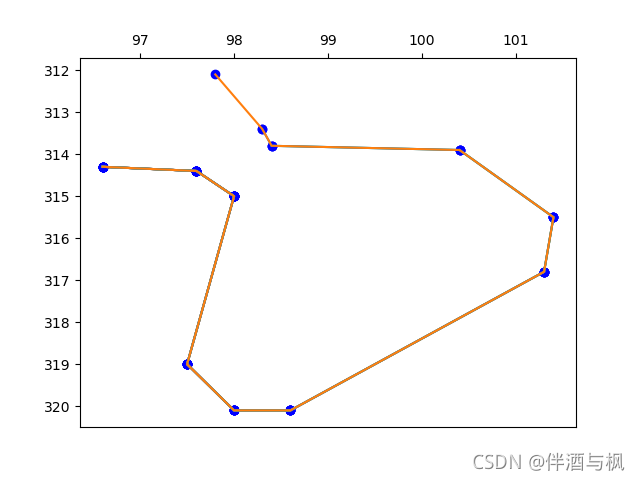

 ②单字

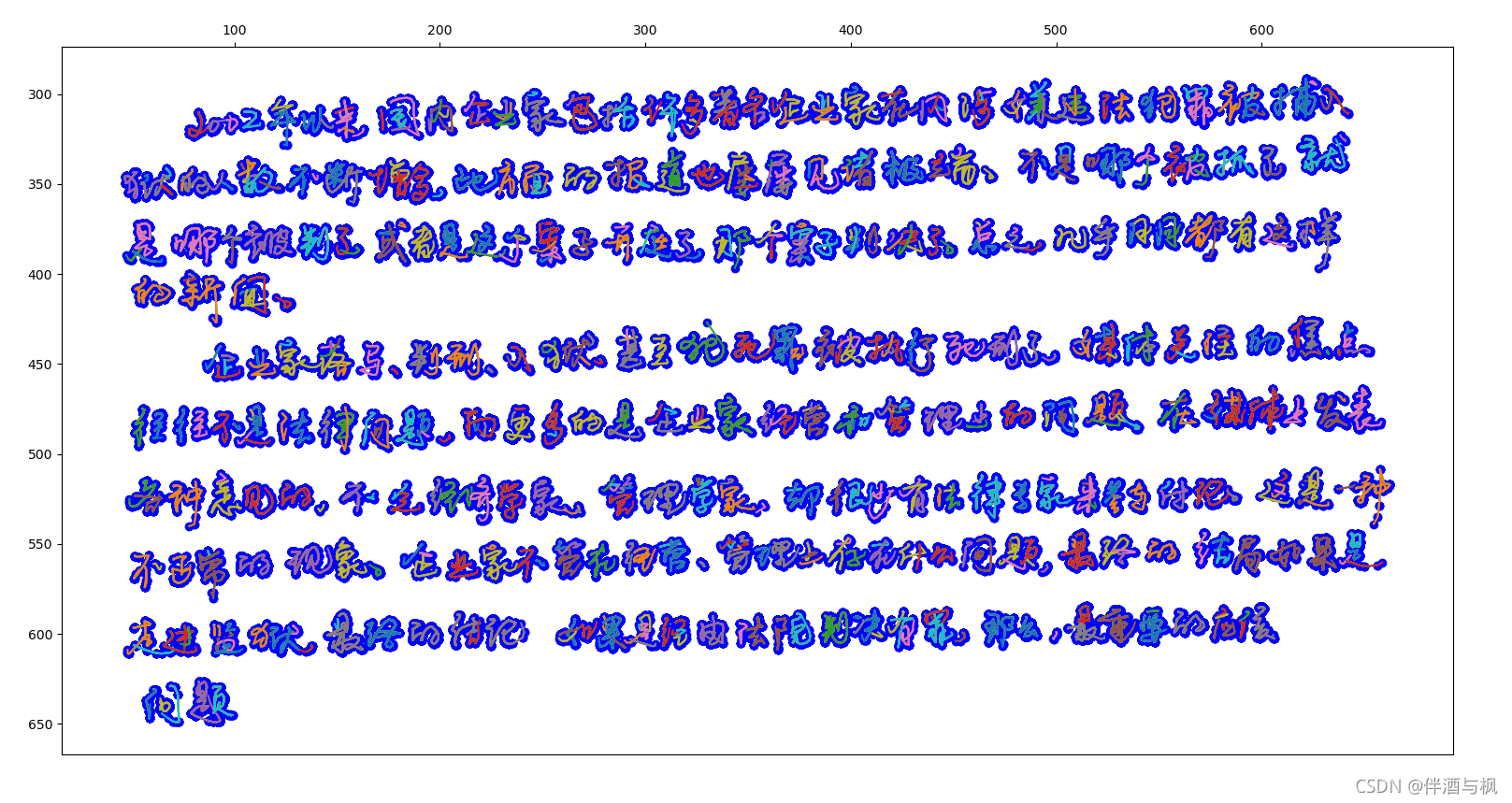

③文本

 总结

        解析过程挺简单的，只要注意读取的顺序就行。
