Spring5注解开发快速入门

一、注解实例化

1.Java注解开发介绍

• Spring支持哪些编程风格开发?

  • xml编程

    <beans>
        <bean>
    	     <property />
              <constructor-arg />
    	</bean>
    </beans>


  • 注解编程

    @Component
    @Bean
    ...

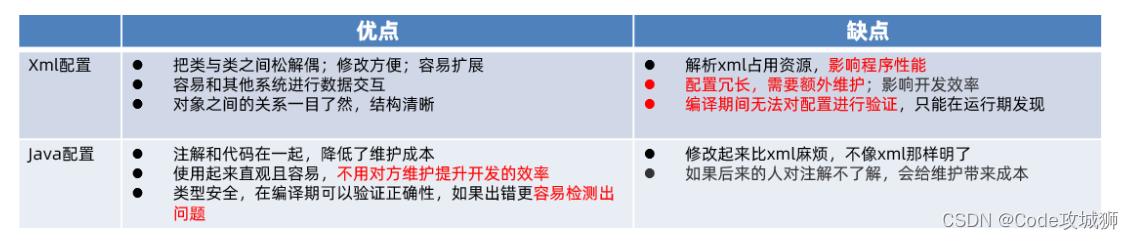

• 哪种编程风格好?

  • 注解编程优点：简化了书写，降低了 配置维护，提高了开发效率



  • 注解编程缺点：不像xml那么结构明了



  • 总结：

    • 在企业追逐开发效率过程中注解已经成为一种主流趋势！

    • xml能够实现的，注解同样可以实现！



2.@Component实例化普通bean

• 场景1：使用 就可以实现对普通类进行实例化，那对应的注解怎么实现呢？

  • 注解：@Component注解可以等价，作用于类，Spring会扫描组件类然后实例化

    //给实例化的bean的取一个名字"userService"
    @Component(“userService”)
    public class UserServiceImpl implements UserService{}

    //不给实例化的bean取名字，默认按照类的首字母小写来声明，即bean的名称为“userServiceImpl”
    @Component
    public class UserServiceImpl implements UserService{}


    • @Controller(用于区分表现层) @Service(用于区分业务层) @Repository(用于区分数据层) 继承了@Component
    • @Configuration也继承了@Component 且代表Spring配置，相当于applicationContext.xml

  • 开关：一个注解是无法起作用的，需要打开开关@ComponentScan

    @Configuration
    @ComponentScan(basepackage={"com.itheima"})
    public class SpringConfig {

    }


    • 作用1：扫描组件实例化bean

      从提供的包及其子包中扫描@Component @Controller @Service @Repository @Configuration 等组件注解，扫描完之后，转化成bean交给spring管理

    • 作用2：激活@Autowired @Resource 依赖注入注解 @PostConstruct 初始化注解 @PreDestroy 销毁注解 等组件内注解

• 普通bean实例化演示：

  • @Component代码演示

    • 在UserServiceImpl上加@Component注解

      @Service("userService")
      public class UserServiceImpl implements UserService {}


    • 创建Spring的配置类@Configuration,并且扫描UserServiceImpl组件

      @Configuration
      @ComponentScan(basePackages = "com.itheima.service.impl")
      public class SpringConfig {
      }


    • 测试: 通过AnnotationConfigApplicationContext来加载SpringConfig配置类

      @Test
      public void testBeanInstanceByAnnotation() {
          ApplicationContext context = new AnnotationConfigApplicationContext(SpringConfig.class);
          UserService userService = context.getBean("userService", UserService.class);
          userService.save();
      }


  • @Controller@Service @Repository代码演示

    • 创建controller、service、repository层，分别加上@Controller @Service @Repository组件注解

      @Repository("userDao")
      public class UserDaoImpl implements UserDao {}


      @Service("userService")
      public class UserServiceImpl implements UserService {}


      @Controller
      public class UserController {}


    • 在Spring的配置类扫描三层中所有组件

      @Configuration
      //扫描com.itheima包及其子包都会被扫描到
      @ComponentScan(basePackages = "com.itheima")
      public class SpringConfig {
      }


    • 测试：打印出Spring容器中的所有bean的名称

      @Test
      public void testBeanAnnotationByAnnotation() {
          ApplicationContext context = new AnnotationConfigApplicationContext(SpringConfig.class);
          String[] names = context.getBeanDefinitionNames();
          for (String name : names) {
              System.out.println("name = " + name);
          }
      }


    • 总结：

      1.@Component、@Controller、@Service、@Repository注解+@ComponentScan注解开关使用
      2.@Configuration配置类

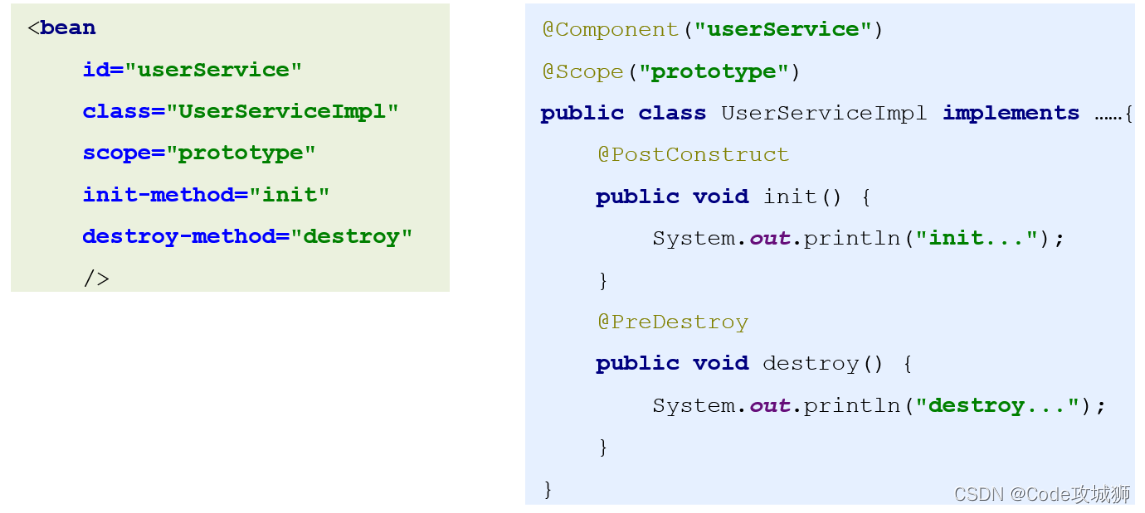

• 场景2：在<bean class="" scope="" init-method=""…> 注解如何实现呢？

  • 注解：@Scope @PostConstruct @PreDestroy @Lazy
  • 开关：@ComponentScan(basePackages = “”)

• 属性注解演示：

  • @Scope、@PostConstruct @PreDestroy、@Lazy

    @Service("userService")
    @Scope(ConfigurableBeanFactory.SCOPE_SINGLETON)
    @Lazy(false)
    public class UserServiceImpl implements UserService {
         @PostConstruct
        public void myInit() {
            System.out.println("UserServiceImpl.myInit自定义初始化方法");
        }

        @PreDestroy
        public void myDestroy() {
            System.out.println("UserServiceImpl.myDestroy自定义销毁方法");
        }
    }


  • 测试

    @Test
    public void testBeanAttributeByAnnotation() {
        AnnotationConfigApplicationContext context = new AnnotationConfigApplicationContext(SpringConfig.class);
        // 1.@Scope
        //UserService userService1 = context.getBean("userService", UserService.class);
        //UserService userService2 = context.getBean("userService", UserService.class);
        //Assert.assertSame(userService1, userService2);
        // 2.@PostConstruct @PreDestroy
        //context.close();
        // 3.@Lazy
    }


3.@Bean实例化工厂bean

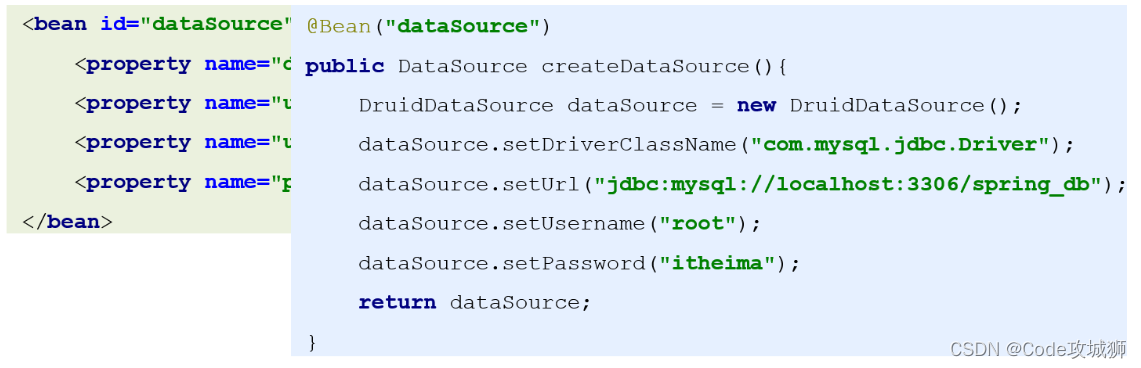

• 场景：SqlSessionFactoryBean该类不能加@Component实例化，那这种情况下该如何使用注解实例化呢？

• 注解：@Bean 作用于一个方法产生一个由 Spring 容器管理的 bean。

  @Target({ElementType.METHOD, ElementType.ANNOTATION_TYPE})
  @Retention(RetentionPolicy.RUNTIME)
  @Documented
  public @interface Bean {
      @AliasFor("name")
  	String[] value() default {};
  }


• @Bean作用代码演示

  @Configuration
  public class UserServiceFactory {
      //1.静态工厂方法,可以给bean取多个名称
      @Bean({"u1", "userService1"})
      public static UserService createUserService() {
          return new UserServiceImpl();
      }

      //2.非静态工厂方法，默认为bean的名称为方法名称
      @Bean
      public UserService createUserService2() {
          return new UserServiceImpl();
      }
  }


• 案例：使用@Bean对SqlSessionFactoryBean实例化

  • 步骤一：添加依赖

    <dependencies>
    	<dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>5.2.9.RELEASE</version>
        </dependency>
        <!--Mybatis和Spring整合-->
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis-spring</artifactId>
            <version>2.0.6</version>
        </dependency>
        <dependency>
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.5.7</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>5.2.17.RELEASE</version>
        </dependency>
        <!--mysql连接数据库驱动-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.49</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid</artifactId>
            <version>1.2.8</version>
        </dependency>
    </dependencies>


  • 步骤二：创建MybatisConfig配置类

    @Configuration
    public class MybatisConfig {

        /**
         * 创建DruidDataSource方法
         */
        @Bean
        public DataSource dataSource() {
          DruidDataSource dataSource = new DruidDataSource();
          dataSource.setDriverClassName(“com.mysql.jdbc.Driver”);
          dataSource.setUrl(“jdbc:mysql://localhost:3306/spring_db”);
          dataSource.setUsername(“root”);                                                                   dataSource.setPassword(“root”);
            return dataSource;
        }

        @Bean("sqlSessionFactory")
        public SqlSessionFactoryBean sqlSessionFactory(DataSource dataSource) {
            SqlSessionFactoryBean sqlSessionFactoryBean = new SqlSessionFactoryBean();
            sqlSessionFactoryBean.setDataSource(dataSource);
            return sqlSessionFactoryBean;
        }
    }


    说明：

    • public SqlSessionFactoryBean sqlSessionFactory(DataSource dataSource) 会从Spring容器中获取

      DataSource

  • 测试：SqlSessionFactory

    @Test
    public void testSqlSessionFactoryByAnnotation() {
            AnnotationConfigApplicationContext context = new AnnotationConfigApplicationContext(MybatisConfig.class);
            SqlSessionFactory sqlSessionFactory = context.getBean("sqlSessionFactory", SqlSessionFactory.class);
            System.out.println("sqlSessionFactory = " + sqlSessionFactory);
    }


• 场景2：MybatisConfig是一个Spring配合类，SpringConfig业也是一个配置类，怎么合并在一起呢？

• 注解：@Import 等价于applicationContext.xml中的

• @Import代码演示：

  @Configuration
  @ComponentScan(basePackages = {"com.itheima.dao", "com.itheima.service", "com.itheima.controller"})
  @Import({MybatisConfig.class})
  public class SpringConfig {
  }


  说明：这里的SpringConfig也可以通过@ComponentScan(“com.itheima”)一步到位扫描到了MybatisConfig。

二、注解依赖注入

1.@Value注解数值

• 场景：如下代码硬编码在程序中，不太好，如何使用注解对数值进行分离？

  @Bean
  public DataSource dataSource() {
        DruidDataSource dataSource = new DruidDataSource();
        dataSource.setDriverClassName(“com.mysql.jdbc.Driver”);
        dataSource.setUrl(“jdbc:mysql://localhost:3306/spring_db”);
        dataSource.setUsername(“root”);                                                                             dataSource.setPassword(“root”);
          return dataSource;
  }


• 注解：@Value 既可以给成员变量赋值，也可以通过@PropertySource加载properties文件时读取数据

  @Value（“root”）
  Private String username;


  @PropertySource(value = "classpath:jdbc.properties")
  public class ClassName {
    @Value("${jdbc.username}")
    private String userName;
  }
  注意：
      1.@PropertySource等价<context:property-placeholder location="classpath:jdbc.properties"/>
      2.@PropertySource不能使用通配符,例如：@PropertySource(value = "classpath:**/*.properties"）是不允许的
      3.@Value等价<property name value="${jdbc.username}" />


• 代码演示：对SqlSessionFactoryBean中DataSource赋值分离

  @Configuration
  @PropertySource("classpath:jdbc.properties")
  public class MybatisConfig {

      @Value("${jdbc.driver}")
      private String driver;
      @Value("${jdbc.url}")
      private String url;
      @Value("${jdbc.username}")
      private String username;
      @Value("${jdbc.password}")
      private String password;


      /**
       * 创建DruidDataSource方法
       */
      @Bean
      public DataSource dataSource() {
          DruidDataSource dataSource = new DruidDataSource();
          dataSource.setDriverClassName(driver);
          dataSource.setUrl(url);
          dataSource.setUsername(username);
          dataSource.setPassword(password);
          return dataSource;
      }

      @Bean("sqlSessionFactory")
      public SqlSessionFactoryBean sqlSessionFactory(DataSource dataSource) {
          SqlSessionFactoryBean sqlSessionFactoryBean = new SqlSessionFactoryBean();
          sqlSessionFactoryBean.setDataSource(dataSource);
          return sqlSessionFactoryBean;
      }
  }


2.@Autowired注入引用类型

• 场景：@Value可以给类中成员赋值普通类型数值，如果成员是一个引用类型，该如何赋值呢，也就是依赖注入呢？

  @Service("userService")
  @Scope(ConfigurableBeanFactory.SCOPE_SINGLETON)
  @Lazy(false)
  public class UserServiceImpl implements UserService {

      private UserDao userDao;
  }


• 注解：@Autowried作用于方法、构造函数、方法列表、成员,@ComponentScan开关可以让@Autowired发挥作用

  @Target({ElementType.CONSTRUCTOR, ElementType.METHOD, ElementType.PARAMETER, ElementType.FIELD, ElementType.ANNOTATION_TYPE})
  @Retention(RetentionPolicy.RUNTIME)
  @Documented
  public @interface Autowired {

     /**
      * Declares whether the annotated dependency is required.
      * <p>Defaults to {@code true}.
      */
     boolean required() default true;

  }
  @Autowired默认按类型装配，如果有多个类型会按照名称去找。
  1.若容器中只有此类型的一个对象 , 就直接注入
  2.若容器中存在此类型的多个对象 , 会把字段或者参数名字作为bean的id去容器中查找
  3.若找到 , 直接注入 ; 若没有找到 , 报异常



  @Autowired
  private UserDao userDao;

  @Autowired
  public UserServiceImpl(UserDao userDao) {
      this.userDao = userDao;
  }

  @Autowired
  public void aa(UserDao userDao) {
      this.userDao = userDao;
  }


• 代码演示@Autowired按照类型找

  @Service("userService")
  @Scope(ConfigurableBeanFactory.SCOPE_SINGLETON)
  @Lazy(false)
  public class UserServiceImpl implements UserService {
      @Autowired
      private UserDao userDao;

      @Override
      public void save() {
          userDao.save();
          System.out.println("UserServiceImpl.save");
      }
  }


  @Repository("userDao")
  public class UserDaoImpl implements UserDao {
      @Override
      public void save() {
          System.out.println("UserDaoImpl.save");
      }
  }


• 代码演示@Autowired按照名字找

  @Service("userService")
  @Scope(ConfigurableBeanFactory.SCOPE_SINGLETON)
  @Lazy(false)
  public class UserServiceImpl implements UserService {
      @Autowired
      private UserDao userDaoB;

      @Override
      public void save() {
          userDao.save();
          System.out.println("UserServiceImpl.save");
      }
  }


  @Repository("userDao")
  public class UserDaoImpl implements UserDao {
      @Override
      public void save() {
          System.out.println("UserDaoImpl.save");
      }
  }


  @Repository("userDaoB")
  public class UserDaoImplB implements UserDao {
      @Override
      public void save() {
          System.out.println("UserDaoImplB.save");
      }
  }


  测试： 存在UserDao2个类型 ，会根据userDaoB来找

  • 按照名字找，与@Autowired连用的还有一个注解@Qualifier(“userDaoB”)

    @Service("userService")
    @Scope(ConfigurableBeanFactory.SCOPE_SINGLETON)
    @Lazy(false)
    public class UserServiceImpl implements UserService {
        @Autowired
        @Qualifier("userDaoB")
        private UserDao userDao;
    }


  • 按照名字找，也可以使用 @Resource

    @Service("userService")
    @Scope(ConfigurableBeanFactory.SCOPE_SINGLETON)
    @Lazy(false)
    public class UserServiceImpl implements UserService {

        @Resource
        private UserDao userDao;
    }


三、Spring整合

1.Spring整合Mybatis框架

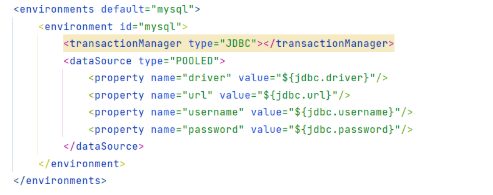

• Mybatis框架操作数据实现步骤回顾

  • 步骤一: Mybatis的依赖

    <dependencies>
            <!--spring和mybatis整合-->
            <dependency>
                <groupId>org.mybatis</groupId>
                <artifactId>mybatis</artifactId>
                <version>3.5.7</version>
            </dependency>
            <!--连接数据库-->
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>5.1.49</version>
            </dependency>
            <dependency>
                <groupId>com.alibaba</groupId>
                <artifactId>druid</artifactId>
                <version>1.2.8</version>
            </dependency>
            <!--测试依赖-->
            <dependency>
                <groupId>junit</groupId>
                <artifactId>junit</artifactId>
                <version>4.12</version>
                <scope>test</scope>
            </dependency>
    </dependencies>


  • 步骤二: Mybatis的核心配置文件

    <?xml version="1.0" encoding="UTF-8" ?>
    <!DOCTYPE configuration
            PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
            "http://mybatis.org/dtd/mybatis-3-config.dtd">
    <configuration>
        <properties resource="jdbc.properties"/>
        <!--声明别名-->
        <typeAliases>
            <package name="com.itheima.domain"/>
        </typeAliases>
        <environments default="mysql">
            <environment id="mysql">
                <transactionManager type="JDBC"></transactionManager>
                <dataSource type="POOLED">
                    <property name="driver" value="${jdbc.driver}"/>
                    <property name="url" value="${jdbc.url}"/>
                    <property name="username" value="${jdbc.username}"/>
                    <property name="password" value="${jdbc.password}"/>
                </dataSource>
            </environment>
        </environments>
        <mappers>
            <package name="com.itheima.dao"/>
        </mappers>
    </configuration>


  • 步骤三: Mybatis接口定义

    public class User {
        private Long id;
        private String name;
        private Integer age;
        private String address;
        //这里省略了set、get方法
    }


    create table user
    (
        id       bigint(50) auto_increment   primary key,
        name    varchar(255) null,
        age     int          null,
        address varchar(255) null
    ) charset = utf8mb4;


    public interface UserMapper {

        @Select("select * from user where id=#{id}")
        public User selectById(@Param("id") Long id);

        @Insert("insert into user(name,age,address) values(#{name},#{age},#{address})")
        public void insertUser(User user);
    }


  • 步骤四: 测试Mybatis获取接口代理对象操作数据库

    public class MybatisTest {

        @Test
        public void testSelectByMybatis() throws IOException {
            //1. SqlSessionFactory
            SqlSessionFactoryBuilder sqlSessionFactoryBuilder = new SqlSessionFactoryBuilder();
            InputStream inputStream = Resources.getResourceAsStream("SqlMapConfig.xml");
            SqlSessionFactory sqlSessionFactory = sqlSessionFactoryBuilder.build(inputStream);
            //2. SqlSession
            SqlSession sqlSession = sqlSessionFactory.openSession();
            //3. 获取接口的代理对象
            UserMapper userMapper = sqlSession.getMapper(UserMapper.class);
            User user = userMapper.selectById(1453642066977423362L);
            System.out.println("user = " + user);
        }

        @Test
        public void testInsertByMybatis() throws IOException {
            //1. SqlSessionFactory
            SqlSessionFactoryBuilder sqlSessionFactoryBuilder = new SqlSessionFactoryBuilder();
            InputStream inputStream = Resources.getResourceAsStream("SqlMapConfig.xml");
            SqlSessionFactory sqlSessionFactory = sqlSessionFactoryBuilder.build(inputStream);
            //2. SqlSession
            SqlSession sqlSession = sqlSessionFactory.openSession();
            //3. 获取接口的代理对象
            UserMapper userMapper = sqlSession.getMapper(UserMapper.class);
            User user = new User();
            user.setName("彭总");
            user.setAge(89);
            user.setAddress("湖南");
            userMapper.insertUser(user);
            sqlSession.commit();
        }
    }


• Spring可以管理Mybatis哪些对象，以达到解耦呢？

  • SqlSessionFactory对象: SqlSessionFactoryBean替代

  • 数据源对象: DruidDataSource



  • 接口代理对象: MapperScannerConfigurer



• Spring和Mybatis实现

  • 步骤一：添加依赖

    <dependency>
         <groupId>org.mybatis</groupId>
         <artifactId>mybatis-spring</artifactId>
         <version>2.0.6</version>
    </dependency>
    <dependency>
         <groupId>org.springframework</groupId>
         <artifactId>spring-jdbc</artifactId>
         <version>5.2.17.RELEASE</version>
    </dependency>


  • 步骤二：创建MybatisConfig配置类

    @Configuration
    @PropertySource("classpath:jdbc.properties")
    @MapperScan(basePackages = "com.itheima.dao")
    public class MybatisConfig {

        @Value("${jdbc.driver}")
        private String driver;
        @Value("${jdbc.url}")
        private String url;
        @Value("${jdbc.username}")
        private String username;
        @Value("${jdbc.password}")
        private String password;


        /**
         * 创建DruidDataSource方法
         */
        @Bean
        public DataSource dataSource() {
            DruidDataSource dataSource = new DruidDataSource();
            dataSource.setDriverClassName(driver);
            dataSource.setUrl(url);
            dataSource.setUsername(username);
            dataSource.setPassword(password);
            return dataSource;
        }

        @Bean("sqlSessionFactory")
        public SqlSessionFactoryBean sqlSessionFactory(DataSource dataSource) {
            SqlSessionFactoryBean sqlSessionFactoryBean = new SqlSessionFactoryBean();
            sqlSessionFactoryBean.setDataSource(dataSource);
            sqlSessionFactoryBean.setTypeAliasesPackage("com.itheima.domain");
            return sqlSessionFactoryBean;
        }
    	//可以使用@MapperScan(basePackages = "com.itheima.dao")等价
        //@Bean
        //public static MapperScannerConfigurer mapperScannerConfigurer() {
        //    MapperScannerConfigurer mapperScannerConfigurer = new MapperScannerConfigurer();
        //    mapperScannerConfigurer.setBasePackage("com.itheima.dao");
        //    return mapperScannerConfigurer;
        //}
    }


  • 步骤三：测试

    public class SpringTest {

        @Test
        public void testSelectBySpringMybatis() {
            //1. 注解容器
            AnnotationConfigApplicationContext context = new AnnotationConfigApplicationContext(MybatisConfig.class);
            //2. 从容器中获取UserMapper接口代理对象
            UserMapper userMapper = context.getBean(UserMapper.class);
            User user = userMapper.selectById(1453642066977423362L);
            System.out.println("user = " + user);
        }

        @Test
        public void testInsertBySpringMybatis() {
            //1. 注解容器
            AnnotationConfigApplicationContext context = new AnnotationConfigApplicationContext(MybatisConfig.class);
            //2. 从容器中获取UserMapper接口代理对象
            UserMapper userMapper = context.getBean(UserMapper.class);
            User user = new User();
            user.setName("小周2");
            user.setAge(18);
            user.setAddress("武汉");
            userMapper.insertUser(user);
        }
    }


2.Spring整合Junit测试

• 场景：上例中每次都通过AnnotationConfigApplicationContext从Spring容器获取bean，这样好么？

• 分析：

  • 每一个测试用例中多个测试方法都需要初始化一次容器，导致容器重复初始化多次，影响了测试性能
  • 手动硬编码通过getBean()方法从spring容器中获取bean

• 解决：Spring和Junit测试整合

  • 个测试用例中不管多少个测试方法，容器只初始化一次
  • 获取bean，只需要自动装配赋值即可

• 代码实现演示

  • 添加依赖

    <!--测试依赖-->
    <dependency>
        <groupId>junit</groupId>
        <artifactId>junit</artifactId>
        <version>4.12</version>
        <scope>test</scope>
    </dependency>
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-test</artifactId>
        <version>5.2.17.RELEASE</version>
    </dependency>


  • 测试：@RunWith使用什么Runner来完成测试方法，@ContextConfiguration加载配置什么文件

    @RunWith(SpringJUnit4ClassRunner.class)
    @ContextConfiguration(classes = MybatisConfig.class)
    public class SpringTest {
        @Autowired
        UserMapper userMapper;

        @Test
        public void testSelectBySpringMybatis() {
            User user = userMapper.selectById(1453642066977423362L);
            System.out.println("user = " + user);
        }

        @Test
        public void testInsertBySpringMybatis() {
            User user = new User();
            user.setName("小周2");
            user.setAge(18);
            user.setAddress("武汉");
            userMapper.insertUser(user);
        }
    }


    说明：

    • 从Spring5.0以后，要求Junit的版本必须是4.12及以上
    • Junit仅用于单元测试，不用将Junit的测试类配置成spring的bean

---

总结

1. 实例化bean

   • @Component: @Controller、@Service、@Repository、@Configuration
   • @Bean

2. 依赖注入

   • @PropertySource(“classpath:jdbc.properties”) @Value("${}")
   • @Autowired 首先按照类型去找，没有找到再按照名称去找

3. Spring整合

   • 与Mybatis整合关键

     SqlSessionFactoryBean---->获取SqlSessionFactory
     MapperScannerConfigurer--->扫描接口，产生代理对象，等价@MapperScan(basePackages = "")


   • 与Junit整合关键

     @Runwith(SpringRunner.class)
     @ContextConfiguration(classes=xx)
