EXCEL导出数据并导出ECharts图片

开发一个导出功能,将echarts图表导出到excel文件中 首先,做这个功能开发时,首先有几点必须弄清楚:1、echarts图表导出时该怎样导出到excel中,2、有没有图表自带的导出功能可用。经过我上网查阅相关资料以及去echarts官网查看API后,发现图表自带的导出功能不符合当前的业务需要,echarts图表导出必需转成图片,然后再将图片保存到excel中。 开始,我写的导出过程:(步骤一)前端js导出按钮事件: $('#export').jqxButton({width: 50, height: 27,template: "primary"... 阅读详情

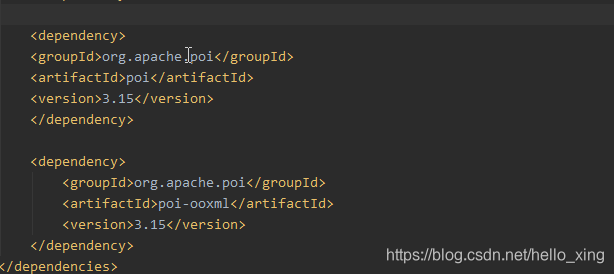

poi的版本

ECharts的版本

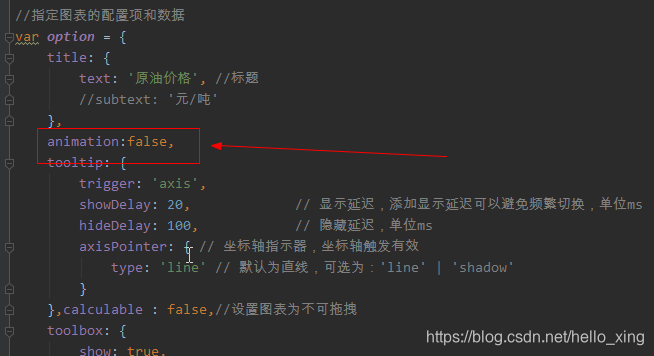

在做excel导出数据及ECharts图片时页面有几点要注意:1.在option中设置animation:false

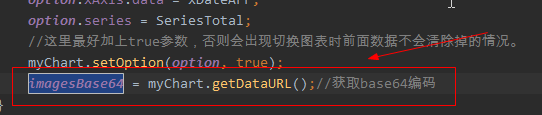

2.获取url路径的Base64位编码,默认是png,所以括号后不用写图片类型,我一开始在括号中写了png页面反而报错;

在这里我将imagesBase64定义为全局变量,以便在调用下载方法时传到后端。

.

3.下载方法不能用ajax异步调用,ajax的返回值类型是json,text,html,xml类型,或者可以说ajax的接收类型只能是string字符串,不是流类型,所以无法实现文件下载。但用ajax仍然可以获得文件的内容,该文件将被保留在内存中,无法将文件保存到磁盘。这是因为JavaScript无法和磁盘进行交互,否则这会是一个严重的安全问题, js无法调用到浏览器的下载处理机制和程序,会被浏览器阻塞。所以不通过ajax,直接进路径,加上有不同的查询条件,所以这么写:

页面上的form表单
