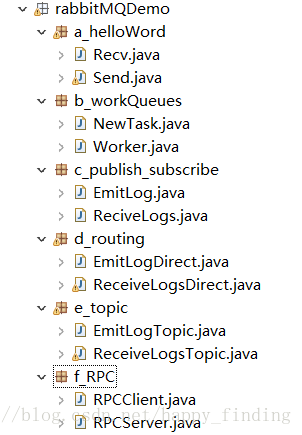

官网上所有的Demo代码
在这里插入图片描述

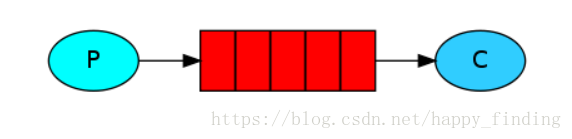

Chapter1
producer：译名是生产者，实际工作就是发送消息给queue或者server
queue：队列，只受限制于主机内存和磁盘大小，是一个大的消息缓存区
consumer：消费者，等待接收消息
在这里插入图片描述

package rabbitMQDemo.a_helloWord;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

/**
 * 消息发送者
 * rabbitMQ的默认端口是：15672
 * @author gaomeiling
 *
 */
public class Send {
	private final static String QUEUE_NAME="hello";

	public static void main(String[] args) throws Exception{
		//创建与rabbitMQ服务器的连接
		ConnectionFactory factory = new ConnectionFactory();
		factory.setHost("localhost");//连接的broker，可以是名字、ip
		Connection connection = factory.newConnection();

		//获取channel
		Channel channel = connection.createChannel();
		channel.queueDeclareNoWait(QUEUE_NAME, false, false, false, null);
		String message = "hello world!say 4.";
		//把消息放入队列
		channel.basicPublish("", QUEUE_NAME, null, message.getBytes());
		System.out.println("[x]Sent'"+message+"'");

		//关闭通道
		channel.close();
		//关闭连接
		connection.close();

	}
}


package rabbitMQDemo.a_helloWord;

import java.io.IOException;
import java.io.UnsupportedEncodingException;
import java.util.concurrent.TimeoutException;

import com.rabbitmq.client.AMQP;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import com.rabbitmq.client.Consumer;
import com.rabbitmq.client.DefaultConsumer;
import com.rabbitmq.client.Envelope;

/**
 * 消息接收者
 * rabbitMQ的默认端口是：15672
 * @author gaomeiling
 *
 */
public class Recv {
	private static final String QUEUE_NAME = "hello";

	public static void main(String[] args) throws IOException, TimeoutException {
		ConnectionFactory factory = new ConnectionFactory();
		factory.setHost("localhost");
		Connection connection = factory.newConnection();
		Channel channel = connection.createChannel();

		channel.queueDeclare(QUEUE_NAME, false, false, false, null);
		System.out.println("[*]waiting for message.To exit press ctr+c");

		Consumer consumer = new DefaultConsumer(channel) {
			@Override
			public void handleDelivery(String consumerTag, Envelope envelope,
                    AMQP.BasicProperties properties, byte[] body) throws UnsupportedEncodingException {
				String message = new String(body,"utf-8");
				System.out.println("[x]Received'"+message+"'");
			}
		};
		//以对象的形式回调
		channel.basicConsume(QUEUE_NAME, true,consumer);
	}
}

Chapter2

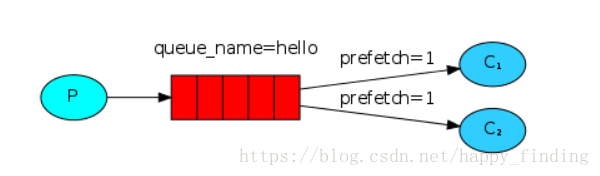

一个queue里的消息被多个消费者交替读取
在这里插入图片描述

package rabbitMQDemo.b_workQueues;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import com.rabbitmq.client.MessageProperties;

/**
 * producer
 * @author gaomeiling
 * @date 2018年10月19日
 */
public class NewTask {
	private static final String TASK_QUEUE_NAME = "hello";

	public static void main(String[] args) throws Exception{
		//创建与rabbitMQ服务器的连接
		ConnectionFactory factory = new ConnectionFactory();
		factory.setHost("localhost");//连接的  broker，可以是名字、ip
		Connection connection = factory.newConnection();

		//获取channel
		Channel channel = connection.createChannel();
		boolean durable = true;//持久度,确保rabbitMQ不丢失queue
		channel.queueDeclareNoWait("task_queue", durable, false, false, null);
		String[] argv = new String[] {"first message..."};
		String message = getMessage(argv);
		//把消息放入队列
		channel.basicPublish("", TASK_QUEUE_NAME, MessageProperties.PERSISTENT_TEXT_PLAIN, message.getBytes());
		System.out.println("[x] Sent'"+message+"'");

		//关闭通道
		channel.close();
		//关闭连接
		connection.close();
	}

	private static String getMessage(String[] strings) {
		if(strings.length<1)
			return "hello world!";
		return joinString(strings,".");
	}

	private static String joinString(String[] strings, String delimiter) {
		int length = strings.length;
		if(length == 0)
			return "";
		StringBuilder words = new StringBuilder(strings[0]);
		for(int i=1;i<length;i++) {
			words.append(delimiter).append(strings[i]);
		}
		return words.toString();
	}
}


package rabbitMQDemo.b_workQueues;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

import com.rabbitmq.client.AMQP;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import com.rabbitmq.client.Consumer;
import com.rabbitmq.client.DefaultConsumer;
import com.rabbitmq.client.Envelope;

/**
 * consumer
 * @author gaomeiling
 * @date 2018年10月19日
 */
public class Worker {
	private static final String TASK_QUEUE_NAME = "task_queue";

	public static void main(String[] args) throws IOException, TimeoutException {
		ConnectionFactory factory = new ConnectionFactory();
		factory.setHost("localhost");
		Connection connection = factory.newConnection();
		Channel channel = connection.createChannel();

		//声明queue
		channel.queueDeclare(TASK_QUEUE_NAME, false, false, false, null);
		System.out.println("[*] waiting for message.To exit press ctr+c");
		channel.basicQos(1);//一次只能接收一条未确认消息

		final Consumer consumer = new DefaultConsumer(channel) {
			@Override
			public void handleDelivery(String consumerTag, Envelope envelope,
                    AMQP.BasicProperties properties, byte[] body) throws IOException {
				String message = new String(body,"utf-8");
				System.out.println("[x] Received'"+message+"'");
				try {
					doWork(message);
				} catch (InterruptedException e) {
					e.printStackTrace();
				} finally {
					System.out.println("[x] Done");
					channel.basicAck(envelope.getDeliveryTag(), false);
				}
			}
		};
		boolean autoAck = false;//是否自动返回确认，如果设置为false，只有worker完成一个task才返回,确保一个任务不会丢失
		//以对象的形式回调
		channel.basicConsume(TASK_QUEUE_NAME, autoAck,consumer);
	}

	protected static void doWork(String task) throws InterruptedException {
		for(char ch : task.toCharArray()) {
			if(ch == '.') Thread.sleep(3000);
		}
	}
}

Chapter3

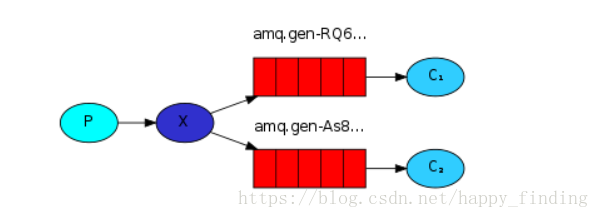

在queue前增加exchange，由exchange决定消息由哪个queue送至consumer，exchange的类型：direct、topic、header和fanout。本章讲的是fanout，只要是与exchange绑定的queue就会得到exchange的消息。
在这里插入图片描述

package rabbitMQDemo.c_publish_subscribe;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

/**
 * producer
 * @author gaomeiling
 * 使用的exchange类型为fanout
 * @date 2018年10月19日
 */
public class EmitLog {
	private static final String EXCHANGE_NAME = "logs";
	public static void main(String[] args) throws IOException, TimeoutException {
		ConnectionFactory factory = new ConnectionFactory();
		//连接服务器
		factory.setHost("localhost");
		Connection connection = factory.newConnection();
		Channel channel = connection.createChannel();

		//声明exchange
		channel.exchangeDeclare(EXCHANGE_NAME, "fanout");

		String message = "What do you want to say?";

		//连接producer与exchange，将消息发布到exchange
		channel.basicPublish(EXCHANGE_NAME, "", null, message.getBytes());
		System.out.println(" [x] Sent '" + message + "'");

		channel.close();
		connection.close();
	}
}


package rabbitMQDemo.c_publish_subscribe;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

import com.rabbitmq.client.AMQP;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import com.rabbitmq.client.Consumer;
import com.rabbitmq.client.DefaultConsumer;
import com.rabbitmq.client.Envelope;

/**
 * consumer
 * 使用的exchange类型为fanout
 * @author gaomeiling
 * @date 2018年10月19日
 */
public class ReciveLogs {
	private static final String EXCHANGE_NAME = "logs";

	public static void main(String[] args) throws IOException, TimeoutException {
		ConnectionFactory factory = new ConnectionFactory();
		factory.setHost("localhost");
		Connection connection = factory.newConnection();
		Channel channel = connection.createChannel();

		//声明exchange
		channel.exchangeDeclare(EXCHANGE_NAME, "fanout");
		//声明queue，自动生成一个queue，特点：带有名字、短暂的、单独的、自动删除
		String queueName = channel.queueDeclare().getQueue();
		//绑定exchange与queue
		channel.queueBind(queueName, EXCHANGE_NAME, "");

		System.out.println(" [*] Waiting for messages. To exit press CTRL+C");

		//声明consumer
		Consumer consumer = new DefaultConsumer(channel) {
			@Override
			public void handleDelivery(String consumerTag, Envelope envelope,
                    AMQP.BasicProperties properties, byte[] body) throws IOException {
				String message = new String(body, "UTF-8");
				System.out.println(" [x] Received '" + message + "'");
			}
		};
		//连接consumer与queue
		channel.basicConsume(queueName, true, consumer);
	}
}

Chapter4
exchange类型topic，只有绑定的routing key对应才可以获得exchange的消息。
在这里插入图片描述

package rabbitMQDemo.d_routing;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

/**
 * producer
 * 使用的exchange类型为direct
 * @author gaomeiling
 * @date 2018年10月19日
 */
public class EmitLogDirect {
	private static final String EXCHANG_NAME = "direct_logs";

	public static void main(String[] args) throws IOException, TimeoutException {
		ConnectionFactory factory = new ConnectionFactory();
		factory.setHost("localhost");
		Connection connection = factory.newConnection();
		Channel channel = connection.createChannel();

		String exchangeType = "direct";
		channel.exchangeDeclare(EXCHANG_NAME, exchangeType);

		String severity = "error";
		String message = "say you!";

		//连接producer与exchange
		channel.basicPublish(EXCHANG_NAME, severity, null, message.getBytes());
		System.out.println(" [x] Sent '" + severity + "':'" + message + "'");

		channel.close();
		connection.close();
	}
}


package rabbitMQDemo.d_routing;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

import com.rabbitmq.client.AMQP;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import com.rabbitmq.client.Consumer;
import com.rabbitmq.client.DefaultConsumer;
import com.rabbitmq.client.Envelope;

/**
 * consumer
 * 使用的exchange类型为direct
 * @author gaomeiling
 * @date 2018年10月19日
 */
public class ReceiveLogsDirect {
	private static final String EXCHANGE_NAME = "direct_logs";

	public static void main(String[] args) throws IOException, TimeoutException {
		ConnectionFactory factory = new ConnectionFactory();
	    factory.setHost("localhost");
	    Connection connection = factory.newConnection();
	    Channel channel = connection.createChannel();

	    //声明exchange
	    String exchangeType = "direct";
	    channel.exchangeDeclare(EXCHANGE_NAME, exchangeType);
	    //声明queue
	    String queueName = channel.queueDeclare().getQueue();

	    //routing key
	    String[] args1 = new String[] {"error"};
	    String[] args2 = new String[] {"error","info","warning"};

	    //绑定exchange与queue,给定routing key
	    for(String severity : args2) {
	    	channel.queueBind(queueName , EXCHANGE_NAME , severity);
	    }
	    System.out.println(" [*] Waiting for messages. To exit press CTRL+C");

	    Consumer consumer = new DefaultConsumer(channel) {
	    	@Override
	        public void handleDelivery(String consumerTag, Envelope envelope,
	                                   AMQP.BasicProperties properties, byte[] body) throws IOException {
	          String message = new String(body, "UTF-8");
	          System.out.println(" [x] Received '" + envelope.getRoutingKey() + "':'" + message + "'");
	        }
	    };
	    //连接queue与consumer
	    channel.basicConsume(queueName, true, consumer);
	}
}

Chapter5

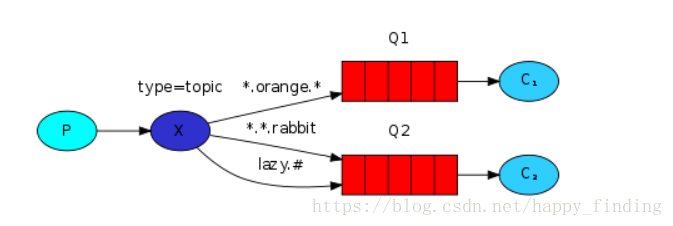

exchange类型为topic，可以理解为routing key不再是简单的单词，而是由一系列由“.”断开的单词，可以是任意的单词，但是长度限制是255bytes。
在这里插入图片描述

package rabbitMQDemo.e_topic;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

/**
 * producer
 * 使用的exchange类型为direct
 * @author gaomeiling
 * @date 2018年10月19日
 */
public class EmitLogTopic {
	private static final String EXCHANG_NAME = "topic_logs";

	public static void main(String[] args) throws IOException, TimeoutException {
		ConnectionFactory factory = new ConnectionFactory();
		factory.setHost("localhost");
		Connection connection = factory.newConnection();
		Channel channel = connection.createChannel();

		String exchangeType = "topic";
		channel.exchangeDeclare(EXCHANG_NAME, exchangeType);

		String routingKey = "kern.you.critical";
		String message = "say you!";

		//连接producer与exchange
		channel.basicPublish(EXCHANG_NAME, routingKey, null, message.getBytes());
		System.out.println(" [x] Sent '" + routingKey + "':'" + message + "'");

		channel.close();
		connection.close();
	}
}


package rabbitMQDemo.e_topic;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

import com.rabbitmq.client.AMQP;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import com.rabbitmq.client.Consumer;
import com.rabbitmq.client.DefaultConsumer;
import com.rabbitmq.client.Envelope;

/**
 * consumer
 * 使用的exchange类型为direct
 * @author gaomeiling
 * @date 2018年10月19日
 */
public class ReceiveLogsTopic {
	private static final String EXCHANGE_NAME = "topic_logs";

	public static void main(String[] args) throws IOException, TimeoutException {
		ConnectionFactory factory = new ConnectionFactory();
	    factory.setHost("localhost");
	    Connection connection = factory.newConnection();
	    Channel channel = connection.createChannel();

	    //声明exchange
	    String exchangeType = "topic";
	    channel.exchangeDeclare(EXCHANGE_NAME, exchangeType);
	    //声明queue
	    String queueName = channel.queueDeclare().getQueue();

	    //routing key
	    String[] args1 = new String[] {"kern.*"};
	    String[] args2 = new String[] {"kern.*","*.critical"};
	    String[] args3 = new String[] {"*.critical"};
	    String[] args4 = new String[] {"#"};

	    //绑定exchange与queue,给定routing key
	    for(String bindingKey : args3) {
	    	channel.queueBind(queueName , EXCHANGE_NAME , bindingKey);
	    }
	    System.out.println(" [*] Waiting for messages. To exit press CTRL+C");

	    Consumer consumer = new DefaultConsumer(channel) {
	    	@Override
	        public void handleDelivery(String consumerTag, Envelope envelope,
	                                   AMQP.BasicProperties properties, byte[] body) throws IOException {
	          String message = new String(body, "UTF-8");
	          System.out.println(" [x] Received '" + envelope.getRoutingKey() + "':'" + message + "'");
	        }
	    };
	    //连接queue与consumer
	    channel.basicConsume(queueName, true, consumer);
	}
}

Chapter6

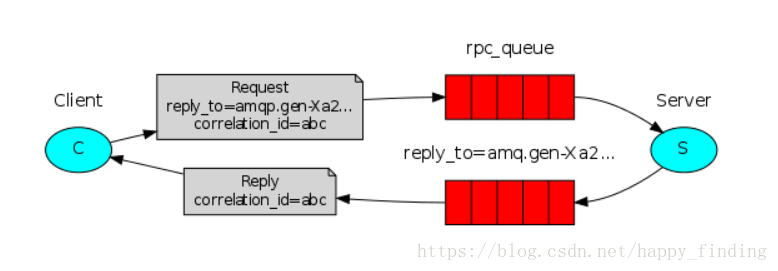

相当于由客户端发送一段信息，经由服务端处理返回给客户端结果。
在这里插入图片描述

package rabbitMQDemo.f_RPC;
import com.rabbitmq.client.ConnectionFactory;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.DefaultConsumer;
import com.rabbitmq.client.AMQP;
import com.rabbitmq.client.Envelope;

import java.io.IOException;
import java.util.UUID;
import java.util.concurrent.ArrayBlockingQueue;
import java.util.concurrent.BlockingQueue;
import java.util.concurrent.TimeoutException;

/**
 * consumer
 * @author gaomeiling
 * @date 2018年10月22日
 */
public class RPCClient {

  private Connection connection;
  private Channel channel;
  private String requestQueueName = "rpc_queue";

  public RPCClient() throws IOException, TimeoutException {
    ConnectionFactory factory = new ConnectionFactory();
    factory.setHost("localhost");

    connection = factory.newConnection();
    channel = connection.createChannel();
  }

  public String call(String message) throws IOException, InterruptedException {
    final String corrId = UUID.randomUUID().toString();

    String replyQueueName = channel.queueDeclare().getQueue();
    AMQP.BasicProperties props = new AMQP.BasicProperties
            .Builder()
            .correlationId(corrId)
            .replyTo(replyQueueName)
            .build();

    channel.basicPublish("", requestQueueName, props, message.getBytes("UTF-8"));

    final BlockingQueue<String> response = new ArrayBlockingQueue<String>(1);

    String ctag = channel.basicConsume(replyQueueName, true, new DefaultConsumer(channel) {
      @Override
      public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
        if (properties.getCorrelationId().equals(corrId)) {
          response.offer(new String(body, "UTF-8"));
        }
      }
    });

    String result = response.take();
    channel.basicCancel(ctag);
    return result;
  }

  public void close() throws IOException {
    connection.close();
  }

  public static void main(String[] argv) {
    RPCClient fibonacciRpc = null;
    String response = null;
    try {
      fibonacciRpc = new RPCClient();

      for (int i = 0; i < 32; i++) {
        String i_str = Integer.toString(i);
        System.out.println(" [x] Requesting fib(" + i_str + ")");
        response = fibonacciRpc.call(i_str);
        System.out.println(" [.] Got '" + response + "'");
      }
    }
    catch  (IOException | TimeoutException | InterruptedException e) {
      e.printStackTrace();
    }
    finally {
      if (fibonacciRpc!= null) {
        try {
          fibonacciRpc.close();
        }
        catch (IOException _ignore) {}
      }
    }
  }
}


package rabbitMQDemo.f_RPC;

import java.io.IOException;
import java.util.concurrent.TimeoutException;

import com.rabbitmq.client.AMQP;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import com.rabbitmq.client.Consumer;
import com.rabbitmq.client.DefaultConsumer;
import com.rabbitmq.client.Envelope;

/**
 * server
 * @author gaomeiling
 * @date 2018年10月19日
 */
public class RPCServer {
	private static final String RPC_QUEUE_NAME = "rpc_queue";

	//斐波那契函数
	private static int fib(int n) {
	    if (n ==0) return 0;
	    if (n == 1) return 1;
	    return fib(n-1) + fib(n-2);
	}

	public static void main(String[] args) throws IOException, TimeoutException {
		ConnectionFactory factory = new ConnectionFactory();
	    factory.setHost("localhost");
	    Connection connection = null;

	    try {
			connection = factory.newConnection();
			final Channel channel = connection.createChannel();

			channel.queueDeclare(RPC_QUEUE_NAME, false, false, false, null);
			channel.queuePurge(RPC_QUEUE_NAME);

			channel.basicQos(1);

			System.out.println(" [x] Awaiting RPC requests");

			Consumer consumer = new DefaultConsumer(channel) {
		    	@Override
		        public void handleDelivery(String consumerTag, Envelope envelope,
		                                   AMQP.BasicProperties properties, byte[] body) throws IOException {

		    	  AMQP.BasicProperties replyProps = new AMQP.BasicProperties
		    			  .Builder()
		    			  .correlationId(properties.getCorrelationId())
		    			  .build();

		          String response = "";

		          try {
		              String message = new String(body,"UTF-8");
		              int n = Integer.parseInt(message);

		              System.out.println(" [.] fib(" + message + ")");
		              response += fib(n);
		            }
		            catch (RuntimeException e){
		              System.out.println(" [.] " + e.toString());
		            }
		            finally {
		              channel.basicPublish( "", properties.getReplyTo(), replyProps, response.getBytes("UTF-8"));
		              channel.basicAck(envelope.getDeliveryTag(), false);
		              // RabbitMq consumer worker thread notifies the RPC server owner thread
		              synchronized(this) {
		              	this.notify();
		              }
		            }
		        }
		    };
		    //连接queue与consumer
		    channel.basicConsume(RPC_QUEUE_NAME, false, consumer);

		    while (true) {
		      	synchronized(consumer) {
		      		try {
		      			consumer.wait();
		      	    } catch (InterruptedException e) {
		      	    	e.printStackTrace();
		      	    }
		      	}
		      }
		    } catch (IOException | TimeoutException e) {
		      e.printStackTrace();
		    }
		    finally {
		      if (connection != null)
		        try {
		          connection.close();
		        } catch (IOException _ignore) {}
		    }
		}
	}
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
