系列文章：
   一、JavaFX摄像：https://blog.youkuaiyun.com/haoranhaoshi/article/details/85880893
   二、JavaFX拍照：https://blog.youkuaiyun.com/haoranhaoshi/article/details/85930981
   三、百度人脸识别－－人脸对比：https://blog.youkuaiyun.com/haoranhaoshi/article/details/85954440
   四、人脸库对比：https://blog.youkuaiyun.com/haoranhaoshi/article/details/86302313

补充：
解决WebCam框架中摄像模糊：https://blog.youkuaiyun.com/haoranhaoshi/article/details/87713878
Java 摄像（依靠开源框架WebCam）（Swing方式）：https://blog.youkuaiyun.com/haoranhaoshi/article/details/87714541

下载资源：

Java摄像开源框架（文档、案例、Jar包）、个人项目工程（JavaFX）、原始实例（JavaFX）：https://download.youkuaiyun.com/download/haoranhaoshi/10898408

摄像、拍照、人脸识别、人脸库对比： https://download.youkuaiyun.com/download/haoranhaoshi/10911079

本篇在系列文章三的基础上进行扩展，拍照存储后产生人脸库，人脸图片保存时命名为个人姓名，点击人脸识别在人脸库中进行对比，展示对比结果。如果人脸库中有重复的人脸，也可在对比结果中检测到。

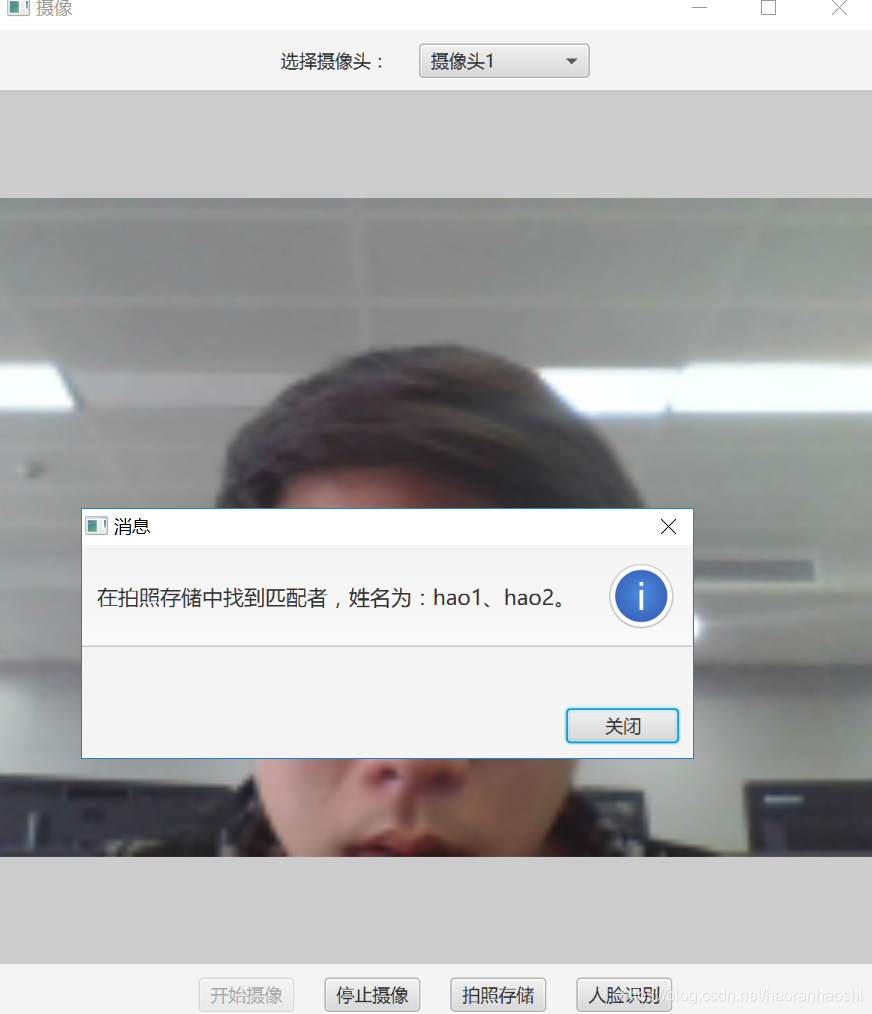

人脸库对比效果：

项目为IDEA搭建，终极工程可在如下地址下载（包括Java摄像、拍照、人脸识别、人脸库对比）：
https://download.youkuaiyun.com/download/haoranhaoshi/10911079
（为了赚两积分，就不上GitHub了?，当然，Github上也有不少博主优秀工程https://github.com/haoranhaoshi）

import com.github.sarxos.webcam.Webcam;
import facematch.FaceMatch;
import javafx.application.Application;
import javafx.application.Platform;
import javafx.beans.property.ObjectProperty;
import javafx.beans.property.SimpleObjectProperty;
import javafx.beans.value.ObservableValue;
import javafx.collections.FXCollections;
import javafx.collections.ObservableList;
import javafx.concurrent.Task;
import javafx.embed.swing.SwingFXUtils;
import javafx.geometry.Insets;
import javafx.geometry.Orientation;
import javafx.geometry.Pos;
import javafx.scene.Scene;
import javafx.scene.control.*;
import javafx.scene.image.Image;
import javafx.scene.image.ImageView;
import javafx.scene.layout.BorderPane;
import javafx.scene.layout.FlowPane;
import javafx.scene.layout.HBox;
import javafx.scene.layout.VBox;
import javafx.stage.Stage;
import org.json.JSONException;
import org.json.JSONObject;

import javax.imageio.ImageIO;
import java.awt.image.BufferedImage;
import java.io.File;
import java.io.IOException;
import java.util.ArrayList;
import java.util.List;

/**
 * 推荐JDK8及以上（适应lambda表达式），需导入lib下三个Jar包，支持摄像头选择、开始摄像、停止摄像、拍照存储、人脸识别
 */
public class MyFaceMatch extends Application {
    /**
     * 拍照存储的文件路径
     */
    String cameraImgFolderPath = new File("").getAbsolutePath() + "/src/userimage/";

    /**
     * 人脸识别临时存储的文件路径
     */
    String faceImgFolderPath = new File("").getAbsolutePath() + "/src/tempimage/";

    private class WebCamInfo {
        private String webCamName;
        private int webCamIndex;

        public String getWebCamName() {
            return webCamName;
        }

        public void setWebCamName(String webCamName) {
            this.webCamName = webCamName;
        }

        public int getWebCamIndex() {
            return webCamIndex;
        }

        public void setWebCamIndex(int webCamIndex) {
            this.webCamIndex = webCamIndex;
        }

        @Override
        public String toString() {
            return "摄像头" + (Integer.parseInt(webCamName.split("Integrated Webcam ")[1]) + 1);
        }
    }

    private FlowPane bottomCameraControlPane;
    private FlowPane topPane;
    private BorderPane root;
    private String cameraListPromptText = "选择摄像头：";
    private ImageView imgWebCamCapturedImage;
    private Webcam webCam = null;
    private boolean stopCamera = false;
    private BufferedImage grabbedImage;
    private ObjectProperty<Image> imageProperty = new SimpleObjectProperty<Image>();
    private BorderPane webCamPane;
    private Button btnCamreaStop;
    private Button btnCamreaStart;
    private Button btnCamreaGetImage;
    private Button btnFaceMatch;

    @Override
    public void start(Stage primaryStage) {
        primaryStage.setTitle("摄像");
        root = new BorderPane();
        topPane = new FlowPane();
        topPane.setAlignment(Pos.CENTER);
        topPane.setHgap(20);
        topPane.setOrientation(Orientation.HORIZONTAL);
        topPane.setPrefHeight(40);
        root.setTop(topPane);
        webCamPane = new BorderPane();
        webCamPane.setStyle("-fx-background-color: #ccc;");
        imgWebCamCapturedImage = new ImageView();
        webCamPane.setCenter(imgWebCamCapturedImage);
        root.setCenter(webCamPane);
        createTopPanel();
        bottomCameraControlPane = new FlowPane();
        bottomCameraControlPane.setOrientation(Orientation.HORIZONTAL);
        bottomCameraControlPane.setAlignment(Pos.CENTER);
        bottomCameraControlPane.setHgap(20);
        bottomCameraControlPane.setVgap(10);
        bottomCameraControlPane.setPrefHeight(40);
        bottomCameraControlPane.setDisable(true);
        createCameraControls();
        root.setBottom(bottomCameraControlPane);
        primaryStage.setScene(new Scene(root));
        primaryStage.setHeight(700);
        primaryStage.setWidth(600);
        primaryStage.centerOnScreen();
        primaryStage.show();
        Platform.runLater(() ->
                setImageViewSize()
        );
    }

    protected void setImageViewSize() {
        double height = webCamPane.getHeight();
        double width = webCamPane.getWidth();
        imgWebCamCapturedImage.setFitHeight(height);
        imgWebCamCapturedImage.setFitWidth(width);
        imgWebCamCapturedImage.prefHeight(height);
        imgWebCamCapturedImage.prefWidth(width);
        imgWebCamCapturedImage.setPreserveRatio(true);
    }

    private void createTopPanel() {
        int webCamCounter = 0;
        Label lbInfoLabel = new Label("选择摄像头：");
        ObservableList<WebCamInfo> options = FXCollections.observableArrayList();
        topPane.getChildren().add(lbInfoLabel);
        for (Webcam webcam : Webcam.getWebcams()) {
            WebCamInfo webCamInfo = new WebCamInfo();
            webCamInfo.setWebCamIndex(webCamCounter);
            webCamInfo.setWebCamName(webcam.getName());
            options.add(webCamInfo);
            webCamCounter++;
        }

        ComboBox<WebCamInfo> cameraOptions = new ComboBox<>();
        cameraOptions.setItems(options);
        cameraOptions.setPromptText(cameraListPromptText);
        cameraOptions.getSelectionModel().selectedItemProperty().addListener((ObservableValue<? extends WebCamInfo> arg0, WebCamInfo arg1, WebCamInfo arg2) -> {
            if (arg2 != null) {
                System.out.println("WebCam Index: " + arg2.getWebCamIndex() + ": WebCam Name:" + arg2.getWebCamName());
                initializeWebCam(arg2.getWebCamIndex());
            }
        });
        topPane.getChildren().add(cameraOptions);
    }

    protected void initializeWebCam(final int webCamIndex) {
        Task<Void> webCamTask = new Task<Void>() {
            @Override
            protected Void call() {
                if (webCam != null) {
                    disposeWebCamCamera();
                }
                webCam = Webcam.getWebcams().get(webCamIndex);
                webCam.open();
                startWebCamStream();
                return null;
            }
        };
        Thread webCamThread = new Thread(webCamTask);
        webCamThread.setDaemon(true);
        webCamThread.start();
        bottomCameraControlPane.setDisable(false);
        btnCamreaStart.setDisable(true);
    }

    protected void startWebCamStream() {
        stopCamera = false;
        Task<Void> task = new Task<Void>() {
            @Override
            protected Void call() {
                while (!stopCamera) {
                    try {
                        if ((grabbedImage = webCam.getImage()) != null) {
                            Platform.runLater(() -> {
                                Image mainiamge = SwingFXUtils.toFXImage(grabbedImage, null);
                                imageProperty.set(mainiamge);
                            });
                            grabbedImage.flush();
                        }
                    } catch (Exception e) {
                        e.printStackTrace();
                    }
                }
                return null;
            }
        };
        Thread th = new Thread(task);
        th.setDaemon(true);
        th.start();
        imgWebCamCapturedImage.imageProperty().bind(imageProperty);
    }

    private void createCameraControls() {
        btnCamreaStop = new Button();
        btnCamreaStop.setOnAction(event -> stopWebCamCamera());
        btnCamreaStop.setText("停止摄像");
        btnCamreaStart = new Button();
        btnCamreaStart.setOnAction(event -> startWebCamCamera());
        btnCamreaStart.setText("开始摄像");
        btnCamreaGetImage = new Button();
        btnCamreaGetImage.setOnAction(event -> getImagine());
        btnCamreaGetImage.setText("拍照存储");
        btnFaceMatch = new Button();
        btnFaceMatch.setOnAction(event -> faceMatch());
        btnFaceMatch.setText("人脸识别");
        bottomCameraControlPane.getChildren().add(btnCamreaStart);
        bottomCameraControlPane.getChildren().add(btnCamreaStop);
        bottomCameraControlPane.getChildren().add(btnCamreaGetImage);
        bottomCameraControlPane.getChildren().add(btnFaceMatch);
    }

    protected void faceMatch(){
        Image image = imgWebCamCapturedImage.getImage();
        String faceImgPath = faceImgFolderPath + "tempImg" + ".png";
        try {
            File file = new File(faceImgPath);
            ImageIO.write(SwingFXUtils.fromFXImage(image, null), "png", file);
        } catch (IOException e) {
            e.printStackTrace();
        }


        File[] fileArray = new File(cameraImgFolderPath).listFiles();
        String ak = "PSce6S7M7WVRVyIux15iDToC";
        String sk = "fvzwcYociG2GYnsZppKqEbSlUDQaQ9Sd";

        List<String> faceMathPersonNameList = new ArrayList<>();
        for(int i = 0;i < fileArray.length;i++){
            String personImg = fileArray[i].getName();
            String storeImgPath = cameraImgFolderPath + personImg;
            String result = FaceMatch.match(ak, sk, faceImgPath, storeImgPath);
            try {
                String score = new JSONObject(result).getJSONObject("result").getString("score");
                // 阈值为80，高于80分判断为同一人
                if(Double.parseDouble(score) >= 80){
                    faceMathPersonNameList.add(personImg.split("\\.")[0]);
                }
            } catch (JSONException e) {
                e.printStackTrace();
            }
        }

        String alertContent = "在拍照存储中没有匹配者！";
        for(int i = 0;i < faceMathPersonNameList.size();i++){
            String nameAbout = i < faceMathPersonNameList.size() - 1 ? (faceMathPersonNameList.get(i) + "、") : (faceMathPersonNameList.get(i) + "。");
            alertContent = i == 0 ? ("在拍照存储中找到匹配者，姓名为：" + nameAbout) : (alertContent + nameAbout);
        }

        Alert alert = new Alert(Alert.AlertType.INFORMATION, "", ButtonType.CLOSE);
        alert.setHeaderText(alertContent);
        alert.show();
    }

    protected void getImagine() {
        Image image = imgWebCamCapturedImage.getImage();
        ImageView imageView = new ImageView(image);
        Label label = new Label("图片名称：");
        TextField textField = new TextField();
        HBox hBox = new HBox(5);
        hBox.setAlignment(Pos.CENTER);
        hBox.getChildren().addAll(label, textField);
        Button button = new Button("保存");
        Stage stage = new Stage();
        button.setOnAction(event -> {
            try {
                File file = new File(cameraImgFolderPath + textField.getText() + ".png");
                ImageIO.write(SwingFXUtils.fromFXImage(image, null), "png", file);
            } catch (IOException e) {
                e.printStackTrace();
            }

            stage.close();
        });
        VBox vBox = new VBox(10);
        vBox.setAlignment(Pos.CENTER);
        vBox.setPadding(new Insets(10,10,10,10));
        vBox.getChildren().addAll(imageView, hBox, button);
        stage.setScene(new Scene(vBox));
        stage.show();
    }

    protected void disposeWebCamCamera() {
        stopCamera = true;
        webCam.close();
        Webcam.shutdown();
        btnCamreaStart.setDisable(true);
        btnCamreaStop.setDisable(true);
    }

    protected void startWebCamCamera() {
        stopCamera = false;
        startWebCamStream();
        btnCamreaStop.setDisable(false);
        btnCamreaStart.setDisable(true);
    }

    protected void stopWebCamCamera() {
        stopCamera = true;
        btnCamreaStart.setDisable(false);
        btnCamreaStop.setDisable(true);
    }

    public static void main(String[] args) {
        launch(args);
    }
}
