Android APK开发基础——git代码管理

Git代码管理工具

https://blog.youkuaiyun.com/free_wind22/article/details/50967723



git下载安装

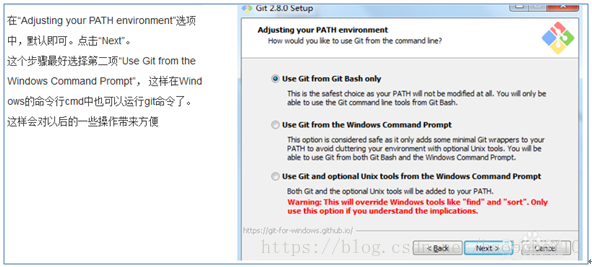

1、Git下载安装 ， Windows用户下载地址：https://git-for-windows.github.io/ ，然后按默认选项安装即可。

2、安装完成后，在开始菜单里找到“Git”->“Git Bash”，蹦出一个类似命令行窗口的东西，就说明Git安装成功 。



需要填写用户名和邮箱作为一个标识

qqq@DESKTOP-FSPC6F6 MINGW64 ~

$ git config --global user.name "huangyuan"



qqq@DESKTOP-FSPC6F6 MINGW64 ~

$ git config --global user.email "824438827@qq.com"



本地仓库

1、在本地新建了文件夹作为本地仓库，把文件添加到版本库中



首次创建提交：

$ git init

$ git add E_001F_app1

$ git commit -m "e001f first commit"

$ git status

$ git log

$ git remote add origin https://github.com/yuanhhyuan/E001f.git

$ git push -u origin master



后续更新提交：

$ git status

modified:   NewZxing/app/src/main/res/layout/activity_main.xml

$ git add NewZxing/app/src/main/res/layout/activity_main.xml

  $ git commit -m "2nd comit"

$ git push origin master



修改多个文件后一次性提交:

$ git status

modified:   ScanZxing/.idea/inspectionProfiles/Project_Default.xml

        deleted:    ScanZxing/app/src/androidTest/java/com/zxcgw/wifi/wifiautoconnect/ExampleInstrumentedTest.java

        modified:   ScanZxing/app/src/main/AndroidManifest.xml

        deleted:    ScanZxing/app/src/main/java/com/zxcgw/wifi/wifiautoconnect/wifi/WifiAdmin.java

        deleted:    ScanZxing/app/src/main/java/com/zxcgw/wifi/wifiautoconnect/wifi/WifiLinstener.java

$ git add -A

$ git commit -a -m "2nd commit"

$  git push origin master



示例：

qqq@DESKTOP-FSPC6F6 MINGW64 ~

$ cd f:

qqq@DESKTOP-FSPC6F6 MINGW64 /f

$ cd git

qqq@DESKTOP-FSPC6F6 MINGW64 /f/git

$ cd e001f1

qqq@DESKTOP-FSPC6F6 MINGW64 /f/git/e001f1

$ git init

Initialized empty Git repository in F:/git/e001f1/.git/

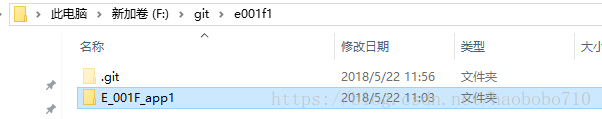

然后把andstudio代码目录E_001F_app1拷贝到/f/git/e001f1，目录如下：



qqq@DESKTOP-FSPC6F6 MINGW64 /f/git/e001f1 (master)

$ git add E_001F_app1

warning: LF will be replaced by CRLF in E_001F_app1/app/.idea/gradle.xml.

The file will have its original line endings in your working directory.

warning: LF will be replaced by CRLF in E_001F_app1/app/.idea/misc.xml.

The file will have its original line endings in your working directory.

……

The file will have its original line endings in your working directory.

warning: LF will be replaced by CRLF in E_001F_app1/gradlew.

The file will have its original line endings in your working directory.



qqq@DESKTOP-FSPC6F6 MINGW64 /f/git/e001f1 (master)

$ git commit -m "e001f first commit"

[master (root-commit) 1fac60f] e001f first commit

 142 files changed, 9268 insertions(+)

 create mode 100644 E_001F_app1/.gitignore

 ……

 create mode 100644 E_001F_app1/settings.gradle



qqq@DESKTOP-FSPC6F6 MINGW64 /f/git/e001f1 (master)

$ git status

On branch master

nothing to commit, working tree clean



qqq@DESKTOP-FSPC6F6 MINGW64 /f/git/e001f1 (master)

$ git diff E_001F_app1/app/src/main/java/com/zxcg/app/activity/MainActivity.java

diff --git a/E_001F_app1/app/src/main/java/com/zxcg/app/activity/MainActivity.ja                   va b/E_001F_app1/app/src/main/java/com/zxcg/app/activity/MainActivity.java

index c40de99..9fc127b 100644

--- a/E_001F_app1/app/src/main/java/com/zxcg/app/activity/MainActivity.java

+++ b/E_001F_app1/app/src/main/java/com/zxcg/app/activity/MainActivity.java

@@ -28,6 +28,8 @@ public class MainActivity extends BaseActivity implements IBod                   yTempCallback {

     protected void onCreate(@Nullable Bundle savedInstanceState) {

         super.onCreate(savedInstanceState);

         initSerialPort();

+

+               //git测试测试测试测试



     }



qqq@DESKTOP-FSPC6F6 MINGW64 /f/git/e001f1 (master)

$ git log

commit 1fac60f2c04fb15cf6658a52c7ca4bbbd2c42684 (HEAD -> master)

Author: huangyuan <824438827@qq.com>

Date:   Tue May 22 11:08:08 2018 +0800



    e001f first commit



qqq@DESKTOP-FSPC6F6 MINGW64 /f/git/e001f1 (master)

$ git add  E_001F_app1/app/src/main/java/com/zxcg/app/activity/MainActivity.java



qqq@DESKTOP-FSPC6F6 MINGW64 /f/git/e001f1 (master)

$ git commit -m "mainactivity add git测试"                                                         [master 01f97bb] mainactivity add git测试

 1 file changed, 2 insertions(+)



qqq@DESKTOP-FSPC6F6 MINGW64 /f/git/e001f1 (master)

$ git status

On branch master

nothing to commit, working tree clean



qqq@DESKTOP-FSPC6F6 MINGW64 /f/git/e001f1 (master)

$ git log

commit 01f97bbdb4f8a311f59a48d53259329f097baca4 (HEAD -> master)

Author: huangyuan <824438827@qq.com>

Date:   Tue May 22 11:29:03 2018 +0800



    mainactivity add git测试



commit 1fac60f2c04fb15cf6658a52c7ca4bbbd2c42684

Author: huangyuan <824438827@qq.com>

Date:   Tue May 22 11:08:08 2018 +0800



    e001f first commit



qqq@DESKTOP-FSPC6F6 MINGW64 /f/git/e001f1 (master)

$ git reset --hard HEAD^

HEAD is now at 1fac60f e001f first commit







=====

理解工作区与暂存区的区别？

　　工作区：就是你在电脑上看到的目录，比如目录下testgit里的文件(.git隐藏目录版本库除外)。或者以后需要再新建的目录文件等等都属于工作区范畴。

　　版本库(Repository)：工作区有一个隐藏目录.git,这个不属于工作区，这是版本库。其中版本库里面存了很多东西，其中最重要的就是stage(暂存区)，还有Git为我们自动创建了第一个分支master,以及指向master的一个指针HEAD。

　　我们前面说过使用Git提交文件到版本库有两步：

　　第一步：是使用 git add 把文件添加进去，实际上就是把文件添加到暂存区。

　　第二步：使用git commit提交更改，实际上就是把暂存区的所有内容提交到当前分支上。

========





远程仓库

qqq@DESKTOP-FSPC6F6 MINGW64 /f/git/e001f1 (master)

$ git remote add origin https://github.com/yuanhhyuan/E001f.git



qqq@DESKTOP-FSPC6F6 MINGW64 /f/git/e001f1 (master)

$ git push -u origin master

Counting objects: 204, done.

Delta compression using up to 4 threads.

Compressing objects: 100% (179/179), done.

Writing objects: 100% (204/204), 4.65 MiB | 313.00 KiB/s, done.

Total 204 (delta 28), reused 0 (delta 0)

remote: Resolving deltas: 100% (28/28), done.

To https://github.com/yuanhhyuan/E001f.git

 * [new branch]      master -> master

Branch 'master' set up to track remote branch 'master' from 'origin'.
