本文详细分析了ApachePulsar中两种订阅类型——KeyShared和Shared的行为差异。在Shared模式下，消息随机分发给消费者；而KeyShared模式确保同一键值的消息始终发送给同一个消费者，除非该消费者不可用。实验结果显示，KeySharedConsumer1未收到消息，所有消息都被分配给了KeySharedConsumer2。

apache pulsar订阅类型：KeyShared与Shared行为分析

apache pulsar订阅类型：KeyShared与Shared行为分析

apache pulsar订阅类型：KeyShared与Shared行为分析

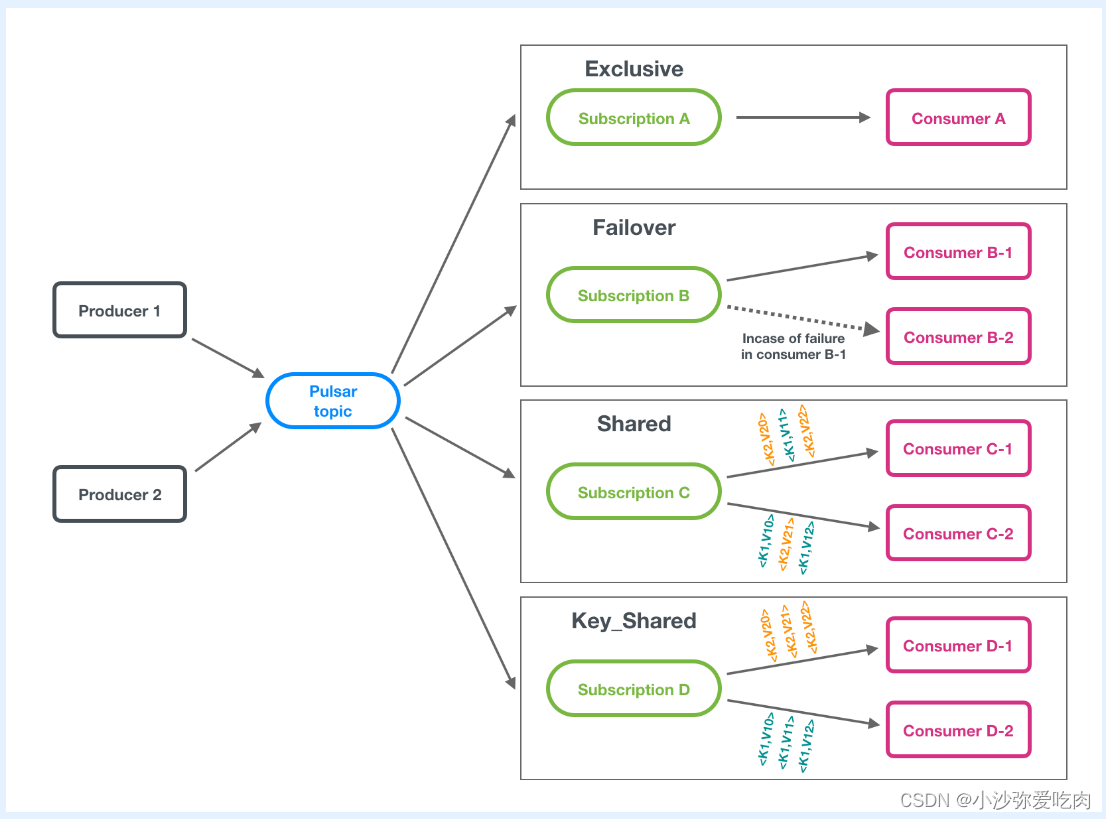

订阅类型

参见以下图片
在这里插入图片描述

生产者

生产者参数
- Topic: 指定消息的发送目的地
消息
- 消息发送方式：send，阻塞式发送
- 消息参数pulsar.ProducerMessage
- Payload: 实际上携带的数据部分,比如我想发送hello world,放在该字段中即可

消费者

消费者参数
- Topic: 指定订阅的topic
- SubscriptionName: 指定订阅的名字
- Type: 订阅类型,有以下四种
  - Exclusive
  - Shared
  - Failover
  - KeyShared

订阅行为分析

订阅行为分析皆基于生产者和消费都往同一个Topic发送和收取消息。
以下将消费者简记为C,某一个消费者记作Ci,比如C1,C2,C3。
将生产者简记为P,某一个生产者记作Pi,比如P1,P2,P3。
生产者P表示泛指，表示生产者这个身份或者生产者这个群体。
消费者C表示泛指，表示消费者这个身份或者消费者这个群体。

消费者的SubscriptionName相同,比如C1.SubscriptionName="my-sub1",C2.SubscriptionName="my-sub1"
- 即同一SubscriptionName下不允许指定不同的Type类型，比如C1.Type=Shared C2.Type=KeyShared。C1、C2的Type必须是相同的。
- 同一SubscriptionName下不同Type类型的消息发送模式如下：
  - Shared模式下：消息的发送是随机的
    - 假定有生产者P1,消费者C1,C2
    - P1往Topic发送消息10条消息，假定编号为0-9
    - 消费者收到消息的可能性结果是随机的,以下结果都是可能的
      - C1收到0 2 5; C2收到1 3 4 6 7 8 9
      - C1收到0 1 2 3 4 5; C2收到6 7 8 9
      - 以下省略其他可能
  - KeyShared模式下：若消息一开始就分配给了某个消费者，后续的消息就会一直发往这个消费者
    - 假定有生产者P1,消费者C1,C2
    - P1往Topic发送消息10条消息，假定编号为0-9
    - 假定C1收到消息了(会收到全部消息: 0-9)，那么生产者后续生产的消息会全部发往C1,由C1进行处理，C2则收不到任何消息
    - 此时如果C1宕机了，那么消息才会被发到C2由C2处理
消费者的SubscriptionName不同，比如C1.SubscriptionName="my-sub1",C2.SubscriptionName="my-sub2"
- 生产者生产的消息都会发送到两个订阅区，比如my-sub1，my-sub2，然后由订阅区消费者的Type类型决定该订阅区中的消息该怎么发送
- 同一个订阅区(即SubscriptionName相同)下不允许指定不同的Type类型
- 相同订阅区的消息发送模式Shared模式与KeyShared模式参照上面所阐述的案例

生产者消费定义

角色	Topic	SubscriptionName
生产者 producer	my-topic	-
消费者 sharedConsumer1	my-topic	my-sub
消费者 sharedConsumer2	my-topic	my-sub
消费者 keySharedConsumer1	my-topic	my-sub2
消费者 keySharedConsumer2	my-topic	my-sub2

“-” 表示不指定SubscriptionName，生产者不需要指定该参数，消费者需要

结果

下面给出我本机运行的结果。代码就不贴了，关于如何定义生产者和消费者的代码请参考官方文档：https://pulsar.apache.org/docs/2.11.x/client-libraries-go/#producer-operations

producer
发送0-8总共9条消息

sharedConsumer1
收到消息0 3 4 5

topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-0, ID=35:63:0, publishTime=2023-04-06 11:37:07.769 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>
topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-3, ID=35:66:0, publishTime=2023-04-06 11:37:07.795 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>
topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-4, ID=35:67:0, publishTime=2023-04-06 11:37:07.799 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>
topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-5, ID=35:68:0, publishTime=2023-04-06 11:37:07.803 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>

sharedConsumer2
收到消息1 2 6 7 8

topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-1, ID=35:64:0, publishTime=2023-04-06 11:37:07.783 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>
topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-2, ID=35:65:0, publishTime=2023-04-06 11:37:07.791 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>
topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-6, ID=35:69:0, publishTime=2023-04-06 11:37:07.807 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>
topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-7, ID=35:70:0, publishTime=2023-04-06 11:37:07.81 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>
topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-8, ID=35:71:0, publishTime=2023-04-06 11:37:07.814 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>

keySharedConsumer1
没有收到任何消息

keySharedConsumer2
收到消息 0 1 2 3 4 5 6 7 8

topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-0, ID=35:63:0, publishTime=2023-04-06 11:37:07.769 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>
topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-1, ID=35:64:0, publishTime=2023-04-06 11:37:07.783 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>
topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-2, ID=35:65:0, publishTime=2023-04-06 11:37:07.791 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>
topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-3, ID=35:66:0, publishTime=2023-04-06 11:37:07.795 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>
topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-4, ID=35:67:0, publishTime=2023-04-06 11:37:07.799 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>
topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-5, ID=35:68:0, publishTime=2023-04-06 11:37:07.803 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>
topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-6, ID=35:69:0, publishTime=2023-04-06 11:37:07.807 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>
topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-7, ID=35:70:0, publishTime=2023-04-06 11:37:07.81 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>
topic:persistent://public/default/my-topic, producerName:standalone-30-7, properties:map[], payload:hello-8, ID=35:71:0, publishTime=2023-04-06 11:37:07.814 +0800 CST, eventTime=1970-01-01 08:00:00 +0800 CST, key=my-key, orderingKey=, redeliveryCount=0, isReplicated=false, replicatedFrom=, schemaVersion=, index=<nil>, brokerPublishTime=<nil>
