本文详细介绍了如何在集成项目中运用路由聚合(Routing Aggregation)和MSTP（Multiple Spanning Tree Protocol）技术，包括配置步骤和实际操作。通过实例展示在HCL环境下，路由器Sw1、Sw2和Sw3的配置，以实现区域划分、VLAN管理和OSPF路由优化。

路由聚合+mstp
1,集成项目（无配置文件）

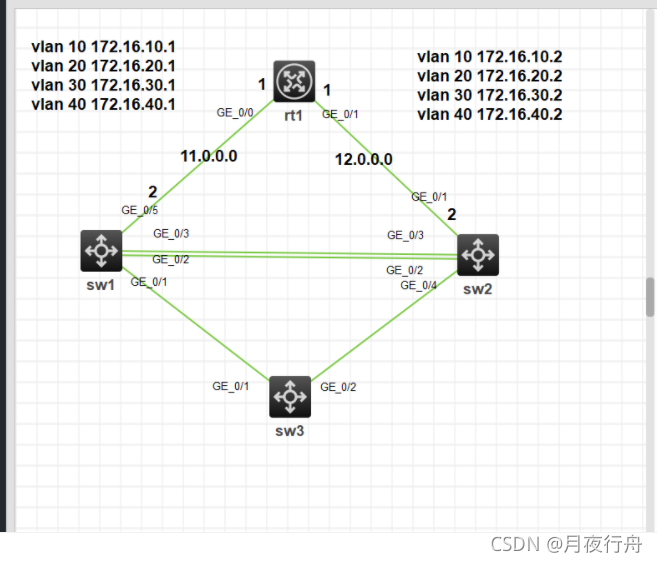

项目端口截图
项目集成包下载hcl
rt1指令

sys
int g0/0
ip add 11.0.0.1 24
int g0/1
ip add 12.0.0.1 24
int l0
ip add 1.1.1.1 32
qu
ospf
a 0
net 11.0.0.0 0.0.0.255
net 12.0.0.0 0.0.0.255
net 1.1.1.1 0.0.0.0
qu
qu

sw1指令

sys
int br 1
int g1/0/2
port link-agg group 1
int g1/0/3
port link-agg group 1
vlan 1000
port g1/0/5
int vlan 1000
ip add 11.0.0.2 24
vlan 10
int vlan 10
ip add 172.16.10.1 24
vlan 20
int vlan 20
ip add 172.16.20.1 24
vlan 30
int vlan 30
ip add 172.16.30.1 24
vlan 40
int vlan 40
ip add 172.16.40.1 24
int br 1
port link-type tr
po tr pe vlan 10 20 30 40
qu
stp re
region-name h3c
ins 1 vlan 10 20
ins 2 vlan 30 40
ac re
stp in 1 root pr
stp in 2 root se
int g1/0/1
port link-type tr
port tr pe vlan 10 20 30 40
qu
ospf
a 0
net 172.16.10.0 0.0.255.255
net 11.0.0.0 0.0.0.255
qu

sw2指令

sys
int br 1
int g1/0/2
port link-agg group 1
int g1/0/3
port link-agg group 1
vlan 2000
port g1/0/1
int vlan 2000
ip add 12.0.0.2 24
vlan 10
int vlan 10
ip add 172.16.10.2 24
vlan 20
int vlan 20
ip add 172.16.20.2 24
vlan 30
int vlan 30
ip add 172.16.30.2 24
vlan 40
int vlan 40
ip add 172.16.40.2 24
int br 1
port link-type tr
po tr pe vlan 10 20 30 40
qu
stp re
region-name h3c
ins 1 vlan 10 20
ins 2 vlan 30 40
ac re
stp in 2 root pr
stp in 1 root se
int g1/0/4
port link-type tr
port tr pe vlan 10 20 30 40
ospf
a 0
net 172.16.0.0 0.0.255.255
net 12.0.0.0 0.0.0.255
qu

sw3指令

sys
vlan 10
int vlan 10
ip add 172.16.10.3 24
vlan 20
int vlan 20
ip add 172.16.20.3 24
vlan 30
int vlan 30
ip add 172.16.30.3 24
vlan 40
int vlan 40
ip add 172.16.40.3 24
int g1/0/1
port link-type tr
port tr pe vlan 10 20 30 40
int g1/0/2
port link-type tr
port tr pe vlan 10 20 30 40
qu
stp re
region-name h3c
ins 1 vlan 10 20
ins 2 vlan 30 40
ac re
qu
ospf
a 0
net 172.16.0.0 0.0.255.255
qu
