MybatisPlus配置多数据源(一)

积攒很久了没有发帖，其中一度准备总结一下知识，可是由于各种原因被耽搁至今9个多月了，很多准备的题材种种原因无法重新执笔，写的知识也没有很深入，只是作为自己的一个总结。有好的想法可以评论，共同学习。

今天准备分享mybatisplus配置多数据源（通过配置文件的方式）。该种配置适合于场景数据源个数确定，且都有根据数据源进行开发的需求。

项目使用的版本信息如下：

springbooot：2.3.2.RELEASE

mybatisplus:3.4.3.3

直接上代码，创建 整合的配置文件DruidConfiguration ：

package com.xx.xx.config;

import com.alibaba.druid.pool.DruidDataSource;
import com.alibaba.druid.support.http.StatViewServlet;
import com.alibaba.druid.support.http.WebStatFilter;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.boot.web.servlet.FilterRegistrationBean;
import org.springframework.boot.web.servlet.ServletRegistrationBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import javax.sql.DataSource;
import java.util.Arrays;
import java.util.HashMap;
import java.util.Map;

/**
 * 项目名:md
 * 创建人:
 * 创建时间:2021/11/15 17:58
 * 类名:DruidConfiguration
 * 类描述: 类描述
 */
@Configuration
public class DruidConfiguration {

        /**
         * @author:
         * 创建时间: 2021/11/17 10:20
         * 描述: xx
         * param
         * return
         */
    @ConfigurationProperties(prefix = "spring.datasource.xx")
    @Bean
    public DataSource xx(){
        return  new DruidDataSource();
    }

        /**
         * @author: xx
         * 创建时间: 2021/11/17 10:20
         * 描述: xx
         * param
         * return
         */
    @ConfigurationProperties(prefix = "spring.datasource.mddatasource")
    @Bean
    public DataSource mdDatasource(){
        return  new DruidDataSource();
    }

    //配置Druid的监控
    //1、配置一个管理后台的Servlet
    @Bean
    public ServletRegistrationBean statViewServlet(){
        ServletRegistrationBean bean = new ServletRegistrationBean(new StatViewServlet(), "/druid/*");
        Map<String,String> initParams = new HashMap<>();
        initParams.put("loginUsername","sa");
        initParams.put("loginPassword","zjiang*76");
        initParams.put("allow","");//默认就是允许所有访问
        initParams.put("deny","223.124.153.078");
        bean.setInitParameters(initParams);
        return bean;
    }
    //2、配置一个web监控的filter
    @Bean
    public FilterRegistrationBean webStatFilter(){
        FilterRegistrationBean bean = new FilterRegistrationBean();
        bean.setFilter(new WebStatFilter());
        Map<String,String> initParams = new HashMap<>();
        initParams.put("exclusions","*.js,*.css,/druid/*");
        bean.setInitParameters(initParams);
        bean.setUrlPatterns(Arrays.asList("/*"));
        return  bean;
    }
}

创建数据源一的配置文件：XXErpDataSourceConfig

package com.xx.mdstream.config;

import com.baomidou.mybatisplus.core.MybatisConfiguration;
import com.baomidou.mybatisplus.extension.spring.MybatisSqlSessionFactoryBean;
import org.apache.ibatis.logging.stdout.StdOutImpl;
import org.apache.ibatis.session.SqlSessionFactory;
import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.SqlSessionTemplate;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Primary;
import org.springframework.core.io.support.PathMatchingResourcePatternResolver;
import org.springframework.jdbc.datasource.DataSourceTransactionManager;

import javax.sql.DataSource;

/**
 * 项目名:middleground
 * 创建人:
 * 创建时间:2021/11/15 18:09
 * 类名:SelfDataSourceConfig
 * 类描述: xx
 */
@Configuration
@MapperScan(basePackages = "com.xx.mdstream.dao.xxerpDataSource", sqlSessionTemplateRef = "sourceSqlSessionTemplate")
public class XXErpDataSourceConfig {

    @Bean
    @Primary
    public SqlSessionFactory xxErpSqlSessionFactory(@Qualifier("xxErp1076datasource") DataSource dataSource) throws Exception {
        MybatisSqlSessionFactoryBean bean = new MybatisSqlSessionFactoryBean();
        bean.setDataSource(dataSource);
        //扫描xml文件路径
         bean.setMapperLocations(new PathMatchingResourcePatternResolver().getResources("classpath*:mapper/xxerp/*.xml"));
        //设置打印sql语句
        MybatisConfiguration mybatisConfiguration = new MybatisConfiguration();
        mybatisConfiguration.setLogImpl(StdOutImpl.class);
        bean.setConfiguration(mybatisConfiguration);
        return bean.getObject();
    }

    @Bean
    @Primary
    public DataSourceTransactionManager sourceTransactionManager(@Qualifier("xxErp1076datasource") DataSource dataSource) {
        return new DataSourceTransactionManager(dataSource);
    }

    @Bean
    @Primary
    public SqlSessionTemplate sourceSqlSessionTemplate(@Qualifier("cqErpSqlSessionFactory") SqlSessionFactory sqlSessionFactory) throws Exception {
        return new SqlSessionTemplate(sqlSessionFactory);
    }

}

创建数据源二的配置文件MdDataSourceConfig

package com.xx.mdstream.config;

import com.baomidou.mybatisplus.core.MybatisConfiguration;
import com.baomidou.mybatisplus.extension.spring.MybatisSqlSessionFactoryBean;
import org.apache.ibatis.logging.stdout.StdOutImpl;
import org.apache.ibatis.session.SqlSessionFactory;
import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.SqlSessionTemplate;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Primary;
import org.springframework.core.io.support.PathMatchingResourcePatternResolver;
import org.springframework.jdbc.datasource.DataSourceTransactionManager;

import javax.sql.DataSource;

/**
 * 项目名:middleground
 * 创建人:
 * 创建时间:2021/11/15 18:09
 * 类名:SelfDataSourceConfig
 * 类描述:
 */
@Configuration
@MapperScan(basePackages = {"com.xx.mdstream.dao.mdDataSource","com.xx.common.dao"}, sqlSessionTemplateRef = "mdDataSourceSqlSessionTemplate")
public class MdDataSourceConfig {

    @Bean
    @Primary
    public SqlSessionFactory mdSqlSessionFactory(@Qualifier("mdDatasource") DataSource dataSource) throws Exception {
        MybatisSqlSessionFactoryBean bean = new MybatisSqlSessionFactoryBean();
        bean.setDataSource(dataSource);
        //扫描xml文件路径
        bean.setMapperLocations(new PathMatchingResourcePatternResolver().getResources("classpath*:mapper/md/*.xml"));
        //设置打印sql语句
        MybatisConfiguration mybatisConfiguration = new MybatisConfiguration();
        mybatisConfiguration.setLogImpl(StdOutImpl.class);
        bean.setConfiguration(mybatisConfiguration);
        return bean.getObject();
    }

    @Bean
    @Primary
    public DataSourceTransactionManager mdDataSourceTransactionManager(@Qualifier("mdDatasource") DataSource dataSource) {
        return new DataSourceTransactionManager(dataSource);
    }

    @Bean
    @Primary
    public SqlSessionTemplate mdDataSourceSqlSessionTemplate(@Qualifier("mdSqlSessionFactory") SqlSessionFactory sqlSessionFactory) throws Exception {
        return new SqlSessionTemplate(sqlSessionFactory);
    }

}

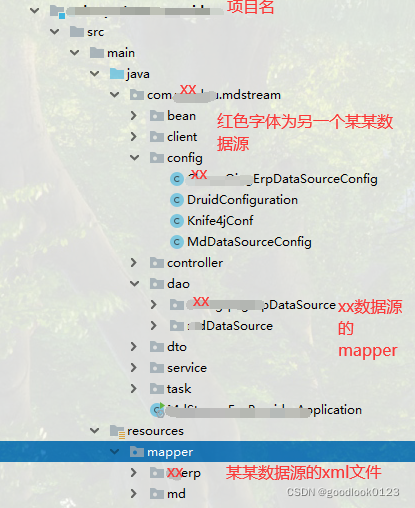

项目中的结构如下：

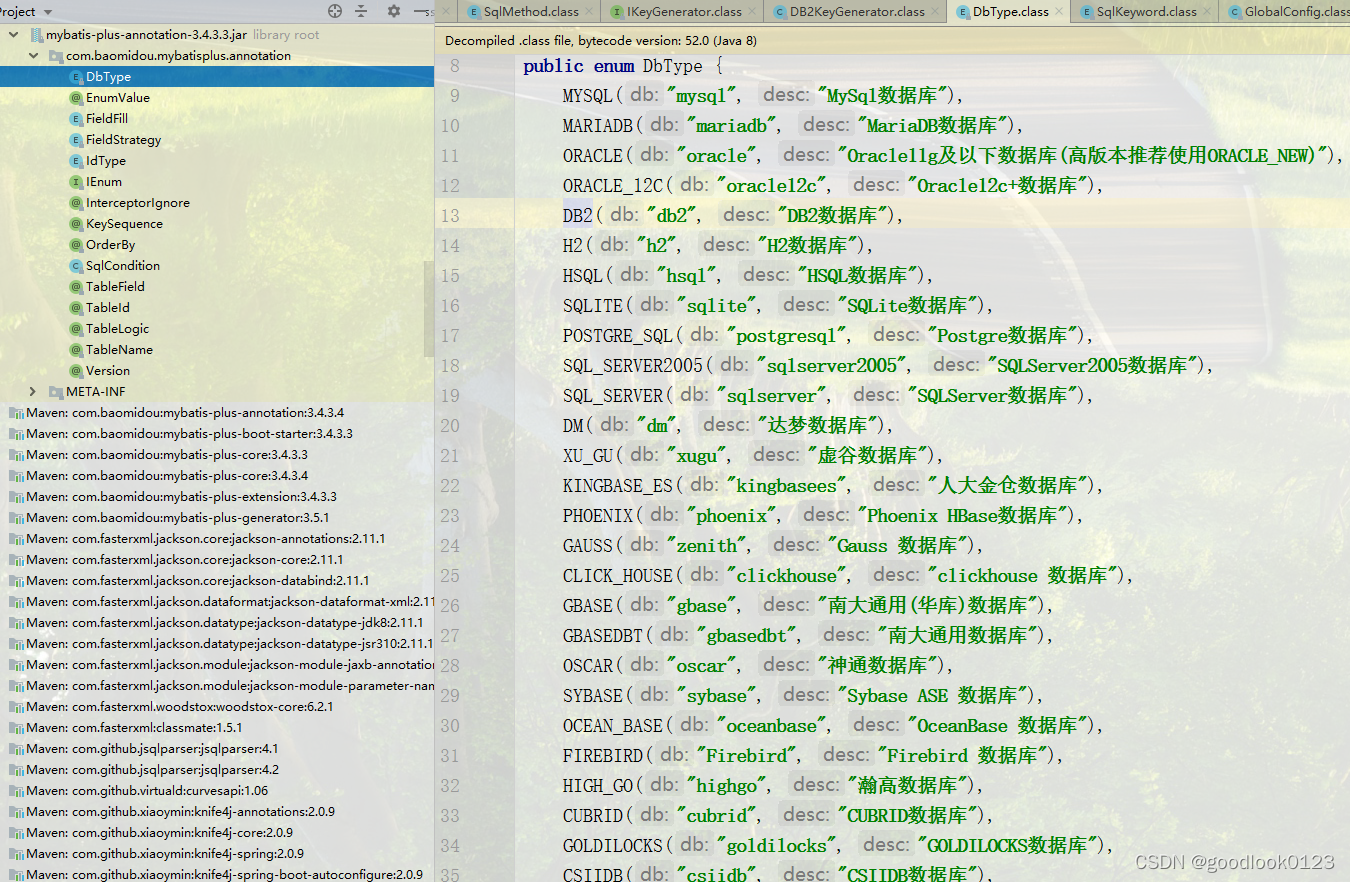

 实现其实很简单，复制上述代码启动即可运行，其中支持数据库类型翻源码有如下：
