java调用ffmpeg把rtsp视频流保存为MP4文件

前言：最近需要把rtsp的视频流保存为MP4文件（就是录制直播流）。刚开始用的javacv的FFmpegFrameGrabber和FFmpegFrameRecorder，但是声音流和视频流无法调整，声音和视频一直对不上而且录制的视频也有问题每次录10秒保存的视频却有18秒。毕竟不是专业做音视频的，很多东西也不了解，也是一步步摸索。最后也是向位大佬询问，也给我了很好建议：1.是调用ffmpeg命令行完成转码。2.增加中间件srs，使用srs拉去rtsp流数据并录制为ts文件，再使用java调用ffmpeg将ts列表合成文件。大佬比较建议使用第一种方案，因为srs的Dvr录制不稳定。ffmpeg命令行稳定点。ok，下面就开始分享代码。

1. 环境工具准备
   1. ffmpeg的程序和一个稳定的rtsp流
   这是我的ffmpeg的版本。
   fmpeg version git-2019-10-11-71d9ae1 Copyright (c) 2000-2019 the FFmpeg developers built with gcc 9.2.1 (GCC) 20191010

2. 工具类代码，说几个重点也是我踩了很久才出来的坑：
   1.ffmpegPath一定要写绝对路径的地址(如 D:\ffmpeg\ffmpeg.exe).
   2.command在add的时候一定是一个字符一个位置不能直接拼成一句，也不要在单独拼接空格。否则直接会抛出无效的指令
   3.获取的输入流必须单独建立一个线程来进行结果的打印，如果直接转字节打印，结束方法就会无效。
   4.输出流在次和dos发送指令时一定要刷新。

   import org.springframework.stereotype.Component;


import java.io.InputStream;
import java.io.InputStreamReader;
import java.io.OutputStream;
import java.text.SimpleDateFormat;
import java.util.ArrayList;
import java.util.Date;
import java.util.List;

/**

• TODO:

• @Author: ZHANG

• @create: 2021/8/27 16:11
  */
  @Component
  public class RtspToMP4 {

  public class In implements Runnable{
  private InputStream inputStream;

   <span class="token keyword">public</span> <span class="token class-name">In</span><span class="token punctuation">(</span><span class="token class-name">InputStream</span> inputStream<span class="token punctuation">)</span> <span class="token punctuation">{<!-- --></span>
       <span class="token keyword">this</span><span class="token punctuation">.</span>inputStream <span class="token operator">=</span> inputStream<span class="token punctuation">;</span>
   <span class="token punctuation">}</span>
   <span class="token annotation punctuation">@Override</span>
   <span class="token keyword">public</span> <span class="token keyword">void</span> <span class="token function">run</span><span class="token punctuation">(</span><span class="token punctuation">)</span> <span class="token punctuation">{<!-- --></span>
       <span class="token keyword">try</span> <span class="token punctuation">{<!-- --></span>
           <span class="token comment">//转成字符输入流</span>
           <span class="token class-name">InputStreamReader</span> inputStreamReader <span class="token operator">=</span> <span class="token keyword">new</span> <span class="token class-name">InputStreamReader</span><span class="token punctuation">(</span>inputStream<span class="token punctuation">,</span> <span class="token string">"gbk"</span><span class="token punctuation">)</span><span class="token punctuation">;</span>
           <span class="token keyword">int</span> len <span class="token operator">=</span> <span class="token operator">-</span><span class="token number">1</span><span class="token punctuation">;</span>
           <span class="token keyword">char</span><span class="token punctuation">[</span><span class="token punctuation">]</span> c <span class="token operator">=</span> <span class="token keyword">new</span> <span class="token keyword">char</span><span class="token punctuation">[</span><span class="token number">1024</span><span class="token punctuation">]</span><span class="token punctuation">;</span>
           <span class="token comment">//读取进程输入流中的内容</span>
           <span class="token keyword">while</span> <span class="token punctuation">(</span><span class="token punctuation">(</span>len <span class="token operator">=</span> inputStreamReader<span class="token punctuation">.</span><span class="token function">read</span><span class="token punctuation">(</span>c<span class="token punctuation">)</span><span class="token punctuation">)</span> <span class="token operator">!=</span> <span class="token operator">-</span><span class="token number">1</span><span class="token punctuation">)</span> <span class="token punctuation">{<!-- --></span>
               <span class="token class-name">String</span> s <span class="token operator">=</span> <span class="token keyword">new</span> <span class="token class-name">String</span><span class="token punctuation">(</span>c<span class="token punctuation">,</span> <span class="token number">0</span><span class="token punctuation">,</span> len<span class="token punctuation">)</span><span class="token punctuation">;</span>
               <span class="token class-name">System</span><span class="token punctuation">.</span>out<span class="token punctuation">.</span><span class="token function">print</span><span class="token punctuation">(</span>s<span class="token punctuation">)</span><span class="token punctuation">;</span>
           <span class="token punctuation">}</span>
       <span class="token punctuation">}</span><span class="token keyword">catch</span> <span class="token punctuation">(</span><span class="token class-name">Exception</span> e<span class="token punctuation">)</span> <span class="token punctuation">{<!-- --></span>
           e<span class="token punctuation">.</span><span class="token function">printStackTrace</span><span class="token punctuation">(</span><span class="token punctuation">)</span><span class="token punctuation">;</span>
       <span class="token punctuation">}</span>
   <span class="token punctuation">}</span>


  }

  public Process StartRecord(String ffmpegPath,String streamUrl, String FilePath){
  ProcessBuilder processBuilder = new ProcessBuilder();
  //定义命令内容
  List<String> command = new ArrayList<>();
  command.add(ffmpegPath);
  command.add(“-rtsp_transport”);
  command.add(“tcp”);
  command.add(“-y”);
  command.add(“-i”);
  command.add(streamUrl);
  command.add(“-c”);
  command.add(“copy”);
  command.add(“-f”);
  command.add(“mp4”);
  command.add(FilePath);
  processBuilder.command(command);
  System.out.println(“脚本：” + command.toString());
  //将标准输入流和错误输入流合并，通过标准输入流读取信息
  processBuilder.redirectErrorStream(true);
  try {
  //启动进程
  Process process = processBuilder.start();
  System.out.println(“开始时间：” + new SimpleDateFormat(“yyyy-MM-dd HH:mm:ss”).format(new Date(System.currentTimeMillis())));
  //获取输入流
  InputStream inputStream = process.getInputStream();
  Thread inThread = new Thread(new In(inputStream));
  inThread.start();
  return process;
  } catch (Exception e) {
  e.printStackTrace();
  }
  return null;
  }

  public boolean stopRecord(Process process) {
  try {
  OutputStream os = process.getOutputStream();
  os.write(“q”.getBytes());
  // 一定要刷新
  os.flush();
  os.close();
  } catch (Exception err) {
  err.printStackTrace();
  return false;
  }
  return true;
  }
  }

• 1
• 2
• 3
• 4
• 5
• 6
• 7
• 8
• 9
• 10
• 11
• 12
• 13
• 14
• 15
• 16
• 17
• 18
• 19
• 20
• 21
• 22
• 23
• 24
• 25
• 26
• 27
• 28
• 29
• 30
• 31
• 32
• 33
• 34
• 35
• 36
• 37
• 38
• 39
• 40
• 41
• 42
• 43
• 44
• 45
• 46
• 47
• 48
• 49
• 50
• 51
• 52
• 53
• 54
• 55
• 56
• 57
• 58
• 59
• 60
• 61
• 62
• 63
• 64
• 65
• 66
• 67
• 68
• 69
• 70
• 71
• 72
• 73
• 74
• 75
• 76
• 77
• 78
• 79
• 80
• 81
• 82
• 83
• 84
• 85
• 86
• 87
• 88
• 89
• 90
• 91

• 在贴一下调用的代码

  import com.beiLinCourt.common.result.Result;
  import com.beiLinCourt.common.task.RtspToMP4;
  import io.swagger.annotations.Api;
  import io.swagger.annotations.ApiOperation;
  import org.springframework.beans.factory.annotation.Autowired;
  import org.springframework.web.bind.annotation.GetMapping;
  import org.springframework.web.bind.annotation.RequestMapping;
  import org.springframework.web.bind.annotation.RestController;


• import java.util.HashMap;
  import java.util.Map;

  /**

  • TODO:

  • @Author: ZHANG

  • @create: 2021/8/27 16:16
    */
    @Api(tags = “测试”)
    @RestController
    @RequestMapping(“/test”)
    public class TestController {
    @Autowired
    private RtspToMP4 rtspToMP4;

    private Map<Integer,Process> map=new HashMap<>();

    @ApiOperation(value = “开始录制”)
    @GetMapping(value = “/Start”)
    public Result<String> Start(Integer id,String FileName) {
    String ffmpegPath=“D:\ffmpeg\ffmpeg.exe”;
    String streamUrl=“rtsp://192.168.0.168/0”;
    String FilePath=“E:\data\MP4\”+FileName;
    Process process = rtspToMP4.StartRecord(ffmpegPath, streamUrl, FilePath);
    if(null!=process){
    map.put(id,process);
    return Result.success();
    }
    return Result.failed();
    }

    @ApiOperation(value = “结束录制”)
    @GetMapping(value = “/stop”)
    public Result<String> stop(Integer id) {
    if(map.containsKey(id)){
    Process process = map.get(id);
    if(null!=process){
    rtspToMP4.stopRecord(process);
    return Result.success();
    }
    }
    return Result.failed();
    }
    }

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39
  • 40
  • 41
  • 42
  • 43
  • 44
  • 45
  • 46
  • 47
  • 48
  • 49
  • 50
  • 51
  • 52
  • 53
  • 54

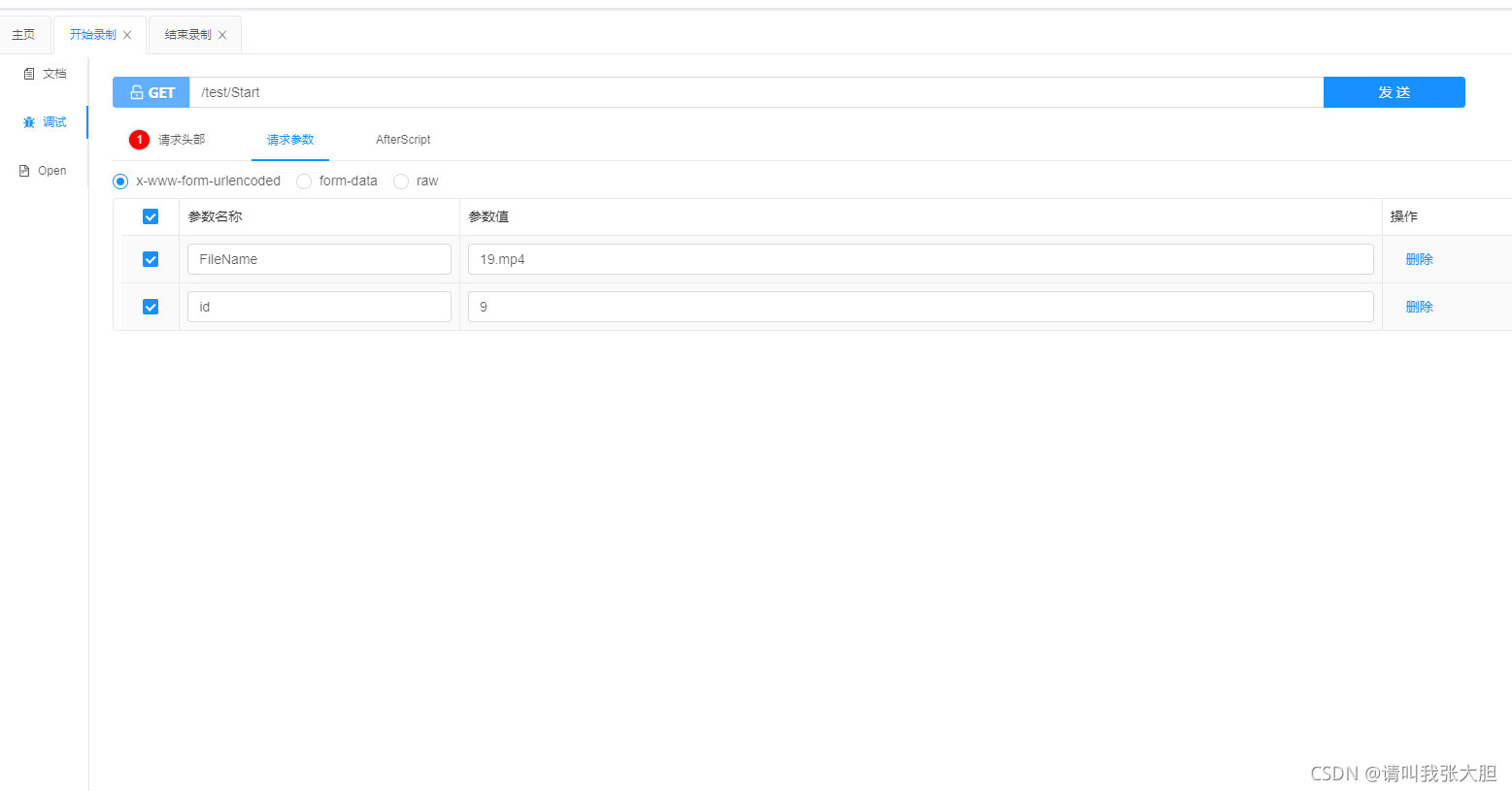

• 启动项目，进入swagger测试

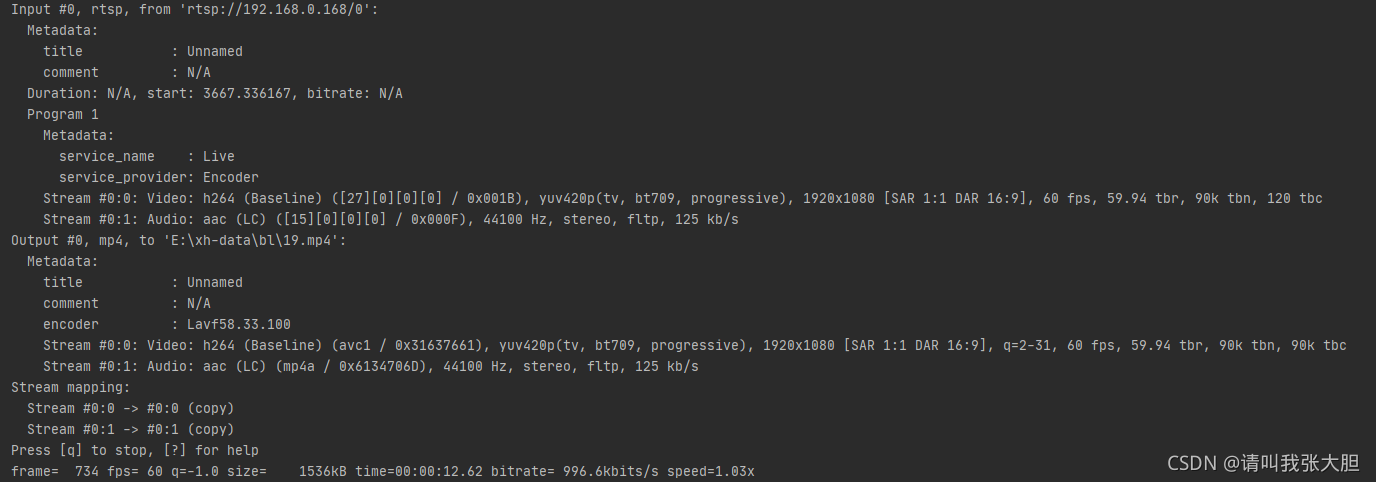

  控制台日志

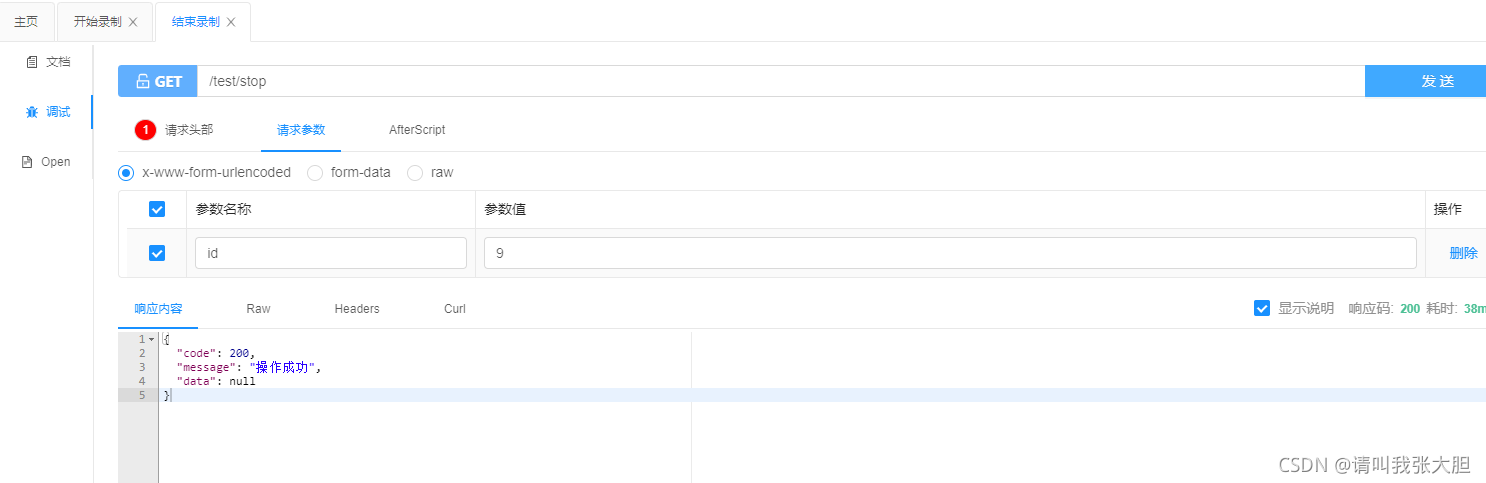

  在调用结束接口

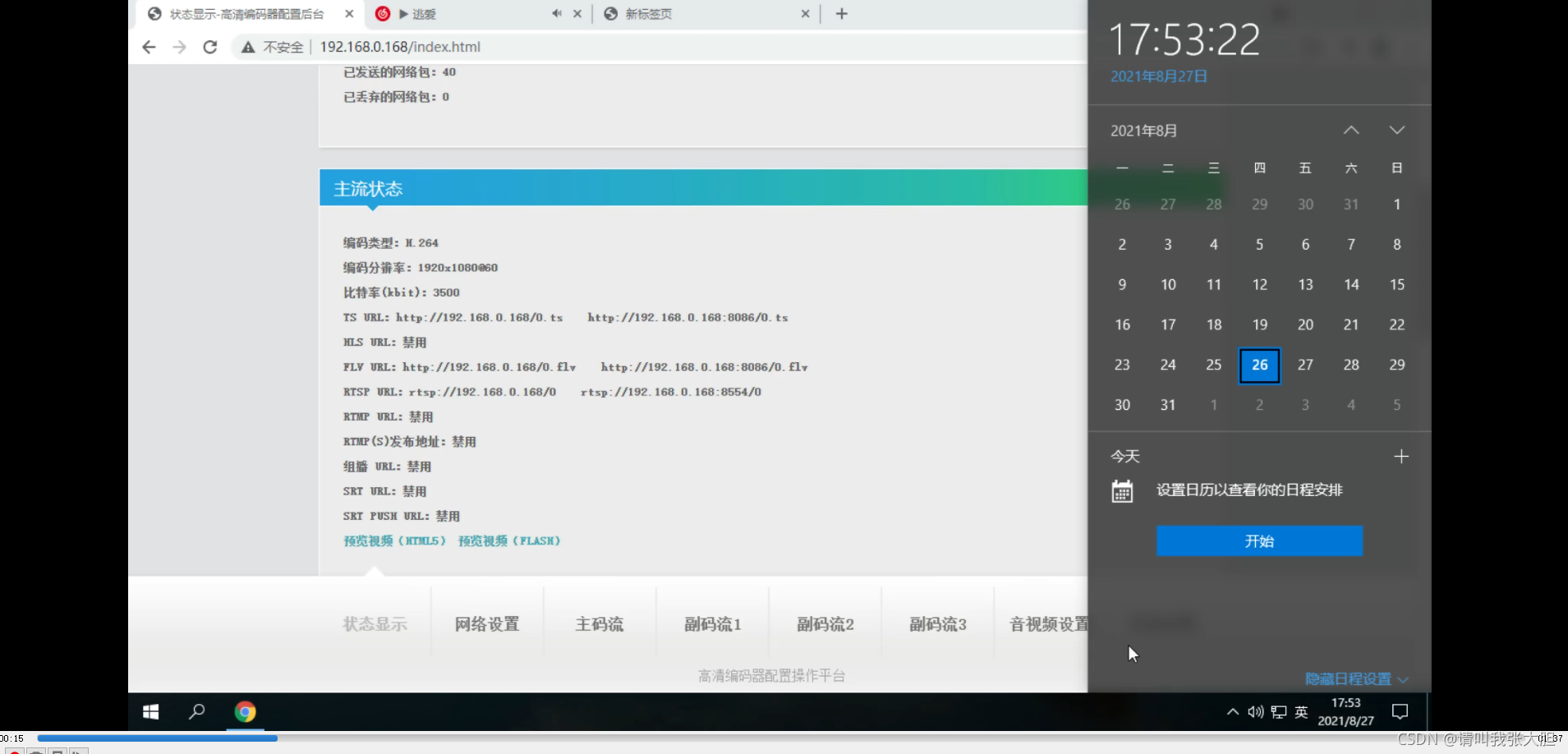

  在看一下录制的视频文件


  视频时间也对，声音的输出也正常。暂时也没有发现其他的什么Bug。

• 最后也是感谢大佬，给我提供了一个很好的思路。最后有什么错误的地方请指出，大家一起讨论，一起进步。
