项目背景

最近公司某物联网项目需要使用socket长连接进行消息通讯,捣鼓了一版代码上线,结果BUG不断,本猿寝食难安,于是求助度娘,数日未眠项目终于平稳运行了,本着开源共享的精神,本猿把项目代码提炼成了一个demo项目,尽量摒弃了其中丑陋的业务部分,希望与同学们共同学习进步。

基于 Spring Boot + MyBatis Plus + Vue & Element 实现的后台管理系统 + 用户小程序,支持 RBAC 动态权限、多租户、数据权限、工作流、三方登录、支付、短信、商城等功能

  • 项目地址:https://github.com/YunaiV/ruoyi-vue-pro

  • 视频教程:https://doc.iocoder.cn/video/

正文

一、项目架构

本项目使用了netty、redis以及springboot2.2.0

二、项目模块

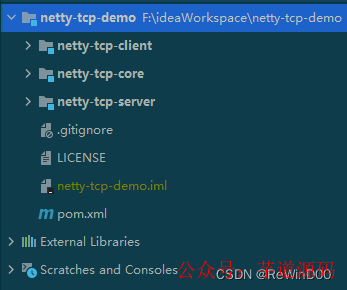

本项目目录结构如下图:


netty-tcp-core是公共模块,主要是工具类。netty-tcp-server是netty服务端,服务端仅作测试使用,实际项目中我们只使用了客户端。netty-tcp-client是客户端,也是本文的重点。

三、业务流程

我们实际项目中使用RocketMQ作为消息队列,本项目由于是demo项目于是改为了BlockingQueue。数据流为:

生产者->消息队列->消费者(客户端)->tcp通道->服务端->tcp通道->客户端。

当消费者接收到某设备发送的消息后,将判断缓存中是否存在该设备与服务端的连接,如果存在并且通道活跃则使用该通道发送消息,如果不存在则创建通道并在通道激活后立即发送消息,当客户端收到来自服务端的消息时进行响应的业务处理。

四、代码详解

1.消息队列

由于本demo项目移除了消息中间件,于是需要自己创建一个本地队列模拟真实使用场景

package org.example.client;

import org.example.client.model.NettyMsgModel;

import java.util.concurrent.ArrayBlockingQueue;

/**
 * 本项目为演示使用本地队列 实际生产中应该使用消息中间件代替(rocketmq或rabbitmq)
 *
 * @author ReWind00
 * @date 2023/2/15 11:20
 */
public class QueueHolder {

    private static final ArrayBlockingQueue<NettyMsgModel> queue = new ArrayBlockingQueue<>(100);

    public static ArrayBlockingQueue<NettyMsgModel> get() {
        return queue;
    }
}

使用一个类保存队列的静态实例以便在任何类中都可以快速引用。接下来我们需要启动一个线程去监听队列中的消息,一但消息投递到队列中,我们就取出消息然后异步多线程处理该消息。

public class LoopThread implements Runnable {
    @Override
    public void run() {
        for (int i = 0; i < MAIN_THREAD_POOL_SIZE; i++) {
            executor.execute(() -> {
                while (true) {
                    //取走BlockingQueue里排在首位的对象,若BlockingQueue为空,阻断进入等待状态直到
                    try {
                        NettyMsgModel nettyMsgModel = QueueHolder.get().take();
                        messageProcessor.process(nettyMsgModel);
                    } catch (InterruptedException e) {
                        log.error(e.getMessage(), e);
                    }
                }
            });
        }
    }
}

使用take方法会使该线程一直阻塞直到队列收到消息后进入下一次循环。

2.执行类

process方法来自于MessageProcessor类,该类为单例,但是会有多线程同时执行。

public void process(NettyMsgModel nettyMsgModel) {
    String imei = nettyMsgModel.getImei();
    try {
        synchronized (this) { //为避免收到同一台设备多条消息后重复创建客户端,必须加锁
            if (redisCache.hasKey(NETTY_QUEUE_LOCK + imei)) { //上一条消息处理中
                log.info("imei={}消息处理中,重新入列", imei);
                //放回队列重新等待消费 延迟x秒(实际项目中应该使用rocketmq或者rabbitmq实现延迟消费)
                new Timer().schedule(new TimerTask() {
                    @Override
                    public void run() {
                        QueueHolder.get().offer(nettyMsgModel);
                    }
                }, 2000);
                log.info("imei={}消息处理中,重新入列完成", imei);
                return;
            } else {
                //如果没有在连接中的直接加锁
                redisCache.setCacheObject(NETTY_QUEUE_LOCK + imei, "1", 120, TimeUnit.SECONDS);
            }
        }
        //缓存中存在则发送消息
        if (NettyClientHolder.get().containsKey(imei)) {
            NettyClient nettyClient = NettyClientHolder.get().get(imei);
            if (null != nettyClient.getChannelFuture() && nettyClient.getChannelFuture().channel().isActive()) { //通道活跃直接发送消息
                if (!nettyClient.getChannelFuture().channel().isWritable()) {
                    log.warn("警告,通道不可写,imei={},channelId={}", nettyClient.getImei(),
                            nettyClient.getChannelFuture().channel().id());
                }
                nettyClient.send(nettyMsgModel.getMsg());
            } else {
                log.info("client imei={},通道不活跃,主动关闭", nettyClient.getImei());
                nettyClient.close();
                //重新创建客户端发送
                this.createClientAndSend(nettyMsgModel);
            }
        } else {  //缓存中不存在则创建新的客户端
            this.createClientAndSend(nettyMsgModel);
        }
    } catch (Exception e) {
        log.error(e.getMessage(), e);
    } finally {
        //执行完后解锁
        redisCache.deleteObject(NETTY_QUEUE_LOCK + imei);
    }

}

其中imei是我们设备的唯一标识,我们可以用imei作为缓存的key来确认是否已创建过连接。由于我们消息的并发量可能会很大,所以存在当某设备的连接正在创建的过程中,另一个线程收到该设备消息也开始创建连接的情况,所以我们使用synchronized 代码块以及redis分布式锁来避免此情况的发生。当一条消息获得锁后,在锁释放前,后续消息将会被重新放回消息队列并延迟消费。

获取锁的线程会根据imei判断缓存是否存在连接,如果存在直接发送消息,如果不存在则进入创建客户端的方法。

private void createClientAndSend(NettyMsgModel nettyMsgModel) {
    log.info("创建客户端执行中imei={}", nettyMsgModel.getImei());
    //此处的DemoClientHandler可以根据自己的业务定义
    NettyClient nettyClient = SpringUtils.getBean(NettyClient.class, nettyMsgModel.getImei(), nettyMsgModel.getBizData(),
            this.createDefaultWorkGroup(this.workerThread), DemoClientHandler.class);
    executor.execute(nettyClient); //执行客户端初始化
    try {
        //利用锁等待客户端激活
        synchronized (nettyClient) {
            long c1 = System.currentTimeMillis();
            nettyClient.wait(5000); //最多阻塞5秒 5秒后客户端仍然未激活则自动解锁
            long c2 = System.currentTimeMillis();
            log.info("创建客户端wait耗时={}ms", c2 - c1);
        }
        if (null != nettyClient.getChannelFuture() && nettyClient.getChannelFuture().channel().isActive()) { //连接成功
            //存入缓存
            NettyClientHolder.get().put(nettyMsgModel.getImei(), nettyClient);
            //客户端激活后发送消息
            nettyClient.send(nettyMsgModel.getMsg());
        } else { //连接失败
            log.warn("客户端创建失败,imei={}", nettyMsgModel.getImei());
            nettyClient.close();
            //可以把消息重新入列处理
        }
    } catch (Exception e) {
        log.error("客户端初始化发送消息异常===>{}", e.getMessage(), e);
    }
}

当netty客户端实例创建后使用线程池执行初始化,由于是异步执行,我们此时立刻发送消息很可能客户端还没有完成连接,因此必须加锁等待。进入synchronized 代码块,使用wait方法等待客户端激活后解锁,参数5000为自动解锁的毫秒数,意思是如果客户端出现异常情况迟迟未能连接成功并激活通道、解锁,则最多5000毫秒后该锁自动解开。

这参数在实际使用时可以视情况调整,在并发量很大的情况下,5秒的阻塞可能会导致线程池耗尽,或内存溢出。待客户端创建成功并激活后则立即发送消息。

3.客户端
package org.example.client;

import io.netty.bootstrap.Bootstrap;
import io.netty.buffer.Unpooled;
import io.netty.channel.*;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioSocketChannel;
import io.netty.handler.codec.DelimiterBasedFrameDecoder;
import io.netty.handler.codec.string.StringDecoder;
import io.netty.handler.codec.string.StringEncoder;
import io.netty.handler.timeout.IdleStateHandler;
import io.netty.util.CharsetUtil;
import lombok.Getter;
import lombok.NoArgsConstructor;
import lombok.extern.slf4j.Slf4j;
import org.example.client.handler.BaseClientHandler;
import org.example.core.util.SpringUtils;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Scope;
import org.springframework.stereotype.Component;
import org.springframework.util.StringUtils;

import java.util.Map;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.atomic.AtomicBoolean;
import java.util.concurrent.atomic.AtomicInteger;

/**
 * @author ReWind00
 * @date 2023/2/15 9:59
 */
@Slf4j
@Component
@Scope("prototype")
@Getter
@NoArgsConstructor
public class NettyClient implements Runnable {

    @Value("${netty.server.port}")
    private int port;

    @Value("${netty.server.host}")
    private String host;
    //客户端唯一标识
    private String imei;
    //自定义业务数据
    private Map<String, Object> bizData;

    private EventLoopGroup workGroup;

    private Class<BaseClientHandler> clientHandlerClass;

    private ChannelFuture channelFuture;

    public NettyClient(String imei, Map<String, Object> bizData, EventLoopGroup workGroup, Class<BaseClientHandler> clientHandlerClass) {
        this.imei = imei;
        this.bizData = bizData;
        this.workGroup = workGroup;
        this.clientHandlerClass = clientHandlerClass;
    }

    @Override
    public void run() {
        try {
            this.init();
            log.info("客户端启动imei={}", imei);
        } catch (Exception e) {
            log.error("客户端启动失败:{}", e.getMessage(), e);
        }
    }

    public void close() {
        if (null != this.channelFuture) {
            this.channelFuture.channel().close();
        }
        NettyClientHolder.get().remove(this.imei);
    }

    public void send(String message) {
        try {
            if (!this.channelFuture.channel().isActive()) {
                log.info("通道不活跃imei={}", this.imei);
                return;
            }
            if (!StringUtils.isEmpty(message)) {
                log.info("队列消息发送===>{}", message);
                this.channelFuture.channel().writeAndFlush(message);
            }
        } catch (Exception e) {
            log.error(e.getMessage(), e);
        }
    }

    private void init() throws Exception {
        //将本实例传递到handler
        BaseClientHandler clientHandler = SpringUtils.getBean(clientHandlerClass, this);
        Bootstrap b = new Bootstrap();
        //2 通过辅助类去构造server/client
        b.group(workGroup)
                .channel(NioSocketChannel.class)
                .option(ChannelOption.CONNECT_TIMEOUT_MILLIS, 3000)
                .option(ChannelOption.SO_RCVBUF, 1024 * 32)
                .option(ChannelOption.SO_SNDBUF, 1024 * 32)
                .handler(new ChannelInitializer<SocketChannel>() {
                    @Override
                    protected void initChannel(SocketChannel ch) throws Exception {
                        ch.pipeline().addLast(new DelimiterBasedFrameDecoder(1024 * 1024, Unpooled.copiedBuffer("\r\n".getBytes())));
                        ch.pipeline().addLast(new StringEncoder(CharsetUtil.UTF_8));// String解码。
                        ch.pipeline().addLast(new StringDecoder(CharsetUtil.UTF_8));// String解码。
//                        // 心跳设置
                        ch.pipeline().addLast(new IdleStateHandler(0, 0, 600, TimeUnit.SECONDS));
                        ch.pipeline().addLast(clientHandler);
                    }
                });
        this.connect(b);
    }

    private void connect(Bootstrap b) throws InterruptedException {
        long c1 = System.currentTimeMillis();
        final int maxRetries = 2; //重连2次
        final AtomicInteger count = new AtomicInteger();
        final AtomicBoolean flag = new AtomicBoolean(false);
        try {
            this.channelFuture = b.connect(host, port).addListener(
                    new ChannelFutureListener() {
                        public void operationComplete(ChannelFuture future) throws Exception {
                            if (!future.isSuccess()) {
                                if (count.incrementAndGet() > maxRetries) {
                                    log.warn("imei={}重连超过{}次", imei, maxRetries);
                                } else {
                                    log.info("imei={}重连第{}次", imei, count);
                                    b.connect(host, port).addListener(this);
                                }

                            } else {
                                log.info("imei={}连接成功,连接IP:{}连接端口:{}", imei, host, port);
                                flag.set(true);
                            }
                        }
                    }).sync(); //同步连接
        } catch (Exception e) {
            log.error(e.getMessage(), e);
        }
        log.info("设备imei={},channelId={}连接耗时={}ms", imei, channelFuture.channel().id(), System.currentTimeMillis() - c1);
        if (flag.get()) {
            channelFuture.channel().closeFuture().sync(); //连接成功后将持续阻塞该线程
        }
    }
}

netty客户端为多实例,每个实例绑定一个线程,持续阻塞到客户端关闭为止,每个客户端中可以保存自己的业务数据,以便在后续与服务端交互时处理业务使用。客户端执行连接时,给了2次重试的机会,如果3次都没连接成功则放弃。后续可以选择将该消息重新入列消费。我们实际项目中,此处还应该预先给服务端发送一条登录消息,待服务端确认后才能执行后续通讯,这需要视实际情况进行调整。

另一个需要注意的点是EventLoopGroup是从构造函数传入的,而不是在客户端中创建的,因为当客户端数量非常多时,每个客户端都创建自己的线程组会极大的消耗服务器资源,因此我们在实际使用中是按业务去创建统一的线程组给该业务下的所有客户端共同使用的,线程组的大小需要根据业务需求灵活配置。

在init方法中,我们给客户端加上了一个handler来处理与服务端的交互,下面来看一下具体实现。

package org.example.client.handler;

import io.netty.channel.ChannelHandlerContext;
import io.netty.handler.timeout.IdleState;
import io.netty.handler.timeout.IdleStateEvent;
import lombok.extern.slf4j.Slf4j;
import org.example.client.NettyClient;
import org.springframework.context.annotation.Scope;
import org.springframework.stereotype.Component;

import java.util.Map;

/**
 * @author ReWind00
 * @date 2023/2/15 10:09
 */
@Slf4j
@Component
@Scope("prototype")
public class DemoClientHandler extends BaseClientHandler {

    private final String imei;

    private final Map<String, Object> bizData;

    private final NettyClient nettyClient;

    private int allIdleCounter = 0;

    private static final int MAX_IDLE_TIMES = 3;

    public DemoClientHandler(NettyClient nettyClient) {
        this.nettyClient = nettyClient;
        this.imei = nettyClient.getImei();
        this.bizData = nettyClient.getBizData();
    }

    @Override
    public void channelActive(ChannelHandlerContext ctx) throws Exception {
        log.info("客户端imei={},通道激活成功", this.imei);
        synchronized (this.nettyClient) { //当通道激活后解锁队列线程,然后再发送消息
            this.nettyClient.notify();
        }
    }

    @Override
    public void channelInactive(ChannelHandlerContext ctx) throws Exception {
        log.warn("客户端imei={},通道断开连接", this.imei);
    }

    @Override
    public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
        log.info("客户端imei={},收到消息:  {}", this.imei, msg);
        //处理业务...
        if ("shutdown".equals(msg)) {
            this.nettyClient.close();
        }
    }

    @Override
    public void userEventTriggered(ChannelHandlerContext ctx, Object evt) throws Exception {
        if (evt instanceof IdleStateEvent) {
            IdleStateEvent e = (IdleStateEvent) evt;
            boolean flag = false;
            if (e.state() == IdleState.ALL_IDLE) {
                this.allIdleCounter++;
                log.info("客户端imei={}触发闲读或写第{}次", this.imei, this.allIdleCounter);
                if (this.allIdleCounter >= MAX_IDLE_TIMES) {
                    flag = true;
                }
            }
            if (flag) {
                log.warn("读写超时达到{}次,主动断开连接", MAX_IDLE_TIMES);
                ctx.channel().close();
            }
        }
    }

    @Override
    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
        log.error("客户端imei={},连接异常{}", imei, cause.getMessage(), cause);
    }
}

DemoClientHandler也是多实例bean,每个实例持有自己的NettyClient引用,以便在后续处理具体业务。在channelActive方法中,我们可以看到执行了客户端实例的notify方法,此处就是在客户端创建成功并且通道激活后解除wait锁的地方。channelRead方法就是我们处理服务端发送过来的消息的方法,我们的具体业务应该在该方法执行,当然不建议长时间阻塞客户端的工作线程,可以考虑异步处理。

最后我们看一下客户端缓存类。

package org.example.client;

import java.util.concurrent.ConcurrentHashMap;

/**
 * @author ReWind00
 * @date 2023/2/15 11:01
 */
public class NettyClientHolder {

    private static final ConcurrentHashMap<String, NettyClient> clientMap = new ConcurrentHashMap<>();

    public static ConcurrentHashMap<String, NettyClient> get() {
        return clientMap;
    }

}

由于netty的通道无法序列化,因此不能存入redis,只能缓存在本地内存中,其本质就是一个ConcurrentHashMap。

五、测试

package org.example.client.controller;

import org.example.client.QueueHolder;
import org.example.client.model.NettyMsgModel;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

/**
 * @author ReWind00
 * @date 2023/2/15 13:48
 */
@RestController
@RequestMapping("/demo")
public class DemoController {

    /**
     * 间隔发送两条消息
     */
    @GetMapping("testOne")
    public void testOne() {
        QueueHolder.get().offer(NettyMsgModel.create("87654321", "Hello World!"));
        try {
            Thread.sleep(5000);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
        QueueHolder.get().offer(NettyMsgModel.create("87654321", "Hello World Too!"));
    }

    /**
     * 任意发送消息
     *
     * @param imei
     * @param msg
     */
    @GetMapping("testTwo")
    public void testTwo(@RequestParam String imei, @RequestParam String msg) {
        QueueHolder.get().offer(NettyMsgModel.create(imei, msg));
    }

    /**
     * 连续发送两条消息 第二条由于redis锁将会重新放回队列延迟消费
     */
    @GetMapping("testThree")
    public void testThree() {
        QueueHolder.get().offer(NettyMsgModel.create("12345678", "Hello World!"));
        QueueHolder.get().offer(NettyMsgModel.create("12345678", "Hello World Too!"));
    }
}

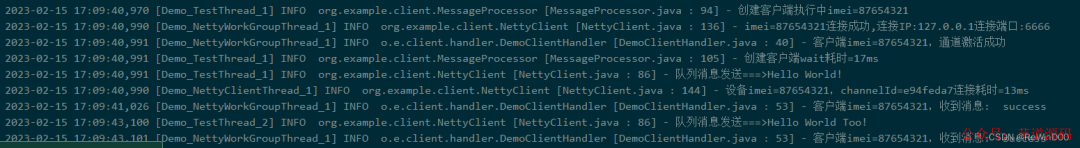

测试接口代码如上,调用testOne,日志如下:


可以看到第一条消息触发了客户端创建流程,创建后发送了消息,而5秒后的第二条消息直接通过已有通道发送了。

测试接口代码如上,调用testTwo,日志如下:


发送shutdown可以主动断开已有连接。

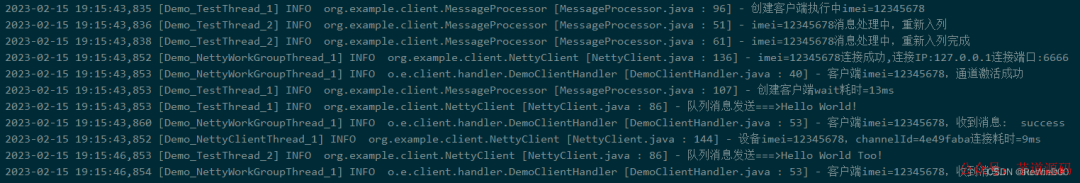

测试接口代码如上,调用testThree,日志如下:


可以看到第二条消息重新入列并被延迟消费了。

六、源码

https://gitee.com/jaster/netty-tcp-demo

基于 Spring Cloud Alibaba + Gateway + Nacos + RocketMQ + Vue & Element 实现的后台管理系统 + 用户小程序,支持 RBAC 动态权限、多租户、数据权限、工作流、三方登录、支付、短信、商城等功能

  • 项目地址:https://github.com/YunaiV/yudao-cloud

  • 视频教程:https://doc.iocoder.cn/video/

后记

本demo项目仅作学习交流使用,如果要应用到生产环境还有些许不足,有问题的同学可以留言交流。



欢迎加入我的知识星球,一起探讨架构,交流源码。加入方式,长按下方二维码噢:


已在知识星球更新源码解析如下:





最近更新《芋道 SpringBoot 2.X 入门》系列,已经 101 余篇,覆盖了 MyBatis、Redis、MongoDB、ES、分库分表、读写分离、SpringMVC、Webflux、权限、WebSocket、Dubbo、RabbitMQ、RocketMQ、Kafka、性能测试等等内容。

提供近 3W 行代码的 SpringBoot 示例,以及超 4W 行代码的电商微服务项目。

获取方式:点“在看”,关注公众号并回复 666 领取,更多内容陆续奉上。

文章有帮助的话,在看,转发吧。
谢谢支持哟 (*^__^*)
使用netty+springboot打造的tcp长连接通讯方案 使用netty+springboot高效管理长连接,无惧高并发 阅读详情

相关推荐

SpringBoot+Netty实现TCP客户端实现接收数据按照16进制解析并存储到Mysql以及Netty断线重连检测与自动重连

在SpringBoot项目中需要对接三方系统,对接协议是TCP,需实现一个TCP客户端接收服务端发送的数据并按照16进制进行解析数据,然后对数据进行过滤,将指定类型的数据通过mybatis存储进mysql数据库中。并且当tcp服务端断连时,tcp客户端能定时检测并发起重连。

BADAO_LIUMANG_QIZHI的博客 1万+

SpringBoot + Netty 实现 TCP拆包粘包处理、TCP恶意连接拦截

只根据IP来做校验不带端口号,因为客户端发起的每一次TCP连接端口号都不同!Jmeter模拟TCP连接,向我们TCP服务异步发起120个连接。

qq_39648078的博客 1695

基于vue2的echarts3D地球

采用vue2+js实现了echarts3D地球的放大、缩小和旋转

qq_44699269的博客 1133

Springboot+Netty实现基于天翼物联网平台CTWing(AIOT)终端TCP协议(透传模式)-设备终端(南向设备)

使用Springboot+Netty方式模拟天翼物联网平台CTWing(AIOT)的终端设备,模拟的是AIOT平台的TCP协议(透传模式) 原来的AEP平台

蚂蚁舞 6570

ESP32 Arduino学习篇 (一) 引脚和串口的基本使用

简单来讲arduino就是通过源代码控制开发板的信号输入输出从而实现对一些电子元件的控制,例如LED灯,蜂鸣器,按键arduino程序首先来讲arduino程序是基于C语言,而实现类似对于LED灯和蜂鸣器的简单控制只需简单C语言知识即可实现。arduino程序是基于函数的,而在arduino的库有很多函数,我们只需要调用即可。arduino的程序主体是**setup()函数和loop()**函数以及其它在使用过程中需要构建的函数:setup()函数。

DOF526570的博客 1万+

保姆级教程:在Windows/Mac上从零部署清华Kronos股票预测模型(含Qlib数据更新避坑指南)

本文提供了一份详细的指南,帮助用户在Windows和Mac系统上从零部署清华Kronos股票预测模型,包括环境配置、模型权重获取、Qlib数据更新避坑等关键步骤。特别针对国内用户遇到的网络问题和数据更新不及时提供了解决方案,适合量化投资和金融科技爱好者快速上手。

weixin_29053577的博客 623

Netty笔记4-如何实现长连接

​ 前面三章介绍了Netty的一些基本用法,这一章介绍怎么使用Netty来实现一个简单的长连接demo。 Netty入门教程——认识Netty Netty入门教程2——动手搭建HttpServer Netty入门教程3——Decoder和Encoder 关于长连接的背景知识,可以参考《如何使用Socket实现长连接》 ​ 一个简单的长连接demo分为以下几个步骤: 长连接流程 创建连接(Channel) 发心跳包 发消息,并通知其他用户 一段时间没收到心跳包或者用户主动关闭之后关闭

pony12的专栏 731

抖音短视频数据抓取实战系列(一)——模拟器性能对比与优化配置

本文是抖音短视频数据抓取实战系列的开篇,重点探讨了模拟器选型与优化配置。通过对比雷电、夜神、逍遥三大主流模拟器在性能、抖音兼容性及抓包友好度上的表现,文章指出雷电模拟器因其稳定的桥接网络模式和良好的兼容性,是数据抓取的优选。并提供了雷电模拟器从安装、网络桥接到系统优化的详细配置指南,旨在帮助读者构建稳定高效的抓取环境。

weixin_29230901的博客 248

看看好不好用,使用 Netty+SpringBoot 打造的 TCP 长连接通讯方案

希望我们可以一起学习进步,共同推动物联网技术的发展。是从构造函数传入的,而不是在客户端中创建的,因为当客户端数量非常多时,每个客户端都创建自己的线程组会极大的消耗服务器资源,因此我们在实际使用中是按业务去创建统一的线程组给该业务下的所有客户端共同使用的,线程组的大小需要根据业务需求灵活配置。当消费者接收到某设备发送的消息后,将判断缓存中是否存在该设备与服务端的连接,如果存在并且通道活跃则使用该通道发送消息,如果不存在则创建通道并在通道激活后立即发送消息,当客户端收到来自服务端的消息时进行响应的业务处理。

2301_76936922的博客 635

Python | KS检验以及其余非参数检验的实现

Python | KS检验以及其余非参数检验的实现1 什么是KS检验2 KS检验分类?3 KS检验的Python实现3.1 检验指定的数列是否服从正态分布3.2 检验指定的两个数列是否服从相同分布4 其余的非参数检验4.1 Wilcoxon符号秩检验(t检验的非参数版本)4.2 Kruskal-Wallis H检验(方差分析的非参数版本)4.3 Mann-Whitney秩检验5 参考 1 什么是KS检验 定义:检验一个分布f(x)与理论分布g(x)【比如正态分布】是否一致,或两个观测值分布是否有显著差异的检

RUC_Lee的博客 1万+

Moltbot 超详细安装使用教程(初学者版)

你在外面逛街,用微信/Telegram 发消息说"帮我查一下明天的天气"它立刻帮你查好并回复你说"帮我在电脑上新建一个文件夹叫'工作文档'"它真的帮你在电脑上创建了这就是 Moltbot ——一个能真正帮你干活的 AI 助手。API Key 就像是一把"钥匙",让 Moltbot 能够使用 AI 服务。

weixin_51040479的博客 2019

Netty+SpringBoot 打造一个 TCP 长连接通讯方案

是从构造函数传入的,而不是在客户端中创建的,因为当客户端数量非常多时,每个客户端都创建自己的线程组会极大的消耗服务器资源,因此我们在实际使用中是按业务去创建统一的线程组给该业务下的所有客户端共同使用的,线程组的大小需要根据业务需求灵活配置。当消费者接收到某设备发送的消息后,将判断缓存中是否存在该设备与服务端的连接,如果存在并且通道活跃则使用该通道发送消息,如果不存在则创建通道并在通道激活后立即发送消息,当客户端收到来自服务端的消息时进行响应的业务处理。待客户端创建成功并激活后则立即发送消息。

2501_92606851的博客 803

在实车上进行lio-sam测试

PS:将雷达和imu相对固定后,拆下来,原地晃啊晃,直到xyz进度达到百分百,参考gif。标定完成后,会在result文件夹下生成result.txt。

如果想成为中心,那么就到中心去吧。 998

Java实战:Netty+SpringBoot打造TCP长连接通讯方案

本文将详细介绍如何使用Netty和SpringBoot来打造一个高性能的TCP长连接通讯方案。我们将从Netty和SpringBoot的基本概念讲起,然后逐步介绍如何整合这两个框架来实现TCP长连接通讯。通过阅读本文,我们将了解到如何利用Netty的高性能和SpringBoot的便捷性来构建一个稳定、高效的TCP通讯服务。

oandy0的博客 5196

什么是 SAP FICO 的 GL?

GL,即总账,是 SAP FI(Financial Accounting)模块中的一个重要组件。它的主要作用是收集、分类和汇总所有财务交易,以便企业可以生成财务报表,如资产负债表、利润表和现金流量表。科目结构:GL 账户(G/L Account)用于记录企业的财务交易,并按会计准则分类。实时更新:由于 SAP 是基于事务驱动的系统,每一笔业务发生后,都会实时反映到总账科目中。集成性。

2007 年 ~ 2025 年,深耕 SAP 技术 18 年 1690

深度学习工具包 DeepLearningToolbox

深度学习工具包Deprecation notice.-----This toolbox is outdated and no longer maintained.There are much better tools available for deep learning than this toolbox, e.g. [Theano](http://deeplearning.net/software/theano/), [torch](http://torch.ch/) or [tensorflow](http://www.tensorflow.org/)I would suggest you use one of the tools mentioned above rather than use this toolbox.Best, Rasmus.DeepLearnToolbox================A Matlab toolbox for Deep Learning.Deep Learning is a new subfield of machine learning that focuses on learning deep hierarchical models of data.It is inspired by the human brain's apparent deep (layered, hierarchical) architecture.A good overview of the theory of Deep Learning theory is[Learning Deep Architectures for AI](http://www.iro.umontreal.ca/~bengioy/papers/ftml_book.pdf)For a more informal introduction, see the following videos by Geoffrey Hinton and Andrew Ng.* [The Next Generation of Neural Networks](http://www.youtube.com/watch?v=AyzOUbkUf3M) (Hinton, 2007)* [Recent Developments in Deep Learning](http://www.youtube.com/watch?v=VdIURAu1-aU) (Hinton, 2010)* [Unsupervised Feature Learning and Deep Learning](http://www.youtube.com/watch?v=ZmNOAtZIgIk) (Ng, 2011)If you use this toolbox in your research please cite [Prediction as a candidate for learning deep hierarchical models of data](http://www2.imm.dtu.dk/pubdb/views/publication_details.php?id=6284)```@MASTERSTHESIS\{IMM2012-06284, author = "R. B. Palm", title = "Prediction as a candidate for learning deep hierarchical models of data", year = "2012",}```Contact: rasmusbergpalm at gmail dot comDirectories included in the toolbox-----------------------------------`NN/` - A library for Feedforward Backpropagation Neural Networks`CNN/` - A library for Convolutional Neural Networks`DBN/` - A library for Deep Belief Networks`SAE/` - A library for Stacked Auto-Encoders`CAE/` - A library for Convolutional Auto-Encoders`util/` - Utility functions used by the libraries`data/` - Data used by the examples`tests/` - unit tests to verify toolbox is workingFor references on each library check REFS.mdSetup-----1. Download.2. addpath(genpath('DeepLearnToolbox'));Example: Deep Belief Network---------------------```matlabfunction test_example_DBNload mnist_uint8;train_x = double(train_x) / 255;test_x = double(test_x) / 255;train_y = double(train_y);test_y = double(test_y);%% ex1 train a 100 hidden unit RBM and visualize its weightsrand('state',0)dbn.sizes = [100];opts.numepochs = 1;opts.batchsize = 100;opts.momentum = 0;opts.alpha = 1;dbn = dbnsetup(dbn, train_x, opts);dbn = dbntrain(dbn, train_x, opts);figure; visualize(dbn.rbm{1}.W'); % Visualize the RBM weights%% ex2 train a 100-100 hidden unit DBN and use its weights to initialize a NNrand('state',0)%train dbndbn.sizes = [100 100];opts.numepochs = 1;opts.batchsize = 100;opts.momentum = 0;opts.alpha = 1;dbn = dbnsetup(dbn, train_x, opts);dbn = dbntrain(dbn, train_x, opts);%unfold dbn to nnnn = dbnunfoldtonn(dbn, 10);nn.activation_function = 'sigm';%train nnopts.numepochs = 1;opts.batchsize = 100;nn = nntrain(nn, train_x, train_y, opts);[er, bad] = nntest(nn, test_x, test_y);assert(er < 0.10, 'Too big error');```Example: Stacked Auto-Encoders---------------------```matlabfunction test_example_SAEload mnist_uint8;train_x = double(train_x)/255;test_x = double(test_x)/255;train_y = double(train_y);test_y = double(test_y);%% ex1 train a 100 hidden unit SDAE and use it to initialize a FFNN% Setup and train a stacked denoising autoencoder (SDAE)rand('state',0)sae = saesetup([784 100]);sae.ae{1}.activation_function = 'sigm';sae.ae{1}.learningRate = 1;sae.ae{1}.inputZeroMaskedFraction = 0.5;opts.numepochs = 1;opts.batchsize = 100;sae = saetrain(sae, train_x, opts);visualize(sae.ae{1}.W{1}(:,2:end)')% Use the SDAE to initialize a FFNNnn = nnsetup([784 100 10]);nn.activation_function = 'sigm';nn.learningRate = 1;nn.W{1} = sae.ae{1}.W{1};% Train the FFNNopts.numepochs = 1;opts.batchsize = 100;nn = nntrain(nn, train_x, train_y, opts);[er, bad] = nntest(nn, test_x, test_y);assert(er < 0.16, 'Too big error');```Example: Convolutional Neural Nets---------------------```matlabfunction test_example_CNNload mnist_uint8;train_x = double(reshape(train_x',28,28,60000))/255;test_x = double(reshape(test_x',28,28,10000))/255;train_y = double(train_y');test_y = double(test_y');%% ex1 Train a 6c-2s-12c-2s Convolutional neural network %will run 1 epoch in about 200 second and get around 11% error. %With 100 epochs you'll get around 1.2% errorrand('state',0)cnn.layers = { struct('type', 'i') %input layer struct('type', 'c', 'outputmaps', 6, 'kernelsize', 5) %convolution layer struct('type', 's', 'scale', 2) %sub sampling layer struct('type', 'c', 'outputmaps', 12, 'kernelsize', 5) %convolution layer struct('type', 's', 'scale', 2) %subsampling layer};cnn = cnnsetup(cnn, train_x, train_y);opts.alpha = 1;opts.batchsize = 50;opts.numepochs = 1;cnn = cnntrain(cnn, train_x, train_y, opts);[er, bad] = cnntest(cnn, test_x, test_y);%plot mean squared errorfigure; plot(cnn.rL);assert(er<0.12, 'Too big error');```Example: Neural Networks---------------------```matlabfunction test_example_NNload mnist_uint8;train_x = double(train_x) / 255;test_x = double(test_x) / 255;train_y = double(train_y);test_y = double(test_y);% normalize[train_x, mu, sigma] = zscore(train_x);test_x = normalize(test_x, mu, sigma);%% ex1 vanilla neural netrand('state',0)nn = nnsetup([784 100 10]);opts.numepochs = 1; % Number of full sweeps through dataopts.batchsize = 100; % Take a mean gradient step over this many samples[nn, L] = nntrain(nn, train_x, train_y, opts);[er, bad] = nntest(nn, test_x, test_y);assert(er < 0.08, 'Too big error');%% ex2 neural net with L2 weight decayrand('state',0)nn = nnsetup([784 100 10]);nn.weightPenaltyL2 = 1e-4; % L2 weight decayopts.numepochs = 1; % Number of full sweeps through dataopts.batchsize = 100; % Take a mean gradient step over this many samplesnn = nntrain(nn, train_x, train_y, opts);[er, bad] = nntest(nn, test_x, test_y);assert(er < 0.1, 'Too big error');%% ex3 neural net with dropoutrand('state',0)nn = nnsetup([784 100 10]);nn.dropoutFraction = 0.5; % Dropout fraction opts.numepochs = 1; % Number of full sweeps through dataopts.batchsize = 100; % Take a mean gradient step over this many samplesnn = nntrain(nn, train_x, train_y, opts);[er, bad] = nntest(nn, test_x, test_y);assert(er < 0.1, 'Too big error');%% ex4 neural net with sigmoid activation functionrand('state',0)nn = nnsetup([784 100 10]);nn.activation_function = 'sigm'; % Sigmoid activation functionnn.learningRate = 1; % Sigm require a lower learning rateopts.numepochs = 1; % Number of full sweeps through dataopts.batchsize = 100; % Take a mean gradient step over this many samplesnn = nntrain(nn, train_x, train_y, opts);[er, bad] = nntest(nn, test_x, test_y);assert(er < 0.1, 'Too big error');%% ex5 plotting functionalityrand('state',0)nn = nnsetup([784 20 10]);opts.numepochs = 5; % Number of full sweeps through datann.output = 'softmax'; % use softmax outputopts.batchsize = 1000; % Take a mean gradient step over this many samplesopts.plot = 1; % enable plottingnn = nntrain(nn, train_x, train_y, opts);[er, bad] = nntest(nn, test_x, test_y);assert(er < 0.1, 'Too big error');%% ex6 neural net with sigmoid activation and plotting of validation and training error% split training data into training and validation datavx = train_x(1:10000,:);tx = train_x(10001:end,:);vy = train_y(1:10000,:);ty = train_y(10001:end,:);rand('state',0)nn = nnsetup([784 20 10]); nn.output = 'softmax'; % use softmax outputopts.numepochs = 5; % Number of full sweeps through dataopts.batchsize = 1000; % Take a mean gradient step over this many samplesopts.plot = 1; % enable plottingnn = nntrain(nn, tx, ty, opts, vx, vy); % nntrain takes validation set as last two arguments (optionally)[er, bad] = nntest(nn, test_x, test_y);assert(er < 0.1, 'Too big error');```[![Bitdeli Badge](https://d2weczhvl823v0.cloudfront.net/rasmusbergpalm/deeplearntoolbox/trend.png)](https://bitdeli.com/free "Bitdeli Badge")

使用 SpringBoot 打造的长连接通讯

项目背景最近公司某物联网项目需要使用socket长连接进行消息通讯,捣鼓了一版代码上线,结果BUG不断,本猿寝食难安,于是求助度娘,数日未眠项目终于平稳运行了,本着开源共享的精神,本猿把项目代码提炼成了一个demo项目,尽量摒弃了其中丑陋的业务部分,希望与同学们共同学习进步。正文一、项目架构本项目使用了netty、redis以及springboot2.2.0二、项目模块本项目目录结构如下图:net...

2351

C# WinForm 基于DirectShow.dll编写的程序,可边预览边保存视频,音频和图片

基于微软的DirectShow.dll的二次开发1.自动识别连接的摄像头跟麦克风且可以对其进行选择(默认选中第一个)2.可录制wmv和avi两种格式的视频并且都带有音频,avi可以录制的分辨率和帧数进行选择,wmv默认进行了淸晰度优化如不喜欢可去除代码中有相关提示3.可在预览点开之后进行拍照,也可边录制视频边拍照4.添加了视频和音频的压缩功能(酌情使用)这次二次开发发现C#对DirectShow的相关信息太少,这次做完也不敢藏私共享出来,还望大家指正

上一篇: 美团二面:spring事务不生效的15种场景
下一篇: 使用 @Autowired 为什么会被 IDEA 警告,应该怎么修改最佳?
公众号-芋道源码
博客等级 码龄10年 1639粉丝 377原创
评论
成就一亿技术人!
拼手气红包6.0元
还能输入1000个字符

 条评论被折叠 查看
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付:10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
