概要

Spring实现了一套重试机制,功能简单实用。Spring Retry是从Spring Batch独立出来的一个功能,已经广泛应用于Spring Batch,Spring Integration, Spring for Apache Hadoop等Spring项目。本文将讲述如何使用Spring Retry及其实现原理。

背景

重试,其实我们其实很多时候都需要的,为了保证容错性,可用性,一致性等。一般用来应对外部系统的一些不可预料的返回、异常等,特别是网络延迟,中断等情况。还有在现在流行的微服务治理框架中,通常都有自己的重试与超时配置,比如dubbo可以设置retries=1,timeout=500调用失败只重试1次,超过500ms调用仍未返回则调用失败。如果我们要做重试,要为特定的某个操作做重试功能,则要硬编码,大概逻辑基本都是写个循环,根据返回或异常,计数失败次数,然后设定退出条件。这样做,且不说每个操作都要写这种类似的代码,而且重试逻辑和业务逻辑混在一起,给维护和扩展带来了麻烦。从面向对象的角度来看,我们应该把重试的代码独立出来。

使用介绍

基本使用

先举个例子:

@Configuration
@EnableRetry
public class Application {

    @Bean
    public RetryService retryService(){
        return new RetryService();
    }

    public static void main(String[] args) throws Exception{
        ApplicationContext applicationContext = new AnnotationConfigApplicationContext("springretry");
        RetryService service1 = applicationContext.getBean("service", RetryService.class);
        service1.service();
    }
}

@Service("service")
public class RetryService {

    @Retryable(value = IllegalAccessException.class, maxAttempts = 5,
            backoff= @Backoff(value = 1500, maxDelay = 100000, multiplier = 1.2))
    public void service() throws IllegalAccessException {
        System.out.println("service method...");
        throw new IllegalAccessException("manual exception");
    }

    @Recover
    public void recover(IllegalAccessException e){
        System.out.println("service retry after Recover => " + e.getMessage());
    }

}

@EnableRetry - 表示开启重试机制 @Retryable - 表示这个方法需要重试,它有很丰富的参数,可以满足你对重试的需求 @Backoff - 表示重试中的退避策略 @Recover - 兜底方法,即多次重试后还是失败就会执行这个方法

Spring-Retry 的功能丰富在于其重试策略和退避策略,还有兜底,监听器等操作。

然后每个注解里面的参数,都是很简单的,大家看一下就知道是什么意思,怎么用了,我就不多讲了。

重试策略

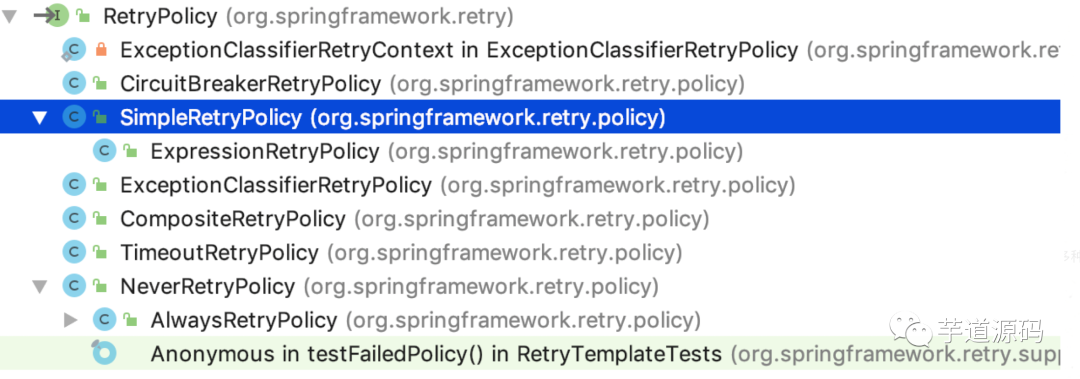

看一下Spring Retry自带的一些重试策略,主要是用来判断当方法调用异常时是否需要重试。(下文原理部分会深入分析实现)

upload
  • SimpleRetryPolicy 默认最多重试3次

  • TimeoutRetryPolicy 默认在1秒内失败都会重试

  • ExpressionRetryPolicy 符合表达式就会重试

  • CircuitBreakerRetryPolicy 增加了熔断的机制,如果不在熔断状态,则允许重试

  • CompositeRetryPolicy 可以组合多个重试策略

  • NeverRetryPolicy 从不重试(也是一种重试策略哈)

  • AlwaysRetryPolicy 总是重试

….等等

退避策略

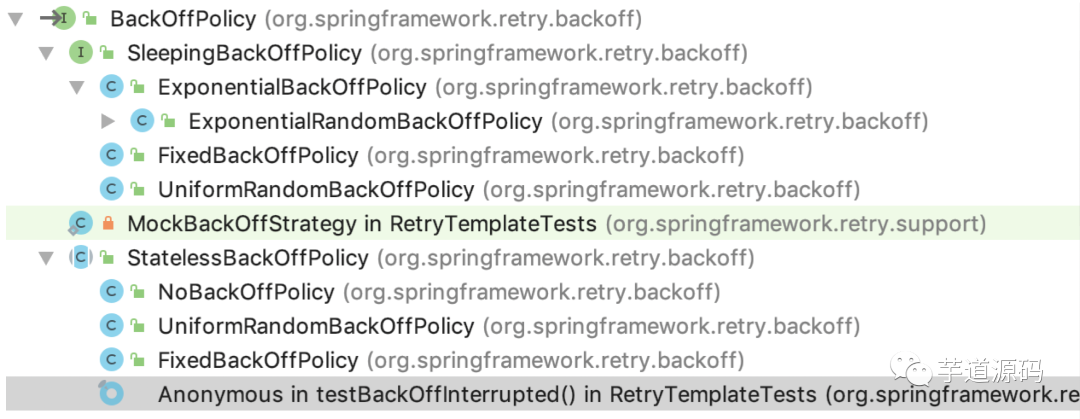

看一下退避策略,退避是指怎么去做下一次的重试,在这里其实就是等待多长时间。(下文原理部分会深入分析实现)

  • FixedBackOffPolicy 默认固定延迟1秒后执行下一次重试

  • ExponentialBackOffPolicy 指数递增延迟执行重试,默认初始0.1秒,系数是2,那么下次延迟0.2秒,再下次就是延迟0.4秒,如此类推,最大30秒。

  • ExponentialRandomBackOffPolicy 在上面那个策略上增加随机性

  • UniformRandomBackOffPolicy 这个跟上面的区别就是,上面的延迟会不停递增,这个只会在固定的区间随机

  • StatelessBackOffPolicy 这个说明是无状态的,所谓无状态就是对上次的退避无感知,从它下面的子类也能看出来

原理

原理部分我想分开两部分来讲,一是重试机制的切入点,即它是如何使得你的代码实现重试功能的;二是重试机制的详细,包括重试的逻辑以及重试策略和退避策略的实现。

切入点

@EnableRetry

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@EnableAspectJAutoProxy(proxyTargetClass = false)
@Import(RetryConfiguration.class)
@Documented
public @interface EnableRetry {

 /**
  * Indicate whether subclass-based (CGLIB) proxies are to be created as opposed
  * to standard Java interface-based proxies. The default is {@code false}.
  *
  * @return whether to proxy or not to proxy the class
  */
 boolean proxyTargetClass() default false;

}

我们可以看到@EnableAspectJAutoProxy(proxyTargetClass = false)这个并不陌生,就是打开Spring AOP功能。重点看看@Import(RetryConfiguration.class)@Import相当于注册这个Bean

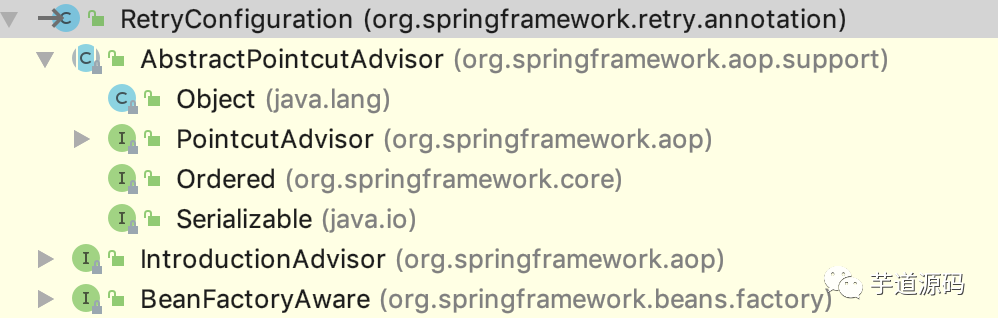

我们看看这个RetryConfiguration是个什么东西

它是一个AbstractPointcutAdvisor,它有一个pointcut和一个advice。我们知道,在IOC过程中会根据PointcutAdvisor类来对Bean进行Pointcut的过滤,然后生成对应的AOP代理类,用advice来加强处理。看看RetryConfiguration的初始化:

@PostConstruct
 public void init() {
  Set<Class<? extends Annotation>> retryableAnnotationTypes = new LinkedHashSet<Class<? extends Annotation>>(1);
  retryableAnnotationTypes.add(Retryable.class);
        //创建pointcut
  this.pointcut = buildPointcut(retryableAnnotationTypes);
        //创建advice
  this.advice = buildAdvice();
  if (this.advice instanceof BeanFactoryAware) {
   ((BeanFactoryAware) this.advice).setBeanFactory(beanFactory);
  }
 }
protected Pointcut buildPointcut(Set<Class<? extends Annotation>> retryAnnotationTypes) {
  ComposablePointcut result = null;
  for (Class<? extends Annotation> retryAnnotationType : retryAnnotationTypes) {
   Pointcut filter = new AnnotationClassOrMethodPointcut(retryAnnotationType);
   if (result == null) {
    result = new ComposablePointcut(filter);
   }
   else {
    result.union(filter);
   }
  }
  return result;
 }

上面代码用到了AnnotationClassOrMethodPointcut,其实它最终还是用到了AnnotationMethodMatcher来根据注解进行切入点的过滤。这里就是@Retryable注解了。

//创建advice对象,即拦截器
   protected Advice buildAdvice() {
    //下面关注这个对象
 AnnotationAwareRetryOperationsInterceptor interceptor = new AnnotationAwareRetryOperationsInterceptor();
 if (retryContextCache != null) {
  interceptor.setRetryContextCache(retryContextCache);
 }
 if (retryListeners != null) {
  interceptor.setListeners(retryListeners);
 }
 if (methodArgumentsKeyGenerator != null) {
  interceptor.setKeyGenerator(methodArgumentsKeyGenerator);
 }
 if (newMethodArgumentsIdentifier != null) {
  interceptor.setNewItemIdentifier(newMethodArgumentsIdentifier);
 }
 if (sleeper != null) {
  interceptor.setSleeper(sleeper);
 }
 return interceptor;
}

AnnotationAwareRetryOperationsInterceptor

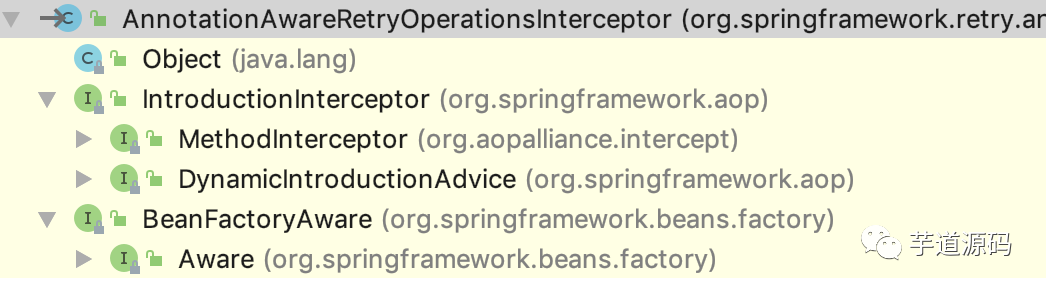

继承关系

可以看出AnnotationAwareRetryOperationsInterceptor是一个MethodInterceptor,在创建AOP代理过程中如果目标方法符合pointcut的规则,它就会加到interceptor列表中,然后做增强,我们看看invoke方法做了什么增强。

@Override
 public Object invoke(MethodInvocation invocation) throws Throwable {
  MethodInterceptor delegate = getDelegate(invocation.getThis(), invocation.getMethod());
  if (delegate != null) {
   return delegate.invoke(invocation);
  }
  else {
   return invocation.proceed();
  }
 }

这里用到了委托,主要是需要根据配置委托给具体“有状态”的interceptor还是“无状态”的interceptor。

private MethodInterceptor getDelegate(Object target, Method method) {
  if (!this.delegates.containsKey(target) || !this.delegates.get(target).containsKey(method)) {
   synchronized (this.delegates) {
    if (!this.delegates.containsKey(target)) {
     this.delegates.put(target, new HashMap<Method, MethodInterceptor>());
    }
    Map<Method, MethodInterceptor> delegatesForTarget = this.delegates.get(target);
    if (!delegatesForTarget.containsKey(method)) {
     Retryable retryable = AnnotationUtils.findAnnotation(method, Retryable.class);
     if (retryable == null) {
      retryable = AnnotationUtils.findAnnotation(method.getDeclaringClass(), Retryable.class);
     }
     if (retryable == null) {
      retryable = findAnnotationOnTarget(target, method);
     }
     if (retryable == null) {
      return delegatesForTarget.put(method, null);
     }
     MethodInterceptor delegate;
     //支持自定义MethodInterceptor,而且优先级最高
     if (StringUtils.hasText(retryable.interceptor())) {
      delegate = this.beanFactory.getBean(retryable.interceptor(), MethodInterceptor.class);
     }
     else if (retryable.stateful()) {
                     //得到“有状态”的interceptor
      delegate = getStatefulInterceptor(target, method, retryable);
     }
     else {
                     //得到“无状态”的interceptor
      delegate = getStatelessInterceptor(target, method, retryable);
     }
     delegatesForTarget.put(method, delegate);
    }
   }
  }
  return this.delegates.get(target).get(method);
 }

getStatefulInterceptor和getStatelessInterceptor都是差不多,我们先看看比较简单的getStatelessInterceptor。

private MethodInterceptor getStatelessInterceptor(Object target, Method method, Retryable retryable) {
  //生成一个RetryTemplate
  RetryTemplate template = createTemplate(retryable.listeners());
  //生成retryPolicy
  template.setRetryPolicy(getRetryPolicy(retryable));
  //生成backoffPolicy
  template.setBackOffPolicy(getBackoffPolicy(retryable.backoff()));
  return RetryInterceptorBuilder.stateless()
    .retryOperations(template)
    .label(retryable.label())
    .recoverer(getRecoverer(target, method))
    .build();
 }

具体生成retryPolicy和backoffPolicy的规则,我们等下再回头来看。RetryInterceptorBuilder其实就是为了生成RetryOperationsInterceptor。RetryOperationsInterceptor也是一个MethodInterceptor,我们来看看它的invoke方法。

public Object invoke(final MethodInvocation invocation) throws Throwable {

  String name;
  if (StringUtils.hasText(label)) {
   name = label;
  } else {
   name = invocation.getMethod().toGenericString();
  }
  final String label = name;

  //定义了一个RetryCallback,其实看它的doWithRetry方法,调用了invocation的proceed()方法,是不是有点眼熟,这就是AOP的拦截链调用,如果没有拦截链,那就是对原来方法的调用。
  RetryCallback<Object, Throwable> retryCallback = new RetryCallback<Object, Throwable>() {

   public Object doWithRetry(RetryContext context) throws Exception {

    context.setAttribute(RetryContext.NAME, label);

    /*
     * If we don't copy the invocation carefully it won't keep a reference to
     * the other interceptors in the chain. We don't have a choice here but to
     * specialise to ReflectiveMethodInvocation (but how often would another
     * implementation come along?).
     */
    if (invocation instanceof ProxyMethodInvocation) {
     try {
      return ((ProxyMethodInvocation) invocation).invocableClone().proceed();
     }
     catch (Exception e) {
      throw e;
     }
     catch (Error e) {
      throw e;
     }
     catch (Throwable e) {
      throw new IllegalStateException(e);
     }
    }
    else {
     throw new IllegalStateException(
       "MethodInvocation of the wrong type detected - this should not happen with Spring AOP, " +
         "so please raise an issue if you see this exception");
    }
   }

  };

  if (recoverer != null) {
   ItemRecovererCallback recoveryCallback = new ItemRecovererCallback(
     invocation.getArguments(), recoverer);
   return this.retryOperations.execute(retryCallback, recoveryCallback);
  }
  //最终还是进入到retryOperations的execute方法,这个retryOperations就是在之前的builder set进来的RetryTemplate。
  return this.retryOperations.execute(retryCallback);

 }

无论是RetryOperationsInterceptor还是StatefulRetryOperationsInterceptor,最终的拦截处理逻辑还是调用到RetryTemplate的execute方法,从名字也看出来,RetryTemplate作为一个模板类,里面包含了重试统一逻辑。不过,我看这个RetryTemplate并不是很“模板”,因为它没有很多可以扩展的地方。

重试逻辑及策略实现

上面介绍了Spring Retry利用了AOP代理使重试机制对业务代码进行“入侵”。下面我们继续看看重试的逻辑做了什么。RetryTemplate的doExecute方法。

protected <T, E extends Throwable> T doExecute(RetryCallback<T, E> retryCallback,
   RecoveryCallback<T> recoveryCallback, RetryState state)
   throws E, ExhaustedRetryException {

  RetryPolicy retryPolicy = this.retryPolicy;
  BackOffPolicy backOffPolicy = this.backOffPolicy;

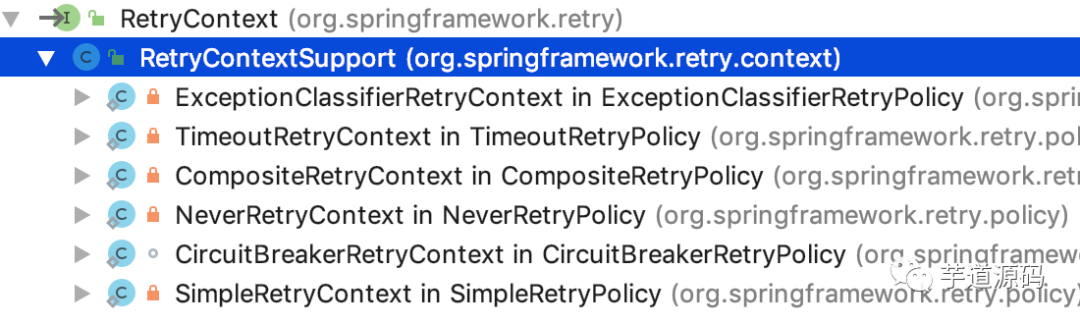

  //新建一个RetryContext来保存本轮重试的上下文
  RetryContext context = open(retryPolicy, state);
  if (this.logger.isTraceEnabled()) {
   this.logger.trace("RetryContext retrieved: " + context);
  }

  // Make sure the context is available globally for clients who need
  // it...
  RetrySynchronizationManager.register(context);

  Throwable lastException = null;

  boolean exhausted = false;
  try {

   //如果有注册RetryListener,则会调用它的open方法,给调用者一个通知。
   boolean running = doOpenInterceptors(retryCallback, context);

   if (!running) {
    throw new TerminatedRetryException(
      "Retry terminated abnormally by interceptor before first attempt");
   }

   // Get or Start the backoff context...
   BackOffContext backOffContext = null;
   Object resource = context.getAttribute("backOffContext");

   if (resource instanceof BackOffContext) {
    backOffContext = (BackOffContext) resource;
   }

   if (backOffContext == null) {
    backOffContext = backOffPolicy.start(context);
    if (backOffContext != null) {
     context.setAttribute("backOffContext", backOffContext);
    }
   }

   //判断能否重试,就是调用RetryPolicy的canRetry方法来判断。
   //这个循环会直到原方法不抛出异常,或不需要再重试
   while (canRetry(retryPolicy, context) && !context.isExhaustedOnly()) {

    try {
     if (this.logger.isDebugEnabled()) {
      this.logger.debug("Retry: count=" + context.getRetryCount());
     }
     //清除上次记录的异常
     lastException = null;
     //doWithRetry方法,一般来说就是原方法
     return retryCallback.doWithRetry(context);
    }
    catch (Throwable e) {
     //原方法抛出了异常
     lastException = e;

     try {
      //记录异常信息
      registerThrowable(retryPolicy, state, context, e);
     }
     catch (Exception ex) {
      throw new TerminatedRetryException("Could not register throwable",
        ex);
     }
     finally {
      //调用RetryListener的onError方法
      doOnErrorInterceptors(retryCallback, context, e);
     }
     //再次判断能否重试
     if (canRetry(retryPolicy, context) && !context.isExhaustedOnly()) {
      try {
       //如果可以重试则走退避策略
       backOffPolicy.backOff(backOffContext);
      }
      catch (BackOffInterruptedException ex) {
       lastException = e;
       // back off was prevented by another thread - fail the retry
       if (this.logger.isDebugEnabled()) {
        this.logger
          .debug("Abort retry because interrupted: count="
            + context.getRetryCount());
       }
       throw ex;
      }
     }

     if (this.logger.isDebugEnabled()) {
      this.logger.debug(
        "Checking for rethrow: count=" + context.getRetryCount());
     }

     if (shouldRethrow(retryPolicy, context, state)) {
      if (this.logger.isDebugEnabled()) {
       this.logger.debug("Rethrow in retry for policy: count="
         + context.getRetryCount());
      }
      throw RetryTemplate.<E>wrapIfNecessary(e);
     }

    }

    /*
     * A stateful attempt that can retry may rethrow the exception before now,
     * but if we get this far in a stateful retry there's a reason for it,
     * like a circuit breaker or a rollback classifier.
     */
    if (state != null && context.hasAttribute(GLOBAL_STATE)) {
     break;
    }
   }

   if (state == null && this.logger.isDebugEnabled()) {
    this.logger.debug(
      "Retry failed last attempt: count=" + context.getRetryCount());
   }

   exhausted = true;
   //重试结束后如果有兜底Recovery方法则执行,否则抛异常
   return handleRetryExhausted(recoveryCallback, context, state);

  }
  catch (Throwable e) {
   throw RetryTemplate.<E>wrapIfNecessary(e);
  }
  finally {
   //处理一些关闭逻辑
   close(retryPolicy, context, state, lastException == null || exhausted);
   //调用RetryListener的close方法
   doCloseInterceptors(retryCallback, context, lastException);
   RetrySynchronizationManager.clear();
  }

 }

主要核心重试逻辑就是上面的代码了,看上去还是挺简单的。在上面,我们漏掉了RetryPolicy的canRetry方法和BackOffPolicy的backOff方法,以及这两个Policy是怎么来的。我们回头看看getStatelessInterceptor方法中的getRetryPolicy和getRetryPolicy方法。

private RetryPolicy getRetryPolicy(Annotation retryable) {
  Map<String, Object> attrs = AnnotationUtils.getAnnotationAttributes(retryable);
  @SuppressWarnings("unchecked")
  Class<? extends Throwable>[] includes = (Class<? extends Throwable>[]) attrs.get("value");
  String exceptionExpression = (String) attrs.get("exceptionExpression");
  boolean hasExpression = StringUtils.hasText(exceptionExpression);
  if (includes.length == 0) {
   @SuppressWarnings("unchecked")
   Class<? extends Throwable>[] value = (Class<? extends Throwable>[]) attrs.get("include");
   includes = value;
  }
  @SuppressWarnings("unchecked")
  Class<? extends Throwable>[] excludes = (Class<? extends Throwable>[]) attrs.get("exclude");
  Integer maxAttempts = (Integer) attrs.get("maxAttempts");
  String maxAttemptsExpression = (String) attrs.get("maxAttemptsExpression");
  if (StringUtils.hasText(maxAttemptsExpression)) {
   maxAttempts = PARSER.parseExpression(resolve(maxAttemptsExpression), PARSER_CONTEXT)
     .getValue(this.evaluationContext, Integer.class);
  }
  if (includes.length == 0 && excludes.length == 0) {
   SimpleRetryPolicy simple = hasExpression ? new ExpressionRetryPolicy(resolve(exceptionExpression))
               .withBeanFactory(this.beanFactory)
              : new SimpleRetryPolicy();
   simple.setMaxAttempts(maxAttempts);
   return simple;
  }
  Map<Class<? extends Throwable>, Boolean> policyMap = new HashMap<Class<? extends Throwable>, Boolean>();
  for (Class<? extends Throwable> type : includes) {
   policyMap.put(type, true);
  }
  for (Class<? extends Throwable> type : excludes) {
   policyMap.put(type, false);
  }
  boolean retryNotExcluded = includes.length == 0;
  if (hasExpression) {
   return new ExpressionRetryPolicy(maxAttempts, policyMap, true, exceptionExpression, retryNotExcluded)
     .withBeanFactory(this.beanFactory);
  }
  else {
   return new SimpleRetryPolicy(maxAttempts, policyMap, true, retryNotExcluded);
  }
 }

嗯~,代码不难,这里简单做一下总结好了。就是通过@Retryable注解中的参数,来判断具体使用文章开头说到的哪个重试策略,是SimpleRetryPolicy还是ExpressionRetryPolicy等。

private BackOffPolicy getBackoffPolicy(Backoff backoff) {
  long min = backoff.delay() == 0 ? backoff.value() : backoff.delay();
  if (StringUtils.hasText(backoff.delayExpression())) {
   min = PARSER.parseExpression(resolve(backoff.delayExpression()), PARSER_CONTEXT)
     .getValue(this.evaluationContext, Long.class);
  }
  long max = backoff.maxDelay();
  if (StringUtils.hasText(backoff.maxDelayExpression())) {
   max = PARSER.parseExpression(resolve(backoff.maxDelayExpression()), PARSER_CONTEXT)
     .getValue(this.evaluationContext, Long.class);
  }
  double multiplier = backoff.multiplier();
  if (StringUtils.hasText(backoff.multiplierExpression())) {
   multiplier = PARSER.parseExpression(resolve(backoff.multiplierExpression()), PARSER_CONTEXT)
     .getValue(this.evaluationContext, Double.class);
  }
  if (multiplier > 0) {
   ExponentialBackOffPolicy policy = new ExponentialBackOffPolicy();
   if (backoff.random()) {
    policy = new ExponentialRandomBackOffPolicy();
   }
   policy.setInitialInterval(min);
   policy.setMultiplier(multiplier);
   policy.setMaxInterval(max > min ? max : ExponentialBackOffPolicy.DEFAULT_MAX_INTERVAL);
   if (this.sleeper != null) {
    policy.setSleeper(this.sleeper);
   }
   return policy;
  }
  if (max > min) {
   UniformRandomBackOffPolicy policy = new UniformRandomBackOffPolicy();
   policy.setMinBackOffPeriod(min);
   policy.setMaxBackOffPeriod(max);
   if (this.sleeper != null) {
    policy.setSleeper(this.sleeper);
   }
   return policy;
  }
  FixedBackOffPolicy policy = new FixedBackOffPolicy();
  policy.setBackOffPeriod(min);
  if (this.sleeper != null) {
   policy.setSleeper(this.sleeper);
  }
  return policy;
 }

嗯~,一样的味道。就是通过@Backoff注解中的参数,来判断具体使用文章开头说到的哪个退避策略,是FixedBackOffPolicy还是UniformRandomBackOffPolicy等。

那么每个RetryPolicy都会重写canRetry方法,然后在RetryTemplate判断是否需要重试。我们看看SimpleRetryPolicy的

@Override
 public boolean canRetry(RetryContext context) {
  Throwable t = context.getLastThrowable();
  //判断抛出的异常是否符合重试的异常
  //还有,是否超过了重试的次数
  return (t == null || retryForException(t)) && context.getRetryCount() < maxAttempts;
 }

同样,我们看看FixedBackOffPolicy的退避方法。

protected void doBackOff() throws BackOffInterruptedException {
  try {
   //就是sleep固定的时间
   sleeper.sleep(backOffPeriod);
  }
  catch (InterruptedException e) {
   throw new BackOffInterruptedException("Thread interrupted while sleeping", e);
  }
 }

至此,重试的主要原理以及逻辑大概就是这样了。

RetryContext

我觉得有必要说说RetryContext,先看看它的继承关系。

可以看出对每一个策略都有对应的Context。

在Spring Retry里,其实每一个策略都是单例来的。我刚开始直觉是对每一个需要重试的方法都会new一个策略,这样重试策略之间才不会产生冲突,但是一想就知道这样就可能多出了很多策略对象出来,增加了使用者的负担,这不是一个好的设计。Spring Retry采用了一个更加轻量级的做法,就是针对每一个需要重试的方法只new一个上下文Context对象,然后在重试时,把这个Context传到策略里,策略再根据这个Context做重试,而且Spring Retry还对这个Context做了cache。这样就相当于对重试的上下文做了优化。

总结

Spring Retry通过AOP机制来实现对业务代码的重试”入侵“,RetryTemplate中包含了核心的重试逻辑,还提供了丰富的重试策略和退避策略。



欢迎加入我的知识星球,一起探讨架构,交流源码。加入方式,长按下方二维码噢:

已在知识星球更新源码解析如下:

最近更新《芋道 SpringBoot 2.X 入门》系列,已经 20 余篇,覆盖了 MyBatis、Redis、MongoDB、ES、分库分表、读写分离、SpringMVC、Webflux、权限、WebSocket、Dubbo、RabbitMQ、RocketMQ、Kafka、性能测试等等内容。

提供近 3W 行代码的 SpringBoot 示例,以及超 4W 行代码的电商微服务项目。

获取方式:点“在看”,关注公众号并回复 666 领取,更多内容陆续奉上。

兄弟,艿一口,点个赞!????

Java 重试框架 Spring-Retry | 底层 API 与实现原理 Java 重试框架 SpringRetry 的底层API及实现原理分析。 阅读详情

相关推荐

详解Spring Retry实现原理

主要介绍了详解Spring Retry实现原理,小编觉得挺不错的,现在分享给大家,也给大家做个参考。一起跟随小编过来看看吧

Spring Retry的使用及原理分析

spring retry是spring框架的一个模块,它提供了重新调用失败操作的功能。

shuoguobufangqi的博客 2736

麒麟OS恢复出厂设置原理与实操:非重装的系统状态回滚

Linux操作系统中的‘恢复出厂设置’并非简单重装或镜像还原,而是一种基于状态快照、包管理与配置模板的可控回滚机制。其核心原理依赖LVM快照技术、RPM包签名验证和预置配置模板,兼顾系统稳定性与用户数据安全。该方案在政务、教育等国产化场景中具有显著技术价值——不格式化硬盘、不丢失/home文档、不重配驱动与授权,大幅降低运维复杂度。典型应用场景包括系统卡顿修复、软件冲突清理、桌面环境异常恢复等。本文深入解析银河麒麟V10的kylin-restore-cli工具链与麒麟管家集成逻辑,聚焦‘恢复出厂设置’这一高

weixin_30879169的博客 779

Spring Retry-00-使用和原理

spring retry提供了一种声明式方法重试的功能,能够在指定场景下重新执行方法,这种能力在方法失败是由于网络或其他非逻辑错误的场景下非常有用。通过注解就完成功能,这种方式在Spring中是非常常见的,其原理就是使用动态代理来实现增强。当然,既然是使用了AOP那么你可以选择使用spring-aop,或者使用spring-aspects2中AOP中的任意一种。下面是spring-retry和spring-aspects和spring-aop的maven坐标,aop的依赖根据实际情况选择一个或2个即可。

诗人不写诗 577

adas硬件_ADAS智能辅助驾驶系统硬件在环(HIL)测试之硬件介绍

这篇主要分享的是ADAS融合系统的HIL测试系统的硬件结构及其作用,其主要包括上位机、机柜、雷达模拟器系统、雷达暗箱系统以及视频暗箱。 上位机 上位机主要运行HIL测试系统的相关软件,测试人员所有的前期准备工作与测试操作均在上面进行,并监控测试结果,其通过网口实现与NI实时机的通信,上位机将VeriStand项目工程下载至NI实时机运行。机柜 机柜主要由可编程电源...

weixin_39580748的博客 2244

ORB-SLAM3的Euroc数据集测试

(一)测试运行 不同模式测试过程(以MH_03为例) 1、pure mono 运行SLAM: cd ORB-SLAM3/Example #run slam ./Monocular/mono_euroc ../Vocabulary/ORBvoc.txt ./Monocular/EuRoC.yaml "$pathDatasetEuroc"/MH03 ./Monocular/EuRoC_TimeStamps/MH03.txt dataset-MH03_mono 利用ORB-SLAM3自带..

ljtx200888的博客 9146

Spring Retry深度解析:原理、实践与扩展指南

在分布式系统统治天下的时代,每个开发者都深谙这条铁律:失败不是意外,而是必然发生的常态。传统的`try-catch+循环重试`模式会迅速演变为代码肿瘤——不仅导致业务逻辑被防御性代码淹没,更会因缺乏统一策略引发重试风暴(Retry Storm)等灾难性后果。

qq_43947876的博客 1778

手把手教你获取全国街道级GeoJSON数据:前端地图开发必备技巧

本文详细介绍了获取全国街道级GeoJSON数据的多种方法,从前端地图开发的实际需求出发,涵盖了免费获取省市县级数据的工具如阿里云DataV.GeoAtlas和HashTang,以及进阶的街道级数据获取方案,包括使用Bigemap GIS Office和专业数据采购。文章还提供了数据处理与优化技巧,帮助开发者高效使用GeoJSON数据进行地图可视化。

weixin_29053383的博客 289

Spring Retry 重试机制实现及原理

概要 Spring实现了一套重试机制,功能简单实用。Spring Retry是从Spring Batch独立出来的一个功能,已经广泛应用于Spring Batch,Spring Integration, Spring for Apache Hadoop等Spring项目。本文将讲述如何使用Spring Retry及其实现原理。 背景 重试,其实我们其实很多时候都需要的,为了保证容错性,可用性,一致性等。一般用来应对外部系统的一些不可预料的返回、异常等,特别是网络延迟,中断等情况。还有在现在流行的微服务

Daily Accumulation 的博客 1566

Android Jetpack 最全面试题及参考答案

要使用 WorkManager 定义一个异步任务,以下是详细步骤。首先,需要创建一个继承自 Worker 类的自定义类,这个类代表了要执行的具体任务逻辑。// 在这里编写具体的任务逻辑,比如从网络下载文件try {在上述代码中,doWork方法就是任务的核心执行逻辑所在,这里模拟了从给定的 URL 下载文件到本地的操作,若下载成功返回,若出现异常则返回。然后,在需要调度任务的地方,比如在某个 Activity 或者 Fragment 中,通过构建 WorkRequest 来安排任务执行。

大模型大数据攻城狮的专栏 1902

HyperLynx(十三)Hyperlynx前放置之对网络的EMC分析

在“Spectrum Analyzer”对话框的“Stimulus”(激励)栏中,设置激励源频率为100MHz,选择“IC modeling”为“Fast-Strong”,并按图所示设置其他选项。显然,在仿真的基频上,它的幅值最大,将鼠标光标置于柱状图上,可以读取其值为64.28mA,这个数值是由选定的驱动芯片决定的。按上图所示的原理图,在接收端增加一个并联的RC负载,再次运行仿真,结果如图所示。在对话框左侧的“Pins”列表中,显示出了已添加电流探针的引脚,可以在此列表中选择所要仿真的目标。...

小幽余生不加糖 4681

异常重试_Spring-Retry重试实现原理

概要Spring实现了一套重试机制,功能简单实用。Spring Retry是从Spring Batch独立出来的一个功能,已经广泛应用于Spring Batch,Spring Integration, Spring for Apache Hadoop等Spring项目。本文将讲述如何使用Spring Retry及其实现原理。背景重试,其实我们其实很多时候都需要的,为了保证容错性,可用性,一致性等。...

weixin_39588911的博客 252

TGAT Python:图神经网络中的动态图算法

其中,图神经网络中的动态图算法成为了研究的热点之一。在模型的 forward 方法中,通过循环调用 TGATLayer 实例来进行图神经网络的前向传播。最终,模型返回图中节点的表示向量 output,可以用于图分类等任务。TGAT 算法的核心思想是在节点之间建立注意力连接,以捕捉节点在不同时间步之间的关系。TGAT 算法通过引入注意力机制和时间信息,从而有效地对动态图数据进行建模和分析。通过以上 Python 代码,我们可以方便地构建和训练 TGAT 模型,并在图分类任务中应用它。

2301_79366435的博客 1830

Spring Retry 重试实现原理深度剖析

本文深入剖析了SpringRetry框架在分布式系统中的应用,重点分析了其核心设计理念和实现机制。框架通过RetryTemplate的模板方法设计,结合RetryPolicy和BackOffPolicy的策略模式实现,提供了灵活的重试控制能力。文章详细解读了基于AOP的注解驱动原理、有状态重试与熔断机制等高级特性,并探讨了重试机制的适用场景与最佳实践。通过源码级分析,揭示了框架如何优雅处理瞬时故障,同时强调了幂等性保障和合理配置的重要性。最后指出,SpringRetry的设计思想对框架开发具有重要参考价值。

油墨香^-^的博客 494

最佳RANSAC算法拟合矩形的实现(基于PCL库)

最佳RANSAC算法是一种常用的参数估计方法,用于从数据集中拟合出最佳的模型。在计算机视觉和图像处理领域,最佳RANSAC算法常用于拟合几何形状,如矩形。本文将详细介绍如何使用点云库(PCL)中的最佳RANSAC算法来拟合矩形,并提供相应的源代码。

JbPatch的博客 1544

文档:亲测可用解决vnc灰屏,黑屏,鼠标大黑叉情况

主要解决vnc-viewer灰屏,黑屏,鼠标大黑叉等现象,详细见文档。

dubbo重试机制原理_Spring-Retry重试实现原理 | Alben's home

概要Spring实现了一套重试机制,功能简单实用。Spring Retry是从Spring Batch独立出来的一个功能,已经广泛应用于Spring Batch,Spring Integration, Spring for Apache Hadoop等Spring项目。本文将讲述如何使用Spring Retry及其实现原理。背景重试,其实我们其实很多时候都需要的,为了保证容错性,可用性,一致性等。...

weixin_39834678的博客 584

RU DOS版、EFI版32bit/64bit BIOS常用工具

DOS版、EFI版的RU工具,可用来查看IO、MEM、PCI、SMBIOS等资源。亲测在EFI SHELL下可用。

上一篇: 一文搞定分布式系统 ID 生成方案
下一篇: 华为服务器操作系统开源!
公众号-芋道源码
博客等级 码龄10年 1638粉丝 377原创
评论 1
成就一亿技术人!
拼手气红包6.0元
还能输入1000个字符

 条评论被折叠 查看
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付:10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
