三维场景视图加载cgcs2000坐标系数据

gislaozhang

已于 2023-12-18 18:14:29 修改

阅读量483

点赞数

CC 4.0 BY-SA版权

分类专栏： JS 文章标签：天地图 4490 三维场景

于 2023-10-31 16:49:23 首次发布

本文链接：https://blog.youkuaiyun.com/gislaozhang/article/details/134143540

JS 专栏收录该内容

23 篇文章

订阅专栏

需求：

高程服务：2000坐标系

底图：天地图2000坐标系

三维模型：2000坐标系

效果图：

测试数据：

链接：https://pan.baidu.com/s/1cJbMfzkMalY06wOrmXStSQ
提取码：uz2a

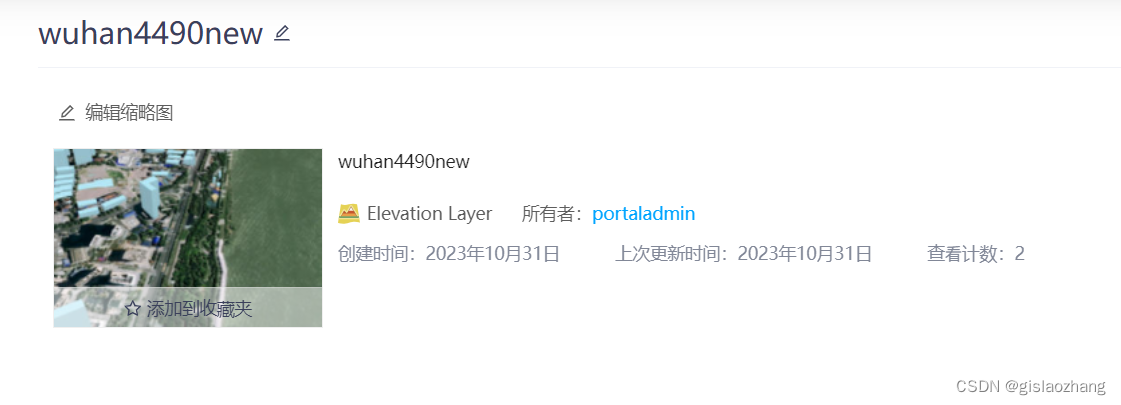

高程服务发布方式：

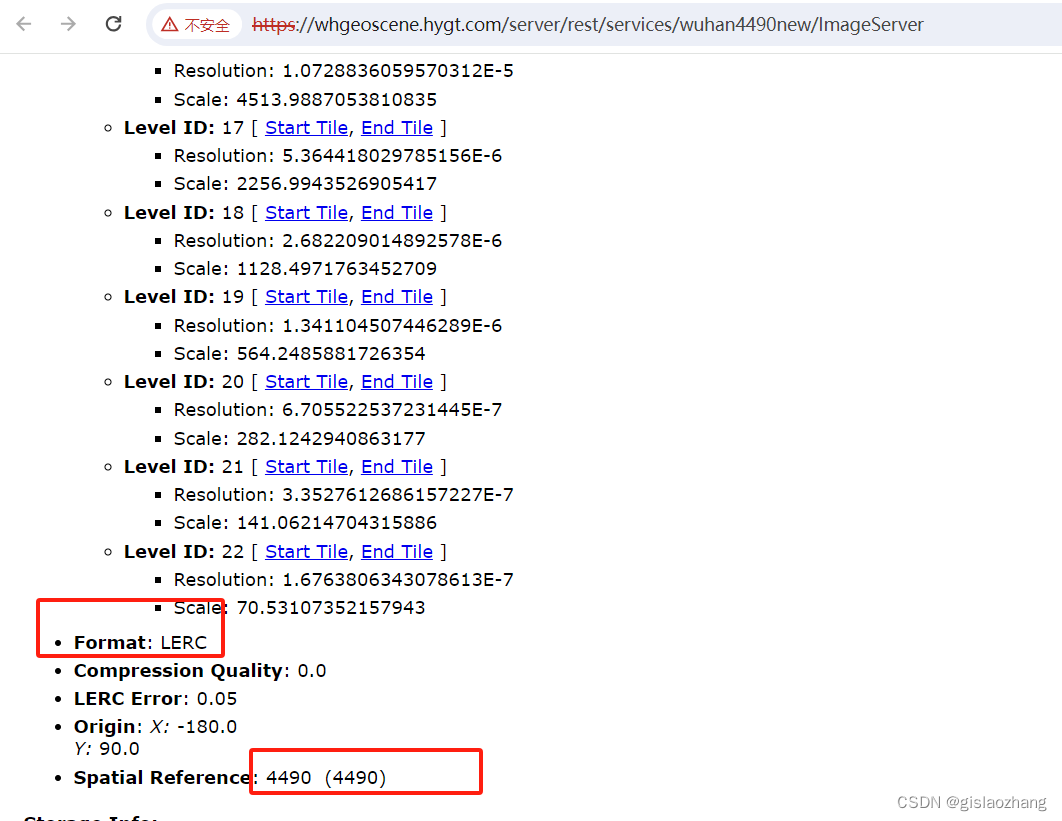

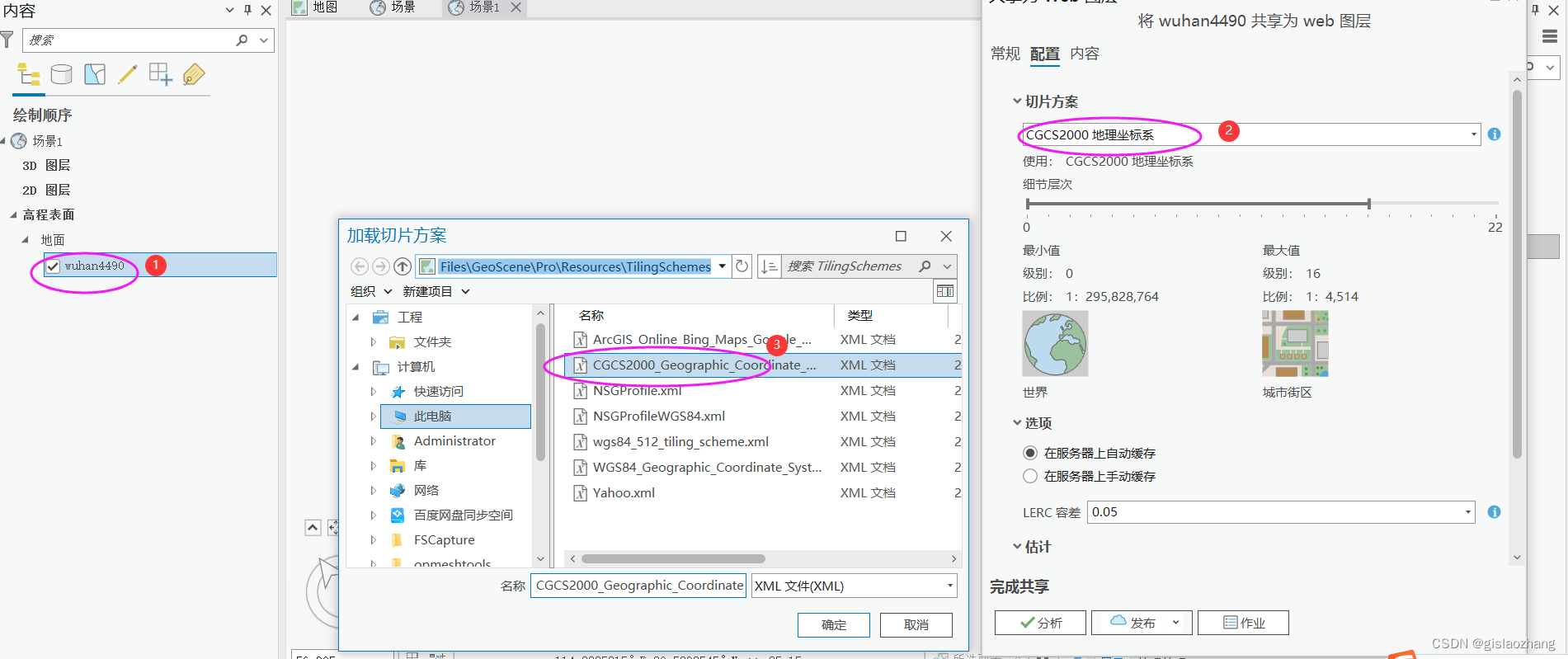

直接使用geoscenepro自带的2000坐标系，切片格式为lerc

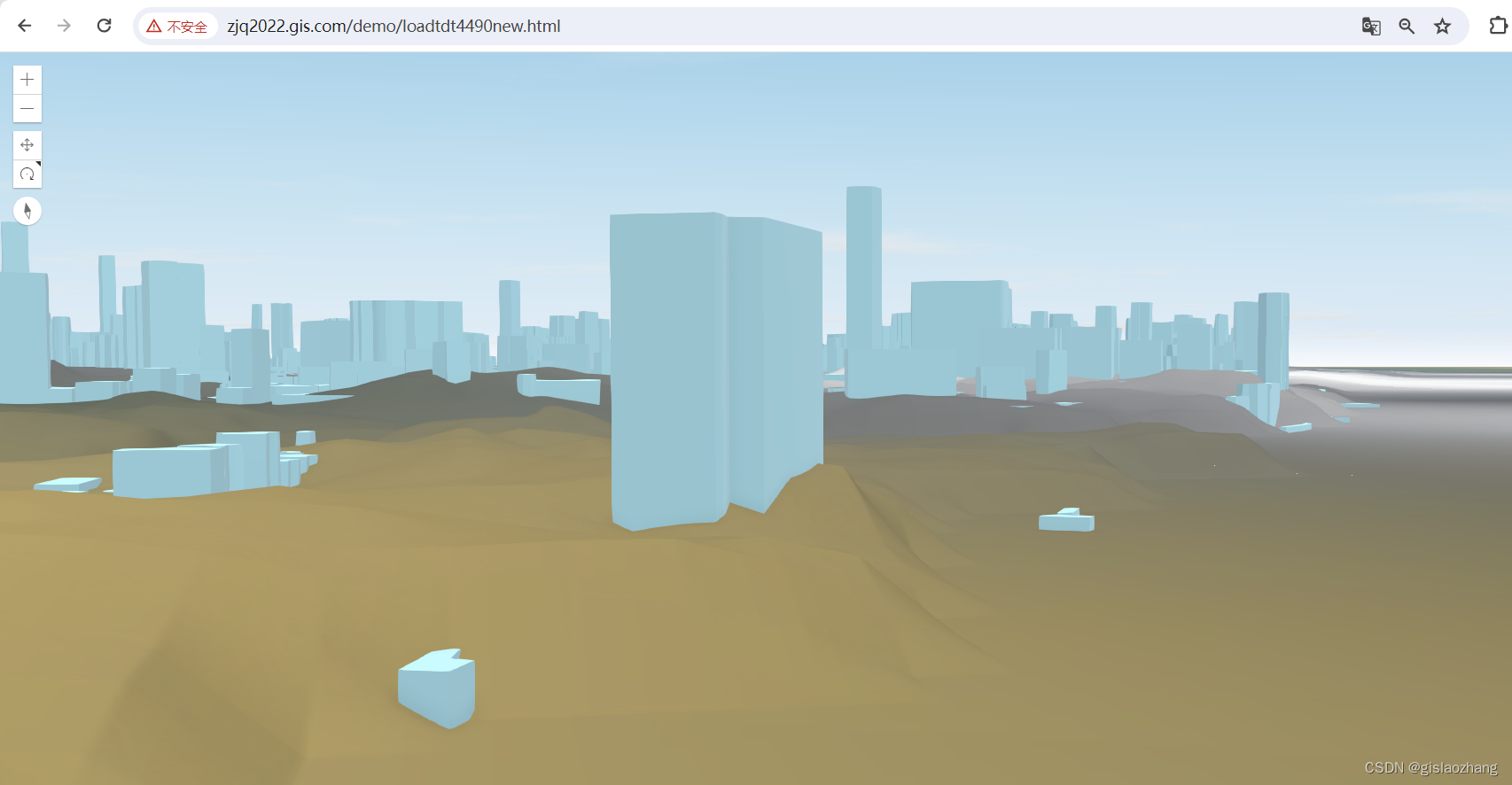

发布之后的效果：

底图：

天地图影像底图，2000坐标系

三维模型：

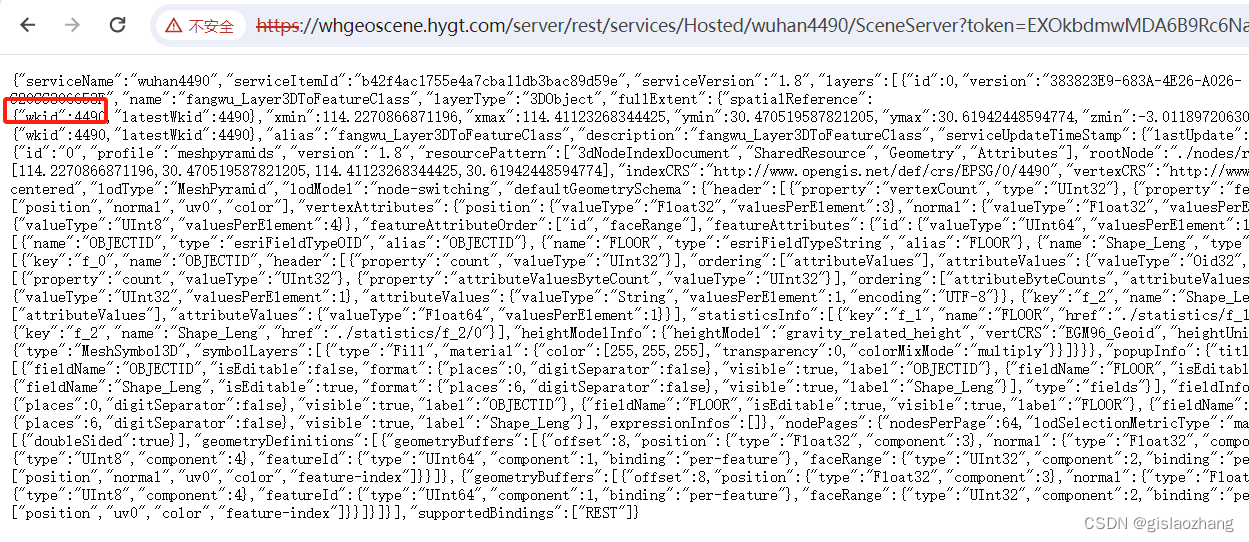

2000坐标系

业务代码：

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta http-equiv="X-UA-Compatible" content="ie=edge">
    <title>加载天地图</title>
    <link
    rel="stylesheet"
    href="https://js.arcgis.com/4.27/esri/themes/light/main.css"
  />
  <script src="https://js.arcgis.com/4.27/"></script>

    <style>
        html,
        body,
        #map {
            width: 100%;
            height: 100%;
            padding: 0;
            margin: 0;
        }
    </style>
    <script>
        require(["esri/Map",
            "esri/views/SceneView",
            "esri/layers/WebTileLayer",
            "esri/layers/support/TileInfo",
            "esri/Ground",
        "esri/layers/ElevationLayer",
        "esri/layers/SceneLayer",

        ], function (Map, SceneView, WebTileLayer, TileInfo,Ground,ElevationLayer,SceneLayer) {

            let tileInfo = new TileInfo({
            dpi: 90.71428571427429,
            rows: 256,
            cols: 256,
            compressionQuality: 0,
            origin: {
                x: -180,
                y: 90
            },
            spatialReference: {
                wkid: 4490
            },
            lods: [
                { level: 0, levelValue: 1, resolution: 0.703125, scale: 295497593.05875003 },
                { level: 1, levelValue: 2, resolution: 0.3515625, scale: 147748796.52937502 },
                { level: 2, levelValue: 3, resolution: 0.17578125, scale: 73874398.264687508 },
                { level: 3, levelValue: 4, resolution: 0.087890625, scale: 36937199.132343754 },
                { level: 4, levelValue: 5, resolution: 0.0439453125, scale: 18468599.566171877 },
                { level: 5, levelValue: 6, resolution: 0.02197265625, scale: 9234299.7830859385 },
                { level: 6, levelValue: 7, resolution: 0.010986328125, scale: 4617149.8915429693 },
                { level: 7, levelValue: 8, resolution: 0.0054931640625, scale: 2308574.9457714846 },
                { level: 8, levelValue: 9, resolution: 0.00274658203125, scale: 1154287.4728857423 },
                { level: 9, levelValue: 10, resolution: 0.001373291015625, scale: 577143.73644287116 },
                { level: 10, levelValue: 11, resolution: 0.0006866455078125, scale: 288571.86822143558 },
                { level: 11, levelValue: 12, resolution: 0.00034332275390625, scale: 144285.93411071779 },
                { level: 12, levelValue: 13, resolution: 0.000171661376953125, scale: 72142.967055358895 },
                { level: 13, levelValue: 14, resolution: 8.58306884765625e-005, scale: 36071.483527679447 },
                { level: 14, levelValue: 15, resolution: 4.291534423828125e-005, scale: 18035.741763839724 },
                { level: 15, levelValue: 16, resolution: 2.1457672119140625e-005, scale: 9017.8708819198619 },
                { level: 16, levelValue: 17, resolution: 1.0728836059570313e-005, scale: 4508.9354409599309 },
                { level: 17, levelValue: 18, resolution: 5.3644180297851563e-006, scale: 2254.4677204799655 },
                { level: 18, levelValue: 19, resolution: 2.68220901489257815e-006, scale: 1127.23386023998275 },
                { level: 19, levelValue: 20, resolution: 1.341104507446289075e-006, scale: 563.616930119991375 }
            ]
        });



         /*天地图-影像（CGCS2000）*/

         var img_tiandituLayer = new WebTileLayer("http://{subDomain}.tianditu.gov.cn/img_c/wmts?SERVICE=WMTS&VERSION=1.0.0&REQUEST=GetTile&LAYER=img&STYLE=default&FORMAT=tiles&TILEMATRIXSET=c&TILEMATRIX={level}&TILEROW={row}&TILECOL={col}&tk=ac0daf56728bbb77d9514ba3df69bcd3", {
            subDomains: ["t0","t1","t2","t3","t4","t5","t6","t7"],
            title: "天地图-影像",
            tileInfo: tileInfo,
            spatialReference: {
                wkid: 4490
            },
            fullExtent:{
                xmin: -180,
                xmax: 180,
                ymin: -90,
                ymax: 90,
                spatialReference: 4490
            }
        });

        var cia_tiandituLayer = new WebTileLayer("http://{subDomain}.tianditu.gov.cn/cia_c/wmts?SERVICE=WMTS&VERSION=1.0.0&REQUEST=GetTile&LAYER=cia&STYLE=default&FORMAT=tiles&TILEMATRIXSET=c&TILEMATRIX={level}&TILEROW={row}&TILECOL={col}&tk=ac0daf56728bbb77d9514ba3df69bcd3", {
            subDomains: ["t0","t1","t2","t3","t4","t5","t6","t7"],
            title: "天地图-影像注记",
            tileInfo: tileInfo,
            spatialReference: {
                wkid: 4490
            },
            fullExtent:{
                xmin: -180,
                xmax: 180,
                ymin: -90,
                ymax: 90,
                spatialReference: 4490
            }
        });




         //定义业务图层，例如：倾斜模型服务
         var layer = new SceneLayer({
          url: "https://whgeoscene.hygt.com/server/rest/services/Hosted/wuhan4490/SceneServer",
        });

  //定义高程表面
  var customElevation = new ElevationLayer({
          //url: "https://elevation3d.arcgis.com/arcgis/rest/services/WorldElevation3D/Terrain3D/ImageServer/",
          url:"https://whgeoscene.hygt.com/server/rest/services/wuhan4490new/ImageServer"
        });
        var customeGround = new Ground({
          layers: [customElevation],
        });




            var map = new Map({
                ground: customeGround,//高程表面
                basemap: {
                    baseLayers: [
                img_tiandituLayer
            ],
            referenceLayers: [
                cia_tiandituLayer
            ],
                },

                layers: [layer],//业务图层
            });






            var view = new SceneView({
                container: "map",
                map: map,
                camera:{
                position: {
                    x: 105.61385,
                    y: 35.59715,
                    z: 25512547.962,
                    spatialReference: 4490
                },
                heading: 360.00,
                tilt: 0.10
            }


            });


            view.when(function () {
          view.qualitySettings.memoryLimit = 4096; //20190722 修改内存大小。
          view.goTo(layer.fullExtent);
        });

        })
    </script>
</head>

<body>
    <div id="map"></div>
</body>

</html>

</html>
