1.题目分析
(1)题目:对于任意给定的一台Turing机和任意给定的字符串w ( w不含空格),编程模拟此Turing机的运行过程,要求输出从开始运行起的每一步骤的结果。(本次实验模拟了UN*2 Turing 机,输入正整数,经过转化后,Turing机对其编码执行操作,最后再经转化输出一个正整数。)
(2)分析:
步骤1:输入一个正整数,调用transformation()函数将其转换成二进制,然后将其转换成字符串,在字符串后添加“,”,将字符串中的“1”用“01”替代,将“,”用“0110”替代,“0”可保持不变,因此输出图灵机可识别的二进制位码;
步骤2:将字符串分割成字符数组,让二进制位码存入字符数组中,让图灵机执行可识别的编码,输出结果;
步骤3:将输出结果转换成二进制,然后再转换成十进制,最终输出一个正整数。
2.算法设计思路
算法设计思路:
(1)本次程序设计采用c++编程语言。首先,输入一个正整数,将其转换成二进制;然后运用<sstream>库中的类ostringstream将int型转换成字符串,运用<string>库中的append()函数在字符串末尾添加一个“,”,再使用replace函数将字符串中的“1”用“01”替代,将“,”用“0110”替代,“0”可保持不变,再使用append函数在其末尾添加两个0,以便后面运算;
(2)接着定义一个字符数组,运用strcpy()函数将字符串分割成字符数组;然后使用for循环,在for循环中使用if...else...嵌套语句让图灵机对可执行编码进行操作,最后将输出结果转换为string 类型;
(3)最后,将运行结果收缩为二进制,将字符串中的“0110”清空;将“01”用“1”替代,“0”保持不变,然后在调用transformatin1()将二进制转换为十进制。
3.代码
//title:Turing UN*2
//author:qiuerduoer
//time:2019/03/23
#include <iostream>
#include <math.h>
#include <string>
#include <sstream>
#include <stdlib.h>
using namespace std;
int transformation(int num)//将十进制转换成二进制
{ int result=0,n=1,i,temp;
temp=num;
while(temp)
{
i=temp%2;
result=n*i+result;
n*=10;
temp=temp/2;
}
return result;
}
//来源网上(string_replace()函数,可将字符串中的某个字符用其它字符替代)
void string_replace( std::string &strBig, const std::string &strsrc, const std::string &strdst)
{
std::string::size_type pos = 0;
std::string::size_type srclen = strsrc.size();
std::string::size_type dstlen = strdst.size();
while( (pos=strBig.find(strsrc, pos)) != std::string::npos )
{
strBig.replace( pos, srclen, strdst );
pos += dstlen;
}
}
int transformation1( string ss)//将二进制转换为十进制
{
char c[4];
strcpy(c,ss.c_str());//将字符串型分割成字符数组
int l = atoi(c);//将字符串数组的数字转换为int型,方便后面运算
cout<<"去掉开头多余0后的二进制:"<<l<<endl;
int count=0,i=1,temp,r=0;
//将数字中的每一位存入数组,以便将二进制转换为十进制
int a[10]={0};
temp=l;
while(temp!=0)
{
temp/=10;count++;
}
while((l/10)!=0)
{
a[count-i]=l%10;
l/=10;
i++;
}
a[0]=l;
for(int j=0;j<count;j++)
{
r+=a[j]*(pow(2,(count-1)-j));//求十进制
}
return (r);
}
int main()
{ int m,t1;
cout<<"请输入数据:";
cin>>m;
t1=transformation(m);
ostringstream myos;//将int型转换成string型
myos<<t1;
string s=myos.str();
cout<<"转换为二进制:"<<s<<endl;
string b=",";
s.append(b);//在字符串后添加一个’,’
string_replace(s,"1","01");//将二进制收缩,“1”用‘01’替代
string_replace(s,"0","0");//‘0’用‘0’替代,这步可省略
string_replace(s,",","0110");//‘,’用‘0110’替代
string n="00";//在末尾处添加0以便计算
cout<<"扩展后的结果:"<<s<<endl;
s.append(n);
char c[20];
strcpy(c,s.c_str());//将字符串型分割成字符数组
int in_state=0;//内态
char input;//输入
string str;
for( int i=0;i<20;i++)
{
input=c[i];
if (in_state==0 && input=='0')//内态为0,输入为0
{
in_state=0;//内态为0
c[i]='0';//输出为0
}
else if(in_state==0 && input=='1')//内态为0,输入为1
{
in_state=1;//内态为1
c[i]='0';//输出为0
}
else if(in_state==1 && input=='0')//内态为1,输入为0
{
in_state=0;//内态为0
c[i]='1';//输出为1
}
else if(in_state==1 && input=='1')//内态为1,输入为1
{
in_state=10;//内态为10
c[i]='0';//输出为0
}
else if(in_state==10 && input=='0')//内态为10,输入为0
{
in_state=11;//内态为11
c[i]='1';//输出为1
}
else if(in_state==11 && input=='0')//内态为11,输入为0
{
in_state=0;//内态为0
c[i]='1';//输出为1
}
//将字符数组转为string类型
str = c;
cout<<"运行结果"<<i<<":"<<str<<endl;//在原有基础上添加可以用str += ch;
}
//将位码转换为二进制
string_replace(str,"0110","");//将'0110'清空
string_replace(str,"01","1");//将'01'用'1'替代
string_replace(str,"0","0");//将'0'用'0'替代
cout <<"运行结果(二进制)为:"<< str << endl;
int t3;
t3=transformation1(str);//将二进制转换为十进制
cout<<"最终结果(十进制)为:"<<t3<<endl;
return 0;
}

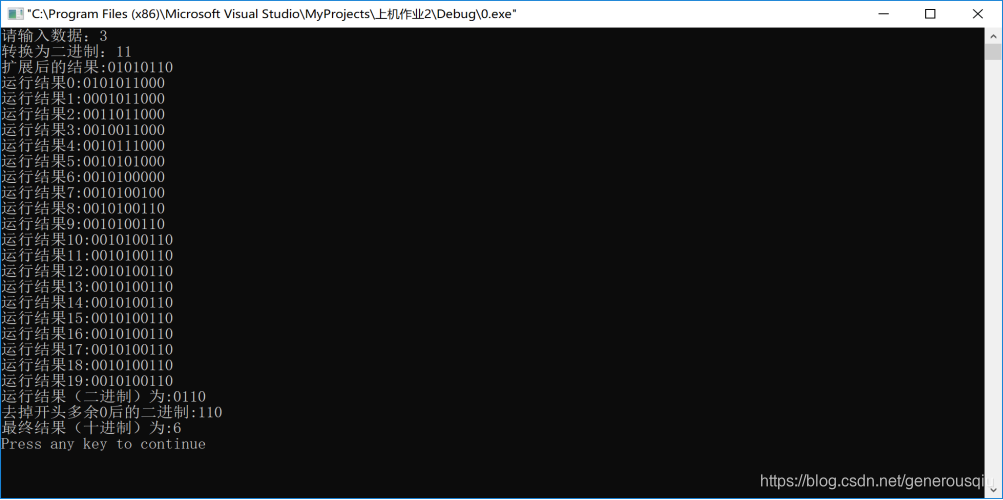

4.运行结果
5.收获与总结
(1)收获
通过本次实验,我收获颇多。首先,我学会了如何将int型转化为string型,还查询到append()函数可以在字符串中添加字符;然后在查询资料时还发现了replace()函数,它可将字符串中的某些字符用其它字符替换;还有学会如何使用strcpy()将字符串分割成字符数组等。
总之,在编写程序过程中遇到许多不会的及难以解决的小问题,我均通过网上搜索解决了诸多问题。所以遇到问题千万不要马上放弃,可以查查有没有解决的方法。
(2)不足
我觉得我的程序好繁杂,可读性不强,就一直在int型和string型和数组中转来转去的,因为就按照自己的思路写下来 的,我自己可以理解,但供别人看可能有点儿难理解吧。
还有就是将图灵机每一次运行结果输出的那块地方,因为我设的的数组长度是20,它就会输出20次运行结果,实际上 就例如输入正整数3,只要输出8次就可以得到结果。之前我尝试了在内态为“11”,输入为“0”时使用break跳出循环(因为图灵机遇到“110”要stop),但是结果是错误的,然后我就删掉了break,因此结果得出现20次。
