 2-1 系统功能模块划分

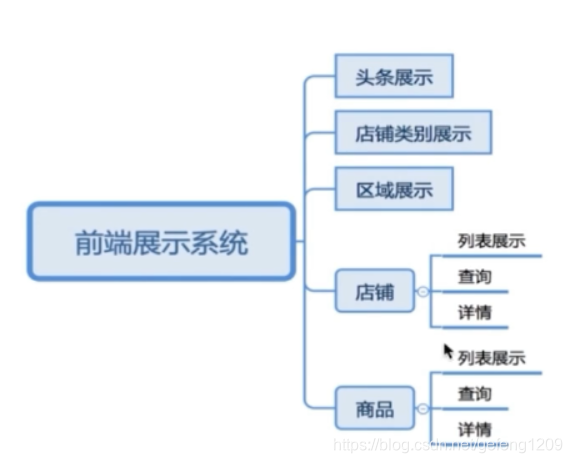

前端展示系统功能

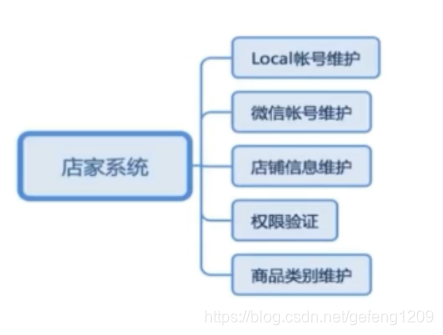

店家系统功能

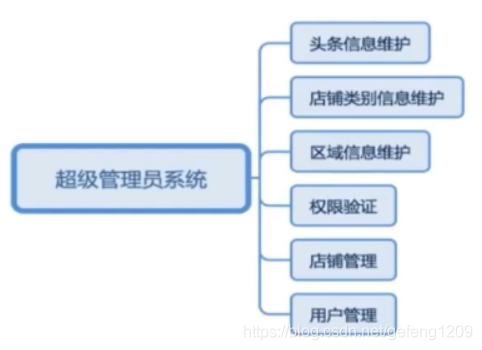

超级管理员系统

 2-2 实体类设计与表创建A

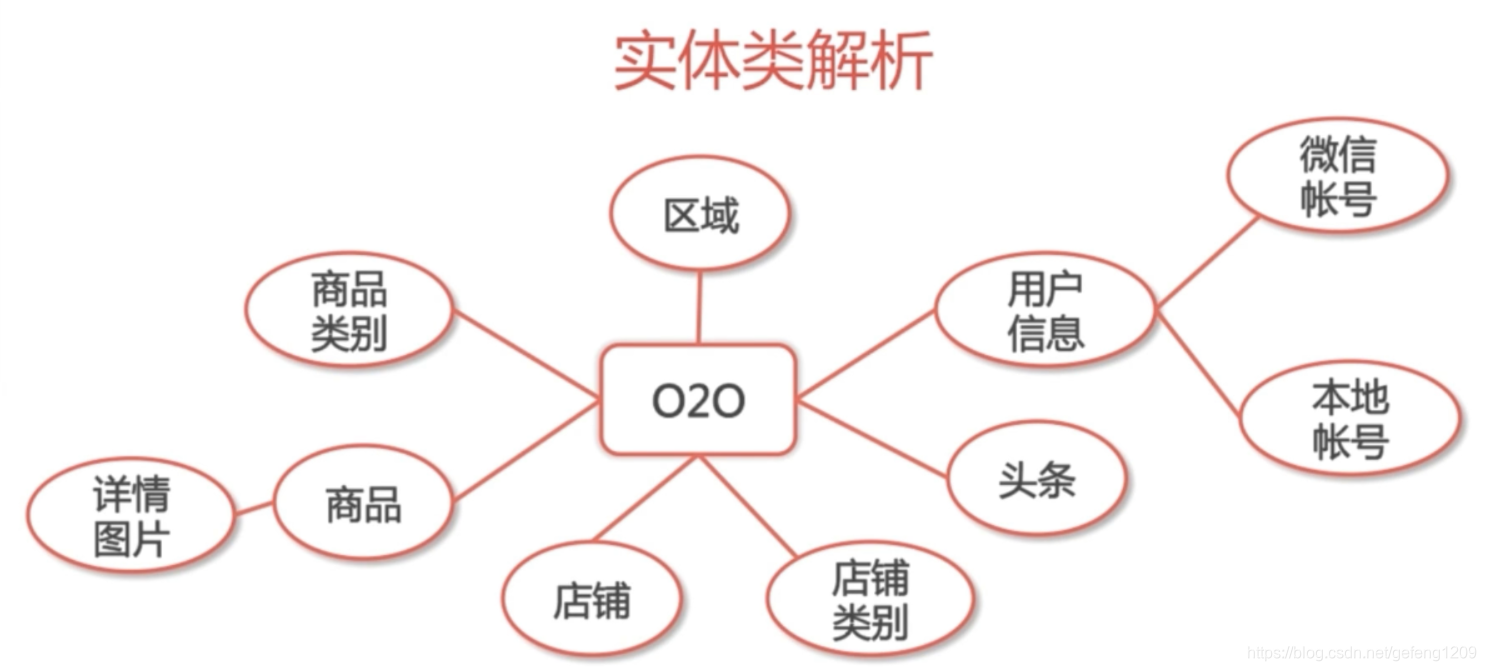

系统涉及到的实体类：

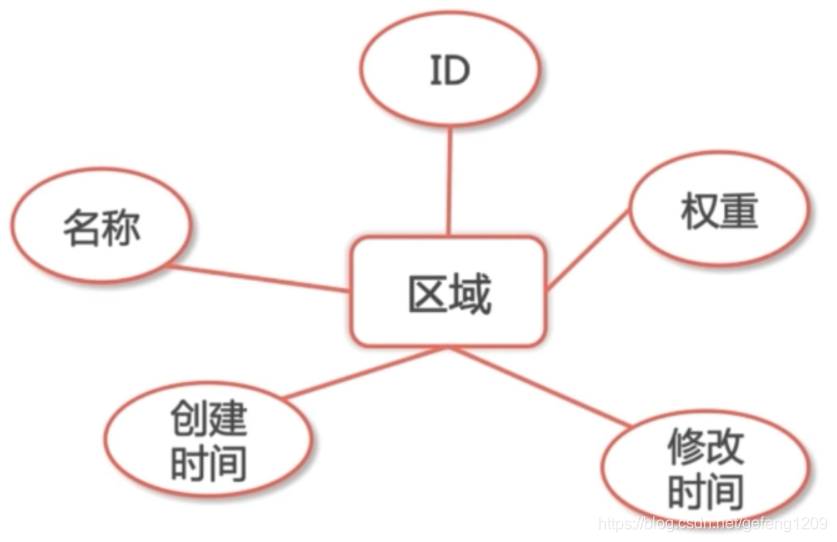

  • 区域实体类属性

 权重：展示优先级

CREATE TABLE `tb_area` (
  `area_id` int(5) NOT NULL AUTO_INCREMENT,
  `area_name` varchar(200) NOT NULL,
  `area_desc` varchar(1000) DEFAULT NULL,
  `priority` int(2) NOT NULL DEFAULT '0',
  `create_time` datetime DEFAULT NULL,
  `last_edit_time` datetime DEFAULT NULL,
  PRIMARY KEY (`area_id`),
  UNIQUE KEY `UK_AREA` (`area_name`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

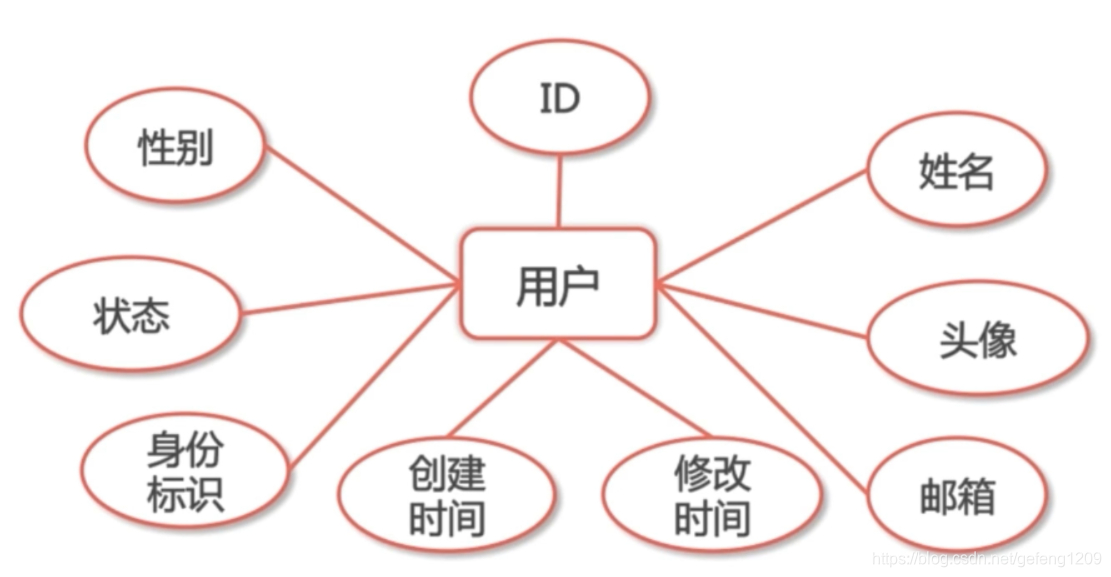

用户实体类属性



CREATE TABLE `tb_person_info` (
  `user_id` int(10) NOT NULL AUTO_INCREMENT,
  `name` varchar(32) DEFAULT NULL,
  `birthday` datetime DEFAULT NULL,
  `gender` varchar(2) DEFAULT NULL,
  `phone` varchar(32) DEFAULT NULL,
  `email` varchar(128) DEFAULT NULL,
  `profile_img` varchar(1024) DEFAULT NULL,
  `create_time` datetime DEFAULT NULL,
  `last_edit_time` datetime DEFAULT NULL,
  `enable_status` int(2) NOT NULL DEFAULT '0',
  PRIMARY KEY (`user_id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

 2-3 实体类设计与表创建B

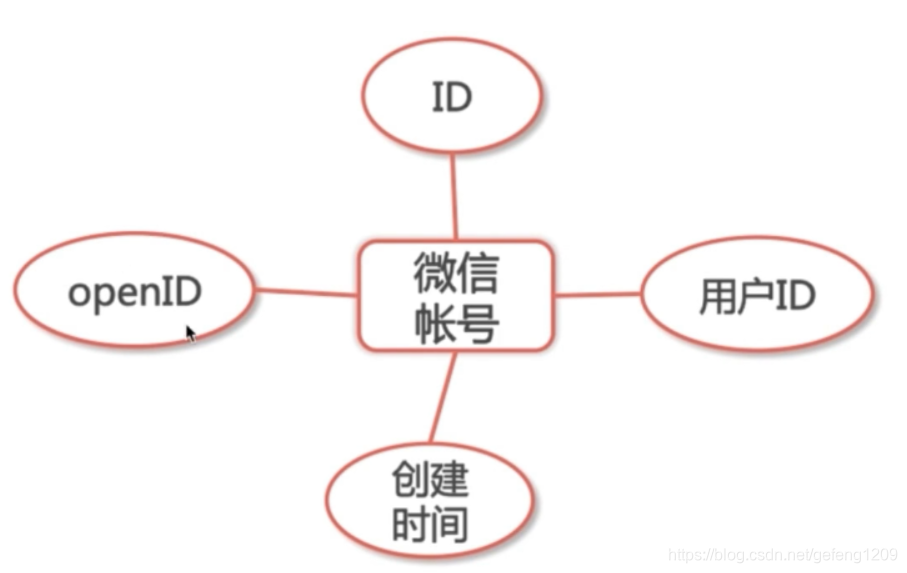

微信账号实体类属性

openId：微信账号与公众号绑定的唯一标识

CREATE TABLE `tb_wechat_auth` (
  `wechat_auth_id` int(10) NOT NULL AUTO_INCREMENT,
  `user_id` int(10) NOT NULL,
  `open_id` varchar(512) NOT NULL,
  `create_time` datetime DEFAULT NULL,
  PRIMARY KEY (`wechat_auth_id`),
  CONSTRAINT `fk_oauth_profile` FOREIGN KEY (`user_id`) REFERENCES `tb_person_info` (`user_id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

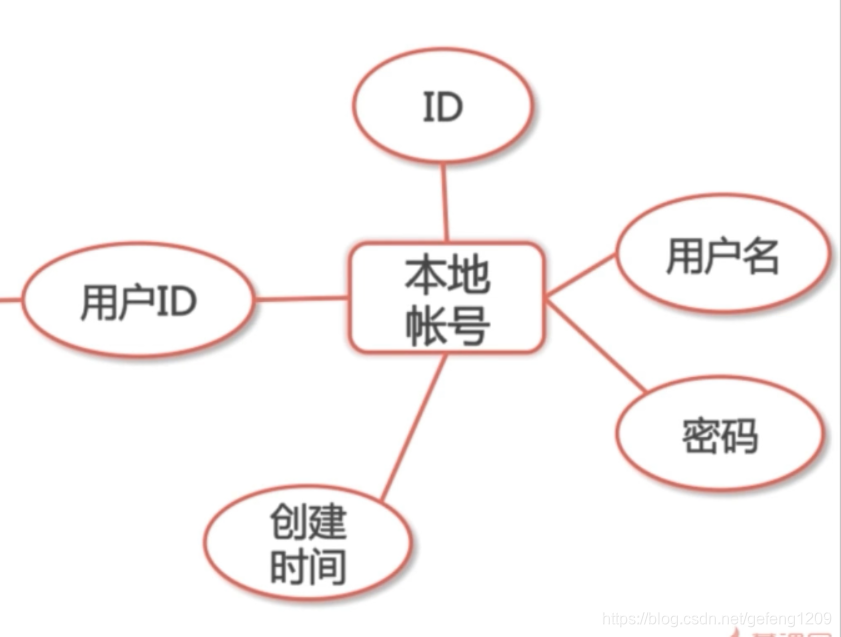

本地账号实体类属性

 用户id将微信账号和本地账号绑定在一起

CREATE TABLE `tb_local_auth` (
  `local_auth_id` int(10) NOT NULL AUTO_INCREMENT,
  `user_id` int(10) DEFAULT NULL,
  `user_name` varchar(128) NOT NULL,
  `password` varchar(128) NOT NULL,
  `create_time` datetime DEFAULT NULL,
  `last_edit_time` datetime DEFAULT NULL,
  PRIMARY KEY (`local_auth_id`),
  CONSTRAINT `fk_local_profile` FOREIGN KEY (`user_id`) REFERENCES `tb_person_info` (`user_id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

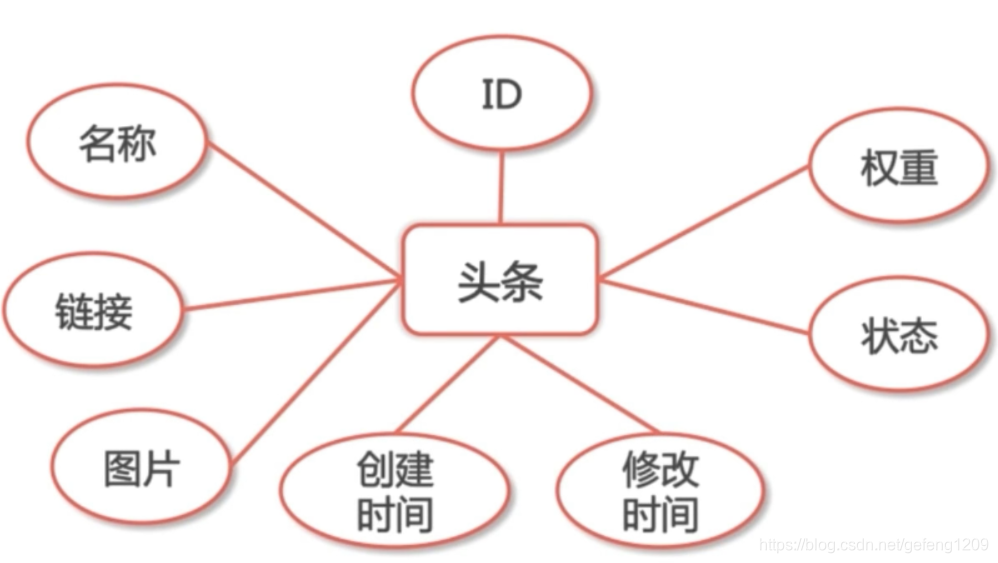

头条实体类属性

CREATE TABLE `tb_head_line` (
  `line_id` int(100) NOT NULL AUTO_INCREMENT,
  `line_name` varchar(1000) DEFAULT NULL,
  `line_link` varchar(2000) NOT NULL,
  `line_img` varchar(2000) NOT NULL,
  `priority` int(2) DEFAULT NULL,
  `enable_status` int(2) NOT NULL DEFAULT '0',
  `create_time` datetime DEFAULT NULL,
  `last_edit_time` datetime DEFAULT NULL,
  PRIMARY KEY (`line_id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

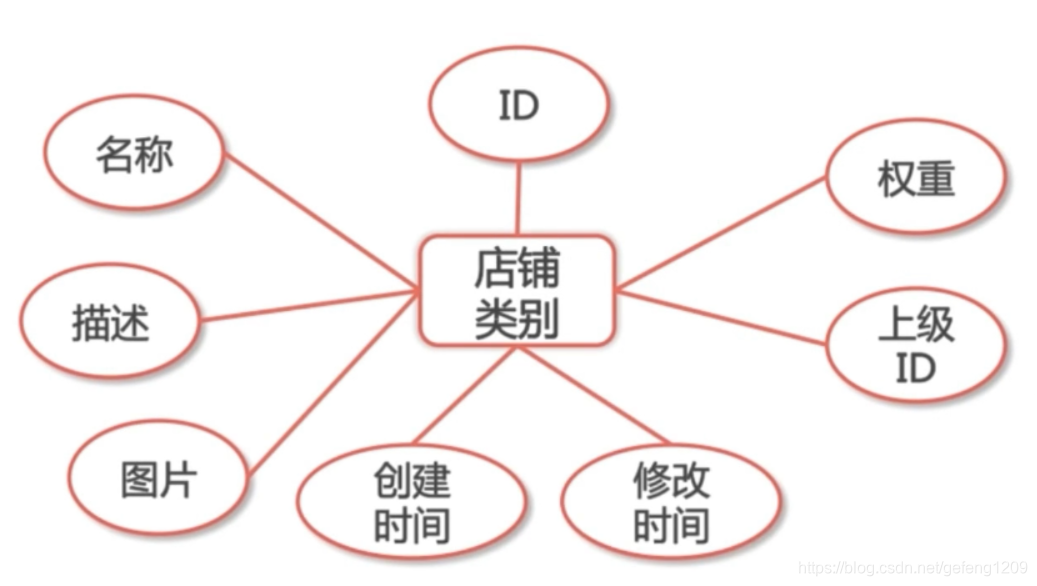

店铺类别实体类属性



CREATE TABLE `tb_shop_category` (
  `shop_category_id` int(11) NOT NULL AUTO_INCREMENT,
  `shop_category_name` varchar(100) NOT NULL DEFAULT '',
  `shop_category_desc` varchar(1000) DEFAULT '',
  `shop_category_img` varchar(2000) DEFAULT NULL,
  `priority` int(2) NOT NULL DEFAULT '0',
  `create_time` datetime DEFAULT NULL,
  `last_edit_time` datetime DEFAULT NULL,
  `parent_id` int(11) DEFAULT NULL,
  PRIMARY KEY (`shop_category_id`),
  CONSTRAINT `fk_shop_category_self` FOREIGN KEY (`parent_id`) REFERENCES `tb_shop_category` (`shop_category_id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

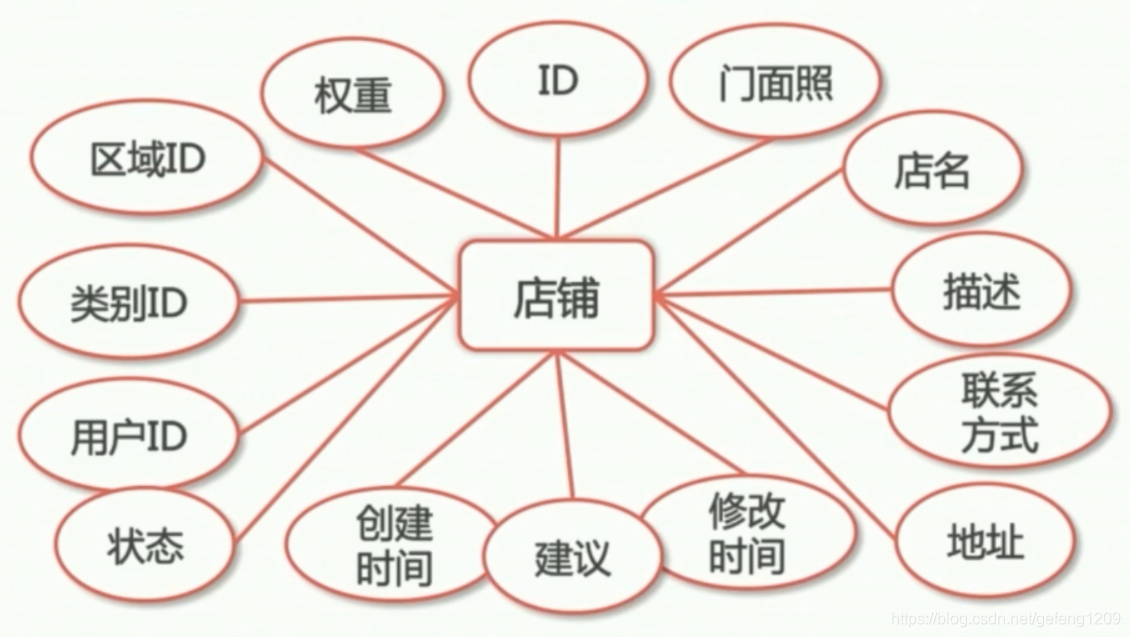

 店铺实体类属性

建议：超级管理员对店铺的建议

CREATE TABLE `tb_shop` (
  `shop_id` int(10) NOT NULL AUTO_INCREMENT,
  `owner_id` int(10) NOT NULL COMMENT '店铺创建人',
  `area_id` int(5) DEFAULT NULL,
  `shop_category_id` int(11) DEFAULT NULL,
  `shop_name` varchar(256) NOT NULL,
  `shop_desc` varchar(1024) DEFAULT NULL,
  `shop_addr` varchar(200) DEFAULT NULL,
  `phone` varchar(128) DEFAULT NULL,
  `shop_img` varchar(1024) DEFAULT NULL,
  `priority` int(3) DEFAULT '0',
  `create_time` datetime DEFAULT NULL,
  `last_edit_time` datetime DEFAULT NULL,
  `enable_status` int(2) NOT NULL DEFAULT '0',
  `advice` varchar(255) DEFAULT NULL,
  PRIMARY KEY (`shop_id`),
  CONSTRAINT `fk_shop_area` FOREIGN KEY (`area_id`) REFERENCES `tb_area` (`area_id`),
  CONSTRAINT `fk_shop_profile` FOREIGN KEY (`owner_id`) REFERENCES `tb_person_info` (`user_id`),
  CONSTRAINT `fk_shop_shopcate` FOREIGN KEY (`shop_category_id`) REFERENCES `tb_shop_category` (`shop_category_id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

 2-4 实体类设计与表创建C

商品类别实体类属性

CREATE TABLE `tb_product_category` (
  `product_category_id` int(11) NOT NULL AUTO_INCREMENT,
  `product_category_name` varchar(100) NOT NULL,
  `priority` int(2) DEFAULT '0',
  `create_time` datetime DEFAULT NULL,
  `shop_id` int(20) NOT NULL DEFAULT '0',
  PRIMARY KEY (`product_category_id`),
  KEY `fk_procate_shop` (`shop_id`),
  CONSTRAINT `fk_procate_shop` FOREIGN KEY (`shop_id`) REFERENCES `tb_shop` (`shop_id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

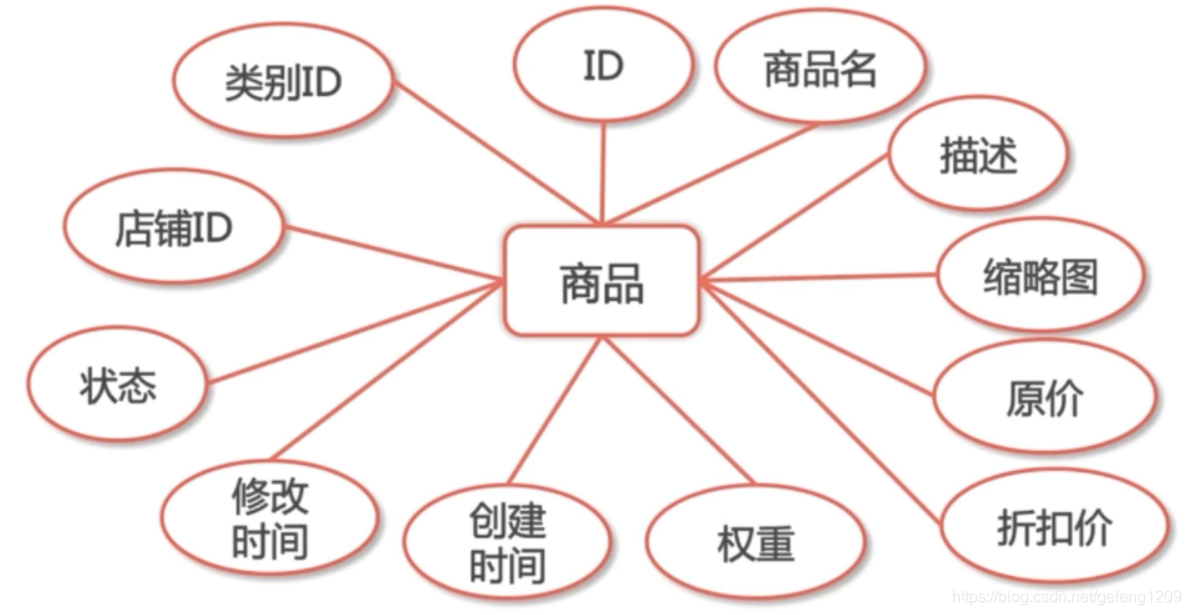

商品实体类



CREATE TABLE `tb_product` (
  `product_id` int(100) NOT NULL AUTO_INCREMENT,
  `product_name` varchar(100) NOT NULL,
  `product_desc` varchar(2000) DEFAULT NULL,
  `img_addr` varchar(2000) DEFAULT '',
  `normal_price` varchar(100) DEFAULT NULL,
  `promotion_price` varchar(100) DEFAULT NULL,
  `priority` int(2) NOT NULL DEFAULT '0',
  `create_time` datetime DEFAULT NULL,
  `last_edit_time` datetime DEFAULT NULL,
  `enable_status` int(2) NOT NULL DEFAULT '0',
  `product_category_id` int(11) DEFAULT NULL,
  `shop_id` int(20) NOT NULL DEFAULT '0',
  PRIMARY KEY (`product_id`),
  CONSTRAINT `fk_product_procate` FOREIGN KEY (`product_category_id`) REFERENCES `tb_product_category` (`product_category_id`),
  CONSTRAINT `fk_product_shop` FOREIGN KEY (`shop_id`) REFERENCES `tb_shop` (`shop_id`)
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

详情图片实体类

CREATE TABLE `tb_product_img` (
  `product_img_id` int(20) NOT NULL AUTO_INCREMENT,
  `img_addr` varchar(2000) NOT NULL,
  `img_desc` varchar(2000) DEFAULT NULL,
  `priority` int(2) DEFAULT '0',
  `create_time` datetime DEFAULT NULL,
  `product_id` int(20) DEFAULT NULL,
  PRIMARY KEY (`product_img_id`),
  KEY `fk_proimg_product` (`product_id`),
  CONSTRAINT `fk_proimg_product` FOREIGN KEY (`product_id`) REFERENCES `tb_product` (`product_id`) ON DELETE CASCADE ON UPDATE CASCADE
) ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

 2-5 配置Maven

new source folder（src/main/resources/spring）

new source folder（src/main/resources/mapper）

父包名：com.doit.o2o

new package(web):controller层

new package(service/impl):接口实现层

new package(dao):接口逻辑定义层

new package(dto):实体封装层

new package(enums):枚举类层

new package(interceptor):拦截器层

new package(util):通用工具类层

修改pom.xml文件，添加依赖包：

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.doit</groupId>
  <artifactId>o2o</artifactId>
  <packaging>war</packaging>
  <version>0.0.1-SNAPSHOT</version>
  <name>o2o Maven Webapp</name>
  <url>http://maven.apache.org</url>
  <properties>
		<spring.version>4.3.7.RELEASE</spring.version>
	</properties>

  <dependencies>
    <!-- 单元测试 -->
	<dependency>
		<groupId>junit</groupId>
		<artifactId>junit</artifactId>
		<version>4.12</version>
	</dependency>

	<!-- 1.日志 -->
	<!-- 实现slf4j接口并整合 -->
	<dependency>
		<groupId>ch.qos.logback</groupId>
		<artifactId>logback-classic</artifactId>
		<version>1.2.1</version>
	</dependency>

	<!-- 2.数据库 -->
	<dependency>
		<groupId>mysql</groupId>
		<artifactId>mysql-connector-java</artifactId>
		<version>5.1.37</version>
		<scope>runtime</scope>
	</dependency>
	<dependency>
		<groupId>c3p0</groupId>
		<artifactId>c3p0</artifactId>
		<version>0.9.1.2</version>
	</dependency>

	<!-- DAO: MyBatis -->
	<dependency>
		<groupId>org.mybatis</groupId>
		<artifactId>mybatis</artifactId>
		<version>3.4.2</version>
	</dependency>
	<dependency>
		<groupId>org.mybatis</groupId>
		<artifactId>mybatis-spring</artifactId>
		<version>1.3.1</version>
	</dependency>

	<!-- 3.Servlet web -->
	<dependency>
		<groupId>taglibs</groupId>
		<artifactId>standard</artifactId>
		<version>1.1.2</version>
	</dependency>
	<dependency>
		<groupId>jstl</groupId>
		<artifactId>jstl</artifactId>
		<version>1.2</version>
	</dependency>
	<dependency>
		<groupId>com.fasterxml.jackson.core</groupId>
		<artifactId>jackson-databind</artifactId>
		<version>2.8.7</version>
	</dependency>
	<dependency>
		<groupId>javax.servlet</groupId>
		<artifactId>javax.servlet-api</artifactId>
		<version>3.1.0</version>
	</dependency>

	<!-- 4.Spring -->
	<!-- 1)Spring核心 -->
	<dependency>
		<groupId>org.springframework</groupId>
		<artifactId>spring-core</artifactId>
		<version>${spring.version}</version>
	</dependency>
	<dependency>
		<groupId>org.springframework</groupId>
		<artifactId>spring-beans</artifactId>
		<version>${spring.version}</version>
	</dependency>
	<dependency>
		<groupId>org.springframework</groupId>
		<artifactId>spring-context</artifactId>
		<version>${spring.version}</version>
	</dependency>
	<!-- 2)Spring DAO层 -->
	<dependency>
		<groupId>org.springframework</groupId>
		<artifactId>spring-jdbc</artifactId>
		<version>${spring.version}</version>
	</dependency>
	<dependency>
		<groupId>org.springframework</groupId>
		<artifactId>spring-tx</artifactId>
		<version>${spring.version}</version>
	</dependency>
	<!-- 3)Spring web -->
	<dependency>
		<groupId>org.springframework</groupId>
		<artifactId>spring-web</artifactId>
		<version>${spring.version}</version>
	</dependency>
	<dependency>
		<groupId>org.springframework</groupId>
		<artifactId>spring-webmvc</artifactId>
		<version>${spring.version}</version>
	</dependency>
	<!-- 4)Spring test -->
	<dependency>
		<groupId>org.springframework</groupId>
		<artifactId>spring-test</artifactId>
		<version>${spring.version}</version>
	</dependency>

	<!-- Map工具类 -->
	<dependency>
		<groupId>commons-collections</groupId>
		<artifactId>commons-collections</artifactId>
		<version>3.2</version>
	</dependency>
  </dependencies>
  <build>
    <finalName>o2o</finalName>
    <plugins>
    	<plugin>
    		<!-- https://mvnrepository.com/artifact/org.apache.maven.plugins/maven-compiler-plugin -->
			<groupId>org.apache.maven.plugins</groupId>
		    <artifactId>maven-compiler-plugin</artifactId>
		    <version>3.6.1</version>
		    <configuration>
		    	<source>1.8</source>
		    	<target>1.8</target>
		    	<encoding>UTF8</encoding>
		    </configuration>
    	</plugin>
    </plugins>
  </build>
</project>

 2-6 逐层完成SSM的各项配置

new Untitled Text file（main/resources/jdbc.properties）

jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/o2odb?useUnicode=true&characterEncoding=utf8
jdbc.username=root
jdbc.password=root

 new xml file（main/resources/mybatis-config.xml）

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
  PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
	<!-- 配置全局属性 -->
	<settings>
		<!-- 使用jdbc的getGeneratedKeys获取数据库自增主键值 -->
		<setting name="useGeneratedKeys" value="true" />

		<!-- 使用列标签（字段名）替换列名（查询语句中的别名） 默认:true -->
		<setting name="useColumnLabel" value="true" />

		<!-- 开启驼峰命名转换:Table{create_time} -> Entity{createTime} -->
		<setting name="mapUnderscoreToCamelCase" value="true" />
	</settings>
</configuration>

  new xml file（main/resources/spring-dao.xml）

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
    http://www.springframework.org/schema/beans/spring-beans.xsd
    http://www.springframework.org/schema/context
    http://www.springframework.org/schema/context/spring-context.xsd">
	<!-- 配置整合mybatis过程 -->
	<!-- 1.配置数据库相关参数properties的属性：${url} -->
	<context:property-placeholder location="classpath:jdbc.properties"/>

	<!-- 2.数据库连接池 -->
	<bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
		<!-- 配置连接池属性 -->
		<property name="driverClass" value="${jdbc.driver}" />
		<property name="jdbcUrl" value="${jdbc.url}" />
		<property name="user" value="${jdbc.username}" />
		<property name="password" value="${jdbc.password}" />

		<!-- c3p0连接池的私有属性 -->
		<property name="maxPoolSize" value="30" />
		<property name="minPoolSize" value="10" />
		<!-- 关闭连接后不自动commit -->
		<property name="autoCommitOnClose" value="false" />
		<!-- 获取连接超时时间 -->
		<property name="checkoutTimeout" value="10000" />
		<!-- 当获取连接失败重试次数 -->
		<property name="acquireRetryAttempts" value="2" />
	</bean>

	<!-- 3.配置SqlSessionFactory对象 -->
	<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
		<!-- 注入数据库连接池 -->
		<property name="dataSource" ref="dataSource" />
		<!-- 配置MyBaties全局配置文件:mybatis-config.xml -->
		<property name="configLocation" value="classpath:mybatis-config.xml" />
		<!-- 扫描entity包 使用别名 -->
		<property name="typeAliasesPackage" value="com.doit.o2o.entity" />
		<!-- 扫描sql配置文件:mapper需要的xml文件 -->
		<property name="mapperLocations" value="classpath:mapper/*.xml" />
	</bean>

	<!-- 4.配置扫描Dao接口包，动态实现Dao接口，注入到spring容器中 -->
	<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
		<!-- 注入sqlSessionFactory -->
		<property name="sqlSessionFactoryBeanName" value="sqlSessionFactory" />
		<!-- 给出需要扫描Dao接口包 -->
		<property name="basePackage" value="com.doit.o2o.dao" />
	</bean>
</beans>

  new xml file（main/resources/spring-service.xml）

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xmlns:context="http://www.springframework.org/schema/context"
    xmlns:tx="http://www.springframework.org/schema/tx"
    xsi:schemaLocation="http://www.springframework.org/schema/beans
    http://www.springframework.org/schema/beans/spring-beans.xsd
    http://www.springframework.org/schema/context
    http://www.springframework.org/schema/context/spring-context.xsd
    http://www.springframework.org/schema/tx
    http://www.springframework.org/schema/tx/spring-tx.xsd">
    <!-- 扫描service包下所有使用注解的类型 -->
    <context:component-scan base-package="com.doit.o2o.service" />

    <!-- 配置事务管理器 -->
    <bean id="transactionManager"
        class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <!-- 注入数据库连接池 -->
        <property name="dataSource" ref="dataSource" />
    </bean>

    <!-- 配置基于注解的声明式事务 -->
    <tx:annotation-driven transaction-manager="transactionManager" />
</beans>

  new xml file（main/resources/spring-web.xml）

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
	xmlns:mvc="http://www.springframework.org/schema/mvc"
	xsi:schemaLocation="http://www.springframework.org/schema/beans
    http://www.springframework.org/schema/beans/spring-beans.xsd
    http://www.springframework.org/schema/context
    http://www.springframework.org/schema/context/spring-context.xsd
    http://www.springframework.org/schema/mvc
    http://www.springframework.org/schema/mvc/spring-mvc-3.2.xsd">
	<!-- 配置SpringMVC -->
	<!-- 1.开启SpringMVC注解模式 -->
	<!-- 简化配置： (1)自动注册DefaultAnootationHandlerMapping,AnotationMethodHandlerAdapter
		(2)提供一些列：数据绑定，数字和日期的format @NumberFormat, @DateTimeFormat, xml,json默认读写支持 -->
	<mvc:annotation-driven />

	<!-- 2.静态资源默认servlet配置 (1)加入对静态资源的处理：js,gif,png (2)允许使用"/"做整体映射 -->
	<mvc:resources mapping="/resources/**" location="/resources/" />
	<mvc:default-servlet-handler />

	<!-- 3.定义视图解析器 -->
	<bean id="viewResolver"
		class="org.springframework.web.servlet.view.InternalResourceViewResolver">
		<property name="prefix" value="/WEB-INF/html/"></property>
		<property name="suffix" value=".html"></property>
	</bean>

	<!-- 4.扫描web相关的bean -->
	<context:component-scan base-package="com.doit.o2o.web" />

</beans>

在web.xml中添加：

<!-- 配置DispatcherServlet -->
	<servlet>
		<servlet-name>seckill-dispatcher</servlet-name>
		<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
		<!-- 配置springMVC需要加载的配置文件 spring-dao.xml,spring-service.xml,spring-web.xml
			Mybatis - > spring -> springmvc -->
		<init-param>
			<param-name>contextConfigLocation</param-name>
			<param-value>classpath:spring/spring-*.xml</param-value>
		</init-param>
	</servlet>
	<servlet-mapping>
		<servlet-name>seckill-dispatcher</servlet-name>
		<!-- 默认匹配所有的请求 -->
		<url-pattern>/</url-pattern>
	</servlet-mapping>



 2-7 验证Dao

new interface(dao/AreaDao）

public interface AreaDao {
	List<Area> queryArea();
}

new xml file(resources/mapper/AreaDao.xml）

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
  PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.doit.o2o.dao.AreaDao">
	<select id="queryArea" resultType="com.doit.o2o.entity.Area">
	SELECT area_id,area_name,priority,create_time,last_edit_time
	FROM tb_area
	ORDER BY priority DESC
	</select>
</mapper>

new （test/java/BaseTest.java）

package com.doit.o2o;

import org.junit.runner.RunWith;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;

/**
 * 配置spring和junit整合，junit启动时加载springIOC容器
 * @author gefeng
 *
 */
@RunWith(SpringJUnit4ClassRunner.class)
//告诉junit spring配置文件的位置
@ContextConfiguration({"classpath:spring/spring-dao.xml"})
public class BaseTest {

}

 new （test/java/com.doit.o2o.dao/AreaDaoTest.java）

package com.doit.o2o.dao;

import static org.junit.Assert.assertEquals;

import java.util.List;

import org.junit.Test;
import org.springframework.beans.factory.annotation.Autowired;

import com.doit.o2o.BaseTest;
import com.doit.o2o.entity.Area;

public class AreaDaoTest extends BaseTest{
	@Autowired
	private AreaDao areaDao;

	@Test
	public void testQueryArea(){
		List<Area> areaList = areaDao.queryArea();
		assertEquals(2, areaList.size());
	}
}

 2-8 升级mysql驱动相关的配置以支持mysql8

略

 2-9 验证Sevice

new （main/java/com.doit.o2o.service/AreaService.java）

package com.doit.o2o.service;

import java.util.List;

import com.doit.o2o.entity.Area;

public interface AreaService {
	List<Area> getAreaList();
}

new （main/java/com.doit.o2o.service.impl/AreaServiceImpl.java）

package com.doit.o2o.service.impl;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import com.doit.o2o.dao.AreaDao;
import com.doit.o2o.entity.Area;
import com.doit.o2o.service.AreaService;

@Service
public class AreaServiceImpl implements AreaService{
	@Autowired
	private AreaDao areaDao;

	@Override
	public List<Area> getAreaList() {
		return areaDao.queryArea();
	}
}

 修改（test/java/BaseTest.java）添加

"classpath:spring/spring-service.xml"

 new （test/java/com.doit.o2o.service/AreaServiceTest.java）

package com.doit.o2o.service;

import static org.junit.Assert.assertEquals;

import java.util.List;

import org.junit.Test;
import org.springframework.beans.factory.annotation.Autowired;

import com.doit.o2o.BaseTest;
import com.doit.o2o.entity.Area;

public class AreaServiceTest extends BaseTest{
	@Autowired
	private AreaService areaService;

	@Test
	public void testGetAreaList(){
		List<Area> areaList = areaService.getAreaList();
		assertEquals("西苑", areaList.get(0).getAreaName());
	}
}

 2-10 验证Controller

new （main/java/web.superadmin/AreaController.java）

package com.doit.o2o.web.superadmin;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.ResponseBody;

import com.doit.o2o.entity.Area;
import com.doit.o2o.service.AreaService;
@Controller
@RequestMapping("/superadmin")
public class AreaController {
	@Autowired
	private AreaService areaService;

	@RequestMapping(value="/listarea",method=RequestMethod.GET)
	@ResponseBody
	public Map<String,Object> listArea(){
		Map<String,Object> modelMap = new HashMap<String,Object>();
		List<Area> list = new ArrayList<Area>();
		try{
		list = areaService.getAreaList();
		//rows和total为了和前端一致
		modelMap.put("rows", list);
		modelMap.put("total", list.size());
		}catch (Exception e) {
			e.printStackTrace();
			modelMap.put("success", false);
			modelMap.put("errMsg", e.toString());
		}
		return modelMap;
	}
}

start tomcat

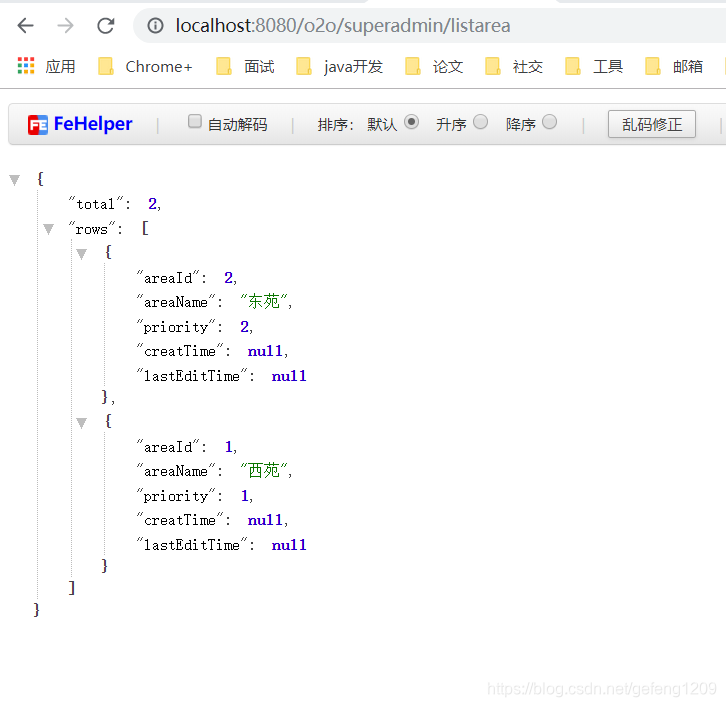

在浏览器中访问 http://localhost:8080/o2o/superadmin/listarea

 2-11 彩蛋时间

略

评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
