实验18_单臂路由_ENSP

项目场景：

实验18_单臂路由_ENSP
实现pc互通

---

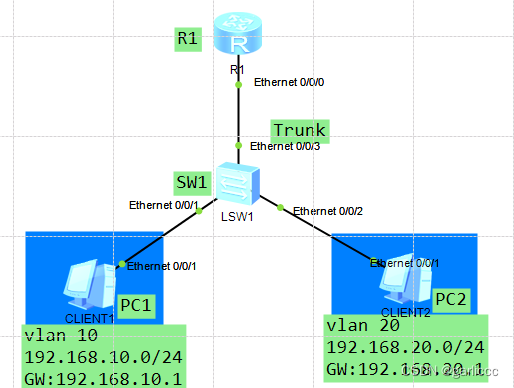

实搭拓扑图：

---

具体操作：

R1:

[Huawei]int e0/0/0.1
[Huawei-Ethernet0/0/0.1]ip address 192.168.10.1 24
[Huawei-Ethernet0/0/0.1]dot1q termination vid 10
[Huawei-Ethernet0/0/0.1]ar
[Huawei-Ethernet0/0/0.1]arp broadcast enable
[Huawei-Ethernet0/0/0.1]q
[Huawei]int e0/0/0.2
[Huawei-Ethernet0/0/0.2]ip address 192.168.20.1 24
[Huawei-Ethernet0/0/0.2]dot ter vid 20
[Huawei-Ethernet0/0/0.2]arp br en

---

LSW1:

[Huawei]vlan ba 10 20
[Huawei]int e0/0/1
[Huawei-Ethernet0/0/1]po li ac
[Huawei-Ethernet0/0/1]po de vl 10
[Huawei-Ethernet0/0/1]int e0/0/2
[Huawei-Ethernet0/0/2]po li ac
[Huawei-Ethernet0/0/2]po de vl 20
[Huawei-Ethernet0/0/2]int e0/0/3
[Huawei-Ethernet0/0/3]po li tr
[Huawei-Ethernet0/0/3]po tr all vl all

---

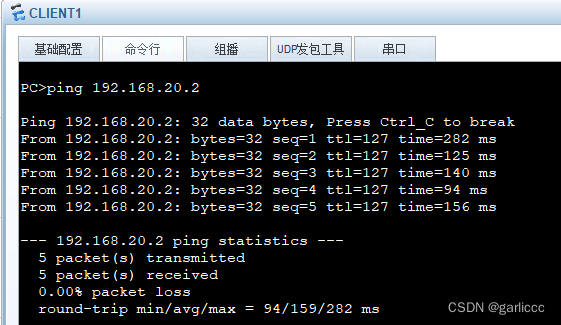

完成效果：

实现pc互通
