QtDesigner配置 (Python3.7.7)

首先需要安装有python和pip

pip install pyqt5
pip install pyqt5-tools

安装后的designer.exe目录在../Lib/site-packages/qt5_applications/Qt/bin

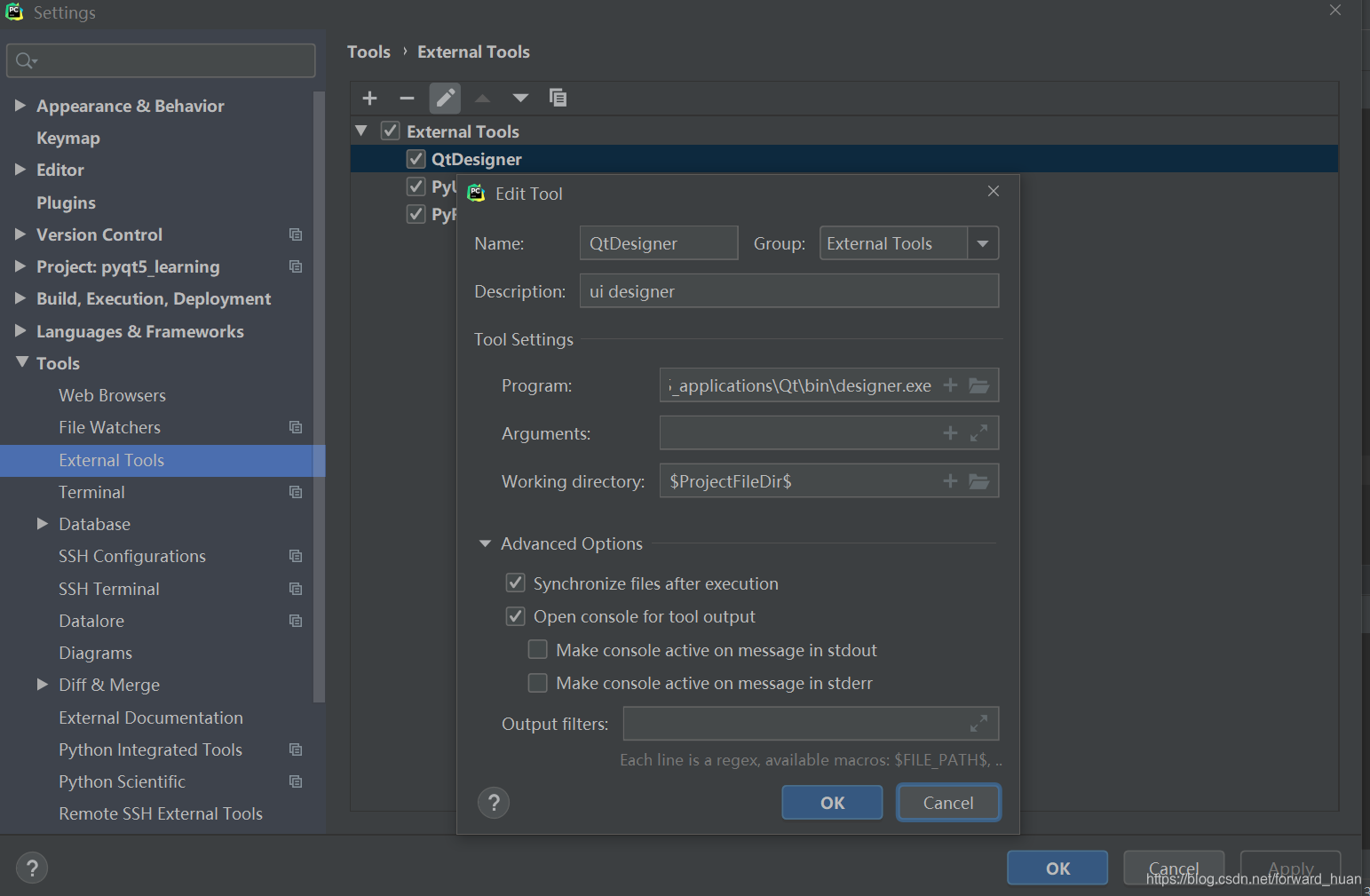

配置PyCharm +QtDesigner

Program:     C:\Python37\Lib\site-packages\qt5_applications\Qt\bin\designer.exe
Arguments:
Working directory: $ProjectFileDir$

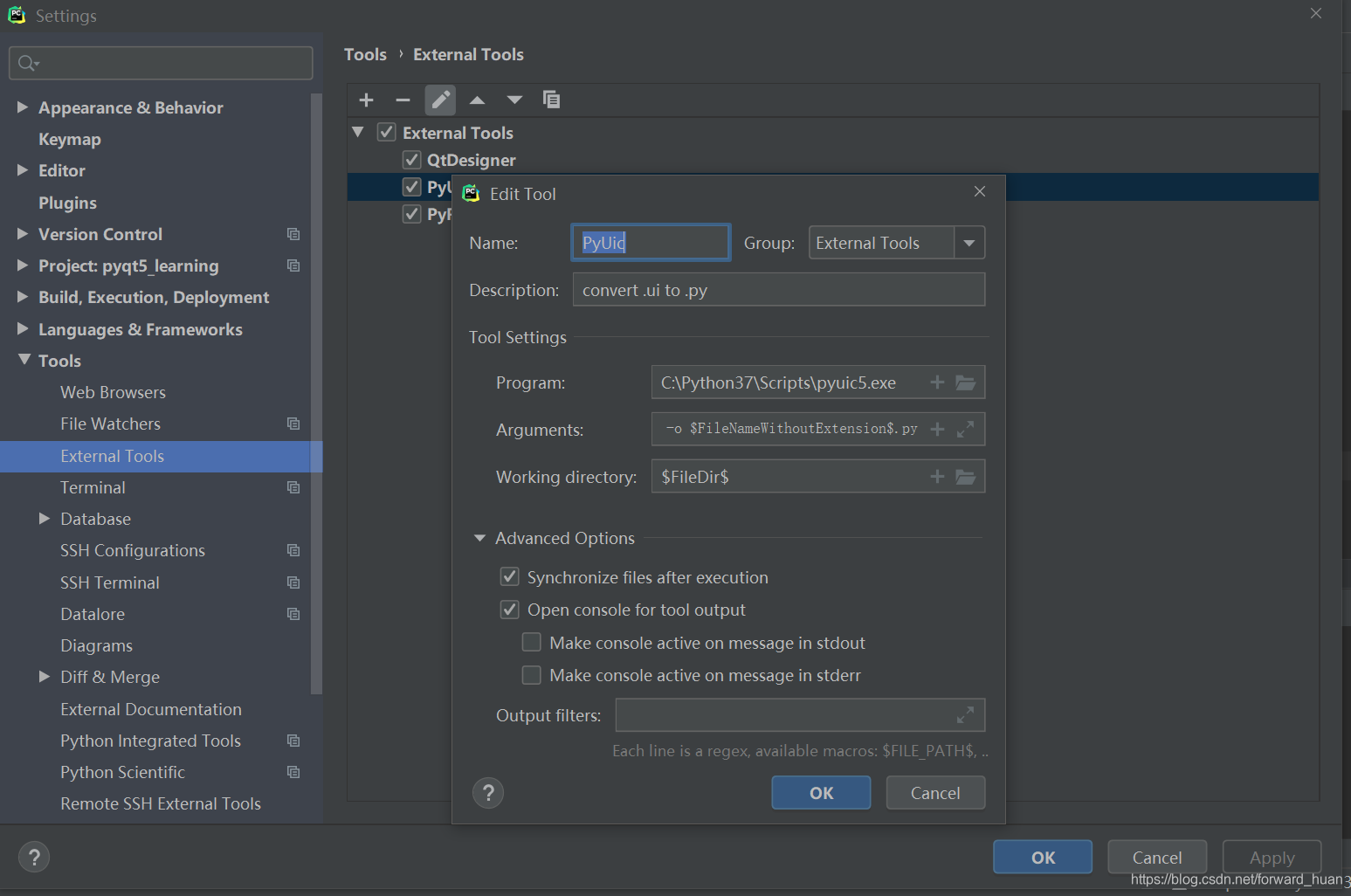

配置PyCharm + PyUic

把用QtDesigner设计的UI布局转换为Python代码

Program:     C:\Python37\Scripts\pyuic5.exe
Arguments: $FileName$ -o UI_$FileNameWithoutExtension$.py
Working directory: $FileDir$

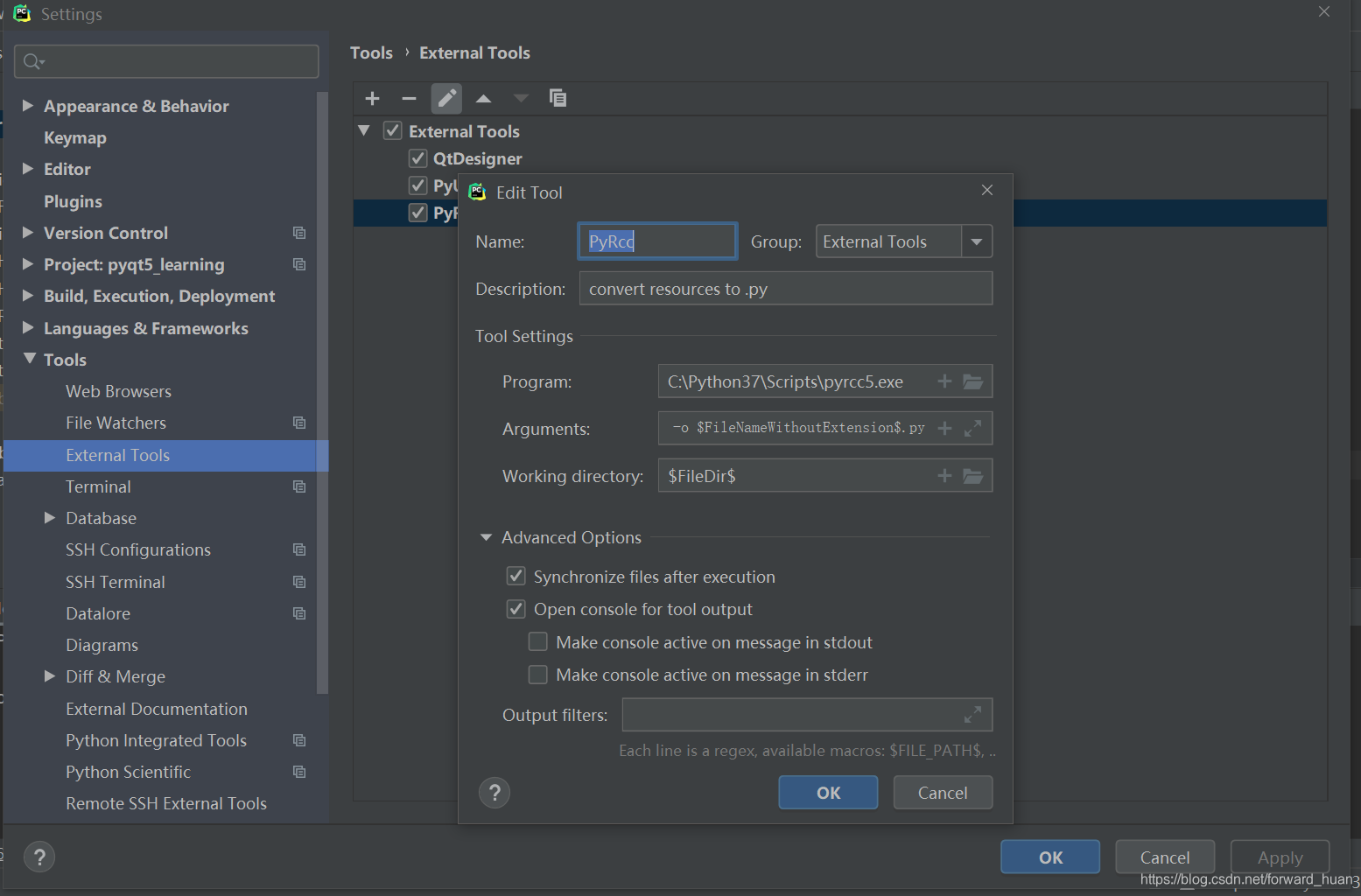

配置PyCharm + PyRcc

把资源文件转换为python文件

Program:     C:\Python37\Scripts\pyrcc5.exe
Arguments: $FileName$ -o $FileNameWithoutExtension$.py
Working directory: $FileDir$

更详细内容点击这里
