TensorFlow实现VGGNet

VGGNet探索了卷积神经网络的深度和性能之间的关系，通过反复堆叠3*3的小型卷积核和2*2的最大池化层，VGGNet成功构筑了16~19层深的卷积神经网络。

VGGNet全部使用了3*3的卷积核与2*2的池化核，通过不断加深网络结构来提升性能。

在有些卷积组中出现了多个卷积层的堆叠，2个3*3的卷积层叠加等价于一个5*5的卷积核的效果；3个3*3的卷积层叠加等价于一个7*7的卷积核，而且参数更少，大约是7x7卷积核卷积层的（３＊３＊３)/(7*7)=0.55。最重要的是，3个3x3的卷积层拥有比1个7x7的卷积层更多的非线性变换（前者可以使用三次 ReLU 激活函数，而后者只有一次），使得 CNN 对特征的学习能力更强。

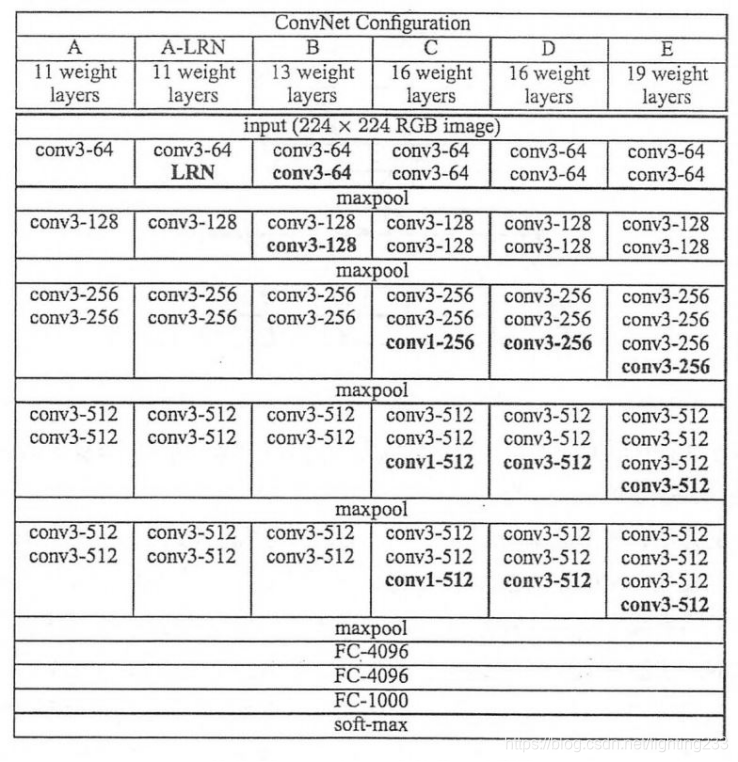

VGGNet各级别（从11层的网络到19层的网络）的网络结构图如下：

FC(fully-connected)即为全连接层

VGGNet各级别网络的参数量如下（单位为百万）



VGGNet有5段卷积，每段有2~3个卷积层，同时每段尾部会连接一个最大池化层用来缩小图片尺寸。每段内的卷积核数量都一样，按顺序分别为64-128-256-512-512。

在训练高级别的神经网络时，可以先训练低级别的网络（比如A），用低级别网络获得的权重初始化高级别的网络（D、E），可以加速网络的收敛。



具体代码如下：

import tensorflow as tf
import math
import time
from datetime import datetime


##kh,kw分别是卷积核的高与宽，n_out是卷积核数量（输出通道数）
##dh,dw分别是步长的高与宽，p是参数列表
def conv_op(input_op, name, kh, kw, n_out, dh, dw, p):
    n_in = input_op.get_shape()[-1].value

    with tf.name_scope(name) as scope:
        kernel = tf.get_variable(scope+'w', shape=[kh,kw,n_in,n_out],
                                 initializer=tf.contrib.layers.xavier_initializer_conv2d())
        conv = tf.nn.conv2d(input_op, kernel, (1,kh,kw,1), padding='SAME')
        bias_init_val = tf.constant(0.0, shape=[n_out], dtype=tf.float32)
        biases = tf.Variable(bias_init_val, trainable=True, name='b')
        z = tf.nn.bias_add(conv, biases)
        activation = tf.nn.relu(z, name=scope)
        p += [kernel, biases]
        return activation

##定义最大池化层
def pool(input_op, name, kh, kw, dh, dw):
    return tf.nn.max_pool(input_op, ksize=[1,kh,kw,1], strides=[1,dh,dw,1], padding='SAME', name=name)

##定义FC层
def fc(input_op, name, n_out, p):
    n_in = input_op.get_shape()[-1].value

    with tf.name_scope(name) as scope:
        kernel = tf.get_variable(scope + 'w', shape=[ n_in, n_out],
                                 initializer=tf.contrib.layers.xavier_initializer())
        biases = tf.Variable(tf.constant(0.1, shape=[n_out], dtype=tf.float32), name='b')
        activation = tf.nn.relu_layer(input_op, kernel, biases, name=scope)        ##激活函数为  ReLU
        p +=[kernel,biases]
        return activation


def VGG16(input_op, keep_prob):
    p = []             ##初始化参数列表
    conv1_1 = conv_op(input_op,name='conv1_1',kh=3,kw=3,n_out=64,dh=1,dw=1,p=p)
    conv1_2 = conv_op(conv1_1,name='conv1_2',kh=3,kw=3,n_out=64,dh=1,dw=1,p=p)
    pool1 = pool(conv1_2,name='pool1',kh=2,kw=2,dh=2,dw=2)

##第二段卷积层
    conv2_1 = conv_op(pool1,name='conv2_1',kh=3,kw=3,n_out=128,dh=1,dw=1,p=p)
    conv2_2 = conv_op(conv2_1, name='conv2_2', kh=3, kw=3, n_out=128, dh=1, dw=1, p=p)
    pool2 = pool(conv2_2,name='pool2',kh=2,kw=2,dh=2,dw=2)

##第三段卷积层
    conv3_1 = conv_op(pool2, name='conv3_1', kh=3, kw=3, n_out=256, dh=1, dw=1, p=p)
    conv3_2 = conv_op(conv3_1, name='conv3_2', kh=3, kw=3, n_out=256, dh=1, dw=1, p=p)
    conv3_3 = conv_op(conv3_2, name='conv3_3', kh=3, kw=3, n_out=256, dh=1, dw=1, p=p)
    pool3 = pool(conv3_3,name='pool3',kh=2,kw=2,dh=2,dw=2)

##第四段卷积层
    conv4_1 = conv_op(pool3, name='conv4_1', kh=3, kw=3, n_out=512, dh=1, dw=1, p=p)
    conv4_2 = conv_op(conv4_1, name='conv4_2', kh=3, kw=3, n_out=512, dh=1, dw=1, p=p)
    conv4_3 = conv_op(conv4_2, name='conv4_3', kh=3, kw=3, n_out=512, dh=1, dw=1, p=p)
    pool4 = pool(conv4_3, name='pool4', kh=2, kw=2, dh=2, dw=2)

##第五段卷积层
    conv5_1 = conv_op(pool4, name='conv5_1',kh=3, kw=3, n_out=512, dh=1, dw=1, p=p)
    conv5_2 = conv_op(conv5_1, name='conv5_2', kh=3, kw=3, n_out=512, dh=1, dw=1, p=p)
    conv5_3 = conv_op(conv5_2, name='conv5_3', kh=3, kw=3, n_out=512, dh=1, dw=1, p=p)
    pool5 = pool(conv5_3, name='pool5', kh=2, kw=2, dh=2, dw=2)

##将第五段输出的结果进行扁平化
    shp = pool5.get_shape()
    flattened_shape = shp[1].value * shp[2].value * shp[3].value     ##将每个样本化为7*7*512的一维向量
    reshape1 = tf.reshape(pool5,[-1,flattened_shape], name='reshape1')

    fc1 = fc(reshape1, name='fc1', n_out=4096, p=p)
    fc1_drop = tf.nn.dropout(fc1, keep_prob, name='fc1_drop')
    fc2 = fc(fc1_drop, name='fc2', n_out=4096, p=p)
    fc2_drop = tf.nn.dropout(fc2, keep_prob, name='fc2_drop')
    fc3 = fc(fc2_drop, name='fc3', n_out=1000, p=p)
    softmax = tf.nn.softmax(fc3)
    predictions = tf.arg_max(softmax,1)
    return predictions, softmax, fc3, p


def time_tensorflow_run(session, target, feed, info_string):  #feed_dict用来传入keep_prob方便控制drop_out层的保留比例
    num_steps_burn_in =10     ##定义预热轮数为10，主要是给程序热身
    total_duration = 0.0      ##记录总时间
    total_duration_squared = 0.0
    for i in range(num_batches + num_steps_burn_in):
        start_time = time.time()
        _ = session.run(target, feed_dict=feed)
        duration = time.time() - start_time
        if i >= num_steps_burn_in:
            if not i % 10:
                print('%s: step %d, duration = %.3f' % (datetime.now(), i - num_steps_burn_in, duration))
            total_duration += duration
            total_duration_squared += duration * duration
    mn = total_duration / num_batches
    vr = total_duration_squared / num_batches -mn *mn
    sd = math.sqrt(vr)
    print('%s: %s across %d steps, %.3f +/- %.3f sec / batch' % (datetime.now(),info_string, num_batches, mn ,sd))

def run_benchmark():
    with tf.Graph().as_default():     ##定义默认的Graph方便后面使用
        image_size = 224                ##图片的尺寸
        images = tf.Variable(tf.random_normal([batch_size, image_size, image_size, 3], dtype=tf.float32, stddev=1e-1))
        ##使用随机图片数据测试前馈和反馈计算的耗时，
        keep_prob = tf.placeholder(tf.float32)
        predictions, softmax, fc3, p = VGG16(images, keep_prob)
##创建Session并初始化全局参数
        init = tf.global_variables_initializer()
        sess = tf.Session()
        sess.run(init)
        time_tensorflow_run(sess, predictions, {keep_prob:0.1}, "Forward")   #直接使用time_tensorflow_run统计运行时间
        objective = tf.nn.l2_loss(fc3)              ##计算fc3的loss
        grad = tf.gradients(objective,p)    ##求相对于loss的所有模型参数的梯度，模拟了一个训练过程
        time_tensorflow_run(sess, grad, {keep_prob:0.5}, "Forward-backward")

batch_size = 32
num_batches = 100     ##总共测试100个batch的数据
run_benchmark()
