10 分析SurfaceComposerClient提交事务过程

使用SurfaceComposerClient::createSurface创建SurfaceControl之后，SurfaceControl可以创建Surface用于绘制。

但是如果想要配置Surface的zorder，位置等属性怎么办呢？

在 SurfaceComposerClient::Transaction中提供了各中配置属性的方法

SurfaceComposerClient::Transaction::setXXX()

比如在《02 最简单的SurfaceFlinger应用程序》里配置了zorder为最大，显示位置设置在屏幕的中间，把当前层设置为可见等。

    SurfaceComposerClient::Transaction{}
            .setLayer(surfaceControl, std::numeric_limits<int32_t>::max())
            .setPosition(surfaceControl, (displayMode.resolution.getWidth() - 200) / 2,
                (displayMode.resolution.getHeight() - 200) / 2)
            .show(surfaceControl)
            .apply();

以setLayer为例看下其内部是如果工作的。

setLayer

1. 首先获取LayerSate；其实是ComposerState中的layer_state_t；如果在mComposerStates里找不到就创建一个，找到就直接返回。

2. 修改state里的值

SurfaceComposerClient::Transaction& SurfaceComposerClient::Transaction::setLayer(
        const sp<SurfaceControl>& sc, int32_t z) {
    layer_state_t* s = getLayerState(sc);

    s->what |= layer_state_t::eLayerChanged;
    s->what &= ~layer_state_t::eRelativeLayerChanged;
    s->z = z;
}

layer_state_t* SurfaceComposerClient::Transaction::getLayerState(const sp<SurfaceControl>& sc) {
    auto handle = sc->getLayerStateHandle();

    if (mComposerStates.count(handle) == 0) {
        // we don't have it, add an initialized layer_state to our list
        ComposerState s;

        s.state.surface = handle;
        s.state.layerId = sc->getLayerId();

        mComposerStates[handle] = s;
    }

    return &(mComposerStates[handle].state);
}

sp<IBinder> SurfaceControl::getLayerStateHandle() const
{
    return mHandle;
}

setPosition

SurfaceComposerClient::Transaction& SurfaceComposerClient::Transaction::setPosition(
        const sp<SurfaceControl>& sc, float x, float y) {
    layer_state_t* s = getLayerState(sc);

    s->what |= layer_state_t::ePositionChanged;
    s->x = x;
    s->y = y;

    return *this;
}

show

SurfaceComposerClient::Transaction& SurfaceComposerClient::Transaction::show(
        const sp<SurfaceControl>& sc) {
    return setFlags(sc, 0, layer_state_t::eLayerHidden);
}

SurfaceComposerClient::Transaction& SurfaceComposerClient::Transaction::setFlags(
        const sp<SurfaceControl>& sc, uint32_t flags,
        uint32_t mask) {
    layer_state_t* s = getLayerState(sc);

    if ((mask & layer_state_t::eLayerOpaque) || (mask & layer_state_t::eLayerHidden) ||
        (mask & layer_state_t::eLayerSecure) || (mask & layer_state_t::eLayerSkipScreenshot) ||
        (mask & layer_state_t::eEnableBackpressure)) {
        s->what |= layer_state_t::eFlagsChanged;
    }
    s->flags &= ~mask;
    s->flags |= (flags & mask);
    s->mask |= mask;

    return *this;
}

别的设置属性的实现基本都差不多，不再一一阐述。

apply

设置完一堆参数之后，什么时候生效呢？答案是执行apply

apply作用：

1. 把配置好layer参数的mComposerStates，放入composerStates
2. mDisplayStates放入displayStates
3. 调用sf->setTransactionState提交事务

status_t SurfaceComposerClient::Transaction::apply(bool synchronous) {


    sp<ISurfaceComposer> sf(ComposerService::getComposerService());

    Vector<ComposerState> composerStates;
    Vector<DisplayState> displayStates;

    for (auto const& kv : mComposerStates){
        composerStates.add(kv.second);
    }
    displayStates = std::move(mDisplayStates);

    sf->setTransactionState(mFrameTimelineInfo, composerStates, displayStates, flags, applyToken,
                            mInputWindowCommands, mDesiredPresentTime, mIsAutoTimestamp,
                            {} /*uncacheBuffer - only set in doUncacheBufferTransaction*/,
                            hasListenerCallbacks, listenerCallbacks, mId);
}

会调用到SurfaceFlinger的setTransactionState

status_t SurfaceFlinger::setTransactionState(
        const FrameTimelineInfo& frameTimelineInfo, const Vector<ComposerState>& states,
        const Vector<DisplayState>& displays, uint32_t flags, const sp<IBinder>& applyToken,
        const InputWindowCommands& inputWindowCommands, int64_t desiredPresentTime,
        bool isAutoTimestamp, const client_cache_t& uncacheBuffer, bool hasListenerCallbacks,
        const std::vector<ListenerCallbacks>& listenerCallbacks, uint64_t transactionId) {

   TransactionState state{frameTimelineInfo,  states,
                           displays,           flags,
                           applyToken,         inputWindowCommands,
                           desiredPresentTime, isAutoTimestamp,
                           uncacheBuffer,      postTime,
                           permissions,        hasListenerCallbacks,
                           listenerCallbacks,  originPid,
                           originUid,          transactionId};

    queueTransaction(state);
}

void SurfaceFlinger::queueTransaction(TransactionState& state) {
    mTransactionQueue.emplace(state);

    setTransactionFlags(eTransactionFlushNeeded, schedule, state.applyToken);
}

setTransactionState

主要作用：

1. 用传进来的参数创建一个TransactionState

2. 用queueTransaction，将创建的state 放入mTransactionQueue队列，设置eTransactionFlushNeeded 标志；等待下一个vsync来之后来取。

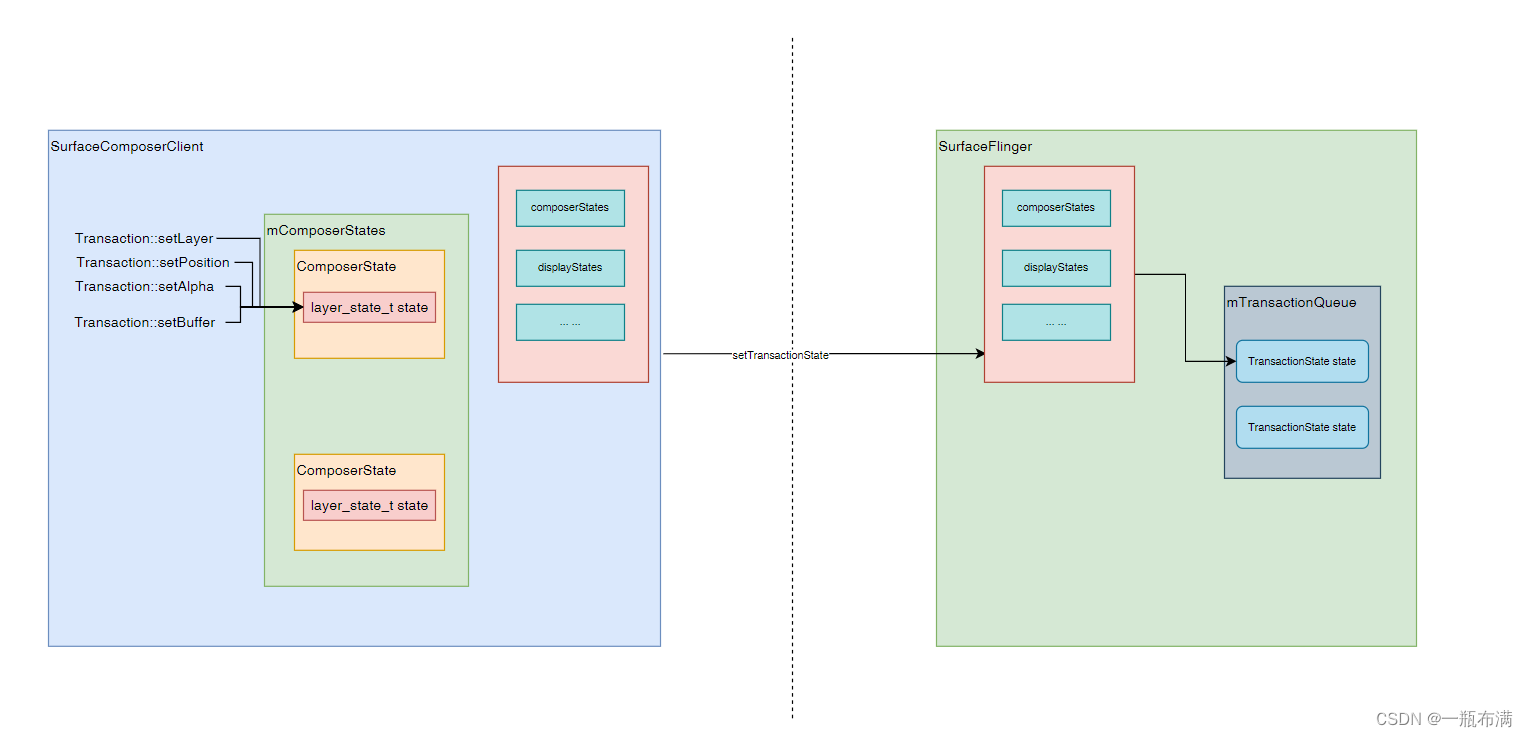

画个图总结一下：

1. 从代码看每个surfacecontrol只会有一个ComposerState
2. 不执行apply，以上设置的参数均不会生效
3. 每次apply都会创建一个TransactionState添加到SurfaceFlinger的mTransactionQueue

现在SurfaceFliger拿到了layer的所有信息，后就可以根据这些信息来进行合成刷新了。
