cpufreq子系统中，核心层会为driver和governor提供一系列的接口

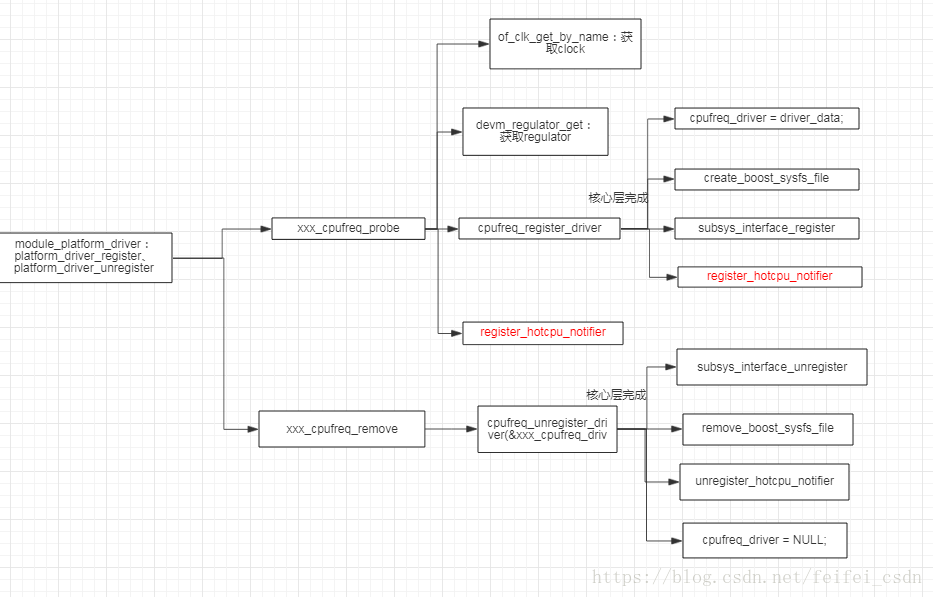

一、cpufreq_register_driver

其中由cpufreq core完成的是注册和注销函数

/*********************************************************************
 *               REGISTER / UNREGISTER CPUFREQ DRIVER                *
 *********************************************************************/
/**
 * cpufreq_register_driver - register a CPU Frequency driver
 * @driver_data: A struct cpufreq_driver containing the values#
 * submitted by the CPU Frequency driver.
 *
 * Registers a CPU Frequency driver to this core code. This code
 * returns zero on success, -EBUSY when another driver got here first
 * (and isn't unregistered in the meantime).
 *
 */
 // 只存在一个cpufreq
 // 只负责知道如何控制该平台的时钟系统，从而设定由governor确定的工作频率
int cpufreq_register_driver(struct cpufreq_driver *driver_data)
{
	unsigned long flags;
	int ret;

	// 平台是否禁止调频的开关
	if (cpufreq_disabled())
		return -ENODEV;

	//
	if (!driver_data || !driver_data->verify || !driver_data->init ||
	    !(driver_data->setpolicy || driver_data->target_index || driver_data->target) ||
	     (driver_data->setpolicy && (driver_data->target_index || driver_data->target)) ||
	     (!!driver_data->get_intermediate != !!driver_data->target_intermediate))//intermediate中间的
		return -EINVAL;

	pr_debug("trying to register driver %s\n", driver_data->name);

	/* Protect against concurrent CPU online/offline. */
	get_online_cpus();

	// 读写自旋锁，同时保存中断状态，因为是简短的赋值，所以直接使用自旋锁就可以了
	write_lock_irqsave(&cpufreq_driver_lock, flags);

	// 系统只能有一个cpufreq_driver，所以检测全局变量cpufreq_driver是否被赋值
	if (cpufreq_driver) {
		write_unlock_irqrestore(&cpufreq_driver_lock, flags);
		ret = -EEXIST;
		// 如果已经注册了cpufreq则退出
		goto out;
	}
	// 如果没有，则将cpufreq_data赋值给他
	cpufreq_driver = driver_data;
	write_unlock_irqrestore(&cpufreq_driver_lock, flags);

	// 实现了setpolicy接口的话，内核的jeffies时间就不会更新，setpolicy的接口一般不定义
	if (driver_data->setpolicy)
		// CPUFREQ_CONST_LOOPS是指jeffies不会随这个频率的变化而改变
		driver_data->flags |= CPUFREQ_CONST_LOOPS;

	// 创建/sys/devices/system/cpu/cpufreq # cat boost节点
	ret = create_boost_sysfs_file();
	if (ret)
		goto err_null_driver;

	// 在/sys/devices/system/cpu×下为每个cpu注册一个节点cpufreq的节点
	ret = subsys_interface_register(&cpufreq_interface);
	if (ret)
		goto err_boost_unreg;

	// 没有policy或者init失败就不再注册，此时也应该视为直接返回
	if (!(cpufreq_driver->flags & CPUFREQ_STICKY) && list_empty(&cpufreq_policy_list)) {
		/* if all ->init() calls failed, unregister */
		ret = -ENODEV;
		pr_debug("%s: No CPU initialized for driver %s\n", __func__, driver_data->name);
		goto err_if_unreg;
	}

	// 注册cpu热插拔通知事件
	// 在热插拔的时候可以迁移负责管理的CPU
	register_hotcpu_notifier(&cpufreq_cpu_notifier);
	pr_debug("driver %s up and running\n", driver_data->name);

out:
	put_online_cpus();
	return ret;

err_if_unreg:
	subsys_interface_unregister(&cpufreq_interface);
err_boost_unreg:
	remove_boost_sysfs_file();
err_null_driver:

	// 这里也使用读写锁保护起来
	write_lock_irqsave(&cpufreq_driver_lock, flags);
	cpufreq_driver = NULL;
	write_unlock_irqrestore(&cpufreq_driver_lock, flags);
	goto out;//再回到out，将cpus插拔锁释放掉
}
EXPORT_SYMBOL_GPL(cpufreq_register_driver);

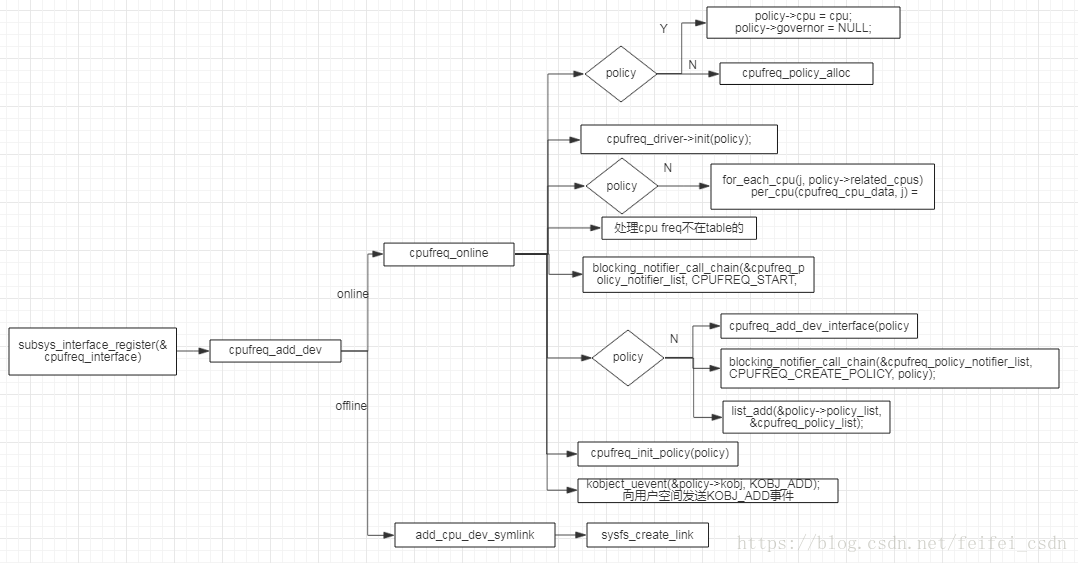

1.1subsys_interface_register

subsys_interface_register会遍历每个cpu，为每个cpu添加设备，具体详见：

https://blog.youkuaiyun.com/feifei_csdn/article/details/80915742

/**
 * cpufreq_add_dev - the cpufreq interface for a CPU device.
 * @dev: CPU device.
 * @sif: Subsystem(子系统) interface structure pointer (not used)
 */
 // 实际上就是每个cpu对应的policy，实际上会遍历每个cpu来调用该函数
static int cpufreq_add_dev(struct device *dev, struct subsys_interface *sif)
{
	unsigned cpu = dev->id;
	int ret;

	dev_dbg(dev, "%s: adding CPU%u\n", __func__, cpu);

	// 不管cpu_online或者offline，cpufreq_add_dev均会被调用，所以优先判断如果cpu是offline就
	// 不用再去创建具体的policy，这个应该是在开机的时候
	if (cpu_online(cpu)) {
		ret = cpufreq_online(cpu);
	} else {
		// 针对的是offline的cpu，还是创建policy的连接
		/*
		 * A hotplug notifier(通知) will follow and we will handle it as CPU
		 * online then.  For now, just create the sysfs link, unless
		 * there is no policy or the link is already present.
		 */
		 // SMP系统中，一个policy可以管理多个cpu，如果管理cpu创建policy的时候一并创建，后续就只需建立连接
		 // cpufreq_cpu_data实际上是cpufreq_policy的指针
		struct cpufreq_policy *policy = per_cpu(cpufreq_cpu_data, cpu);

		// 已经有policy并且还没有创建当前cpu的链接
		ret = policy && !cpumask_test_and_set_cpu(cpu, policy->real_cpus) ? add_cpu_dev_symlink(policy, cpu) : 0;
	}

	return ret;
}

对于online的cpu会尝试去创建policy或者policy对应的连接

static int cpufreq_online(unsigned int cpu)
{
	struct cpufreq_policy *policy;
	bool new_policy;
	unsigned long flags;
	unsigned int j;
	int ret;

	pr_debug("%s: bringing CPU%u online\n", __func__, cpu);

	/* Check if this CPU already has a policy to manage it */
	//核心层提供cpufreq_cpu_data是个每-cpu变量，用来保存每个cpu使用的cpufreq_policy指针
	policy = per_cpu(cpufreq_cpu_data, cpu);
	if (policy) {
		WARN_ON(!cpumask_test_cpu(cpu, policy->related_cpus));
		// 没有policy需要管理的cpu
		if (!policy_is_inactive(policy))
			return cpufreq_add_policy_cpu(policy, cpu);

		/* This is the only online CPU for the policy.  Start over. */
		new_policy = false;
		down_write(&policy->rwsem);
		// 感觉不该将cpu赋值给policy->cpu????
		// 感觉好像也可以，不一定管理的cpu一定要一直是cpu0
		policy->cpu = cpu;
		policy->governor = NULL;
		up_write(&policy->rwsem);
	} else {
		// 第一次调用的时候，找到第一个cpu一般是cpu0，创建第一个policy
		new_policy = true;
		policy = cpufreq_policy_alloc(cpu);
		if (!policy)
			return -ENOMEM;
	}

	// 将同一个policy管理的cpu掩码放到policy的cpus(online)里面去
	cpumask_copy(policy->cpus, cpumask_of(cpu));

	/* call driver. From then on the cpufreq must be able
	 * to accept all calls to ->verify and ->setpolicy for this CPU
	 */
	 // 调用init函数, 与init对应的应该是exit
	ret = cpufreq_driver->init(policy);
	if (ret) {
		pr_debug("initialization failed\n");
		goto out_free_policy;
	}

	// 信号量是可能引起阻塞的，但是这里多个cpu之间进程上下文进行切换所以使用信号量比较合适
	down_write(&policy->rwsem);
	if (new_policy) {
		/* related_cpus should at least include policy->cpus. */
		cpumask_copy(policy->related_cpus, policy->cpus);

		//应该查一下cpumask_and函数的function
		/* Remember CPUs present at the policy creation time. */
		cpumask_and(policy->real_cpus, policy->cpus, cpu_present_mask);

		/* Name and add the kobject */
		// 创建了policy0或者policy4
		ret = kobject_add(&policy->kobj, cpufreq_global_kobject, "policy%u", cpumask_first(policy->related_cpus));
		if (ret) {
			pr_err("%s: failed to add policy->kobj: %d\n", __func__, ret);
			goto out_exit_policy;
		}
	}

	/*
	 * affected cpus must always be the one, which are online. We aren't
	 * managing offline cpus here.
	 */
	 //应该查一下cpumask_and函数的function
	 // 应该是剔除offline的cpu
	cpumask_and(policy->cpus, policy->cpus, cpu_online_mask);

	if (new_policy) {

		policy->user_policy.min = policy->min;
		policy->user_policy.max = policy->max;

		write_lock_irqsave(&cpufreq_driver_lock, flags);
		// 创建new_policy的时候将related的cpu一并创建，只会对online的一起创建
		for_each_cpu(j, policy->related_cpus)
			per_cpu(cpufreq_cpu_data, j) = policy;
		write_unlock_irqrestore(&cpufreq_driver_lock, flags);

	} else {
		policy->min = policy->user_policy.min;
		policy->max = policy->user_policy.max;
	}

	// 并且没有定义setpolicy的函数
	if (cpufreq_driver->get && !cpufreq_driver->setpolicy) {
		// policy->cur的值需要提前被赋值，后续判断是否在table中
		policy->cur = cpufreq_driver->get(policy->cpu);
		if (!policy->cur) {
			pr_err("%s: ->get() failed\n", __func__);
			goto out_exit_policy;
		}
	}

	/*
	 * Sometimes boot loaders set CPU frequency to a value outside of
	 * frequency table present with cpufreq core. In such cases CPU might be
	 * unstable if it has to run on that frequency for long duration of time
	 * and so its better to set it to a frequency which is specified in
	 * freq-table. This also makes cpufreq stats inconsistent(不符合) as
	 * cpufreq-stats would fail to register because current frequency of CPU
	 * isn't found in freq-table.
	 *
	 * Because we don't want this change to effect boot process badly, we go
	 * for the next freq which is >= policy->cur ('cur' must be set by now,
	 * otherwise we will end up setting freq to lowest of the table as 'cur'
	 * is initialized to zero).
	 *
	 * We are passing target-freq as "policy->cur - 1" otherwise
	 * __cpufreq_driver_target() would simply fail, as policy->cur will be
	 * equal to target-freq.
	 */
	 // 定义了target或者是target_index函数
	 // 在init中会设置policy->cur
	if ((cpufreq_driver->flags & CPUFREQ_NEED_INITIAL_FREQ_CHECK)&& has_target()) {
		/* Are we running at unknown frequency ? */
		ret = cpufreq_frequency_table_get_index(policy, policy->cur);
		if (ret == -EINVAL) {
			/* Warn user and fix it */
			pr_warn("%s: CPU%d: Running at unlisted freq: %u KHz\n", __func__, policy->cpu, policy->cur);
			ret = __cpufreq_driver_target(policy, policy->cur - 1, CPUFREQ_RELATION_L);

			/*
			 * Reaching here after boot in a few seconds may not
			 * mean that system will remain stable at "unknown"
			 * frequency for longer duration. Hence, a BUG_ON().
			 */
			BUG_ON(ret);
			pr_warn("%s: CPU%d: Unlisted initial frequency changed to: %u KHz\n", __func__, policy->cpu, policy->cur);
		}
	}

	// 发出CPUFREQ_START通知，通知别的模块已经给cpu准备好了policy
	blocking_notifier_call_chain(&cpufreq_policy_notifier_list, CPUFREQ_START, policy);

	if (new_policy) {
		ret = cpufreq_add_dev_interface(policy);
		if (ret)
			goto out_exit_policy;
		blocking_notifier_call_chain(&cpufreq_policy_notifier_list, CPUFREQ_CREATE_POLICY, policy);

		write_lock_irqsave(&cpufreq_driver_lock, flags);
		list_add(&policy->policy_list, &cpufreq_policy_list);
		write_unlock_irqrestore(&cpufreq_driver_lock, flags);
	}

	// 初始化policy
	ret = cpufreq_init_policy(policy);
	if (ret) {
		pr_err("%s: Failed to initialize policy for cpu: %d (%d)\n",
		       __func__, cpu, ret);
		/* cpufreq_policy_free() will notify based on this */
		new_policy = false;
		goto out_exit_policy;
	}

	up_write(&policy->rwsem);

	// 向用户空间发送KOBJ_ADD事件
	kobject_uevent(&policy->kobj, KOBJ_ADD);

	/* Callback for handling stuff after policy is ready */
	if (cpufreq_driver->ready)
		cpufreq_driver->ready(policy);

	pr_debug("initialization complete\n");

	return 0;

out_exit_policy:
	up_write(&policy->rwsem);

	if (cpufreq_driver->exit)
		cpufreq_driver->exit(policy);
out_free_policy:
	cpufreq_policy_free(policy, !new_policy);
	return ret;
}

二、cpufreq_unregister_driver

注销函数和注册函数对应

/**
 * cpufreq_unregister_driver - unregister the current CPUFreq driver
 *
 * Unregister the current CPUFreq driver. Only call this if you have
 * the right to do so, i.e. if you have succeeded in initialising before!
 * Returns zero if successful, and -EINVAL if the cpufreq_driver is
 * currently not initialised.
 */
int cpufreq_unregister_driver(struct cpufreq_driver *driver)
{
	unsigned long flags;

	if (!cpufreq_driver || (driver != cpufreq_driver))
		return -EINVAL;

	pr_debug("unregistering driver %s\n", driver->name);

	/* Protect against concurrent(同时) cpu hotplug */
	// get_online_cpus 和put_online_cpus实际上是一个cpu上的加解锁
	get_online_cpus();

	subsys_interface_unregister(&cpufreq_interface);
	remove_boost_sysfs_file();
	unregister_hotcpu_notifier(&cpufreq_cpu_notifier);

	write_lock_irqsave(&cpufreq_driver_lock, flags);
	cpufreq_driver = NULL;
	write_unlock_irqrestore(&cpufreq_driver_lock, flags);

	put_online_cpus();

	return 0;
}
EXPORT_SYMBOL_GPL(cpufreq_unregister_driver);

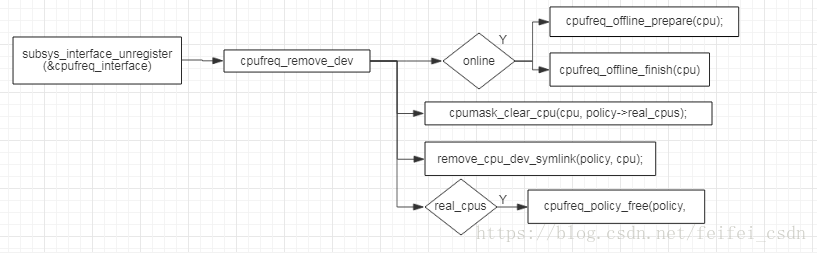

2.1subsys_interface_unregister

/**
* cpufreq_remove_dev - remove a CPU device
*
* Removes the cpufreq interface for a CPU device.
*/
static void cpufreq_remove_dev(struct device *dev, struct subsys_interface *sif)
{
unsigned int cpu = dev-&gt;id;
struct cpufreq_policy *policy = per_cpu(cpufreq_cpu_data, cpu);
if (!policy)
return;
// 将cpu的cpufreq remove
if (cpu_online(cpu)) {
// 如果要移除整个cpu device，那应该和add device对应
cpufreq_offline_prepare(cpu);
cpufreq_offline_finish(cpu);
}
cpumask_clear_cpu(cpu, policy-&gt;real_cpus);
// 尤其是移除文件链接这里，是在哪里创建文件或者链接的呢？
remove_cpu_dev_symlink(policy, cpu);
// policy中不再关联任何cpu，real_cpu包含online+offline+present
if (cpumask_empty(policy-&gt;real_cpus))
cpufreq_policy_free(policy, true);
}

三、热插拔的通知事件

// 在具体的驱动中也有对应的热插拔事件通知
static int cpufreq_cpu_callback(struct notifier_block *nfb, unsigned long action, void *hcpu)
{
	unsigned int cpu = (unsigned long)hcpu;

	switch (action & ~CPU_TASKS_FROZEN) {
	case CPU_ONLINE:
		cpufreq_online(cpu);
		break;

	case CPU_DOWN_PREPARE:
		cpufreq_offline_prepare(cpu);
		break;

	case CPU_POST_DEAD://除了这个事件是公用的，其余的驱动中都实现了别的事件
		cpufreq_offline_finish(cpu);
		break;

	case CPU_DOWN_FAILED:
		cpufreq_online(cpu);
		break;
	}
	return NOTIFY_OK;
}

static struct notifier_block __refdata cpufreq_cpu_notifier = {
	.notifier_call = cpufreq_cpu_callback,
};

四、cpufreq_register_governor

为goovernor提供注册函数，将governor添加到链表中


int cpufreq_register_governor(struct cpufreq_governor *governor)
{
	int err;

	if (!governor)
		return -EINVAL;

	if (cpufreq_disabled())
		return -ENODEV;

	mutex_lock(&cpufreq_governor_mutex);

	governor->initialized = 0;
	err = -EBUSY;
	if (!find_governor(governor->name)) {
		err = 0;
		list_add(&governor->governor_list, &cpufreq_governor_list);
	}

	mutex_unlock(&cpufreq_governor_mutex);
	return err;
}
EXPORT_SYMBOL_GPL(cpufreq_register_governor);

五、cpufreq_unregister_governor

注销governor时，需要将policy和governor解除锁定，那他们是何时关联起来的呢？这个带着疑问后面去看

void cpufreq_unregister_governor(struct cpufreq_governor *governor)
{
	struct cpufreq_policy *policy;
	unsigned long flags;

	if (!governor)
		return;

	if (cpufreq_disabled())
		return;

	/* clear last_governor for all inactive policies */
	read_lock_irqsave(&cpufreq_driver_lock, flags);
	for_each_inactive_policy(policy) {
		if (!strcmp(policy->last_governor, governor->name)) {
			policy->governor = NULL;
			strcpy(policy->last_governor, "\0");
		}
	}
	read_unlock_irqrestore(&cpufreq_driver_lock, flags);

	mutex_lock(&cpufreq_governor_mutex);
	list_del(&governor->governor_list);
	mutex_unlock(&cpufreq_governor_mutex);
	return;
}
EXPORT_SYMBOL_GPL(cpufreq_unregister_governor);

六、get_cpu_idle_time

在interactive中，会统计cpu active的时间，里面统计cpu自启动以来的idle的总时间是核心层提供

u64 get_cpu_idle_time(unsigned int cpu, u64 *wall, int io_busy)
{
	u64 idle_time = get_cpu_idle_time_us(cpu, io_busy ? wall : NULL);

	if (idle_time == -1ULL)
		return get_cpu_idle_time_jiffy(cpu, wall);
	else if (!io_busy)
		idle_time += get_cpu_iowait_time_us(cpu, wall);

	return idle_time;
}
EXPORT_SYMBOL_GPL(get_cpu_idle_time);

static inline u64 get_cpu_idle_time_jiffy(unsigned int cpu, u64 *wall)
{
	u64 idle_time;
	u64 cur_wall_time;
	u64 busy_time;

	cur_wall_time = jiffies64_to_cputime64(get_jiffies_64());

	busy_time = kcpustat_cpu(cpu).cpustat[CPUTIME_USER];
	busy_time += kcpustat_cpu(cpu).cpustat[CPUTIME_SYSTEM];
	busy_time += kcpustat_cpu(cpu).cpustat[CPUTIME_IRQ];
	busy_time += kcpustat_cpu(cpu).cpustat[CPUTIME_SOFTIRQ];
	busy_time += kcpustat_cpu(cpu).cpustat[CPUTIME_STEAL];
	busy_time += kcpustat_cpu(cpu).cpustat[CPUTIME_NICE];

	// 当前时间-前面几个的sum为idle的时间
	idle_time = cur_wall_time - busy_time;
	if (wall)
		*wall = cputime_to_usecs(cur_wall_time);

	return cputime_to_usecs(idle_time);
}
