一、需求说明

1.实体类：Department
2.数据库访问层：DepartmentDao/DepartmentDaoImpl
3.业务层：DepartmentService/DepartmentServiceImpl
4.Junit测试：
5.控制层：DepartmentServlet extends BaseServlet
6.视图层：system/deptadd.jsp
将HTML修改为jsp

二、数据库设计

创建员工表

##新建员工表
create table dept (
DEPTNO int(10) not null auto_increment,
DEPTNAME varchar(100) not null,
LOCATION varchar(100),
primary key(DEPTNO)
)

三、实体类设计

要继承Serializable,Comparable两个类

package com.facai.entity;

import java.io.Serializable;

public class Department implements Serializable,Comparable<Department>{
	private int deptno;//部门编号
	private String deptname;//部门名称
	private String location;//所在地点

	public int getDeptno() {
		return deptno;
	}
	public void setDeptno(int deptno) {
		this.deptno = deptno;
	}
	public String getDeptname() {
		return deptname;
	}
	public void setDeptname(String deptname) {
		this.deptname = deptname;
	}
	public String getLocation() {
		return location;
	}
	public void setLocation(String location) {
		this.location = location;
	}
	@Override
	public String toString() {
		return "Department [deptno=" + deptno + ", deptname=" + deptname
				+ ", location=" + location + "]";
	}
	public Department(int deptno, String deptname, String location) {
		super();
		this.deptno = deptno;
		this.deptname = deptname;
		this.location = location;
	}
	public Department() {
		super();
	}
	@Override
	public int compareTo(Department other) {
		// TODO Auto-generated method stub
		return this.deptno-other.deptno;
	}

}

四、数据库访问层

DepartmentDaoImpl

package com.facai.dao.impl;

import com.facai.dao.DepartmentDao;
import com.facai.entity.Department;
import com.facai.util.DBUtil;

public class DepartmentDaoImpl implements DepartmentDao {
	//添加部门
	@Override
	public int save(Department dept) {
		String sql="insert into dept values(?,?,?)";
		Object[] param={dept.getDeptno(),dept.getDeptname(),dept.getLocation()};
		return DBUtil.executeDML(sql, param);
	}

}

其他类以此类推

五、新技能点

测试类使用注解测试：
加入@test标签后可右键点击类名选择测试

package com.facai.test;

import org.junit.Test;

import com.facai.entity.Department;
import com.facai.service.DepartmentService;
import com.facai.service.impl.DepartmentServiceImpl;

public class TestDepartService {

	@Test
	public void testAdd(){
		DepartmentService deptService=new DepartmentServiceImpl();
		Department dept =new Department(1,"总裁办", "502");
		int n=deptService.add(dept);
		System.out.println(n);
	}
}

六、控制层

package com.facai.servlet;

import java.io.IOException;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import com.facai.entity.Department;
import com.facai.service.DepartmentService;
import com.facai.service.impl.DepartmentServiceImpl;

public class DepartmentServlet extends BaseServlet {

	public void add(HttpServletRequest request, HttpServletResponse response)
			throws ServletException, IOException {
		//接收视图层的表单数据
		int deptno = Integer.parseInt(request.getParameter("deptno"));
		String deptName = request.getParameter("deptName");
		String location = request.getParameter("location");

		//调用业务层完成添加操作
		DepartmentService  deptService = new DepartmentServiceImpl();
		Department dept = new Department(deptno, deptName, location);
		int n = deptService.add(dept);

		//根据结果跳转到不同的页面
		if(n>0){
			//如果是表单的提交，成功之后建议使用重定向，如用请求转发，会导致表单的重复提交
			//request.getRequestDispatcher("/deptList.html").forward(request, response);
			response.sendRedirect(request.getContextPath()+"/deptList.html");
		}else{
			request.setAttribute("error", "添加失败");
			//此时必须使用转发，因为要复用保存在request中的数据
			request.getRequestDispatcher("/system/deptAdd.jsp").forward(request, response);

		}
	}



}

七、视图层

<%@ page language="java" import="java.util.*" pageEncoding="utf-8"%>
<%
String path = request.getContextPath();
String basePath = request.getScheme()+"://"+request.getServerName()+":"+request.getServerPort()+path+"/";
%>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
  <head>
    <base href="<%=basePath%>" />
    <meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
    <title>添加部门</title>
<link href="css/style.css" rel="stylesheet" type="text/css" />
</head>

<body>

	<div class="place">
    <span>位置：</span>
    <ul class="placeul">
    <li><a href="#">人事管理</a></li>
    <li><a href="#">添加部门</a></li>
    </ul>
    </div>

    <div class="formbody">

    <div class="formtitle"><span>基本信息</span></div>
    <form action="servlet/DepartmentServlet?method=add" method="post">
    <ul class="forminfo">
	<li><label>部门编号</label><input name="deptno" type="text" class="dfinput" /> </li>
    <li><label>部门名称</label><input name="deptName" type="text" class="dfinput" /> </li>
    <li><label>办公地点</label><input name="location" type="text" class="dfinput" /></li>
    <li><label>&nbsp;</label><input name="" type="submit" class="btn" value="确认保存"/></li>
    </ul>
    </form>

    </div>

	<span style="color:red;font-size:16px;font-weight:bold;">${error}</span>
</body>

</html>

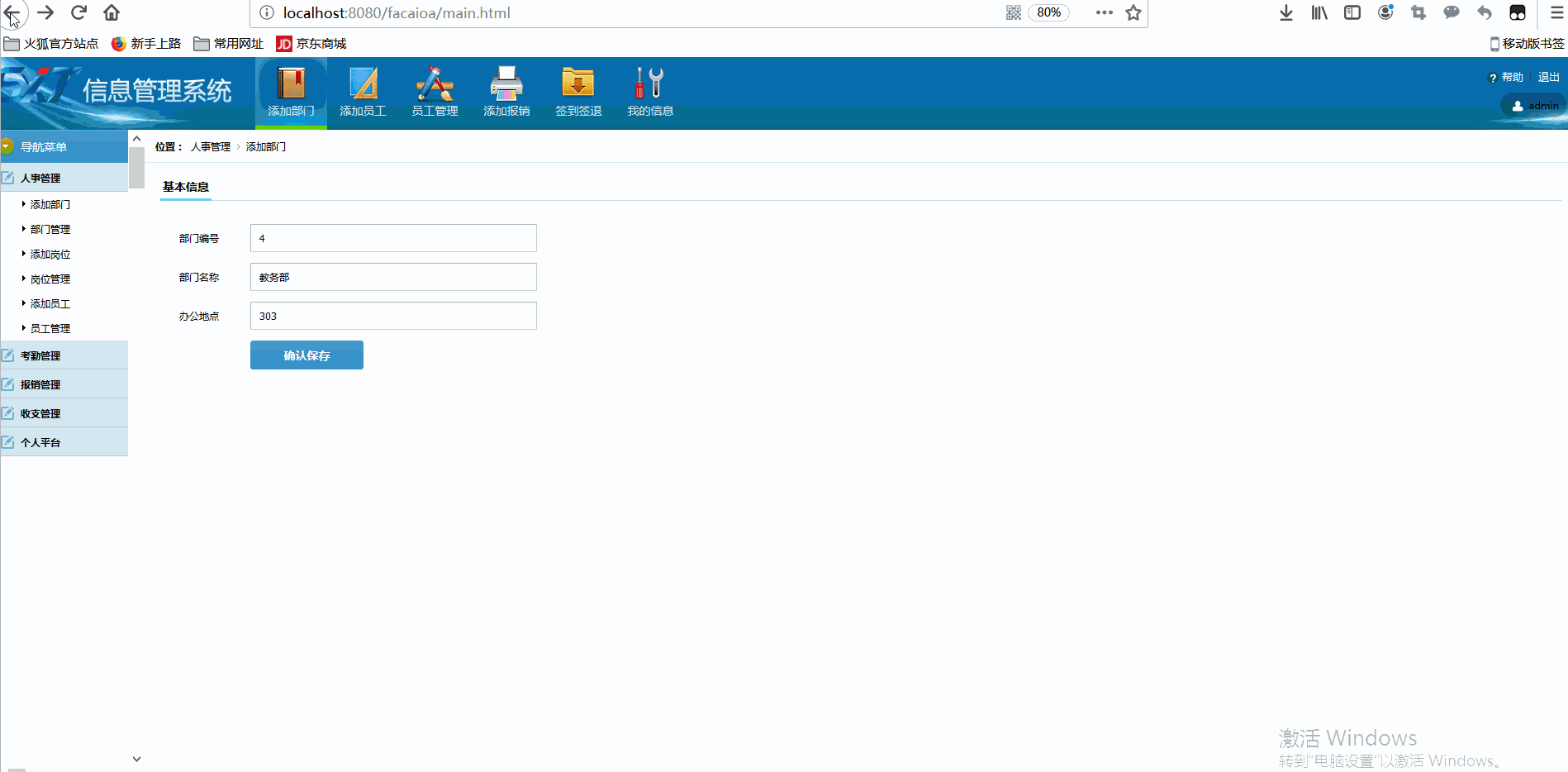

八、效果图

在这里插入图片描述
