本文详述了如何在Java环境下，使用Maven构建SSM（Spring、SpringMVC、MyBatis）项目，并整合Druid数据源。步骤包括创建Maven Web项目，配置Tomcat服务器，调整项目目录结构，编写pom.xml，创建login和index页面，以及配置web.xml。完成这些步骤后，通过Maven构建并测试项目的运行。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

环境:jdk1.8,tomcat8.5,eclipse,有错认真解决,千万别急.

创建maven项目,next

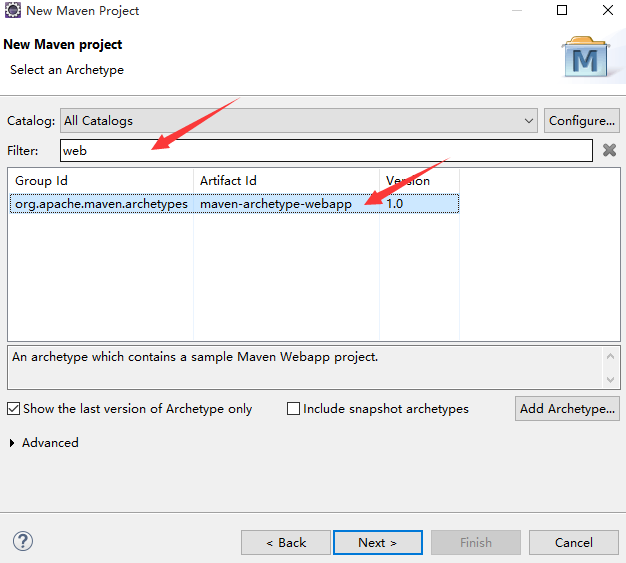

选择webapp结尾的

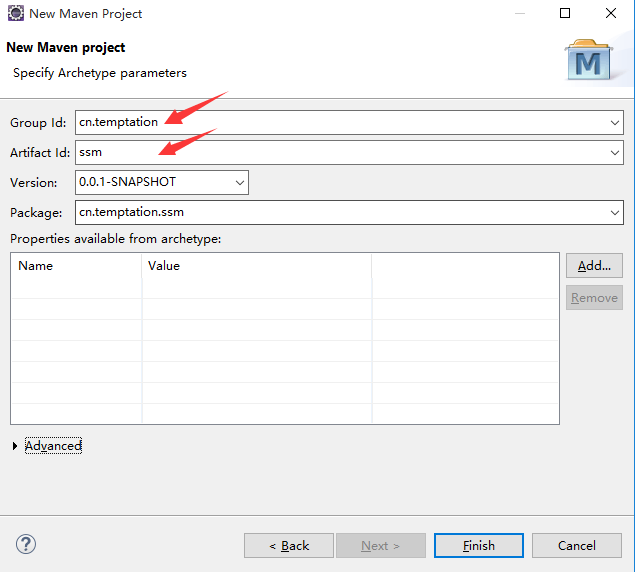

输入对应的id, finish

创建出的maven项目如下图

在eclipse中设置Server为Tomcat，注意JRE设置为安装的JDK的jre

在工程上右键，查看工程属性，找到Java Build Path，添加Server Runtime为Tomcat

默认的Dynamic Web Module为2.3，使用Tomcat 8.5，需要修改为3.1 自行百度目录结构少的可以手动添加

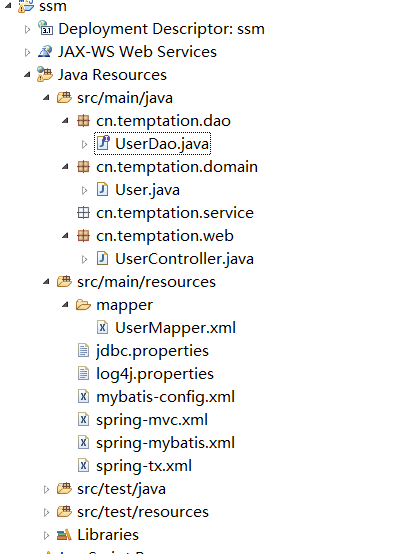

项目结构:

pom.xml内容为：

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
 <modelVersion>4.0.0</modelVersion>
 <groupId>cn.temptation</groupId>
 <artifactId>ssm</artifactId>
 <packaging>war</packaging>
 <version>0.0.1-SNAPSHOT</version>
 <name>ssm Maven Webapp</name>
 <url>http://maven.apache.org</url>
 <properties>
 <!-- Spring版本号 -->
 <spring.version>4.3.8.RELEASE</spring.version>
 </properties>
 <dependencies>
 <!-- Spring相关包 -->
 <dependency>
  <groupId>org.springframework</groupId>
  <artifactId>spring-core</artifactId>
  <version>${spring.version}</version>
 </dependency>
 <dependency>
  <groupId>org.springframework</groupId>
  <artifactId>spring-aop</artifactId>
  <version>${spring.version}</version>
 </dependency>
 <dependency>
  <groupId>org.springframework</groupId>
  <artifactId>spring-web</artifactId>
  <version>${spring.version}</version>
 </dependency>
 <dependency>
  <groupId>org.springframework</groupId>
  <artifactId>spring-webmvc</artifactId>
  <version>${spring.version}</version>
 </dependency>
 <dependency>
  <groupId>org.springframework</groupId>
  <artifactId>spring-jdbc</artifactId>
  <version>${spring.version}</version>
 </dependency>
 <dependency>
  <groupId>org.springframework</groupId>
  <artifactId>spring-tx</artifactId>
  <version>${spring.version}</version>
 </dependency>
 <!-- AOP相关包 -->
 <dependency>
  <groupId>org.aspectj</groupId>
  <artifactId>aspectjrt</artifactId>
  <version>1.8.0</version>
 </dependency>
 <dependency>
  <groupId>org.aspectj</groupId>
  <artifactId>aspectjweaver</artifactId>
  <version>1.8.0</version>
 </dependency>
 <!-- MyBatis相关包 -->
 <dependency>
  <groupId>org.mybatis</groupId>
  <artifactId>mybatis</artifactId>
  <version>3.3.0</version>
 </dependency>
 <!-- MySQL相关包 -->
 <dependency>
  <groupId>mysql</groupId>
  <artifactId>mysql-connector-java</artifactId>
  <version>5.1.26</version>
 </dependency>

 <!-- 数据库连接池 -->
 <dependency>
  <groupId>com.alibaba</groupId>
  <artifactId>druid</artifactId>
  <version>1.1.6</version>
 </dependency>
 <!-- Spring集成MyBatis -->
 <dependency>
  <groupId>org.mybatis</groupId>
  <artifactId>mybatis-spring</artifactId>
  <version>1.2.3</version>
 </dependency>
 <!-- JSP标准标签库 -->
 <dependency>
  <groupId>javax.servlet</groupId>
  <artifactId>jstl</artifactId>
  <version>1.2</version>
 </dependency>
 <!-- 日志相关包 -->
 <dependency>
  <groupId>log4j</groupId>
  <artifactId>log4j</artifactId>
  <version>1.2.17</version>
 </dependency>
 <dependency>
  <groupId>org.slf4j</groupId>
  <artifactId>slf4j-api</artifactId>
  <version>1.7.21</version>
 </dependency>
 <!-- 单元测试相关包 -->
 <dependency>
  <groupId>junit</groupId>
  <artifactId>junit</artifactId>
  <version>3.8.1</version>
  <scope>test</scope>
 </dependency>
 </dependencies>
 <build>
 <finalName>ssm</finalName>
 <plugins>
  <plugin>
  <groupId>org.apache.maven.plugins</groupId>
  <artifactId>maven-compiler-plugin</artifactId>
  <configuration>
   <source>1.8</source>
   <target>1.8</target>
  </configuration>
  </plugin>
 </plugins>
 </build>
</project>

创建log4j.properties文件，内容如下：

#USE THIS SETTING FOR OUTPUT MYBATIS`s SQL ON THE CONSOLE
log4j.rootLogger=DEBUG, Console
#Console
log4j.appender.Console=org.apache.log4j.ConsoleAppender
log4j.appender.Console.layout=org.apache.log4j.PatternLayout
log4j.appender.Console.layout.ConversionPattern=%d [%t] %-5p [%c] - %m%n
log4j.logger.java.sql.ResultSet=INFO
log4j.logger.org.apache=INFO
log4j.logger.java.sql.Connection=DEBUG
log4j.logger.java.sql.Statement=DEBUG
log4j.logger.java.sql.PreparedStatement=DEBUG

创建mybatis-config.xml文件，内容如下：

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration
 PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
 "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
 <!-- 设置别名 -->
 <typeAliases>
  <package name="cn.temptation.domain" />
 </typeAliases>
</configuration>

创建spring-mvc.xml文件，内容如下：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
 xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context"
 xmlns:mvc="http://www.springframework.org/schema/mvc"
 xsi:schemaLocation="
  http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
  http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
  http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd">
 <!-- 启动自动扫描 -->
 <context:component-scan base-package="cn.temptation.*" />
 <!-- 注册MVC注解驱动 -->
 <mvc:annotation-driven />
 <!-- 静态资源可访问的设置方式 -->
 <mvc:default-servlet-handler />
 <!-- 配置视图解析器，可以显式设置，也可以不设置，不设置会依据SpringMVC的默认设置 -->
 <bean id="viewResolver"
  class="org.springframework.web.servlet.view.InternalResourceViewResolver">
  <property name="prefix" value="/" />
  <property name="suffix" value=".jsp" />
 </bean>
</beans>

创建spring-mybatis.xml文件，内容如下：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
 xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xmlns:context="http://www.springframework.org/schema/context"
 xsi:schemaLocation="
  http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
  http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd">
 <!-- 定义数据源Bean -->
 <!-- 加载数据库配置信息 -->

    <context:property-placeholder location="classpath:jdbc.properties"/>
 <!-- Druid -->
 <bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource">
 	<property name="driverClassName" value="${jdbc.driverClassName}"/>
        <property name="url" value="${jdbc.url}"/>
        <property name="username" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
 </bean>
 <!-- 注册SqlSessionFactoryBean -->
 <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
  <property name="dataSource" ref="dataSource" />
  <!-- 自动扫描mappers.xml文件 -->
  <property name="mapperLocations" value="classpath:mapper/*.xml" />
  <property name="configLocation" value="classpath:mybatis-config.xml"></property>
 </bean>
 <!-- DAO接口所在包名，Spring会自动查找其下的类 -->
 <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
  <property name="basePackage" value="cn.temptation.dao" />
  <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory" />
 </bean>
</beans>

创建spring-tx.xml文件，内容如下：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
 xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xmlns:context="http://www.springframework.org/schema/context"
 xmlns:aop="http://www.springframework.org/schema/aop"
 xmlns:tx="http://www.springframework.org/schema/tx"
 xsi:schemaLocation="
  http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd
  http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd
  http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd
  http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd">
 <!-- 开启AOP注解扫描 -->
 <aop:aspectj-autoproxy proxy-target-class="true" />
 <!-- 事务管理器，依赖于数据源 -->
 <bean id="txManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
  <property name="dataSource" ref="dataSource" />
 </bean>
 <!-- 编写通知：对事务进行增强（通知），需要编写对切入点和具体执行事务细节 -->
 <tx:advice id="txAdvice" transaction-manager="txManager">
  <tx:attributes>
   <!--
    为切入点方法添加事务详情
    name：方法名，*表示任意方法名称
    propagation：设置传播行为
    isolation：设置隔离级别
    read-only：是否只读
   -->
   <tx:method name="add*" propagation="REQUIRED" isolation="DEFAULT" read-only="false" rollback-for="Exception" />
   <tx:method name="delete*" propagation="REQUIRED" isolation="DEFAULT" read-only="false" rollback-for="Exception" />
   <tx:method name="update*" propagation="REQUIRED" isolation="DEFAULT" read-only="false" rollback-for="Exception" />
  </tx:attributes>
 </tx:advice>
 <!-- 设置AOP，让Spring自动对目标生成代理，需要使用AspectJ表达式 -->
 <aop:config proxy-target-class="true">
  <!-- 切面：整合切入点和通知 -->
  <aop:advisor advice-ref="txAdvice" pointcut="within(cn.temptation.web..*)" />
 </aop:config>
</beans>

编写User实体类

package cn.temptation.domain;

public class User {

	// 成员变量
	 private Integer userid;
	 private String username;
	 private String password;
	 // 构造函数
	 public User() {
	  super();
	 }
	 public User(Integer userid, String username, String password) {
	  super();
	  this.userid = userid;
	  this.username = username;
	  this.password = password;
	 }
	 // 成员方法
	 public Integer getUserid() {
	  return userid;
	 }
	 public void setUserid(Integer userid) {
	  this.userid = userid;
	 }
	 public String getUsername() {
	  return username;
	 }
	 public void setUsername(String username) {
	  this.username = username;
	 }
	 public String getPassword() {
	  return password;
	 }
	 public void setPassword(String password) {
	  this.password = password;
	 }
}

编写UserController控制器

package cn.temptation.web;

import javax.annotation.Resource;
import javax.servlet.http.HttpSession;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.servlet.ModelAndView;

import cn.temptation.dao.UserDao;
import cn.temptation.domain.User;

@Controller
@RequestMapping(value = "/user")
public class UserController {
	@Resource
	 private UserDao userDao;
	 @RequestMapping("/view")
	 public String view() {
	  return "main/login";
	 }
	 @RequestMapping("/indexview")
	 public String index() {
	  return "main/index";
	 }
	 @RequestMapping(value = "/login", method = RequestMethod.POST)
	 public ModelAndView login(User model, HttpSession session) {
	  User user = userDao.findByUsername(model.getUsername());
	  if (user == null || !user.getPassword().equals(model.getPassword())) {
	   return new ModelAndView("redirect:/login.jsp");
	  } else {
	   session.setAttribute("user", user);
	   ModelAndView mav = new ModelAndView();
	   mav.setViewName("index");
	   return mav;
	  }
	 }
}

编写UserDao数据访问层接口

package cn.temptation.dao;

import cn.temptation.domain.User;

public interface UserDao {
	public User findByUsername(String username);
}

编写UserMapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="cn.temptation.dao.UserDao">
 <select id="findByUsername" parameterType="String" resultType="cn.temptation.domain.User">
  	SELECT * FROM userinfo WHERE username=#{username}
 </select>
</mapper>

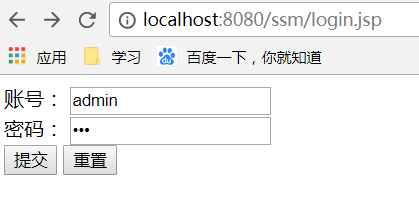

webapp下新建login和index

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>登录</title>
</head>
<body>
<form action="user/login.do" method="post">
<label>账号：</label>
<input type="text" id="txtUsername" name="username" placeholder="请输入账号" /><br/>
<label>密码：</label>
<input type="password" id="txtPassword" name="password" placeholder="请输入密码" /><br/>
<input type="submit" value="提交" />
<input type="reset" value="重置" />
</form>
</body>
</html>

index页面

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>主页</title>
</head>
<body>
<h3>欢迎，${user.username }</h3>
</body>
</html>

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
	version="3.1" metadata-complete="true">

	<!-- 配置Spring环境 -->
	<context-param>
		<param-name>contextConfigLocation</param-name>
		<param-value>classpath:spring-mybatis.xml</param-value>
	</context-param>
	<listener>
		<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
	</listener>

	<!-- 配置SpringMVC环境 -->
	<servlet>
		<servlet-name>springMVC</servlet-name>
		<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
		<init-param>
			<param-name>contextConfigLocation</param-name>
			<param-value>classpath:spring-mvc.xml</param-value>
		</init-param>
	</servlet>
	<servlet-mapping>
		<servlet-name>springMVC</servlet-name>
		<url-pattern>*.do</url-pattern>
	</servlet-mapping>



</web-app>

可以先update一下不嫌麻烦可以 maven install一下看看是否能build成功

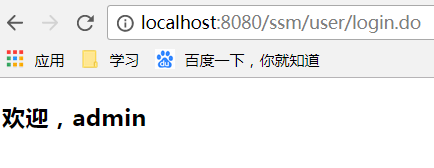

然后就可以运行了
