OkHttp的源码分析(四)——缓存拦截器CacheInterceptor分析

本文深入探讨了OkHttp中的缓存机制,包括强制缓存和协商缓存策略,以及CacheStrategy类的实现,同时揭示了Cache类如何通过DiskLruCache进行缓存存储。重点介绍了Http缓存头的判断逻辑和缓存策略的决定因素。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

读这篇文章之前,有没有想过,自己了解Http的缓存吗?知道Http 304状态码吗?

一、Http缓存基本知识

说到缓存,肯定会想到缓存的时效性,即什么时候读缓存,什么时候更新缓存。

Http缓存分为强制缓存协商缓存,两种缓存策略,涉及到的策略是不同的,主要是header的不同,我们这里通过一张表格来看下

响应码Header字段
强制缓存200

Pragma

Expire

Cache-Control

协商缓存304

Etag/If-None-Match

Last-Modified/If-Modified-Since

首先,我们知道,缓存是第二次Http请求的,首次请求不涉及缓存问题。对于第二次请求,如果命中强制缓存时,直接返回200,如果没有,就在请求头中添加参数,看能否命中协商缓存。接下来我们看下各个header参数的含义

Header位置常用值说明优先级
Pragma响应头no-cache

适用于HTTP /1.0

HTTP /1.1中已废弃

Expire响应头过期时间
Cache-Control响应头no-cache, no-store, max-age, public, private

1)不适用于HTTP /1.0

2)适用于HTTP /1.1

2)响应头和请求头都支持这个属性

3)缓存失效前,获取不到新资源

Etag响应头文件Hash值
If-None-Match请求头响应头中的Etag值
Last-Modified响应头资源最近更新时间
If-Modified-Since请求头响应头中的Last-Modified的时间

通过上面这张表,我们总结下,Pragma是HTTP /1.0的遗留产物,我们可以不关心了;Cache-Control的优先级高于Expire的,之后我们看下Cache-Control几个值的意义

no-cache: 需要使用协商缓存来验证缓存数据,字面意思意思比较有迷惑性

no-store:  不会缓存,协商缓存和强制缓存都不会触发

max-age:  强制缓存会触发,值的含义是多少秒后失效,类似Expire

public:      客户端和服务端都可以缓存

private:     仅客户端可以缓存

可以看出,强制缓存是通过Cache-Control的max-age和Expire来实现,它的缺点是服务端资源已经更新,但是只要在有效期内,就不会获取新资源,明显是不够灵活的,因此,就需要协商缓存。协商缓存会涉及的字段是:Last-Modified/If-Modified-Since还有Etag/If-None-Match

Last-Modified客户端第一次请求后,服务端会在响应头中返回这个字段,告诉客户端资源最近的更新时间,在客户端第二次请求时候,通过请求头里面If-Modified-Since字段,携带上次资源的更新时间,服务端收到后,对比资源的最近修改时间,如果没有新的资源更新,也就是比If-Modified-Since的值小,直接返回304,客户端需要使用缓存,如果比If-Modified-Since的值大,说明资源更新了,需要下载最新资源,返回最新资源,状态码是200

Last-Modified/If-Modified-Since也是存在缺点的,主要有两点:

1)精确度是秒级,在一秒内修改了,就会存在误差

2)更新时间来作为标识资源唯一性,具有不可靠性,时间变化了,内容不一定更改

因此,需要一个优先级更高的协商机制

Etag是文件的hash值,具有唯一性,第一次服务端会返回给客户端,客户端第二次请求的时候,会通过If-None-Match来携带给服务端,服务端通过对比If-None-Match携带的hash值和文件的Etag是否一致,如果一直,返回304,客户端使用缓存,如果不一致,返回200状态码,返回最新资源。

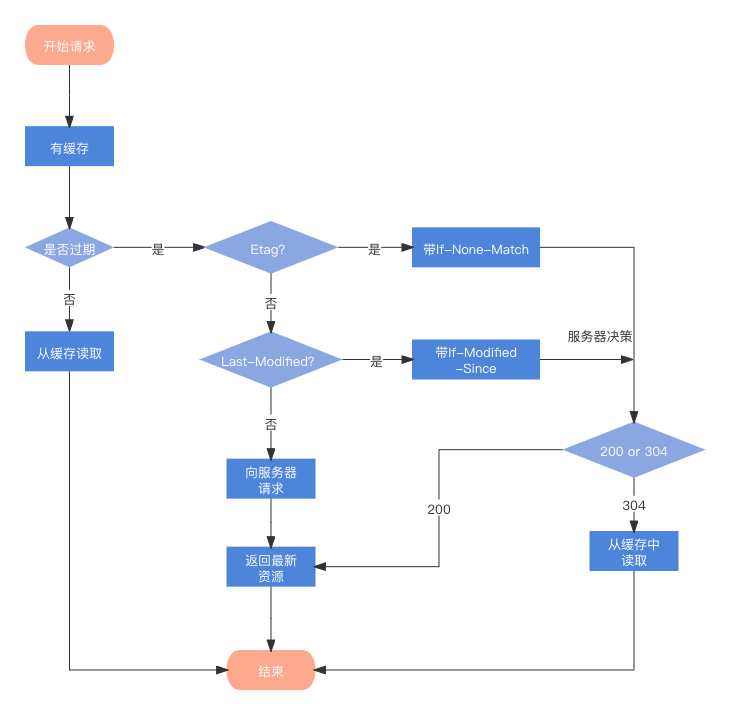

通过一张图来做一个总结

二、OkHttp缓存流程分析

首先看下CacheInterceptor的核心代码

override fun intercept(chain: Interceptor.Chain): Response {
    val call = chain.call()
    //1
    val cacheCandidate = cache?.get(chain.request())

    val now = System.currentTimeMillis()
    //2
    val strategy = CacheStrategy.Factory(now, chain.request(), cacheCandidate).compute()
    //3
    val networkRequest = strategy.networkRequest
    val cacheResponse = strategy.cacheResponse

    cache?.trackResponse(strategy)
    val listener = (call as? RealCall)?.eventListener ?: EventListener.NONE
    //4
    if (cacheCandidate != null && cacheResponse == null) {
      // The cache candidate wasn't applicable. Close it.
      cacheCandidate.body?.closeQuietly()
    }

    // If we're forbidden from using the network and the cache is insufficient, fail.
    //5
    if (networkRequest == null && cacheResponse == null) {
      return Response.Builder()
          .request(chain.request())
          .protocol(Protocol.HTTP_1_1)
          .code(HTTP_GATEWAY_TIMEOUT)
          .message("Unsatisfiable Request (only-if-cached)")
          .body(EMPTY_RESPONSE)
          .sentRequestAtMillis(-1L)
          .receivedResponseAtMillis(System.currentTimeMillis())
          .build().also {
            listener.satisfactionFailure(call, it)
          }
    }
    //6
    // If we don't need the network, we're done.
    if (networkRequest == null) {
      return cacheResponse!!.newBuilder()
          .cacheResponse(stripBody(cacheResponse))
          .build().also {
            listener.cacheHit(call, it)
          }
    }

    if (cacheResponse != null) {
      listener.cacheConditionalHit(call, cacheResponse)
    } else if (cache != null) {
      listener.cacheMiss(call)
    }

    var networkResponse: Response? = null
    try {
      //7
      networkResponse = chain.proceed(networkRequest)
    } finally {
      // If we're crashing on I/O or otherwise, don't leak the cache body.
      if (networkResponse == null && cacheCandidate != null) {
        cacheCandidate.body?.closeQuietly()
      }
    }

    // If we have a cache response too, then we're doing a conditional get.
    //8
    if (cacheResponse != null) {
      if (networkResponse?.code == HTTP_NOT_MODIFIED) {
        val response = cacheResponse.newBuilder()
            .headers(combine(cacheResponse.headers, networkResponse.headers))
            .sentRequestAtMillis(networkResponse.sentRequestAtMillis)
            .receivedResponseAtMillis(networkResponse.receivedResponseAtMillis)
            .cacheResponse(stripBody(cacheResponse))
            .networkResponse(stripBody(networkResponse))
            .build()

        networkResponse.body!!.close()

        // Update the cache after combining headers but before stripping the
        // Content-Encoding header (as performed by initContentStream()).
        cache!!.trackConditionalCacheHit()
        cache.update(cacheResponse, response)
        return response.also {
          listener.cacheHit(call, it)
        }
      } else {
        cacheResponse.body?.closeQuietly()
      }
    }
    //9
    val response = networkResponse!!.newBuilder()
        .cacheResponse(stripBody(cacheResponse))
        .networkResponse(stripBody(networkResponse))
        .build()
    //10
    if (cache != null) {
      if (response.promisesBody() && CacheStrategy.isCacheable(response, networkRequest)) {
        // Offer this request to the cache.
        val cacheRequest = cache.put(response)
        return cacheWritingResponse(cacheRequest, response).also {
          if (cacheResponse != null) {
            // This will log a conditional cache miss only.
            listener.cacheMiss(call)
          }
        }
      }
      //11
      if (HttpMethod.invalidatesCache(networkRequest.method)) {
        try {
          cache.remove(networkRequest)
        } catch (_: IOException) {
          // The cache cannot be written.
        }
      }
    }

    return response
}

根据注释标号,我们大致来梳理一下CacheInterceptor的流程

  1. 先判断是否有候选/可用的缓存,如果有,则取出作为候选
  2. 通过候选缓存,获取缓存策略,得到网络请求
  3. 通过缓存策略,得到缓存的响应数据
  4. 缓存的响应数据为null,则清理候选缓存
  5. 如果网络请求为null,并且缓存的响应数据也为null,则报网络错误504
  6. 如果只是网络请求为null,则返回缓存的响应数据
  7. 上面的缓存无效,则在次步进行网络请求
  8. 通过服务端校验后,缓存可用,返回304,不可用,返回数据,更新缓存
  9. 以上条件都不满足的情况下,即缓存的响应数据不为null,同时也没有返回304,则构建一个响应数据
  10. 将响应数据缓存
  11. 校验请求的方法,如果是"POST","PATCH","PUT","DELETE","MOVE"方法,则从缓存中移除这个请求

条件判断就是判断网络请求和缓存的响应数据,通过下面一个表做一下总结:

networkRequestcacheResponseCacheStrategy
nullnull返回 503 错误,步骤5
nullnot-null不进行网络请求,并且缓存可以用,直接返回缓存,步骤6
not-nullnot-null判断header中是否含有ETag/Last-Modified标识,可能返回304,也可能缓存不可用,无论何种都需要访问网络,步骤8
non-nullnull需要进行网络请求,而且缓存不可用,需要直接访问网络,步骤9

大致的整体流程我们就介绍完了,可以看出,和Http的缓存流程是十分相似的,OkHttp的缓存策略在CacheStrategy这个类中,我们接下来看下它的源码

三、缓存源码分析

先来看CacheStrategy的Factory中的init方法

    init {
      if (cacheResponse != null) {
        this.sentRequestMillis = cacheResponse.sentRequestAtMillis
        this.receivedResponseMillis = cacheResponse.receivedResponseAtMillis
        val headers = cacheResponse.headers
        for (i in 0 until headers.size) {
          val fieldName = headers.name(i)
          val value = headers.value(i)
          when {
            fieldName.equals("Date", ignoreCase = true) -> {
              servedDate = value.toHttpDateOrNull()
              servedDateString = value
            }
            fieldName.equals("Expires", ignoreCase = true) -> {
              expires = value.toHttpDateOrNull()
            }
            fieldName.equals("Last-Modified", ignoreCase = true) -> {
              lastModified = value.toHttpDateOrNull()
              lastModifiedString = value
            }
            fieldName.equals("ETag", ignoreCase = true) -> {
              etag = value
            }
            fieldName.equals("Age", ignoreCase = true) -> {
              ageSeconds = value.toNonNegativeInt(-1)
            }
          }
        }
      }
    }

我们看到了,在初始化时,会读取缓存响应数据里面的响应头信息,我们前面提到的"Expires","Last-Modified","ETag"等,接下来看下他的compute()方法

    private fun computeCandidate(): CacheStrategy {
      // No cached response.
      //没有缓存数据,返回不带缓存响应的缓存策略
      if (cacheResponse == null) {
        return CacheStrategy(request, null)
      }

      // Drop the cached response if it's missing a required handshake.
      if (request.isHttps && cacheResponse.handshake == null) {
        return CacheStrategy(request, null)
      }

      // If this response shouldn't have been stored, it should never be used as a response source.
      // This check should be redundant as long as the persistence store is well-behaved and the
      // rules are constant.
      //判断cacheControl参数,涉及“Expires”、“maxAgeSeconds”、“isPublic”、“isPrivate”
      if (!isCacheable(cacheResponse, request)) {
        return CacheStrategy(request, null)
      }

      //请求头中判断是否有noCache,或者"If-Modified-Since" 或者"If-None-Match",需要服务器决策,则返回只包含网络请求的策略
      val requestCaching = request.cacheControl
      if (requestCaching.noCache || hasConditions(request)) {
        return CacheStrategy(request, null)
      }

      val responseCaching = cacheResponse.cacheControl

      val ageMillis = cacheResponseAge()
      var freshMillis = computeFreshnessLifetime()

      if (requestCaching.maxAgeSeconds != -1) {
        freshMillis = minOf(freshMillis, SECONDS.toMillis(requestCaching.maxAgeSeconds.toLong()))
      }

      var minFreshMillis: Long = 0
      if (requestCaching.minFreshSeconds != -1) {
        minFreshMillis = SECONDS.toMillis(requestCaching.minFreshSeconds.toLong())
      }

      var maxStaleMillis: Long = 0
      if (!responseCaching.mustRevalidate && requestCaching.maxStaleSeconds != -1) {
        maxStaleMillis = SECONDS.toMillis(requestCaching.maxStaleSeconds.toLong())
      }
      //如果缓存在过期时间内则可以直接使用,直接返回上次缓存
      if (!responseCaching.noCache && ageMillis + minFreshMillis < freshMillis + maxStaleMillis) {
        val builder = cacheResponse.newBuilder()
        if (ageMillis + minFreshMillis >= freshMillis) {
          builder.addHeader("Warning", "110 HttpURLConnection \"Response is stale\"")
        }
        val oneDayMillis = 24 * 60 * 60 * 1000L
        if (ageMillis > oneDayMillis && isFreshnessLifetimeHeuristic()) {
          builder.addHeader("Warning", "113 HttpURLConnection \"Heuristic expiration\"")
        }
        return CacheStrategy(null, builder.build())
      }

      // Find a condition to add to the request. If the condition is satisfied, the response body
      // will not be transmitted.
      val conditionName: String
      val conditionValue: String?
      //如果缓存过期,且有ETag、lastModified等信息,则添加If-None-Match、If-Modified-Since等条件请求
      when {
        etag != null -> {
          conditionName = "If-None-Match"
          conditionValue = etag
        }

        lastModified != null -> {
          conditionName = "If-Modified-Since"
          conditionValue = lastModifiedString
        }

        servedDate != null -> {
          conditionName = "If-Modified-Since"
          conditionValue = servedDateString
        }

        else -> return CacheStrategy(request, null) // No condition! Make a regular request.
      }

      val conditionalRequestHeaders = request.headers.newBuilder()
      conditionalRequestHeaders.addLenient(conditionName, conditionValue!!)

      val conditionalRequest = request.newBuilder()
          .headers(conditionalRequestHeaders.build())
          .build()
      return CacheStrategy(conditionalRequest, cacheResponse)
    }

方法比较长,关键部分直接做了注释,基本上都是Http缓存头信息的一些判断和处理逻辑,那么还有一个问题,上面我们说的都是Http缓存策略在OkHttp中的具体实现,那么缓存的文件在客户端存到哪里呢?由谁来实现呢?是由Cache类来实现的,我们在CacheInterceptor的构造方法中,就会把它传进来,可以往上面看下源码,这里面我们直接看下Cacheput方法

  internal fun put(response: Response): CacheRequest? {
    val requestMethod = response.request.method

    if (HttpMethod.invalidatesCache(response.request.method)) {
      try {
        remove(response.request)
      } catch (_: IOException) {
        // The cache cannot be written.
      }
      return null
    }

    if (requestMethod != "GET") {
      // Don't cache non-GET responses. We're technically allowed to cache HEAD requests and some
      // POST requests, but the complexity of doing so is high and the benefit is low.
      return null
    }

    if (response.hasVaryAll()) {
      return null
    }

    val entry = Entry(response)
    var editor: DiskLruCache.Editor? = null
    try {
      editor = cache.edit(key(response.request.url)) ?: return null
      entry.writeTo(editor)
      return RealCacheRequest(editor)
    } catch (_: IOException) {
      abortQuietly(editor)
      return null
    }
  }

上面的put方法,我们要注意两点,第一点是,缓存只Get方法的请求,第二点是,具体缓存是通过DiskLruCache方法来实现的,使用时设置在磁盘上缓存空间的大小,通过LRU算法进行缓存淘汰

四、总结

  1. OkHttp的缓存机制是按照Http的缓存机制实现的
  2. 缓存的具体实现是通过DiskLruCache来完成的,但是默认是不开启缓存的,如果我们需要使用,需要用户手动设置OkHttpClient的Cache缓存对象
  3. OkHttp默认只支持缓存Get方法的请求
