Kubernetes NFS 存储类安装与测试

最新推荐文章于 2024-04-11 07:30:00 发布

原创最新推荐文章于 2024-04-11 07:30:00 发布 · 417 阅读

0 ·

CC 4.0 BY-SA版权

文章标签：

#kubernetes #容器 #云原生

k8s 同时被 2 个专栏收录

7 篇文章

订阅专栏

kubernetes

4 篇文章

订阅专栏

本文档详细介绍了如何在Kubernetes环境中安装和配置NFS存储类，包括下载部署文件、修改配置、创建PersistentVolumeClaim、Deployment、Service以及Ingress。测试部分展示了通过yaml文件创建资源并验证NFS存储的读写能力。

安装 storage class:

external-storage/nfs-client/deploy at master · kubernetes-retired/external-storage · GitHub

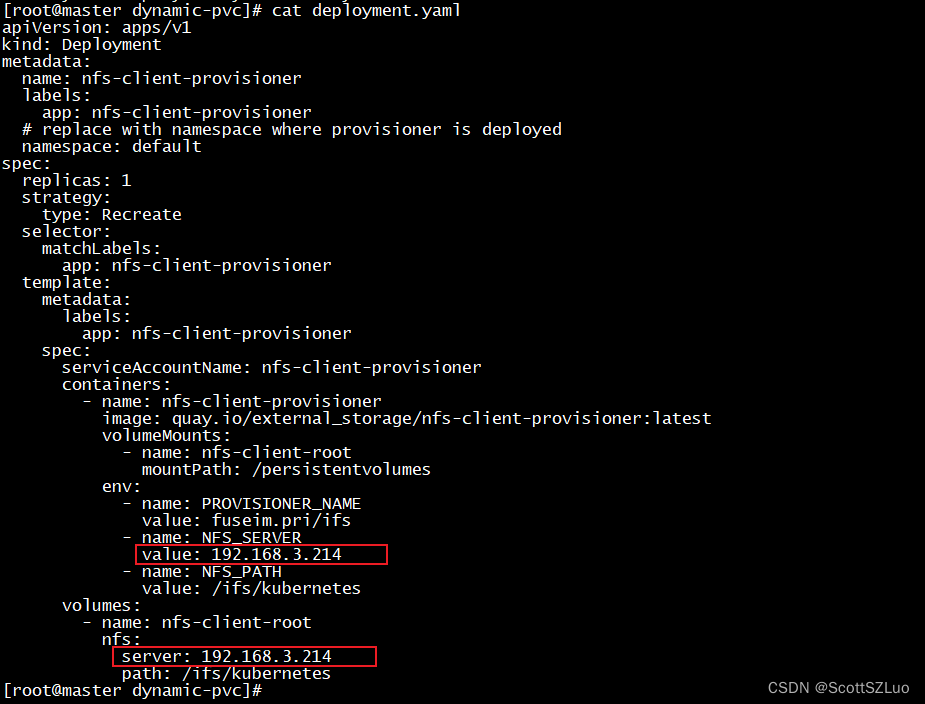

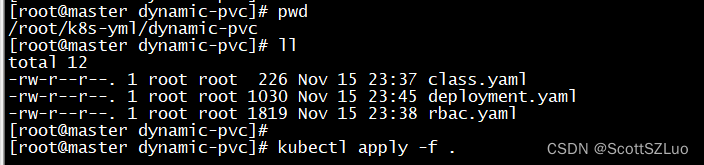

下载文件并安装:

class.yaml deployment.yaml rbac.yaml

其中修改:

安装

测试:

[root@master test-dir]# cat nginx-1.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: my-pvc
namespace: test
spec:
storageClassName: "managed-nfs-storage"
accessModes:
- ReadWriteMany
resources:
requests:
storage: 1Gi

---
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: nginx-1
name: nginx-1-deployment
namespace: test
spec:
replicas: 3
selector:
matchLabels:
app: nginx-1
template:
metadata:
labels:
app: nginx-1
project: blog
spec:
containers:
- image: nginx
name: nginx-1-container
volumeMounts:
- name: my-pvc
mountPath: /usr/share/nginx/html

volumes:
- name: my-pvc
persistentVolumeClaim:
claimName: my-pvc

---
apiVersion: v1
kind: Service
metadata:
name: nginx-1-service
namespace: test
spec:
ports:
- port: 8001 # 访问 Service 的端口,集群端口
protocol: TCP
targetPort: 80 # 容器商品，即应用程序端口
selector:
app: nginx-1 # pod 的 label
project: blog

---
apiVersion: networking.k8s.io/v1beta1
kind: Ingress
metadata:
name: nginx-1-ingress
namespace: test
spec:
rules:
- host: nginx.1.ingress
http:
paths:
- path: "/"
backend:
serviceName: nginx-1-service
servicePort: 8001
[root@master test-dir]#
