源码编译 METIS 以及 GKlib 在Linux ubuntu上

本文介绍了如何通过Git克隆和make命令构建GKlib的openmp版本以利用多核处理器,以及后续构建和配置METIS的过程,包括设置环境变量和查看安装路径。同时提供了METIS的手册链接。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

1. GKlib 构建



$ git clone --recursive git@github.com:Kleenelan/GKlib.git
$ cd GKlib/
$ make config cc=gcc openmp=set
$ make
$ make install


源码构建了 GKlib 的 openmp 版本,以便充分使用多核的算力;

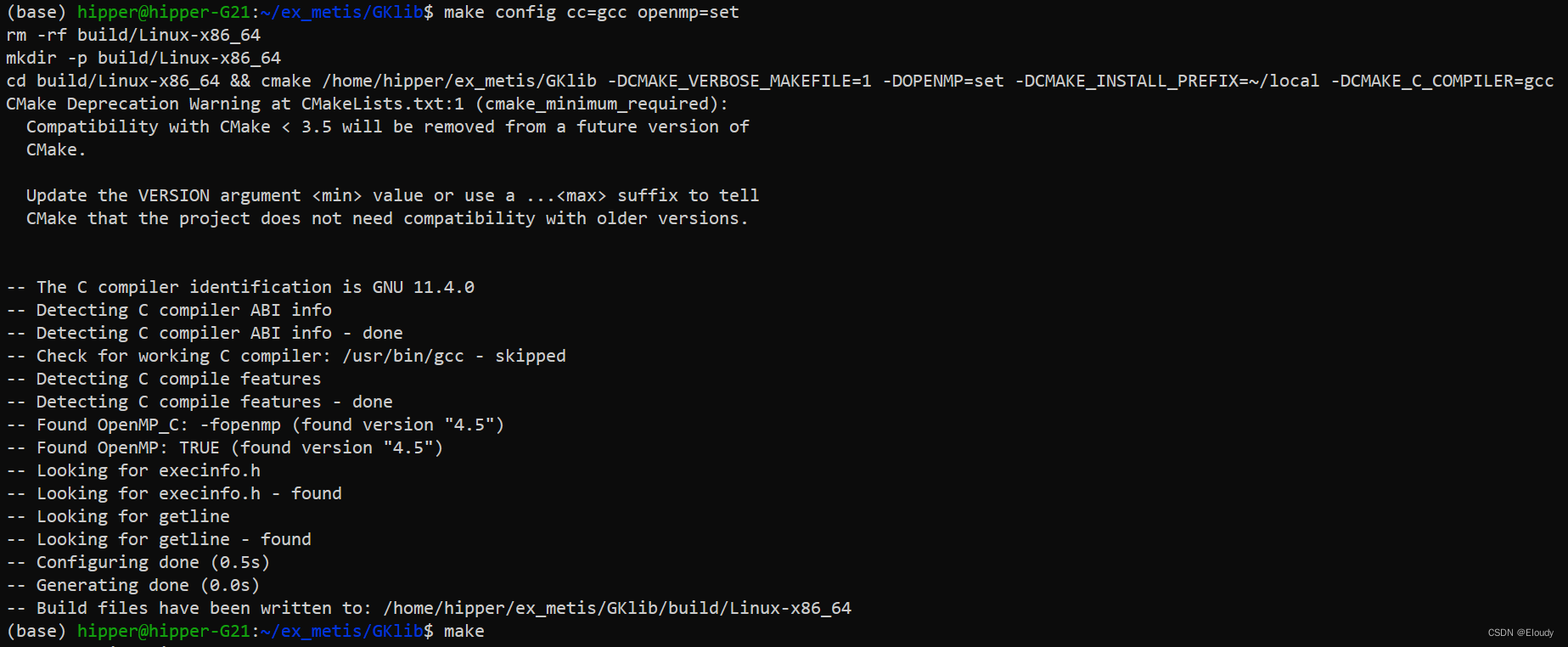

make config cc=gcc openmp=set 的效果图:

测试GKlib的方式是编译 METIS;

2. METIS 构建

$ git clone --recursive git@github.com:Kleenelan/METIS.git
$ cd METIS
$ make config shared=1 openmp=1 cc=gcc prefix=~/local
$ make install

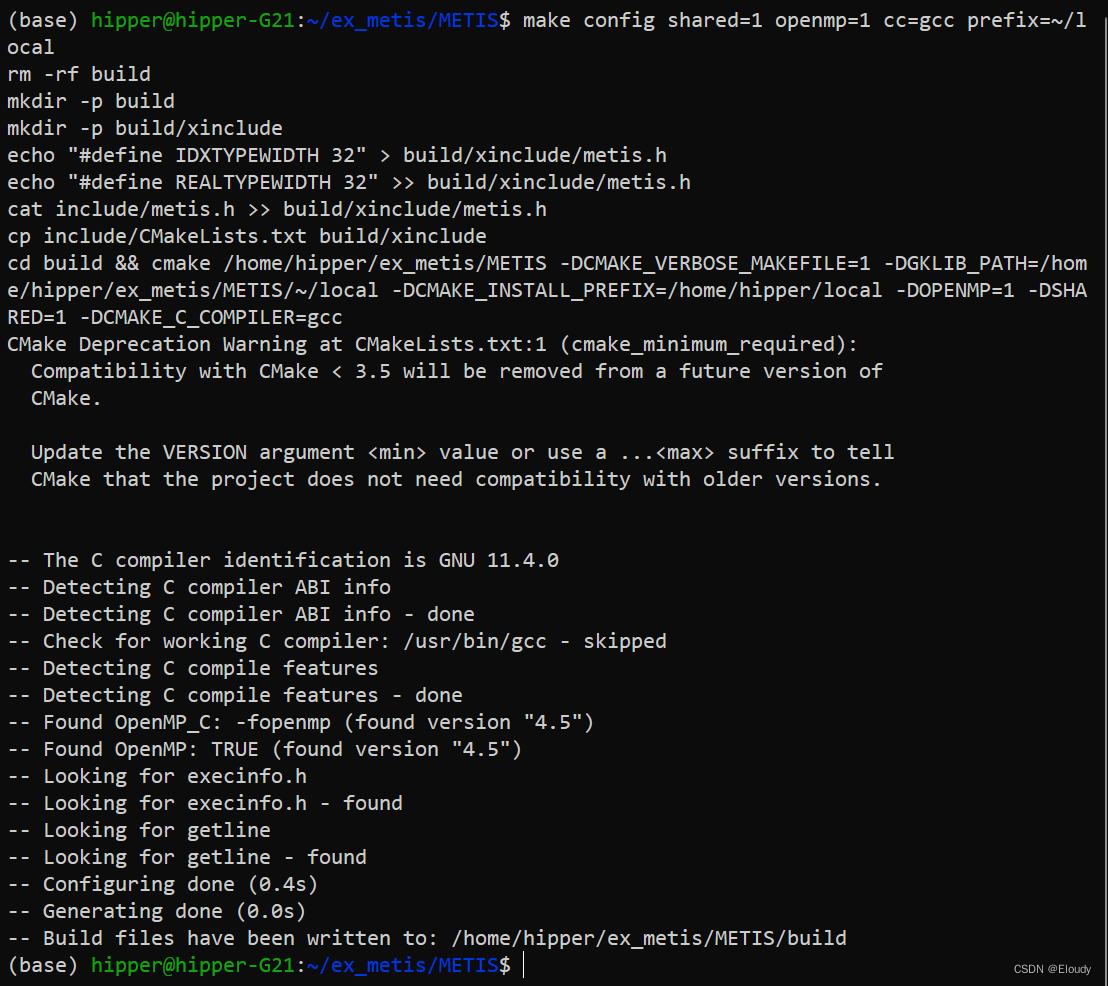

执行配置是的效果图:

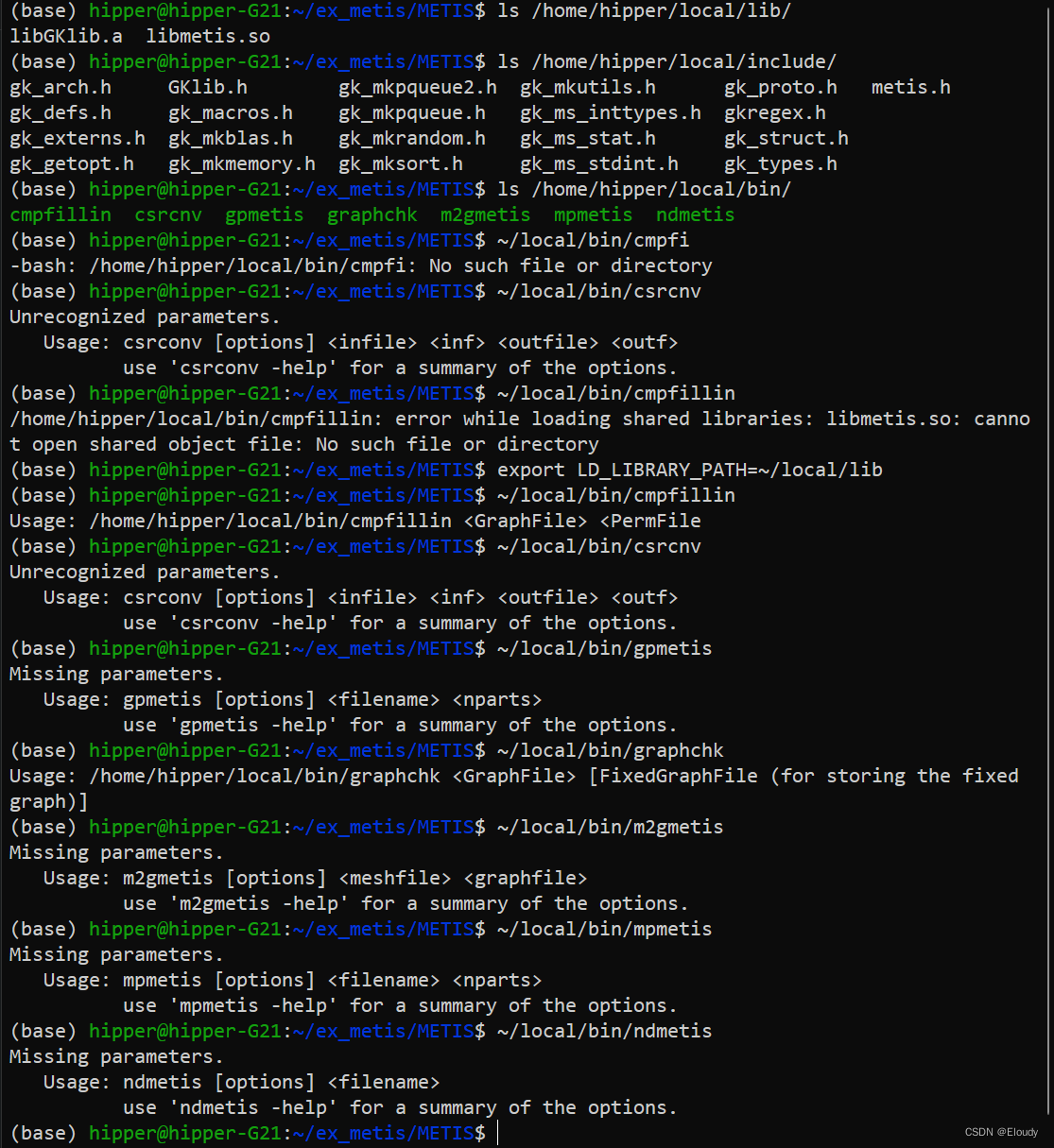

查看安装目录:

找不到动态库时,设置一下环境变量:

export LD_LIBRARY_PATH=~/local/lib

METIS 的手册:

https://github.com/Kleenelan/METIS/tree/master/manual

metis-5.1.0安装包和manual手册 2 What is new in version 5.0 4 2.1 Changes in the command-line programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 2.1.1 Migration issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 2.2 Changes in the API routines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 2.2.1 Migration issues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 3 Overview of METIS 6 3.1 Partitioning a graph . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 3.2 Alternate partitioning objectives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 3.3 Support for multi-phase and multi-physics computations . . . . . . . . . . . . . . . . . . . . . . . . 8 3.4 Partitioning a mesh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 3.5 Partitioning for heterogeneous parallel computing architectures . . . . . . . . . . . . . . . . . . . . . 8 3.6 Computing a fill-reducing ordering of a sparse matrix . . . . . . . . . . . . . . . . . . . . . . . . . . 9 3.7 Converting a mesh into a graph . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 4 METIS’ stand-alone programs 9 4.1 Input file formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 4.1.1 Graph file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 4.1.2 Mesh file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 4.1.3 Target partition weights file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 4.2 Output file formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 4.2.1 Partition file . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
