HTTPS认证三：用docker搭建nginx https服务器

最新推荐文章于 2025-04-07 11:20:14 发布

置顶 egbert果

最新推荐文章于 2025-04-07 11:20:14 发布

阅读量850

点赞数

分类专栏： HTTPS 文章标签： HTTPS OPENSSL 双向认证

本文链接：https://blog.youkuaiyun.com/egbert123/article/details/103832083

版权

HTTPS 专栏收录该内容

4 篇文章

订阅专栏

本文详细介绍了如何生成SSL证书，包括根证书、服务端证书和客户端证书，并指导如何配置Nginx实现HTTPS服务，涵盖证书的使用、镜像创建、容器运行及验证过程。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

1、生成证书

https://blog.youkuaiyun.com/egbert123/article/details/103831808

根证书	ca.crt	cacrt.pem
根证书签发的服务端证书	server.crt
服务端私钥	server.key
根证书签发的客户端证书	client.crt	clientcrt.pem
客户端私钥	client.key	clientkey.pem

2、准备文件

创建一个nginx目录，将server.crt, server.key, ca.crt文件放入该目录中

default.conf：

server {
    listen       80;
    server_name  localhost;

    #charset koi8-r;
    #access_log  /var/log/nginx/host.access.log  main;

    location / {
        root   /usr/share/nginx/html;
        index  index.html index.htm;
    }
    # redirect server error pages to the static page /50x.html
    #
    error_page   500 502 503 504  /50x.html;
    location = /50x.html {
        root   /usr/share/nginx/html;
    }

    # proxy the PHP scripts to Apache listening on 127.0.0.1:80
    #
    #location ~ \.php$ {
    #    proxy_pass   http://127.0.0.1;
    #}

    # pass the PHP scripts to FastCGI server listening on 127.0.0.1:9000
    #
    #location ~ \.php$ {
    #    root           html;
    #    fastcgi_pass   127.0.0.1:9000;
    #    fastcgi_index  index.php;
    #    fastcgi_param  SCRIPT_FILENAME  /scripts$fastcgi_script_name;
    #    include        fastcgi_params;
    #}

    # deny access to .htaccess files, if Apache's document root
    # concurs with nginx's one
    #
    #location ~ /\.ht {
    #    deny  all;
    #}
}
# Change the default configuration to enable ssl
server {
    listen 443 ssl;
    ssl_certificate /etc/ssl/server.crt;      //服务器证书
    ssl_certificate_key /etc/ssl/server.key;  //服务器key
    ssl_client_certificate /etc/ssl/ca.crt;  //验证客户端证书的CA证书
    ssl_verify_client on;        //双向认证on，单向认证off
    server_name 192.168.31.14;   //这里要server证书生成时一致，确保可以访问你的服务器
    server_tokens off;

    location / {
        root   /usr/share/nginx/html;
        index  index.html index.htm;
    }
    # redirect server error pages to the static page /50x.html
    #
    error_page   500 502 503 504  /50x.html;
    location = /50x.html {
        root   /usr/share/nginx/html;
    }
}

Dockerfile

FROM nginx:latest
COPY default.conf /etc/nginx/conf.d/
COPY server.crt /etc/ssl/
COPY server.key /etc/ssl
COPY ca.crt   /etc/ssl/

3、创建镜像

docker build -t nginx-ssl:latest .

4、运行容器

docker run -p 8123:80 -p 8124:443 --name nginx-ssl -tid nginx-ssl

此刻已经完成nginx https的搭建

5、验证

在浏览器输入https://192.168.31.14:8124 (我host的ip地址，根据自己环境)

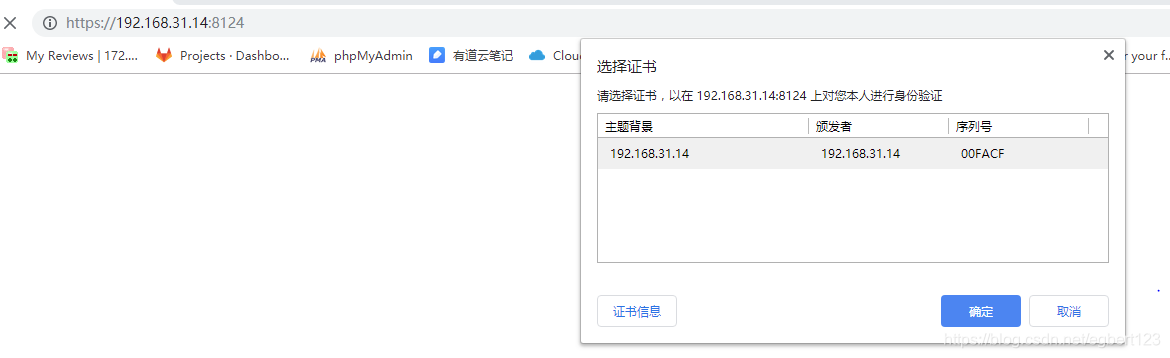

提示没有证书，我们将p12证书导入到浏览器后，重启浏览器即可
