使用metricbeat监控redis服务状态

基础环境

1. ELK系统部署完成
2. 安装redis服务

安装配置metricheat

1. 安装metricheat

 rpm -ivh metricbeat-7.5.1-x86_64.rpm

2. 修改metricbeat.yml配置文件

vi /etc/metricbeat/metricbeat.yml

#修改kibana和elasticsearch地址
setup.kibana:
  host: "192.168.129.136:5601"
output.elasticsearch:
  hosts: ["192.168.129.136:9200"]

3. 开启redis模块

cd /etc/metricbeat/modules.d
mv redis.yml.disabled redis.yml

4. 修改redis.yml文件,改为以下内容

# Module: redis
# Docs: https://www.elastic.co/guide/en/beats/metricbeat/7.5/metricbeat-module-redis.html

- module: redis
  metricsets:
    - info
    - keyspace
  period: 10s

  # Redis hosts
  hosts: ["127.0.0.1:6379"]

  # Network type to be used for redis connection. Default: tcp
  #network: tcp
  # Max number of concurrent connections. Default: 10
  #maxconn: 10
  # Redis AUTH password. Empty by default.
  #password: foobared

5. 设置完成后，启动服务

systemctl start metricbeat
systemctl enable metricbeat

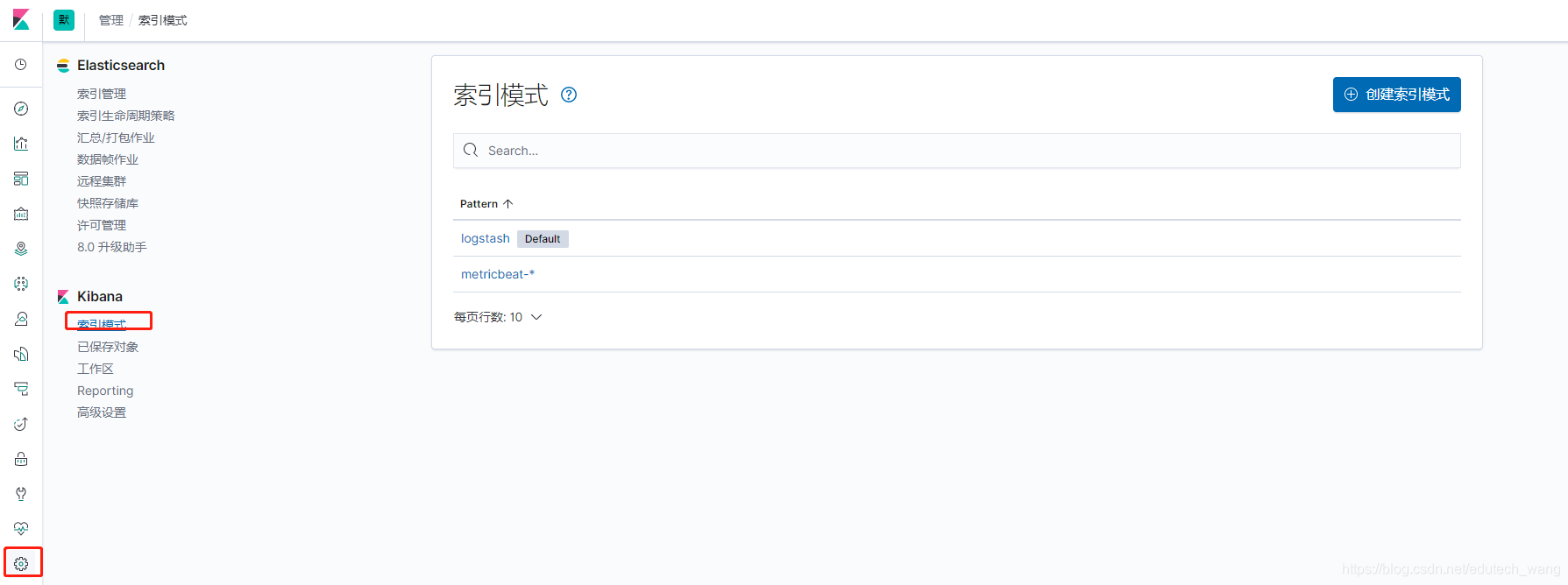

6. 添加索引

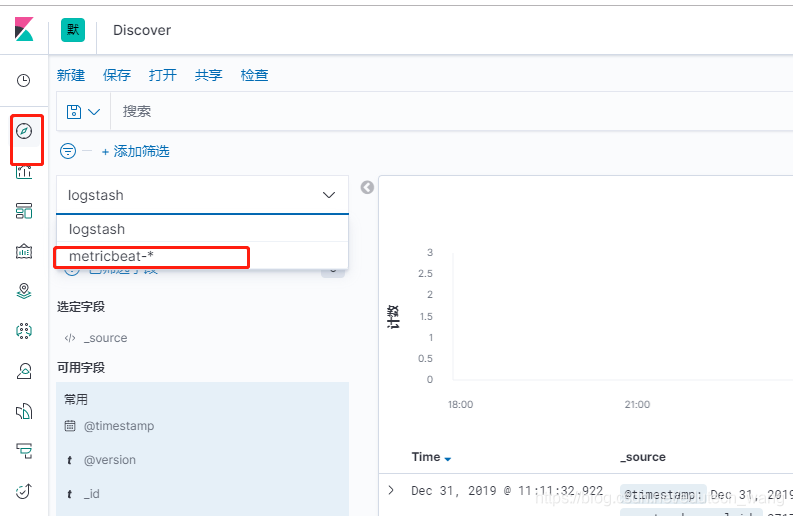

   添加完成之后，Discover会多出一个索引选项
