【Android -- 动画】属性动画

前言

属性动画（ValueAnimator）是 Android3.0 版本推出的动画框架，其功能和拓展性都很强。它不仅能实现所有 Tween 动画的功能，还有很强的拓展性，根本原因是属性动画从本质上已经完全摆脱了控件，虽然我们大多数情况下使用属性动画都是给控件做动画，但是属性动画的底层只是一个数值发生器，和控件没有半毛钱关系。

原理

在一定时间间隔内，通过不断对值进行改变、不断将该值赋给对象的属性(任意对象的任意属性)，从而实现该对象在该属性上的动画效果。

ValueAnimator 类

定义：属性动画机制中最核心的一个类。
ValueAnimator类中有3个重要方法：

• ofInt（int values）
• ofFloat（float values）
• ofObject（int values）

1. 效果图

2. 代码

public class MainActivity extends AppCompatActivity {
    private Button mButton;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        mButton = findViewById(R.id.button);

        ValueAnimator valueAnimator = ValueAnimator.ofInt(mButton.getLayoutParams().width, 500);

        valueAnimator.setDuration(2000);

        valueAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
            @Override
            public void onAnimationUpdate(ValueAnimator animator) {

                int currentValue = (Integer) animator.getAnimatedValue();

                mButton.getLayoutParams().width = currentValue;

                mButton.requestLayout();

            }
        });
        valueAnimator.start();
    }
}

ObjectAnimator 类

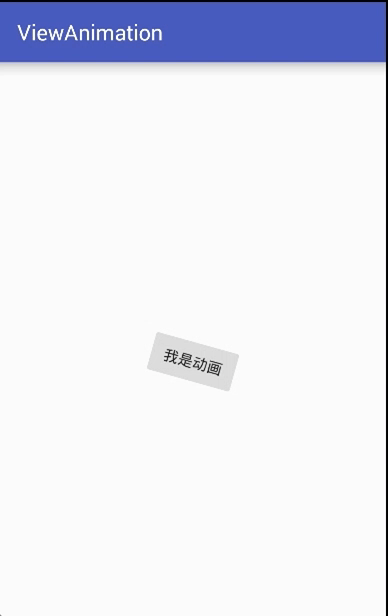

1. 效果图

2. 代码

public class MainActivity extends AppCompatActivity {
    private Button mButton;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        mButton = findViewById(R.id.button);

        ObjectAnimator animator = ObjectAnimator.ofFloat(mButton, "rotation", 0f, 360f);
        animator.setDuration(5000);
        animator.start();
    }
}

手势检测（GestureDetector）

实例：轨迹球

1. 效果图

   在开发 Android 手机应用过程中，可能需要对一些手势作出响应，如：单击、双击、长按、滑动、缩放等。这些都是很常用的手势。

2. 布局文件

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity">

    <com.scarf.demo007.widget.FailingBall
        android:layout_width="match_parent"
        android:layout_height="match_parent"/>

</LinearLayout>

3.代码

/**
 * Created on 2019/2/12 15:09
 * 轨迹球
 * @author Scarf Gong
 */
public class FailingBall extends View {
    private int mWidth;             // 宽度
    private int mHeight;            // 高度

    private float mStartX = 0;        // 小方块开始位置X
    private float mStartY = 0;        // 小方块开始位置Y
    private float mEdgeLength = 200;  // 边长
    private RectF mRect = new RectF(mStartX, mStartY, mStartX + mEdgeLength, mStartY + mEdgeLength);

    private float mFixedX = 0;  // 修正距离X
    private float mFixedY = 0;  // 修正距离Y

    private Paint mPaint;

    private GestureDetector mGestureDetector;
    private boolean mCanFail = false;   // 是否可以拖动

    private float mSpeedX = 0;
    private float mSpeedY = 0;

    private Boolean mXFixed = false;
    private Boolean mYFixed = false;

    private Bitmap mBitmap;

    public FailingBall(Context context) {
        this(context,null);
    }

    public FailingBall(Context context, @Nullable AttributeSet attrs) {
        this(context, attrs,0);
    }

    public FailingBall(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);

        mGestureDetector = new GestureDetector(context, mSimpleOnGestureListener);

        mPaint = new Paint();
        mPaint.setColor(Color.BLACK);
        mPaint.setAntiAlias(true);

        mBitmap = BitmapFactory.decodeResource(context.getResources(), R.drawable.ball);
    }

    @Override
    protected void onSizeChanged(int w, int h, int oldw, int oldh) {
        super.onSizeChanged(w, h, oldw, oldh);
        mWidth = w;
        mHeight = h;
        mStartX = (w - mEdgeLength) / 2;
        mStartY = (h - mEdgeLength) / 2;
        refreshRectByCurrentPoint();
    }

    @Override
    protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);
        canvas.drawOval(mRect, mPaint);
        canvas.drawBitmap(mBitmap, new Rect(0, 0, mBitmap.getWidth(), mBitmap.getHeight()),
                mRect, mPaint);
    }

    // 每 100 ms 更新一次
    private Handler mHandler = new Handler();
    private Runnable mRunnable = new Runnable() {
        @Override
        public void run() {
            mStartX = mStartX + mSpeedX / 30;
            mStartY = mStartY + mSpeedY / 30;
            //mSpeedX = mSpeedX > 0 ? mSpeedX - 10 : mSpeedX + 10;
            //mSpeedY = mSpeedY > 0 ? mSpeedY - 10 : mSpeedY + 10;
            mSpeedX *= 0.97;
            mSpeedY *= 0.97;
            if (Math.abs(mSpeedX) < 10) {
                mSpeedX = 0;
            }
            if (Math.abs(mSpeedY) < 10) {
                mSpeedY = 0;
            }
            if (refreshRectByCurrentPoint()) {
                // 转向
                if (mXFixed) {
                    mSpeedX = -mSpeedX;
                }
                if (mYFixed) {
                    mSpeedY = -mSpeedY;
                }
            }
            invalidate();
            if (mSpeedX == 0 && mSpeedY == 0) {
                mHandler.removeCallbacks(this);
                return;
            }
            mHandler.postDelayed(this, 33);
        }
    };

    private GestureDetector.SimpleOnGestureListener mSimpleOnGestureListener = new
            GestureDetector.SimpleOnGestureListener() {
                @Override
                public boolean onFling(MotionEvent e1, MotionEvent e2, float velocityX, float
                        velocityY) {
                    Log.e("Failing", velocityX + " : " + velocityY);
                    if (!mCanFail) return false;
                    mSpeedX = velocityX;
                    mSpeedY = velocityY;
                    mHandler.removeCallbacks(mRunnable);
                    mHandler.postDelayed(mRunnable, 0);
                    return super.onFling(e1, e2, velocityX, velocityY);
                }
            };

    @Override
    public boolean onTouchEvent(MotionEvent event) {
        mGestureDetector.onTouchEvent(event);
        switch (event.getActionMasked()) {
            case MotionEvent.ACTION_DOWN:
                if (contains(event.getX(), event.getY())) {
                    mCanFail = true;
                    mFixedX = event.getX() - mStartX;
                    mFixedY = event.getY() - mStartY;
                    mSpeedX = 0;
                    mSpeedY = 0;
                } else {
                    mCanFail = false;
                }
                break;
            case MotionEvent.ACTION_MOVE:
                if (!mCanFail) {
                    break;
                }
                mStartX = event.getX() - mFixedX;
                mStartY = event.getY() - mFixedY;
                if (refreshRectByCurrentPoint()) {
                    mFixedX = event.getX() - mStartX;
                    mFixedY = event.getY() - mStartY;
                }
                invalidate();
                break;
        }
        return true;
    }

    private Boolean contains(float x, float y) {
        float radius = mEdgeLength / 2;
        float centerX = mRect.left + radius;
        float centerY = mRect.top + radius;
        return Math.sqrt(Math.pow(x - centerX, 2) + Math.pow(y - centerY, 2)) <= radius;
    }

    /**
     * 刷新方块位置
     *
     * @return true 表示修正过位置, false 表示没有修正过位置
     */
    private Boolean refreshRectByCurrentPoint() {
        Boolean fixed = false;
        mXFixed = false;
        mYFixed = false;
        // 修正坐标
        if (mStartX < 0) {
            mStartX = 0;
            fixed = true;
            mXFixed = true;
        }
        if (mStartY < 0) {
            mStartY = 0;
            fixed = true;
            mYFixed = true;
        }
        if (mStartX + mEdgeLength > mWidth) {
            mStartX = mWidth - mEdgeLength;
            fixed = true;
            mXFixed = true;
        }
        if (mStartY + mEdgeLength > mHeight) {
            mStartY = mHeight - mEdgeLength;
            fixed = true;
            mYFixed = true;
        }
        mRect.left = mStartX;
        mRect.top = mStartY;
        mRect.right = mStartX + mEdgeLength;
        mRect.bottom = mStartY + mEdgeLength;
        return fixed;
    }
}
