Recylerview添加分割线与自定义分割线

本文介绍了如何在 Android 开发中使用 RecyclerView 添加默认及自定义分割线。通过代码示例展示了两种分割线的实现方法,包括使用系统提供的 DividerItemDecoration 类以及自定义 drawable 资源文件来实现更灵活的视觉效果。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

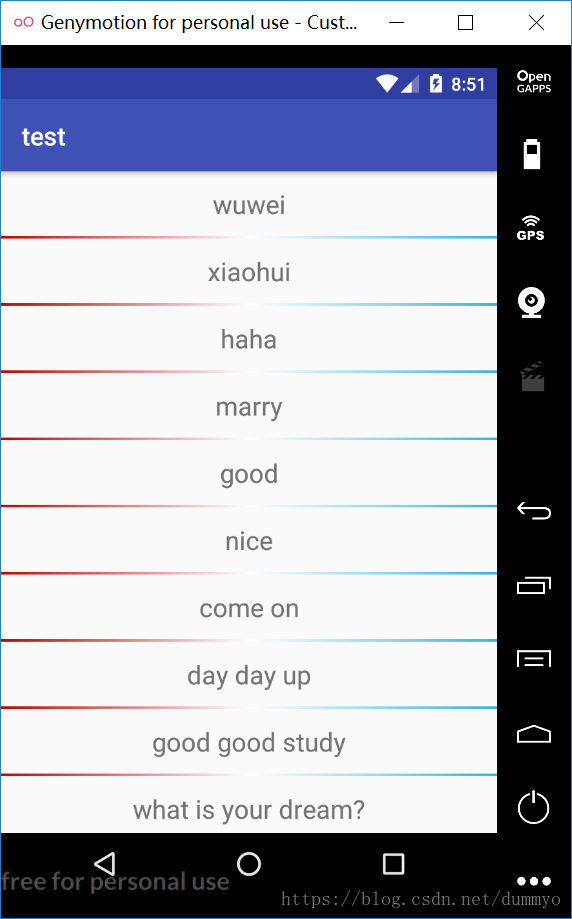

效果图:

默认分割线:                                    自定义分割线:

看代码:

1. 添加默认分割线:

mRecylerView.addItemDecoration(new DividerItemDecoration(this,DividerItemDecoration.VERTICAL));

2. 自定义分割线(分两步,①创建drawable文件 ②为recylerview添加drawable分割线)

①创建drawable

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android" android:shape="rectangle">
    <gradient android:startColor="@android:color/holo_red_dark"
              android:centerColor="@android:color/white"
              android:endColor="@android:color/holo_blue_light"/>
    <size android:height="2dp"/>
</shape>

②创建drawable对象,给recylerview添加

DividerItemDecoration dividerItemDecoration = new DividerItemDecoration(this, DividerItemDecoration.VERTICAL);
dividerItemDecoration.setDrawable(ResourcesCompat.getDrawable(getResources(), R.drawable.recylerview_divider, null));
mRecylerView.addItemDecoration(dividerItemDecoration);
