1.访问控制

在location段修改以下配置

  location / {
           allow 192.168.225.129/32;   //允许访问
           deny  192.168.225.130/32;  //拒绝访问
           root   html;
           index  index.html index.htm;
       }

验证

//在192.168.225.129上访问192.168.225.128
[root@localhost ~]# curl 192.168.225.128
<!DOCTYPE html>
<html>
<head>
<title>Welcome to nginx!</title>
<style>
   body {
       width: 35em;
       margin: 0 auto;
       font-family: Tahoma, Verdana, Arial, sans-serif;
   }
</style>
</head>
<body>
<h1>Welcome to nginx!</h1>
<p>If you see this page, the nginx web server is successfully installed and
working. Further configuration is required.</p>

<p>For online documentation and support please refer to
<a href="http://nginx.org/">nginx.org</a>.<br/>
Commercial support is available at
<a href="http://nginx.com/">nginx.com</a>.</p>
<p><em>Thank you for using nginx.</em></p>
</body>
</html>
//再到192.168.225.130上访问192.168.225.128
[root@localhost ~]# curl 192.168.225.128
<html>
<head><title>403 Forbidden</title></head>
<body bgcolor="white">
<center><h1>403 Forbidden</h1></center>
<hr><center>nginx/1.14.0</center>
</body>
</html>

安装htpasswd命令，并生成用户和密码

[root@hxdserver ~]# yum -y install httpd-tools
[root@hxdserver ~]# touch /usr/local/nginx/pass
[root@hxdserver ~]# htpasswd -c -m /usr/local/nginx/pass hxd
New password:
Re-type new password:
Adding password for user hxd
[root@hxdserver ~]# cat /usr/local/nginx/pass
hxd:$apr1$Hi6M8UsP$e/SxFgGkizk0te.Xcfxvl.
[root@hxdserver ~]# vim /usr/local/nginx/conf/nginx.conf
//修改如下配置
        location / {
            auth_basic "hello";//欢迎信息
            auth_basic_user_file "/usr/local/nginx/pass";  //放置用户密码的文件
            root   html;
            index  index.html index.htm;
        }

[root@hxdserver ~]# nginx -t
nginx: the configuration file /usr/local/nginx/conf/nginx.conf syntax is ok
nginx: configuration file /usr/local/nginx/conf/nginx.conf test is successful
[root@hxdserver ~]# nginx -s reload

验证在这里插入图片描述

配置证书
192.168.225.129(CA)
生成一对密钥

[root@localhost CA]# (umask 077;openssl genrsa -out private/cakey.pem 2048)
Generating RSA private key, 2048 bit long modulus  //生成密钥
...............................................+++
......................................................................................................................+++
e is 65537 (0x10001)
[root@localhost CA]# openssl rsa -in private/cakey.pem -pubout  //提取公钥
writing RSA key
-----BEGIN PUBLIC KEY-----
MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAyGJz+7lnD3VAXUSRlRzb
c7RhQ3nUu5aSp2un4hpxzvuNmRNb+bCS+vB3x8Lp7ovTbCWbGh491sQ1SP1Dm/8w
3LLRJOcqyh8GMI+Z1XXQaEkJqNpf2rtHcahVSl28x/XYu/NEbVTIHQKDkB8qxZ36
QREfErnRwgp0CFQji9b5vpZuxv2X4e1C6NxHlDO5o38OflGAhgeAWw66gy7wMiRn
Tg2bURcEIIpx5AouYCjuHYHtRgx1eHHjc7tElhv067vp/PLnblv3z6Jl9vF7awtk
sGO3NNvIkKSG80hkKuoq+USbiAgaI7koZgCLAOznflTq8RxiBQQIwNlDbQsgdh82
PQIDAQAB
-----END PUBLIC KEY-----
[root@localhost CA]# openssl req -new -x509 -key private/cakey.pem -out cacert.pem -days 7
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:CN   //国家
State or Province Name (full name) []:HB   //省
Locality Name (eg, city) [Default City]:WH  //市
Organization Name (eg, company) [Default Company Ltd]:www.hxd.com  //公司域名
Organizational Unit Name (eg, section) []:www.hxd.com   //公司域名
Common Name (eg, your name or your server's hostname) []:www.hxd.com
Email Address []:a@b.com  //邮件

192.168.225.128（nginx服务器）

[root@hxdserver ~]# cd /usr/local/nginx/
[root@hxdserver nginx]# mkdir ssl
[root@hxdserver nginx]# cd ssl
[root@hxdserver ssl]# (umask 077;openssl genrsa -out nginx.key 2048)
Generating RSA private key, 2048 bit long modulus
.............................................+++
...........................+++
e is 65537 (0x10001)
[root@hxdserver ssl]# openssl req -new -key nginx.key -days 7 -out nginx.csr
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:CN
State or Province Name (full name) []:HB
Locality Name (eg, city) [Default City]:WH
Organization Name (eg, company) [Default Company Ltd]:www.hxd.com
Organizational Unit Name (eg, section) []:www.hxd.com
Common Name (eg, your name or your server's hostname) []:nginx
Email Address []:a@b.com

Please enter the following 'extra' attributes
to be sent with your certificate request
A challenge password []:123456
An optional company name []:nginx
[root@hxdserver ssl]# scp nginx.csr root@192.168.225.129:/root
The authenticity of host '192.168.225.129 (192.168.225.129)' can't be established.
ECDSA key fingerprint is SHA256:Y7vZS5XBplS7QSCZD8jVqIOx/EOr2hATD+05juJnWyc.
ECDSA key fingerprint is MD5:f2:5b:29:bc:55:53:95:ea:81:c7:4c:36:80:e3:5d:99.
Are you sure you want to continue connecting (yes/no)? 1^Hyes
Please type 'yes' or 'no': yes
Warning: Permanently added '192.168.225.129' (ECDSA) to the list of known hosts.
root@192.168.225.129's password:  //将证书发送给CA签署
nginx.csr                     100% 1090     1.3MB/s   00:00

192.168.225.129

[root@localhost CA]# openssl x509 -text -in cacert.pem  //读取公钥的内容
Certificate:
    Data:
        Version: 3 (0x2)
        Serial Number:
            8c:3b:e9:6d:58:0a:71:b2
    Signature Algorithm: sha256WithRSAEncryption
        Issuer: C=CN, ST=HB, L=WH, O=www.hxd.com, OU=www.hxd.com, CN=www.hxd.com/emailAddress=a@b.com
        Validity
            Not Before: Oct 25 03:06:56 2018 GMT
            Not After : Nov  1 03:06:56 2018 GMT
        Subject: C=CN, ST=HB, L=WH, O=www.hxd.com, OU=www.hxd.com, CN=www.hxd.com/emailAddress=a@b.com
        Subject Public Key Info:
            Public Key Algorithm: rsaEncryption
                Public-Key: (2048 bit)
                Modulus:
                    00:c8:62:73:fb:b9:67:0f:75:40:5d:44:91:95:1c:
                    db:73:b4:61:43:79:d4:bb:96:92:a7:6b:a7:e2:1a:
                    71:ce:fb:8d:99:13:5b:f9:b0:92:fa:f0:77:c7:c2:
                    e9:ee:8b:d3:6c:25:9b:1a:1e:3d:d6:c4:35:48:fd:
                    43:9b:ff:30:dc:b2:d1:24:e7:2a:ca:1f:06:30:8f:
                    99:d5:75:d0:68:49:09:a8:da:5f:da:bb:47:71:a8:
                    55:4a:5d:bc:c7:f5:d8:bb:f3:44:6d:54:c8:1d:02:
                    83:90:1f:2a:c5:9d:fa:41:11:1f:12:b9:d1:c2:0a:
                    74:08:54:23:8b:d6:f9:be:96:6e:c6:fd:97:e1:ed:
                    42:e8:dc:47:94:33:b9:a3:7f:0e:7e:51:80:86:07:
                    80:5b:0e:ba:83:2e:f0:32:24:67:4e:0d:9b:51:17:
                    04:20:8a:71:e4:0a:2e:60:28:ee:1d:81:ed:46:0c:
                    75:78:71:e3:73:bb:44:96:1b:f4:eb:bb:e9:fc:f2:
                    e7:6e:5b:f7:cf:a2:65:f6:f1:7b:6b:0b:64:b0:63:
                    b7:34:db:c8:90:a4:86:f3:48:64:2a:ea:2a:f9:44:
                    9b:88:08:1a:23:b9:28:66:00:8b:00:ec:e7:7e:54:
                    ea:f1:1c:62:05:04:08:c0:d9:43:6d:0b:20:76:1f:
                    36:3d
                Exponent: 65537 (0x10001)
        X509v3 extensions:
            X509v3 Subject Key Identifier:
                CD:94:FD:1D:0D:AA:38:BC:F0:DD:5C:9C:AD:C6:42:DE:13:F0:33:B9
            X509v3 Authority Key Identifier:
                keyid:CD:94:FD:1D:0D:AA:38:BC:F0:DD:5C:9C:AD:C6:42:DE:13:F0:33:B9

            X509v3 Basic Constraints:
                CA:TRUE
    Signature Algorithm: sha256WithRSAEncryption
         37:62:0c:06:d6:97:ac:fc:47:6d:b0:38:d3:aa:14:7a:94:77:
         b2:ff:e6:1a:21:9c:ed:89:db:cd:bd:c6:e1:cd:46:fd:ff:16:
         8d:ff:46:27:a1:12:8b:03:81:90:52:38:9c:78:3c:d2:96:a7:
         15:b6:c8:bd:ca:cb:ae:75:10:8c:ab:3a:fe:a6:94:31:47:f3:
         84:d3:8c:0f:be:92:55:1d:1b:b2:e8:7c:68:3f:dc:80:5f:3b:
         b5:7e:89:06:b1:ba:ea:8e:0e:a4:e8:48:63:7a:30:c9:27:5f:
         5c:35:64:18:69:e0:a6:8d:f7:1a:ec:44:91:c0:65:3e:de:c4:
         aa:48:cd:b0:9a:f6:ce:9d:d6:21:74:7d:9c:6d:59:43:a4:65:
         8b:a3:f7:e2:dc:fe:30:d2:ee:8a:a6:24:34:14:cd:34:93:55:
         a5:27:35:63:48:9e:c4:af:48:7d:c4:8e:79:10:59:11:24:ac:
         02:68:47:c6:21:88:91:c9:07:d4:71:08:d7:97:21:5b:b6:4f:
         94:ac:16:16:d2:10:b5:88:aa:d5:d6:50:20:4c:95:4a:7e:2b:
         13:0e:37:fa:af:8e:50:03:0d:86:1d:60:12:af:ba:3f:01:81:
         30:f9:6d:bb:12:79:e6:3a:79:7e:37:e4:bf:75:30:d7:e9:5f:
         86:a1:98:9a
-----BEGIN CERTIFICATE-----
MIID1zCCAr+gAwIBAgIJAIw76W1YCnGyMA0GCSqGSIb3DQEBCwUAMIGBMQswCQYD
VQQGEwJDTjELMAkGA1UECAwCSEIxCzAJBgNVBAcMAldIMRQwEgYDVQQKDAt3d3cu
aHhkLmNvbTEUMBIGA1UECwwLd3d3Lmh4ZC5jb20xFDASBgNVBAMMC3d3dy5oeGQu
Y29tMRYwFAYJKoZIhvcNAQkBFgdhQGIuY29tMB4XDTE4MTAyNTAzMDY1NloXDTE4
MTEwMTAzMDY1NlowgYExCzAJBgNVBAYTAkNOMQswCQYDVQQIDAJIQjELMAkGA1UE
BwwCV0gxFDASBgNVBAoMC3d3dy5oeGQuY29tMRQwEgYDVQQLDAt3d3cuaHhkLmNv
bTEUMBIGA1UEAwwLd3d3Lmh4ZC5jb20xFjAUBgkqhkiG9w0BCQEWB2FAYi5jb20w
ggEiMA0GCSqGSIb3DQEBAQUAA4IBDwAwggEKAoIBAQDIYnP7uWcPdUBdRJGVHNtz
tGFDedS7lpKna6fiGnHO+42ZE1v5sJL68HfHwunui9NsJZsaHj3WxDVI/UOb/zDc
stEk5yrKHwYwj5nVddBoSQmo2l/au0dxqFVKXbzH9di780RtVMgdAoOQHyrFnfpB
ER8SudHCCnQIVCOL1vm+lm7G/Zfh7ULo3EeUM7mjfw5+UYCGB4BbDrqDLvAyJGdO
DZtRFwQginHkCi5gKO4dge1GDHV4ceNzu0SWG/Tru+n88uduW/fPomX28XtrC2Sw
Y7c028iQpIbzSGQq6ir5RJuICBojuShmAIsA7Od+VOrxHGIFBAjA2UNtCyB2HzY9
AgMBAAGjUDBOMB0GA1UdDgQWBBTNlP0dDao4vPDdXJytxkLeE/AzuTAfBgNVHSME
GDAWgBTNlP0dDao4vPDdXJytxkLeE/AzuTAMBgNVHRMEBTADAQH/MA0GCSqGSIb3
DQEBCwUAA4IBAQA3YgwG1pes/EdtsDjTqhR6lHey/+YaIZztidvNvcbhzUb9/xaN
/0YnoRKLA4GQUjiceDzSlqcVtsi9ysuudRCMqzr+ppQxR/OE04wPvpJVHRuy6Hxo
P9yAXzu1fokGsbrqjg6k6EhjejDJJ19cNWQYaeCmjfca7ESRwGU+3sSqSM2wmvbO
ndYhdH2cbVlDpGWLo/fi3P4w0u6KpiQ0FM00k1WlJzVjSJ7Er0h9xI55EFkRJKwC
aEfGIYiRyQfUcQjXlyFbtk+UrBYW0hC1iKrV1lAgTJVKfisTDjf6r45QAw2GHWAS
r7o/AYEw+W27EnnmOnl+N+S/dTDX6V+GoZia
-----END CERTIFICATE-----
[root@localhost CA]# touch index.txt && echo 01 > serial
[root@localhost CA]# openssl ca -in /root/nginx.csr -out nginx.crt -days 7  //生成7天的自签署证书
Using configuration from /etc/pki/tls/openssl.cnf
Check that the request matches the signature
Signature ok
Certificate Details:
        Serial Number: 1 (0x1)
        Validity
            Not Before: Oct 25 03:10:18 2018 GMT
            Not After : Nov  1 03:10:18 2018 GMT
        Subject:
            countryName               = CN
            stateOrProvinceName       = HB
            organizationName          = www.hxd.com
            organizationalUnitName    = www.hxd.com
            commonName                = nginx
            emailAddress              = a@b.com
        X509v3 extensions:
            X509v3 Basic Constraints:
                CA:FALSE
            Netscape Comment:
                OpenSSL Generated Certificate
            X509v3 Subject Key Identifier:
                BC:B4:42:0C:3B:3A:01:C0:2D:F1:64:24:1B:F1:A5:B2:55:F4:8C:20
            X509v3 Authority Key Identifier:
                keyid:CD:94:FD:1D:0D:AA:38:BC:F0:DD:5C:9C:AD:C6:42:DE:13:F0:33:B9

Certificate is to be certified until Nov  1 03:10:18 2018 GMT (7 days)
Sign the certificate? [y/n]:y


1 out of 1 certificate requests certified, commit? [y/n]y
Write out database with 1 new entries
Data Base Updated
[root@localhost CA]# scp nginx.crt root@192.168.225.128:/usr/local/nginx/ssl
The authenticity of host '192.168.225.128 (192.168.225.128)' can't be established.
ECDSA key fingerprint is SHA256:Pdsa5HfH0daA6UHMZn03MdcdupayO3PaI73KCb4Aqsc.
ECDSA key fingerprint is MD5:62:b6:4c:22:3b:3c:c6:de:36:71:11:03:aa:20:ea:a4.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added '192.168.225.128' (ECDSA) to the list of known hosts.
root@192.168.225.128's password:  //将签署好的证书再发送给nginx服务器
nginx.crt                     100% 4565   529.3KB/s   00:00

192.168.225.128（nginx服务器）

[root@hxdserver ssl]#
[root@hxdserver ssl]# ls
nginx.crt  nginx.csr  nginx.key
[root@hxdserver ssl]# vim /usr/local/nginx/conf/nginx.conf
    server {
        listen       443 ssl;
        server_name  localhost;

        ssl_certificate      /usr/local/nginx/ssl/nginx.crt;
        ssl_certificate_key  /usr/local/nginx/ssl/nginx.key;

        ssl_session_cache    shared:SSL:1m;
        ssl_session_timeout  5m;

        ssl_ciphers  HIGH:!aNULL:!MD5;
        ssl_prefer_server_ciphers  on;

        location / {
            root   html;
            index  index.html index.htm;
        }

[root@hxdserver ssl]# nginx -t
nginx: the configuration file /usr/local/nginx/conf/nginx.conf syntax is ok
nginx: configuration file /usr/local/nginx/conf/nginx.conf test is successful
[root@hxdserver ssl]# nginx -s reload

验证
在这里插入图片描述

开启状态页面
修改配置文件

[root@hxdserver ~]# vim /usr/local/nginx/conf/nginx.conf
    location /status {
           stub_status on;
           allow 192.168.0.0/16;
           deny all;
       }
[root@hxdserver ~]# nginx -t
nginx: the configuration file /usr/local/nginx/conf/nginx.conf syntax is ok
nginx: configuration file /usr/local/nginx/conf/nginx.conf test is successful
[root@hxdserver ~]# nginx -s reload

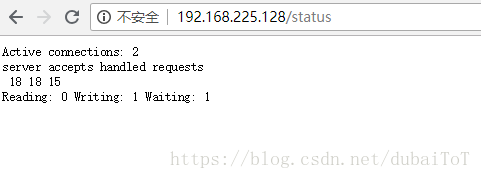

测试
Active connections:当前所有处于打开状态的连接数
accepts：总共处理了多少个连接
handled：成功创建多少次握手
requests：总共处理了多少个请求
Reading:nginx读取到客户端的header信息数，表示正处于接受请求状态的连接数
Writing:nginx返回给客户端的header信息数，表示请求已经接收完成，且正处于处理请求或发送响应的过程中的连接数
Waiting:开启keep-alive的情况下，这个值等于active - (reading+writing),意思就是nginx已处理完正在等候下一次请求指令的驻留连接

rewrite重写url

[root@hxdserver ~]# vim /usr/local/nginx/conf/nginx.conf
   location /aaa {
           root   /opt;
           index index.html;
           rewrite ^/aaa/(.*\.html) /bbb/$1 last; //将/aaa的url重写成/bbb的，接上last就会继续往后匹配，如果后面没有 那么将会访问/bbb下的网站

       }
       location /bbb {

           root   /opt;
           index  index.html index.htm;
           rewrite ^/bbb/(.*\.html) /ccc/$1 break;      //将/bbb的url重写成/ccc的，并停止匹配
       }

[root@hxdserver opt]# mkdir /opt/{aaa,bbb,ccc}
[root@hxdserver opt]# ls
aaa  bbb  ccc
[root@hxdserver opt]# echo 'xixi' > /opt/aaa/a.html
[root@hxdserver opt]# echo 'haha' > /opt/bbb/a.html
[root@hxdserver opt]# echo 'xiha' > /opt/ccc/a.html
[root@hxdserver opt]# cd
[root@hxdserver ~]# nginx -t
nginx: the configuration file /usr/local/nginx/conf/nginx.conf syntax is ok
nginx: configuration file /usr/local/nginx/conf/nginx.conf test is successful
[root@hxdserver ~]# nginx -s reload

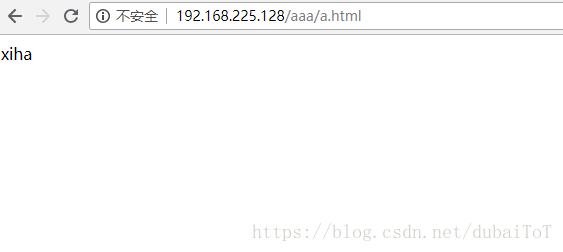

验证访问192.168.225.128/aaa/a.html
在这里插入图片描述
重写后访问到的是ccc/a.html，而不是aaa/a.html
