jenkins+ansible+gitlab自动化部署nginx

环境信息：

jenkins + gitlab + ansible  一台云主机 4u8g  域名：www.gitlib.com   在hosts 里定义

要部署nginx的机器     配置 4u4g 云主机， 域名：www.bbb.com  在hosts 里定义

ssh 的端口为 2222

nginx_job界面配置：

命令行：

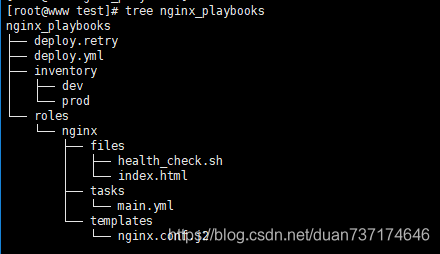

目录结构

一、创建nginx_playbooks项目

mkdir nginx_playbooks

cd nginx_playbooks

mdkir {inventory,roles} -p

二、创建yml执行文件

vim deploy.yml

- hosts: "www.bbb.com"
  gather_facts: true
  remote_user: root
  roles:
    - nginx

三、创建inventory变量

cd inventory

vim dev

[nginx]
www.bbb.com ansible_ssh_user="root" ansible_ssh_port=2222
[nginx:vars]
server_name=www.bbb.com
port=80
user=duan
worker_processes=4
max_open_file=65505
root=/www

vim prod

[nginx]
www.bbb.com
ansible_ssh_user="root"
ansible_ssh_port=2222
[nginx:vars]
server_name=www.bbb.com
port=80
user=duan
worker_processes=4
max_open_file=65505
root=/www

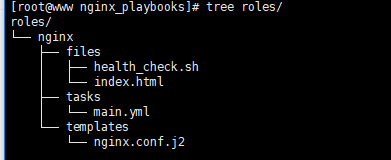

roles 目录结构

mkdir nginx

mkdir nginx{files,tasks,templates} -p

四、创建检测状态脚本

vim health_check.sh
#!/bin/sh

URL=$1

curl -Is http://$URL > /dev/null && echo "The remote side is healthy" || echo "The remote side is failed, please check"

五、创建访问界面

 vim index.html
This is my first website
六、创建main工作文件

vim main.yml

- name: Disable system firewall
  service: name=firewalld state=stopped

- name: Disable SELINUX
  selinux: state=disabled

- name: setup nginx yum source
  yum: pkg=epel-release state=latest

- name: install nginx
  yum: pkg=nginx state=installed

- name: write then nginx config file
  template: src=roles/nginx/templates/nginx.conf.j2 dest=/etc/nginx/nginx.conf

- name: create nginx root folder
  file: 'path={{ root }} state=directory owner={{ user }} group={{ user }} mode=0755'

- name: copy index.html to remote
  copy: 'remote_src=no src=roles/nginx/files/index.html dest=/www/index.html mode=0755'

- name: copy health_check.sh to remote
  copy: 'remote_src=no src=roles/nginx/files/health_check.sh dest=/www/health_check.sh mode=0755'

- name: restart nginx service
  service: name=nginx state=restarted

- name: run the health check locally
  shell: "sh /www/health_check.sh {{ server_name }}"
  delegate_to: www.bbb.com
  register: health_status
- debug: msg="{{ health_status.stdout }}"


七、创建模板文件

vim  nginx.conf.j2
# For more information on configuration, see:
user              {{ user }};
worker_processes  {{ worker_processes }};

error_log  /var/log/nginx/error.log;

pid        /var/run/nginx.pid;

events {
    worker_connections  {{ max_open_file }};
}


http {
    include       /etc/nginx/mime.types;
    default_type  application/octet-stream;

    log_format  main  '$remote_addr - $remote_user [$time_local] "$request" '
                      '$status $body_bytes_sent "$http_referer" '
                      '"$http_user_agent" "$http_x_forwarded_for"';

    access_log  /var/log/nginx/access.log  main;

    sendfile        on;
    #tcp_nopush     on;

    #keepalive_timeout  0;
    keepalive_timeout  65;

    #gzip  on;

    # Load config files from the /etc/nginx/conf.d directory
    # The default server is in conf.d/default.conf
    #include /etc/nginx/conf.d/*.conf;
    server {
        listen       {{ port }} default_server;
        server_name  {{ server_name }};

        #charset koi8-r;

        #access_log  logs/host.access.log  main;

        location / {
            root   {{ root }};
            index  index.html index.htm;
        }

        error_page  404              /404.html;
        location = /404.html {
            root   /usr/share/nginx/html;
        }

        # redirect server error pages to the static page /50x.html
        #
        error_page   500 502 503 504  /50x.html;
        location = /50x.html {
            root   /usr/share/nginx/html;
        }

    }

}

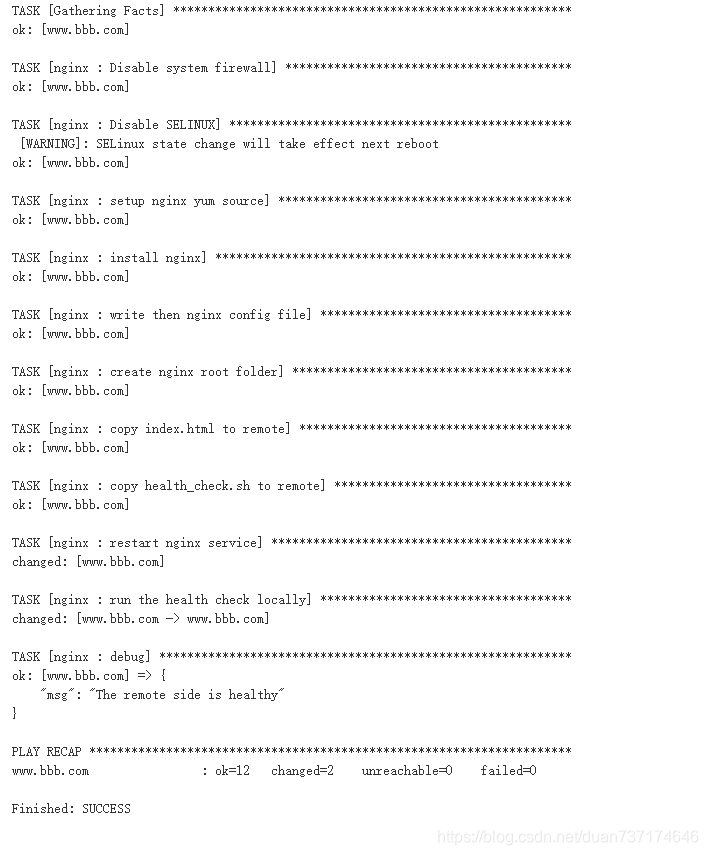

开始构建。

访问www.bbb.com, 本机不能访问，在 windows的hosts里加解析。



成功，success。
