基本编辑界面

作为一个试图提供编辑功能的图形软件，RAD的做法是必须提供的。首当其冲的就是属性浏览器。
在uniGUI中，包装了Exj.grid.property.grid形成PropertyGrid，这在一般情况下是足够用了，美中不足的是，该控件还未实现分组与嵌套效果，刚上手uniGUI，这个暂且不管，留待后续有更好的解决方案。

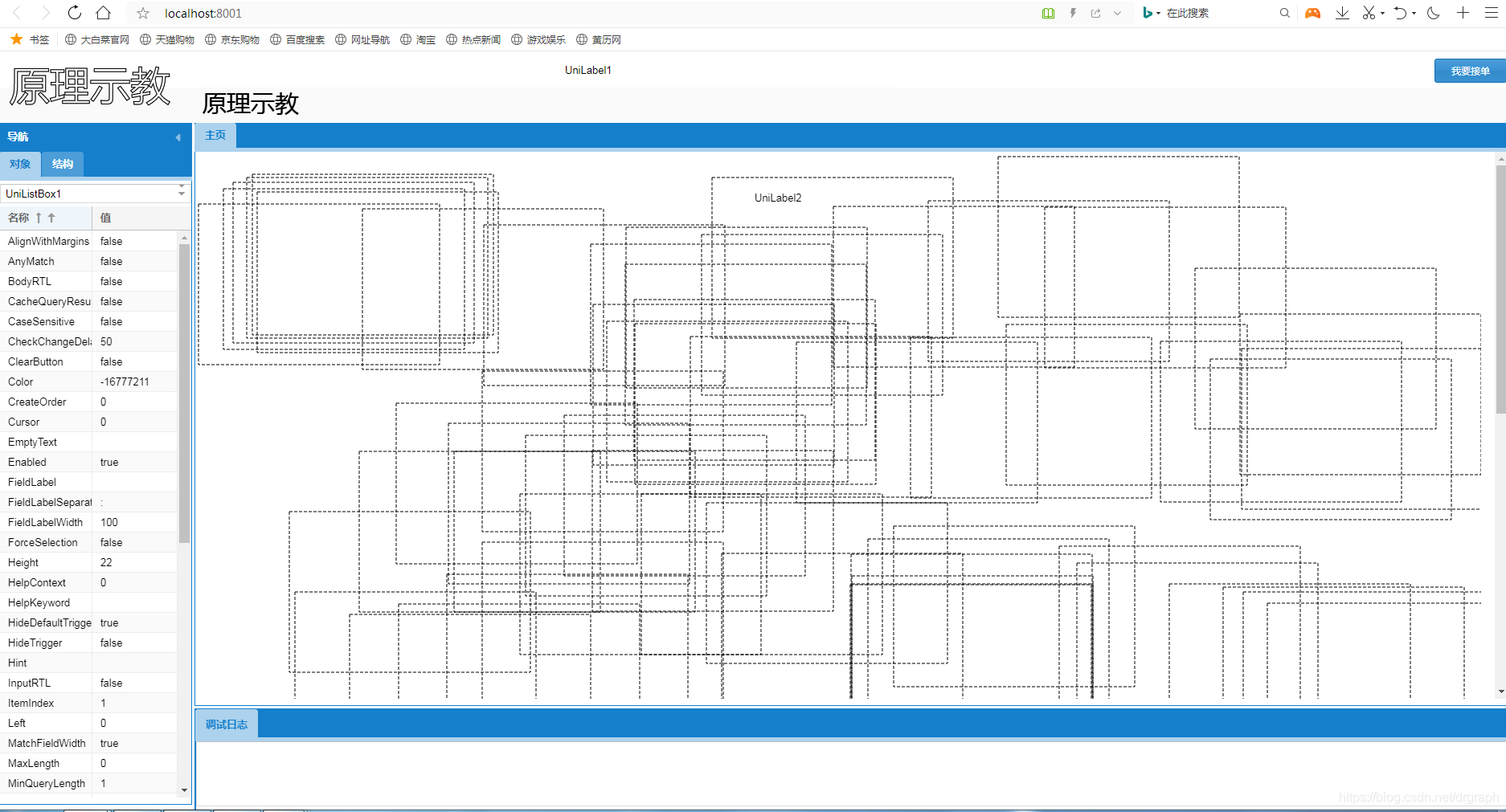

基于uniGUI，实现界面组态效果比较轻松。在这里插入图片描述
这样看起来，感觉就是一个桌面软件。从编辑的角度，也还可以接受。而其他的页面功能，可以切换到另一种版式，这些想必是很容易支持与实现的。

Html5 Canvas

基于以前编程的认知，画图也就几个基本资源对象的处理：Pen、Brush、Font。不过要到网页上实现，HTML5 Canvas的原理就得搞明白。
这种基础知识，网上教学资源非常丰富，我粗搜了一下，最终选定mozilla网站的Canvas教程，算是把HTML5 Canvas入了个门。

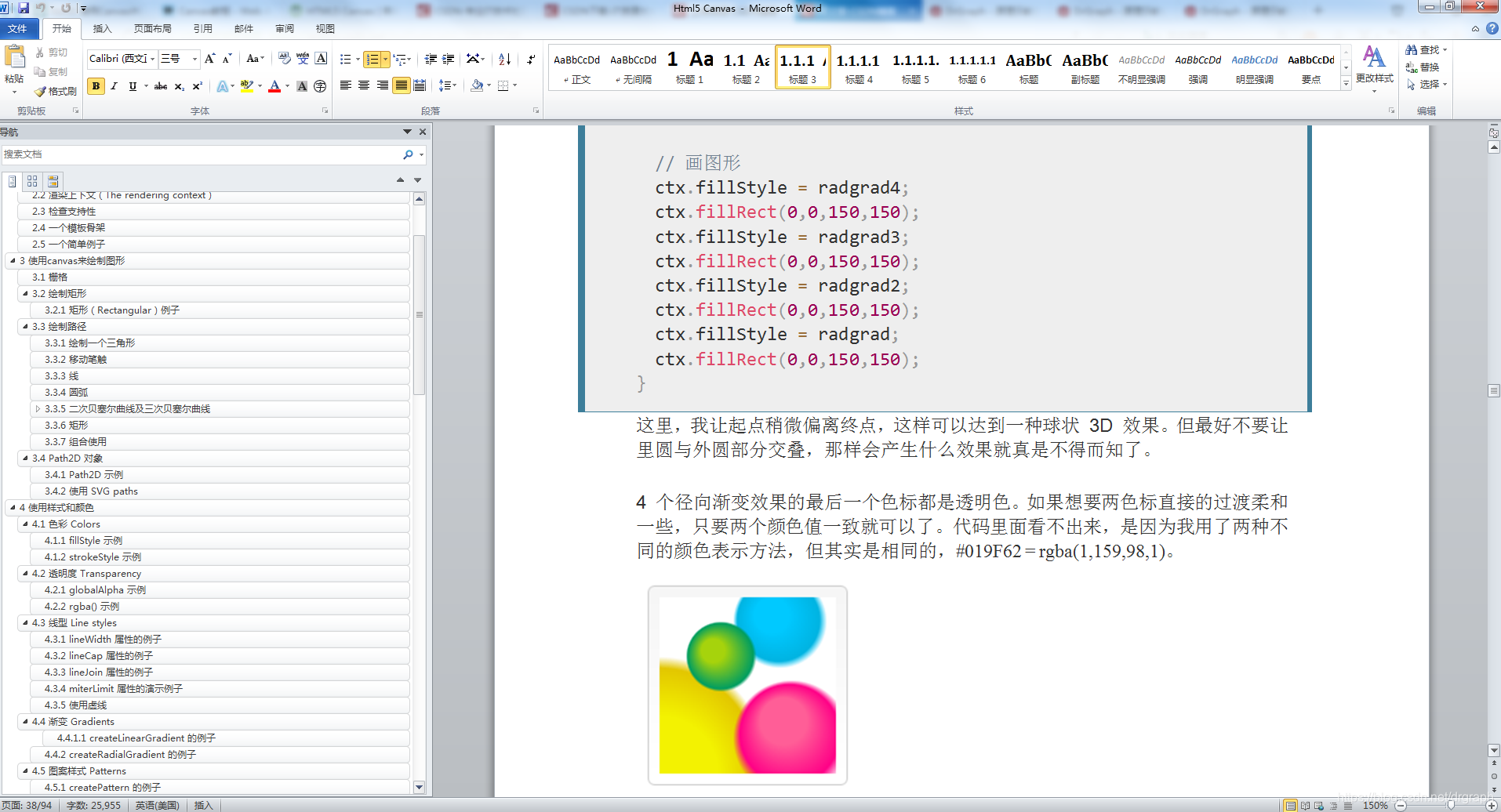

边学的过程，边整理了个自用WORD文档，看起来更方便一些，有需要的可以在优快云下载。象征性地收一个下载积分，也方便我后续下载另的资源。
在这里插入图片描述

画笔

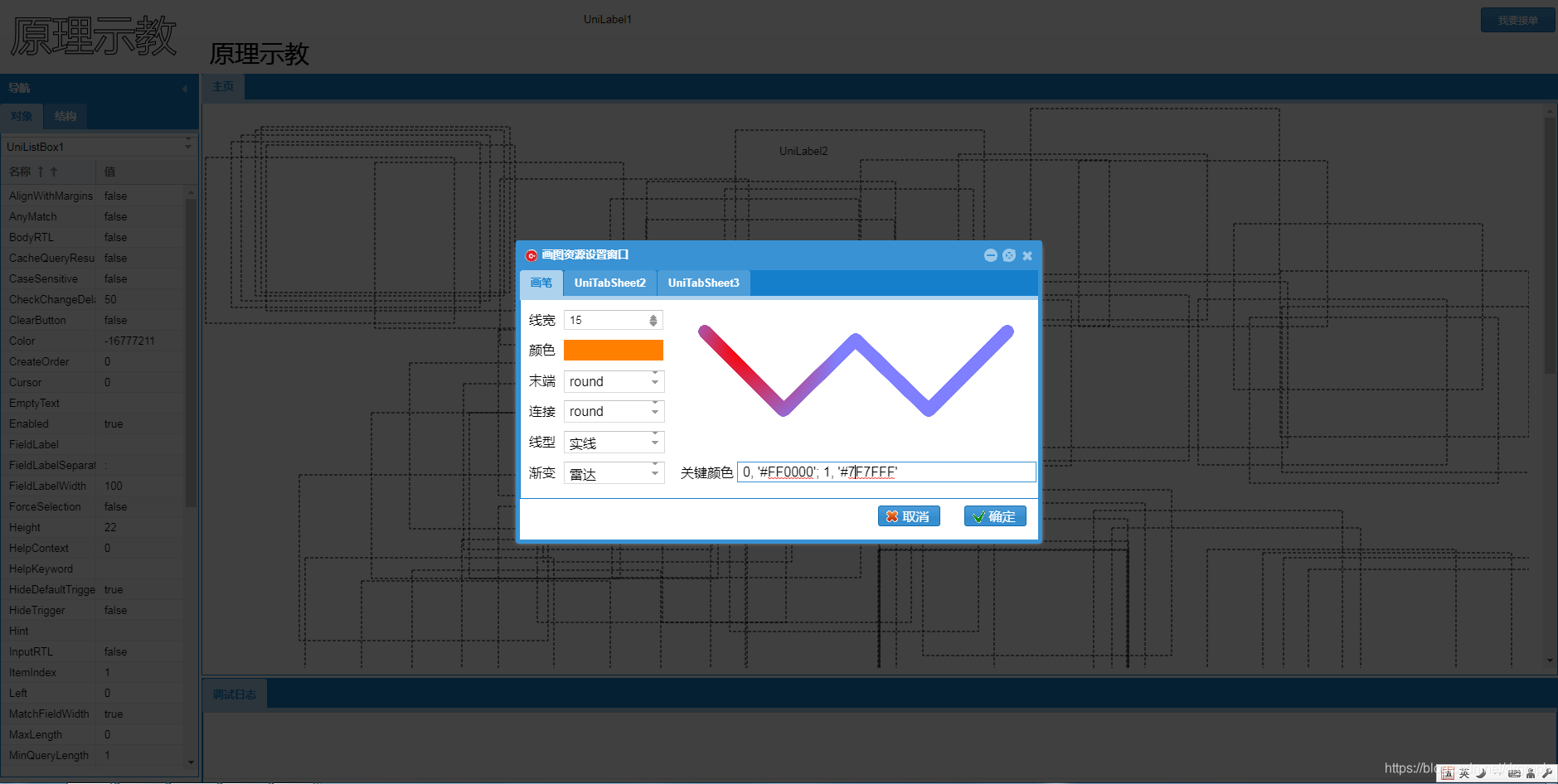

先实现画笔的属性设置。最终效果如下：
在这里插入图片描述
根据教程可知，可以通过一系列属性来设置线的样式。

lineWidth = value，设置线条宽度。
lineCap = type，设置线条末端样式。
lineJoin = type，设定线条与线条间接合处的样式。
miterLimit = value，限制当两条线相交时交接处最大长度；所谓交接处长度（斜接长度）是指线条交接处内角顶点到外角顶- 点的长度。
getLineDash()，返回一个包含当前虚线样式，长度为非负偶数的数组。
setLineDash(segments) 接受一个数组，来指定线段与间隙的交替，设置当前虚线样式。
lineDashOffset = value，设置虚线样式的起始偏移量。

下来的工作，就是设计一个人机交互界面，代码中根据各个参数实现预览效果即可。
