2008-06-30 17:05

74ls164为8 位移位寄存器(串行输入,并行输出),常用于扩展并行口。其原理详见芯片资料。这里简单总结其驱动数码管的用法和相关代码。

(一)非串口方式

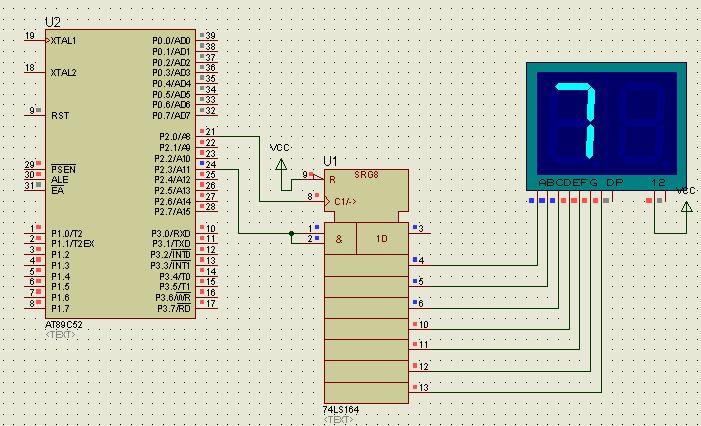

proteus仿真图



代码:

#include "reg52.h"
#define uint unsigned int
#define uchar unsigned char
sbit DAT=P2^3;
sbit CLK=P2^0;
uchar code tab[]={0x01,0x4f,0x12,0x06,0x4c,0x24,0x20,0x0f,0x00,0x04,0x7f};//0-9,-,全灭
void sendbyte(uchar byte)
{
         uchar num,c;
         num=tab[byte];
    for(c=0;c<8;c++)
         {
     CLK=0;
   DAT=num&0x01;
   CLK=1;
          num>>=1;


          }

}


void delay_50ms(unsigned int t)
{
unsigned int j;
for(;t>0;t--)
   for(j=6245;j>0;j--)
{;}
}

main()
{


unsigned char h;
   while(1){
   for(h=0;h<11;h++){
        delay_50ms(1);
        sendbyte(h);
   delay_50ms(10);
   }
   h=0;
     }

}

(二)串口方式

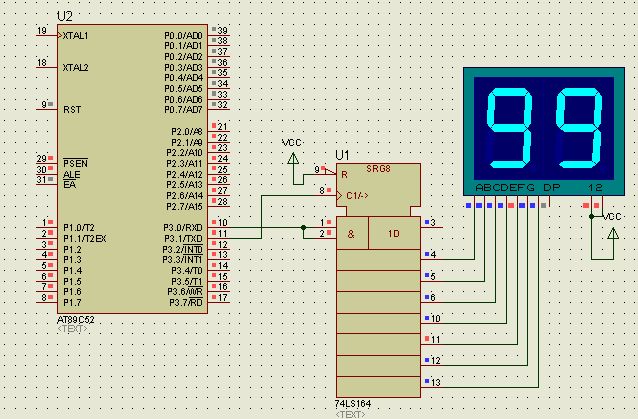

proteus仿真图:



代码:

#include "reg52.h"
#define uint unsigned int
#define uchar unsigned char

uchar code tab[]={0x01,0x4f,0x12,0x06,0x4c,0x24,0x20,0x0f,0x00,0x04,0x7f};//0-9,-,全灭

void delay_50ms(unsigned int t)
{
unsigned int j;
for(;t>0;t--)
   for(j=6245;j>0;j--)
{;}
}

main()
{
unsigned char h;
TMOD=0x20;    //T1方式1
SCON=0x00;    //串口方式0输出,输出的内容送RXD脚输出,移位脉冲由TXD引脚输出
EA=1;
TR1=1;


while(1){
   for(h=0;h<11;){

   delay_50ms(5);

   if(TI==0)SBUF=tab[h];   //写数据
   else{
     TI=0;
     h++;     //下一个数
   }

    delay_50ms(5);
    }
    h=0;
}
}

(三)74ls164级联

静态显示数字10

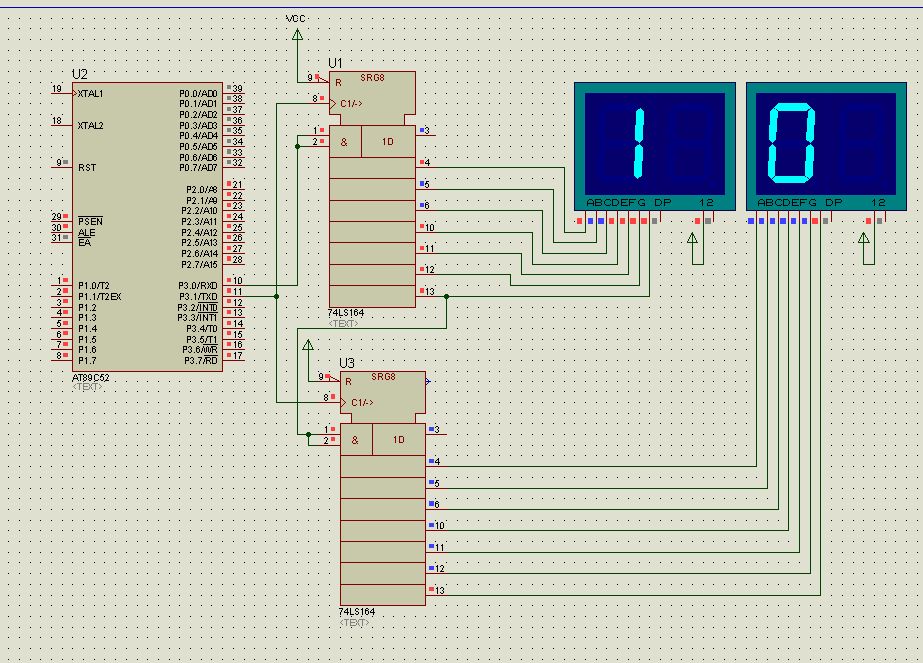

电路图:



代码:

#include "reg52.h"
#define uint unsigned int
#define uchar unsigned char

uchar code tab[]={0x01,0x4f};//0-1

main()       //显示10
{
unsigned char h;
SCON=0x00;    //串口方式0输出,输出的内容送RXD脚输出,移位脉冲由TXD引脚输出

for(h=0;h<2;){
   SBUF=tab[h]; //写数据
   while(TI==0);
    TI=0;
    h++;     //下一个数(十位)
   }
while(1);
}
