一、程序要求

　　EditBox 同时允许输入三个1到6个英文字符或数字，点击确定结束。

二、测试分析

编号	第一个输入框	第二个输入框	第三个输入框	输出

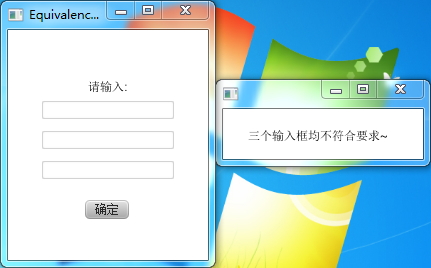

1	null	null	null	三个输入框均不符合要求

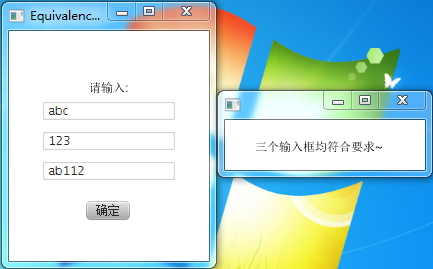

2	abc	123	ab112	三个输入框均符合要求

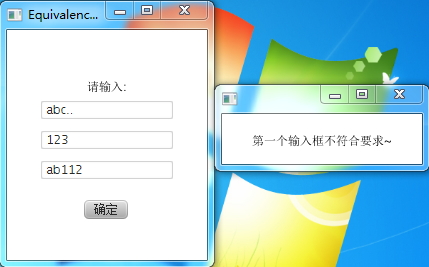

3	abc..	123	ab112	第一个输入框不符合要求

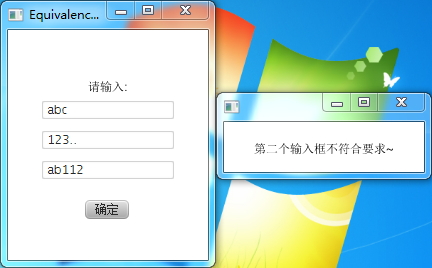

4	abc	123..	ab112	第二个输入框不符合要求

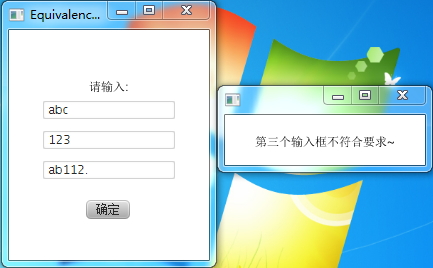

5	abc	123	ab112.	第三个输入框不符合要求
6	abcadlsfkja	123	ab112	第一个输入框不符合要求

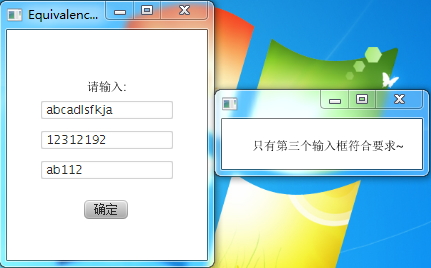

7	abcadlsfkja	12312192	ab112	只有第三个输入框符合要求

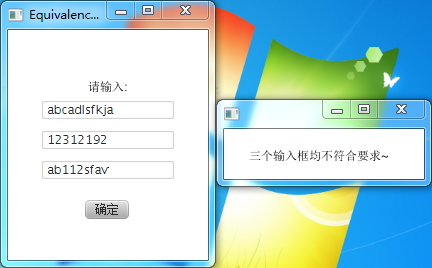

8	abcadlsfkja	12312192	ab112sfav	三个输入框均不符合要求

三、程序代码

import javafx.application.Application;
import javafx.event.ActionEvent;
import javafx.event.EventHandler;
import javafx.scene.Scene;
import javafx.scene.control.Button;
import javafx.scene.control.TextField;
import javafx.scene.layout.AnchorPane;
import javafx.scene.text.Text;
import javafx.stage.Stage;


public class Equivalence extends Application{

    public static void main(String arg0[]){
        Equivalence.launch(arg0);
    }

    @Override
    public void start(Stage stage) throws Exception {
        stage.setTitle("Equivalence class");
        AnchorPane root = new AnchorPane();

        Text message = new Text("请输入:");
        root.getChildren().add(message);
        AnchorPane.setTopAnchor(message, 50.0);
        AnchorPane.setLeftAnchor(message, 80.0);

        final TextField textInput1 = new TextField();
        root.getChildren().add(textInput1);
        AnchorPane.setTopAnchor(textInput1, 70.0);
        AnchorPane.setLeftAnchor(textInput1, 33.0);

        final TextField textInput2 = new TextField();
        root.getChildren().add(textInput2);
        AnchorPane.setTopAnchor(textInput2, 100.0);
        AnchorPane.setLeftAnchor(textInput2, 33.0);

        final TextField textInput3 = new TextField();
        root.getChildren().add(textInput3);
        AnchorPane.setTopAnchor(textInput3, 130.0);
        AnchorPane.setLeftAnchor(textInput3, 33.0);

        Button submit = new Button();
        submit.setText("确定");
        root.getChildren().add(submit);
        AnchorPane.setTopAnchor(submit, 170.0);
        AnchorPane.setLeftAnchor(submit, 77.0);

        submit.setOnAction(new EventHandler<ActionEvent>() {
            public void handle(ActionEvent arg0) {
                if(checkString(textInput1.getText().toString()) && checkString(textInput2.getText().toString()) && checkString(textInput3.getText().toString())){
                     Stage newStage = new Stage();
                     AnchorPane newRoot = new AnchorPane();

                     Text result = new Text("三个输入框均符合要求~");
                     newRoot.getChildren().add(result);
                     AnchorPane.setTopAnchor(result, 20.0);
                     AnchorPane.setLeftAnchor(result, 30.0);

                     newStage.setScene(new Scene(newRoot, 200, 50));
                     newStage.show();
                }else if(checkString(textInput1.getText().toString()) && checkString(textInput2.getText().toString())){
                    Stage newStage = new Stage();
                     AnchorPane newRoot = new AnchorPane();

                     Text result = new Text("第三个输入框不符合要求~");
                     newRoot.getChildren().add(result);
                     AnchorPane.setTopAnchor(result, 20.0);
                     AnchorPane.setLeftAnchor(result, 30.0);

                     newStage.setScene(new Scene(newRoot, 200, 50));
                     newStage.show();
                }else if(checkString(textInput1.getText().toString()) && checkString(textInput3.getText().toString())){
                    Stage newStage = new Stage();
                     AnchorPane newRoot = new AnchorPane();

                     Text result = new Text("第二个输入框不符合要求~");
                     newRoot.getChildren().add(result);
                     AnchorPane.setTopAnchor(result, 20.0);
                     AnchorPane.setLeftAnchor(result, 30.0);

                     newStage.setScene(new Scene(newRoot, 200, 50));
                     newStage.show();
                }else if(checkString(textInput2.getText().toString()) && checkString(textInput2.getText().toString())){
                    Stage newStage = new Stage();
                     AnchorPane newRoot = new AnchorPane();

                     Text result = new Text("第一个输入框不符合要求~");
                     newRoot.getChildren().add(result);
                     AnchorPane.setTopAnchor(result, 20.0);
                     AnchorPane.setLeftAnchor(result, 30.0);

                     newStage.setScene(new Scene(newRoot, 200, 50));
                     newStage.show();
                }else if(checkString(textInput1.getText().toString())){
                    Stage newStage = new Stage();
                     AnchorPane newRoot = new AnchorPane();

                     Text result = new Text("只有第一个输入框符合要求~");
                     newRoot.getChildren().add(result);
                     AnchorPane.setTopAnchor(result, 20.0);
                     AnchorPane.setLeftAnchor(result, 30.0);

                     newStage.setScene(new Scene(newRoot, 200, 50));
                     newStage.show();
                }else if(checkString(textInput2.getText().toString())){
                    Stage newStage = new Stage();
                     AnchorPane newRoot = new AnchorPane();

                     Text result = new Text("只有第二个输入框符合要求~");
                     newRoot.getChildren().add(result);
                     AnchorPane.setTopAnchor(result, 20.0);
                     AnchorPane.setLeftAnchor(result, 30.0);

                     newStage.setScene(new Scene(newRoot, 200, 50));
                     newStage.show();
                }else if(checkString(textInput3.getText().toString())){
                    Stage newStage = new Stage();
                     AnchorPane newRoot = new AnchorPane();

                     Text result = new Text("只有第三个输入框符合要求~");
                     newRoot.getChildren().add(result);
                     AnchorPane.setTopAnchor(result, 20.0);
                     AnchorPane.setLeftAnchor(result, 30.0);

                     newStage.setScene(new Scene(newRoot, 200, 50));
                     newStage.show();
                }else{
                    Stage newStage = new Stage();
                     AnchorPane newRoot = new AnchorPane();

                     Text result = new Text("三个输入框均不符合要求~");
                     newRoot.getChildren().add(result);
                     AnchorPane.setTopAnchor(result, 20.0);
                     AnchorPane.setLeftAnchor(result, 25.0);

                     newStage.setScene(new Scene(newRoot, 200, 50));
                     newStage.show();
                }
            }
        });

        stage.setScene(new Scene(root, 200,230));
        stage.show();
    }

    public boolean checkString(String str){
        if(str.length() == 0 || str.length() >= 7){
            return false;
        }

        char arr[] = new char[str.length()];
        arr = str.toCharArray();

        for(int i = 0; i < str.length(); i++){
            if((arr[i] >= 'a' && arr[i] <= 'z')||(arr[i] >= 'A' && arr[i] <= 'Z')||(arr[i] >= '0' && arr[i] <= '9'));
            else{
                return false;
            }
        }
        return true;
    }

}
