PowerDesigner逆向工程生成数据库字典

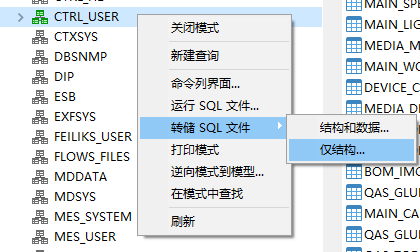

提供需要生成数据库字典的数据库sql文件，可以使用工具导出，只导出结构即可。

导入到PowerDesigner中

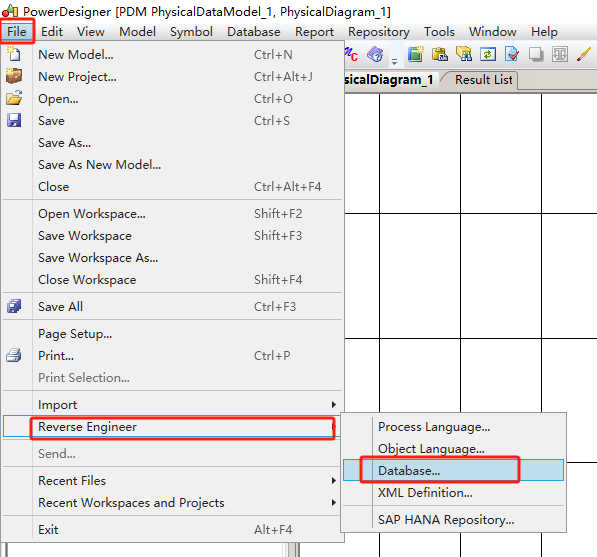

选择database

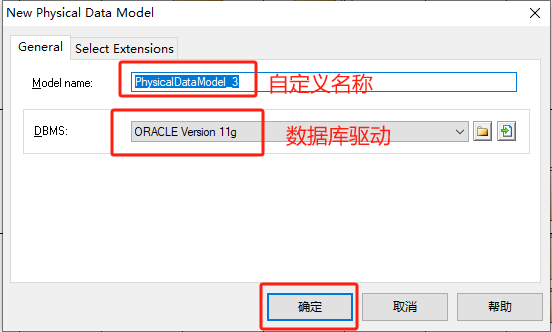

自定义名称并选择数据库版本

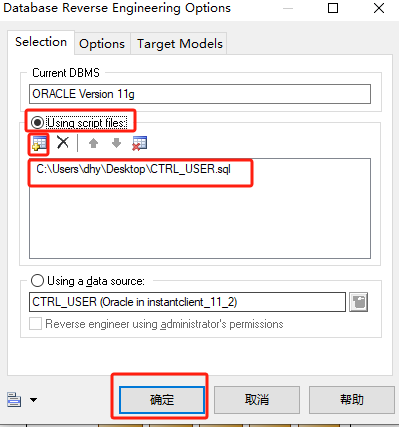

选择需要逆向生成的数据库结构sql文档

完成以上步骤后会在PowerDesigner中生产物理模型，下面介绍如何导出为数据库字典

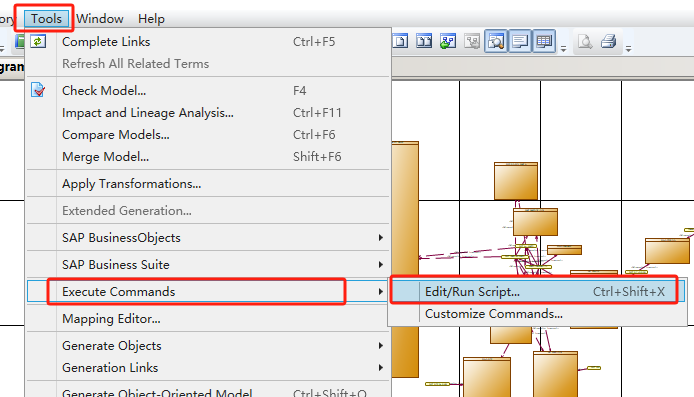

选择脚本

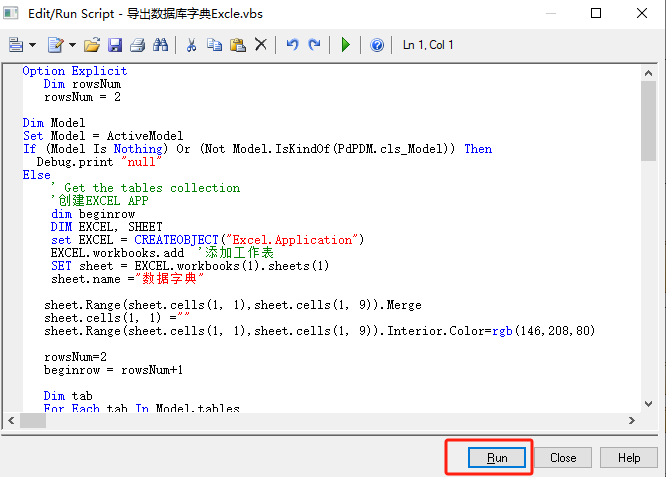

输入脚本内容后执行

脚本内容如下：

Option Explicit
   Dim rowsNum
   rowsNum = 2

Dim Model
Set Model = ActiveModel
If (Model Is Nothing) Or (Not Model.IsKindOf(PdPDM.cls_Model)) Then
  Debug.print "null"
Else
    ' Get the tables collection
    '创建EXCEL APP
    dim beginrow
    DIM EXCEL, SHEET
    set EXCEL = CREATEOBJECT("Excel.Application")
    EXCEL.workbooks.add  '添加工作表
    SET sheet = EXCEL.workbooks(1).sheets(1)
    sheet.name ="数据字典"

   sheet.Range(sheet.cells(1, 1),sheet.cells(1, 9)).Merge
   sheet.cells(1, 1) =""
   sheet.Range(sheet.cells(1, 1),sheet.cells(1, 9)).Interior.Color=rgb(146,208,80)

   rowsNum=2
   beginrow = rowsNum+1

   Dim tab
   For Each tab In Model.tables
      TableLoop tab,SHEET
   Next


    EXCEL.visible = true
    '设置列宽和自动换行
    sheet.Columns(1).ColumnWidth  =10
    sheet.Columns(2).ColumnWidth  =15
    sheet.Columns(4).ColumnWidth  =20
    sheet.Columns(5).ColumnWidth  =15
    sheet.Columns(6).ColumnWidth  =15

    sheet.Columns("C:C").EntireColumn.AutoFit
    sheet.Columns("i:i").EntireColumn.AutoFit
 End If

Sub TableLoop(tab, sheet)
   If IsObject(tab) Then
      Dim rangFlag
      rowsNum = rowsNum + 1

      sheet.cells(rowsNum, 1) = "表名"
      sheet.Range(sheet.cells(rowsNum, 2),sheet.cells(rowsNum, 9)).Merge
      sheet.cells(rowsNum, 2)=tab.code
      sheet.Range(sheet.cells(rowsNum, 1),sheet.cells(rowsNum, 9)).Borders.LineStyle = "1"
      sheet.Range(sheet.cells(rowsNum, 1),sheet.cells(rowsNum, 9)).Interior.Color=rgb(141,180,226)
      sheet.Range(sheet.cells(rowsNum, 1),sheet.cells(rowsNum, 9)).Borders.Weight ="3"

      rowsNum = rowsNum + 1
      sheet.cells(rowsNum, 1) = "中文名"
      sheet.cells(rowsNum, 2) = "字段名"
      sheet.cells(rowsNum, 3) = "类型"
      sheet.cells(rowsNum, 4) = "长度"
      sheet.cells(rowsNum, 5) = "主键"
      sheet.cells(rowsNum, 6) = "索引"
      sheet.cells(rowsNum, 7) = "不可空"
      sheet.cells(rowsNum, 8) = "默认值"
      sheet.cells(rowsNum, 9) = "说明"
      sheet.Range(sheet.cells(rowsNum,1),sheet.cells(rowsNum,9)).Interior.Color=rgb(166,166,166)

      Dim col ' running column
      Dim colsNum
      colsNum = 0
      for each col in tab.columns
         rowsNum = rowsNum + 1
         colsNum = colsNum + 1
         sheet.cells(rowsNum, 1) = col.name
         sheet.cells(rowsNum, 2) = col.code
         sheet.cells(rowsNum, 3) = col.datatype
         sheet.cells(rowsNum, 4) = IIF(col.Length<>0,col.Length,"")
         sheet.cells(rowsNum, 5) = IIF(col.Primary,"√","")
         sheet.cells(rowsNum, 6) = IIF(col.Primary,"√","")
         sheet.cells(rowsNum, 7) = IIF(col.Mandatory,"√","")
         sheet.cells(rowsNum, 8) = "无"
         sheet.cells(rowsNum, 9) = col.comment
      next

      '设置边框
      DIM RanagBorder
      SET RanagBorder =sheet.Range(sheet.cells(rowsNum-colsNum,1),sheet.cells(rowsNum,9))
      RanagBorder.Borders.LineStyle = "1"
      'RaneBorderFun RanagBorder

      rowsNum = rowsNum + 1

   End If
End Sub

function IIF(flg,tstr,fstr)
   if flg then
      IIF= tstr
   else
      IIF= fstr
   end if
End function

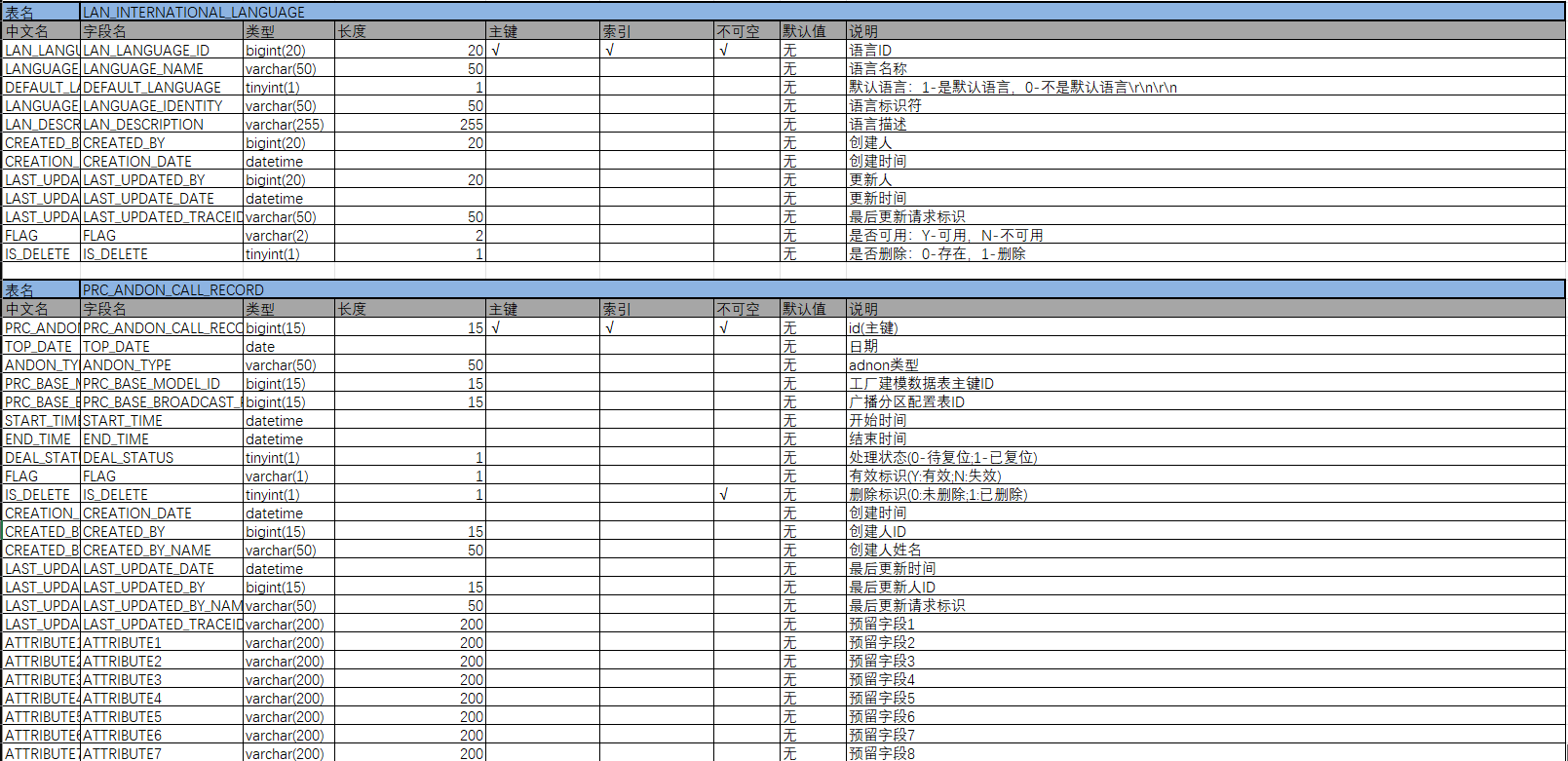

最终效果如下：
