本文详细介绍了如何在Kubernetes环境中使用Helm部署、管理应用，包括安装、配置、升级、chart操作以及与第三方服务集成的过程。

部署helm

官网： https://helm.sh/zh/docs/intro/quickstart/

https://github.com/helm/helm/releases

[root@k8s2 ~]# tar zxf helm-v3.11.0-linux-amd64.tar.gz
[root@k8s2 ~]# cd linux-amd64/
[root@k8s2 linux-amd64]# mv helm  /usr/local/bin/

配置helm命令补齐

[root@k8s2 ~]# echo "source <(helm completion bash)" >> ~/.bashrc
[root@k8s2 ~]# source ~/.bashrc
[root@k8s2 ~]# helm version

查询官方应用中心

[root@k8s2 ~]# helm search hub nginx

添加第三方repo源

[root@k8s2 ~]# helm repo add my-repo https://charts.bitnami.com/bitnami

[root@k8s2 ~]# helm  repo  list

拉取应用

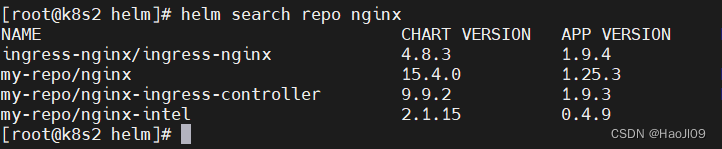

[root@k8s2 helm]# helm search repo nginx

[root@k8s2 helm]# helm  pull my-repo/nginx

[root@k8s2 helm]# tar zxf nginx-15.4.0.tgz

[root@k8s2 helm]# cd nginx/

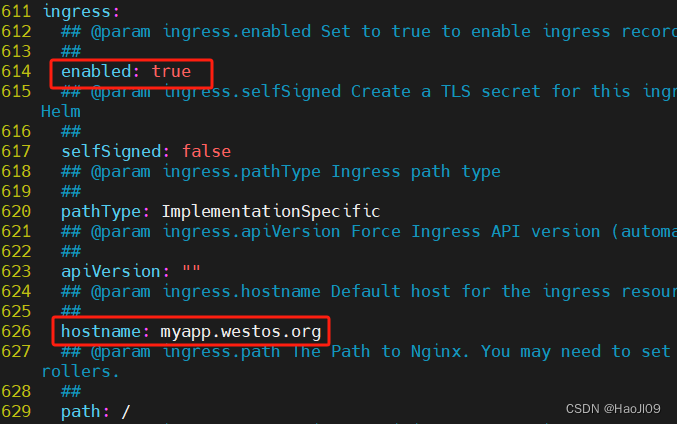

按需修改

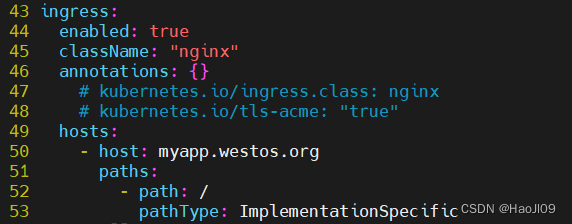

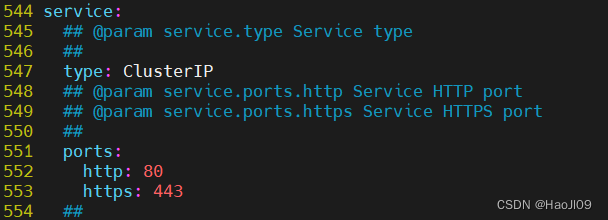

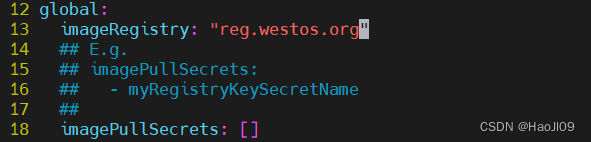

[root@k8s2 nginx]# vim values.yaml

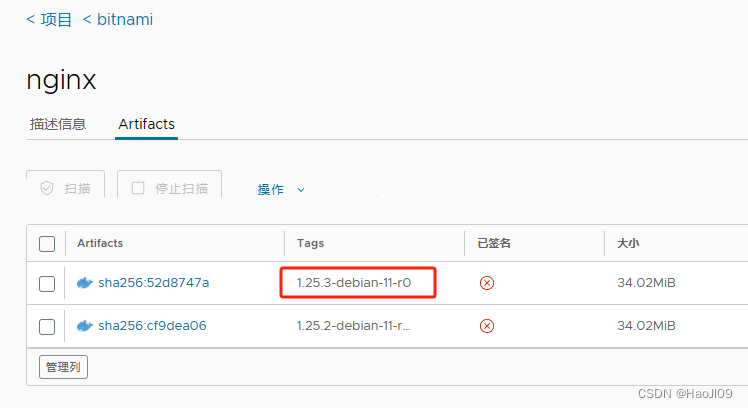

上传镜像

[root@k8s1 ~]# docker pull bitnami/nginx:1.25.3-debian-11-r0

[root@k8s1 ~]# docker tag bitnami/nginx:1.25.3-debian-11-r0 reg.westos.org/bitnami/nginx:1.25.3-debian-11-r0

[root@k8s1 ~]# docker push reg.westos.org/bitnami/nginx:1.25.3-debian-11-r0

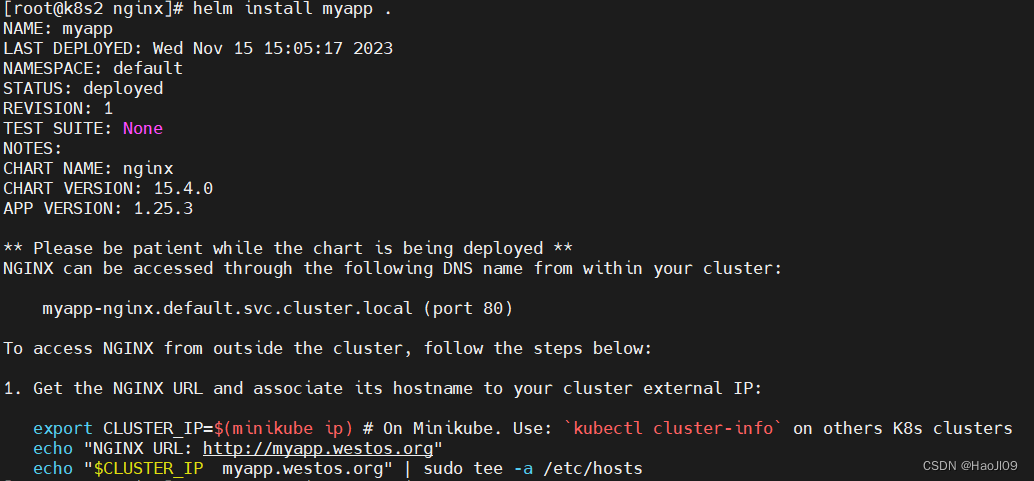

部署应用

[root@k8s2 nginx]# helm install myapp .

测试

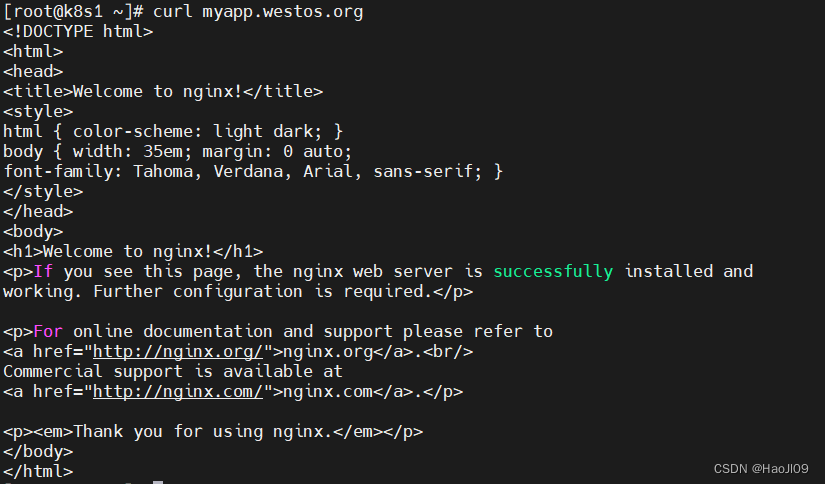

[root@k8s1 ~]# curl myapp.westos.org

再次修改配置

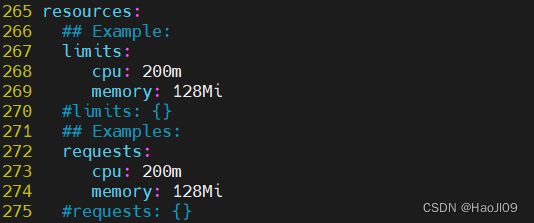

[root@k8s2 nginx]# vim values.yaml

更新应用

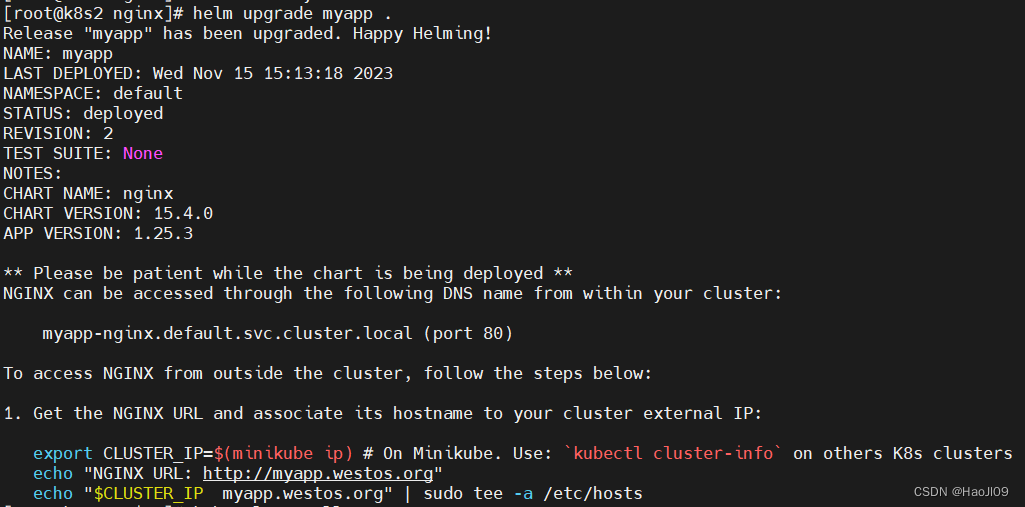

[root@k8s2 nginx]# helm upgrade myapp .

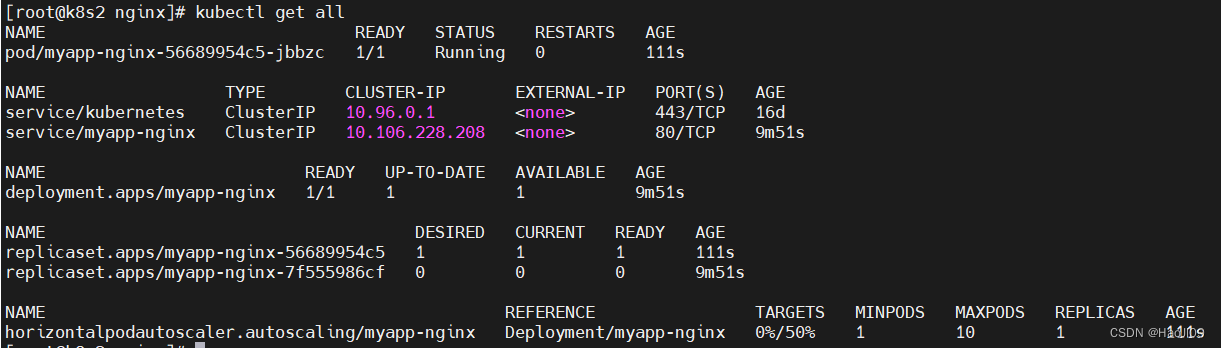

[root@k8s2 nginx]# kubectl get all

查看应用

[root@k8s2 nginx]# helm list

查看应用历史

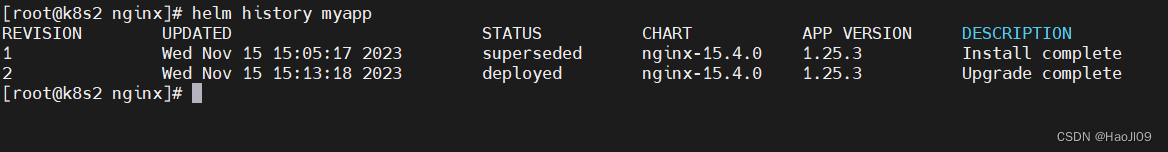

[root@k8s2 nginx]# helm history myapp

回滚应用

[root@k8s2 nginx]# helm  rollback myapp 1

回收

[root@k8s2 nginx]# helm uninstall myapp

封装chart包

[root@k8s2 helm]# helm  create mychart

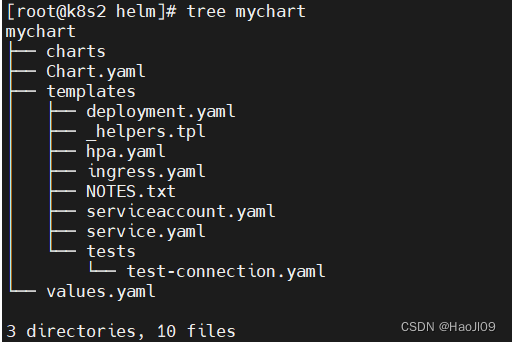

[root@k8s2 helm]# tree mychart

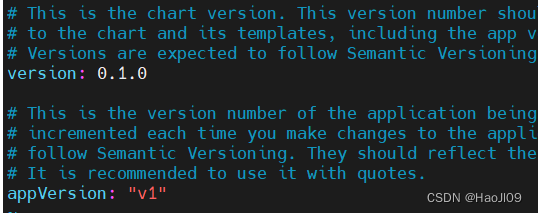

[root@k8s2 mychart]# vim Chart.yaml

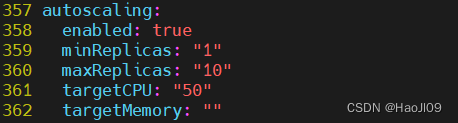

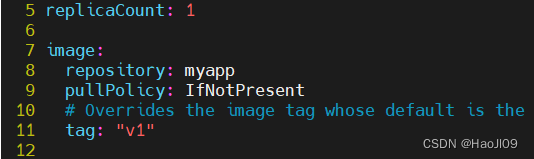

[root@k8s2 mychart]# vim values.yaml

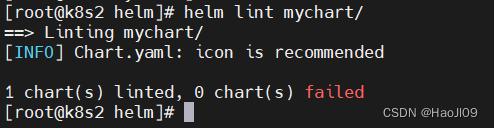

检测语法

[root@k8s2 helm]# helm lint mychart/

打包

[root@k8s2 helm]# helm package mychart/

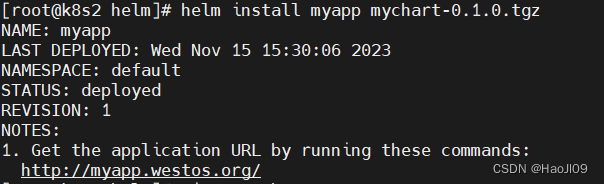

部署应用

[root@k8s2 helm]# helm install myapp mychart-0.1.0.tgz

测试

[root@k8s2 helm]# curl myapp.westos.org

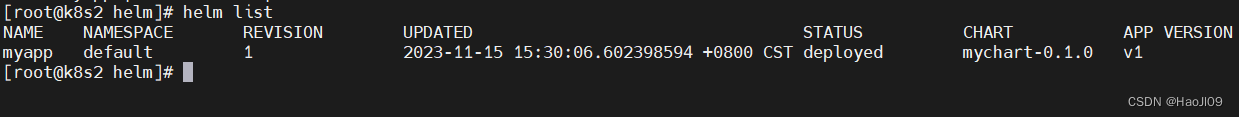

[root@k8s2 helm]# helm  list

回收

[root@k8s2 helm]# helm uninstall myapp

上传chart到OCI仓库

复制仓库证书

cp /etc/docker/certs.d/reg.westos.org/ca.crt /etc/pki/tls/certs/

登录仓库

helm  registry login reg.westos.org -u admin -p westos

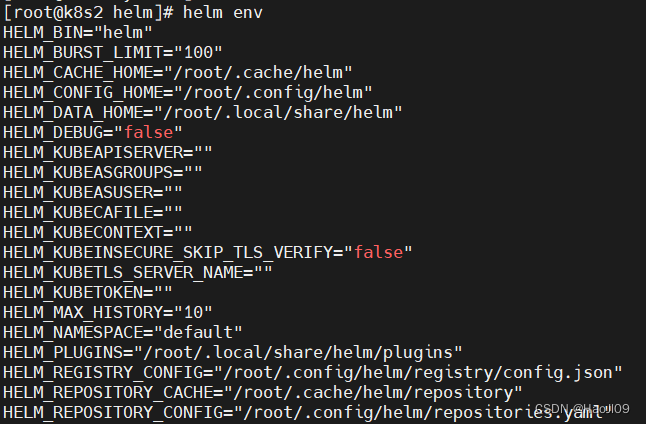

查看默认缓存信息

helm env

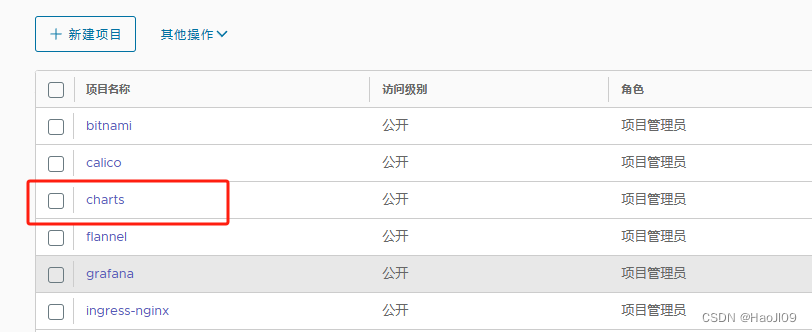

提前在harbor仓库创建charts项目，这个仓库专门存放chart包

上传chart

[root@k8s2 helm]# helm push mychart-0.1.0.tgz oci://reg.westos.org/charts

[root@k8s2 helm]# helm push mychart-0.2.0.tgz oci://reg.westos.org/charts

下载chart，默认下载最新版本

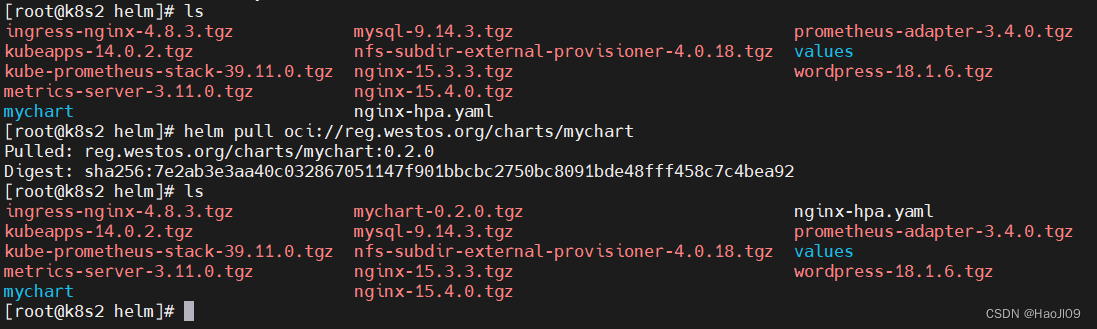

[root@k8s2 helm]# helm pull oci://reg.westos.org/charts/mychart

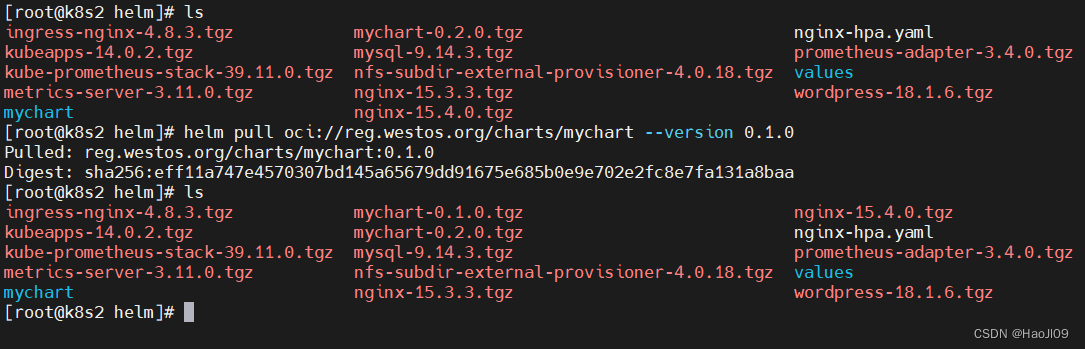

[root@k8s2 helm]# helm pull oci://reg.westos.org/charts/mychart --version 0.1.0

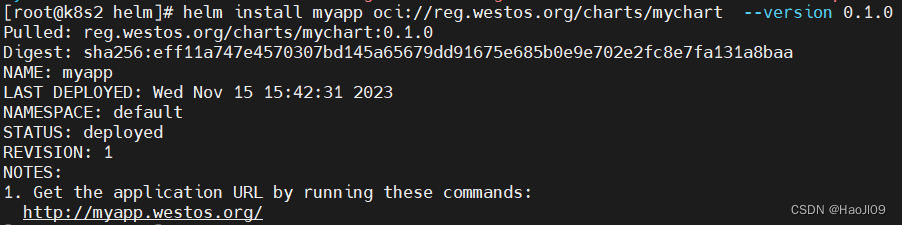

安装chart

[root@k8s2 helm]# helm install myapp oci://reg.westos.org/charts/mychart  --version 0.1.0

测试

[root@k8s2 helm]# curl http://myapp.westos.org/

升级

[root@k8s2 helm]# helm upgrade  myapp oci://reg.westos.org/charts/mychart --version 0.2.0

测试

[root@k8s2 helm]# curl http://myapp.westos.org/

部署wordpress博客系统

部署mysql数据库集群

[root@k8s2 values]# vim mysql-values.yaml

global:
  imageRegistry: reg.westos.org
architecture: replication
auth:
  rootPassword: westos
  database: wordpress
  username: wordpress
  password: wordpress
  replicationUser: replicator
  replicationPassword: westos

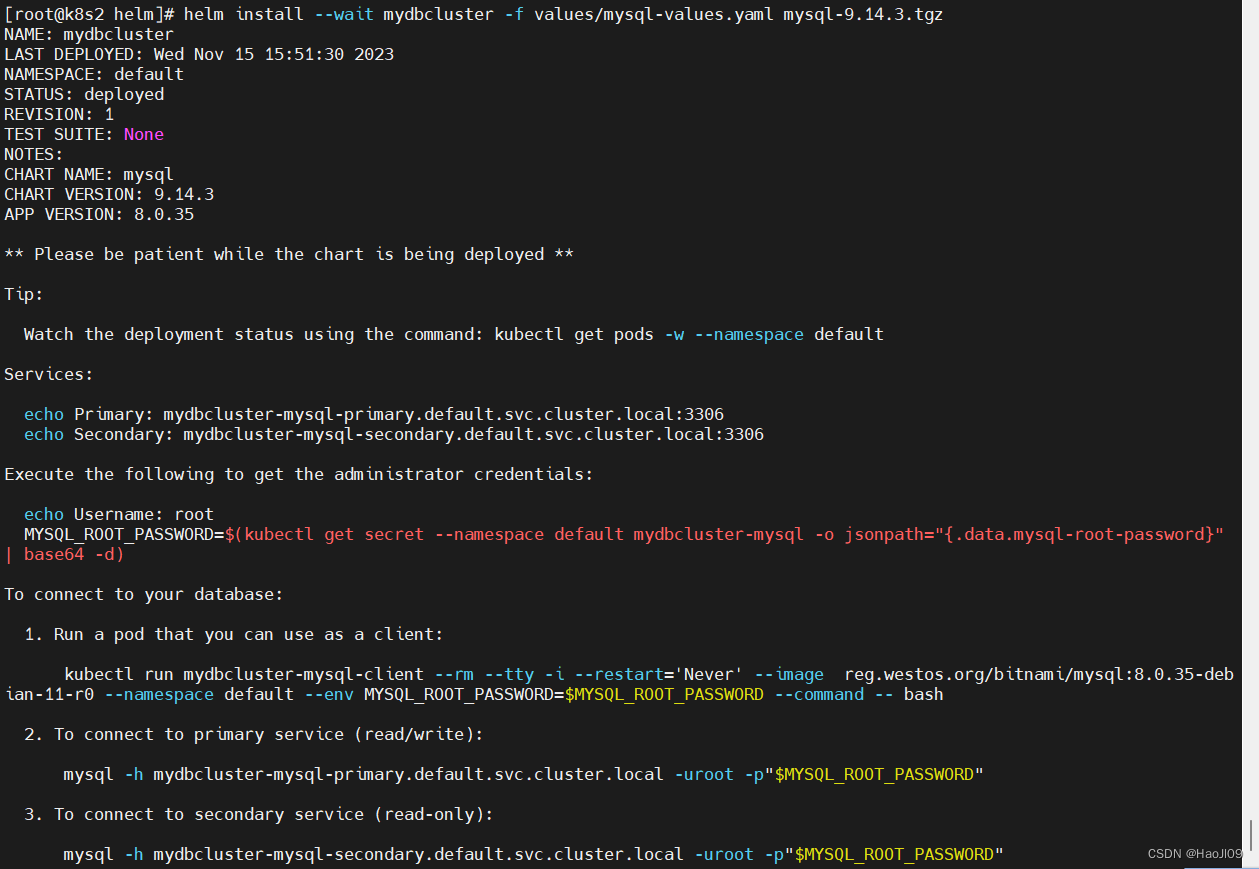

[root@k8s2 helm]# helm install --wait mydbcluster -f values/mysql-values.yaml mysql-9.14.3.tgz

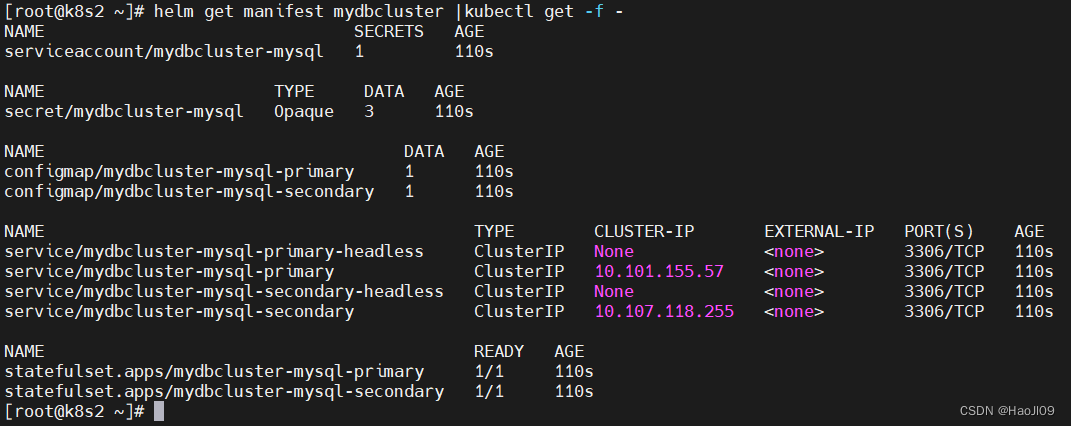

查看部署信息

[root@k8s2 ~]# helm get manifest mydbcluster |kubectl get -f -

连接数据库

[root@k8s2 helm]# kubectl run mydbcluster-mysql-client --rm --tty -i --restart='Never' --image  reg.westos.org/bitnami/mysql:8.0.35-debian-11-r0 --namespace default --env MYSQL_ROOT_PASSWORD=$MYSQL_ROOT_PASSWORD --command -- bash

连接主库

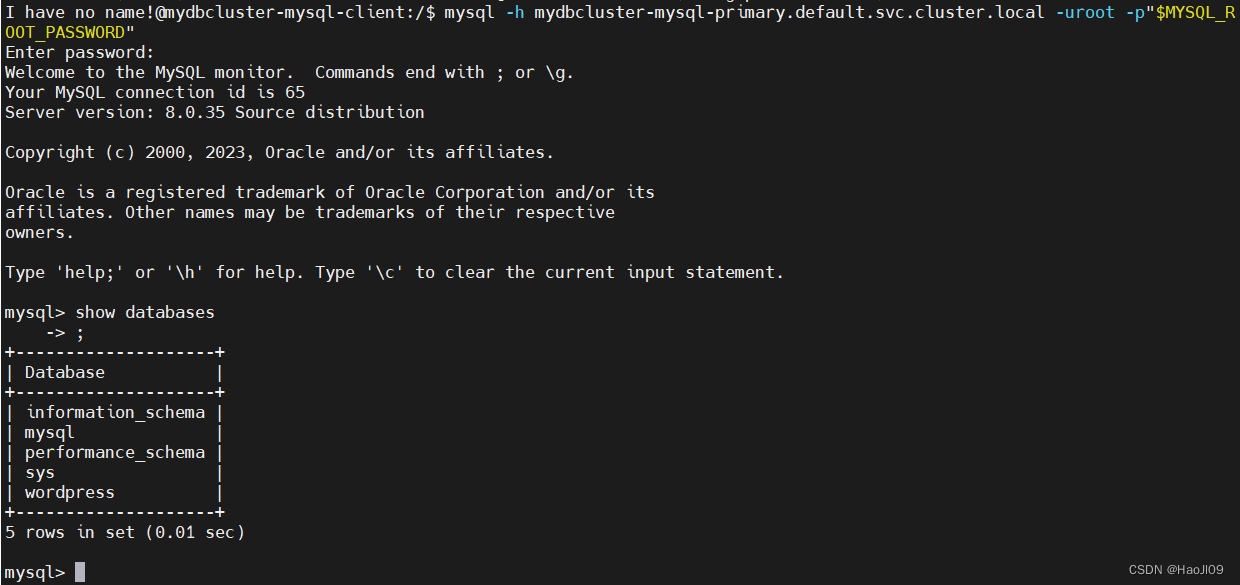

I have no name!@mydbcluster-mysql-client:/$ mysql -h mydbcluster-mysql-primary.default.svc.cluster.local -uroot -p"$MYSQL_ROOT_PASSWORD"

mysql> show databases;

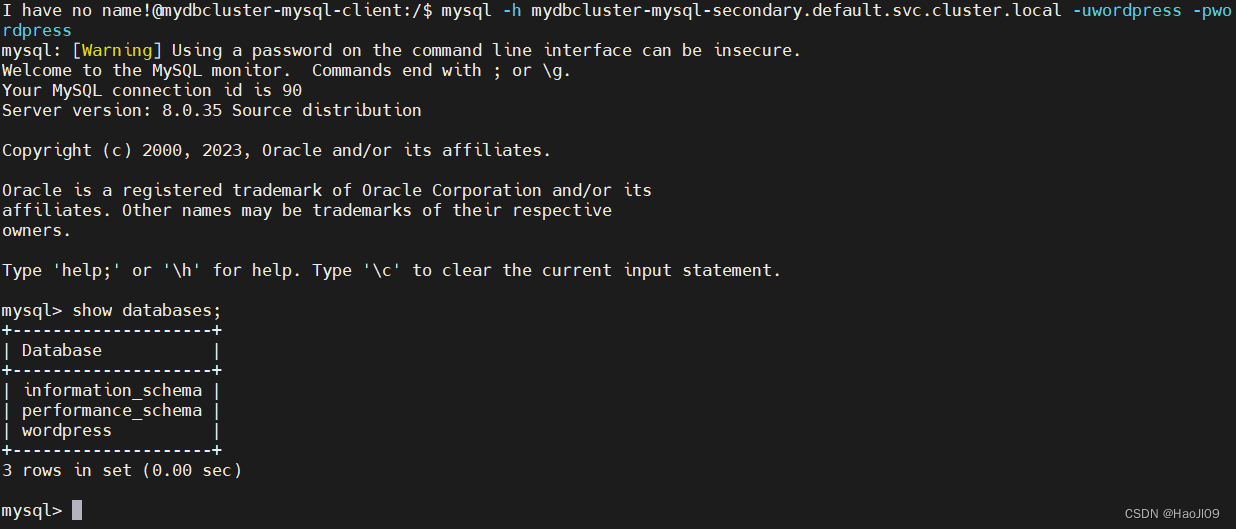

连接从库

I have no name!@mydbcluster-mysql-client:/$ mysql -h mydbcluster-mysql-secondary.default.svc.cluster.local -uwordpress -pwordpress


mysql> show databases;

部署wordpress

[root@k8s2 values]# vim wordpress-values.yaml

global:
  imageRegistry: reg.westos.org
wordpressUsername: james
wordpressPassword: james
mariadb:
  enabled: false
externalDatabase:
  host: mydbcluster-mysql-primary
  user: wordpress
  password: wordpress
  database: wordpress

[root@k8s2 helm]# helm install myblog -f values/wordpress-values.yaml wordpress-18.1.6.tgz

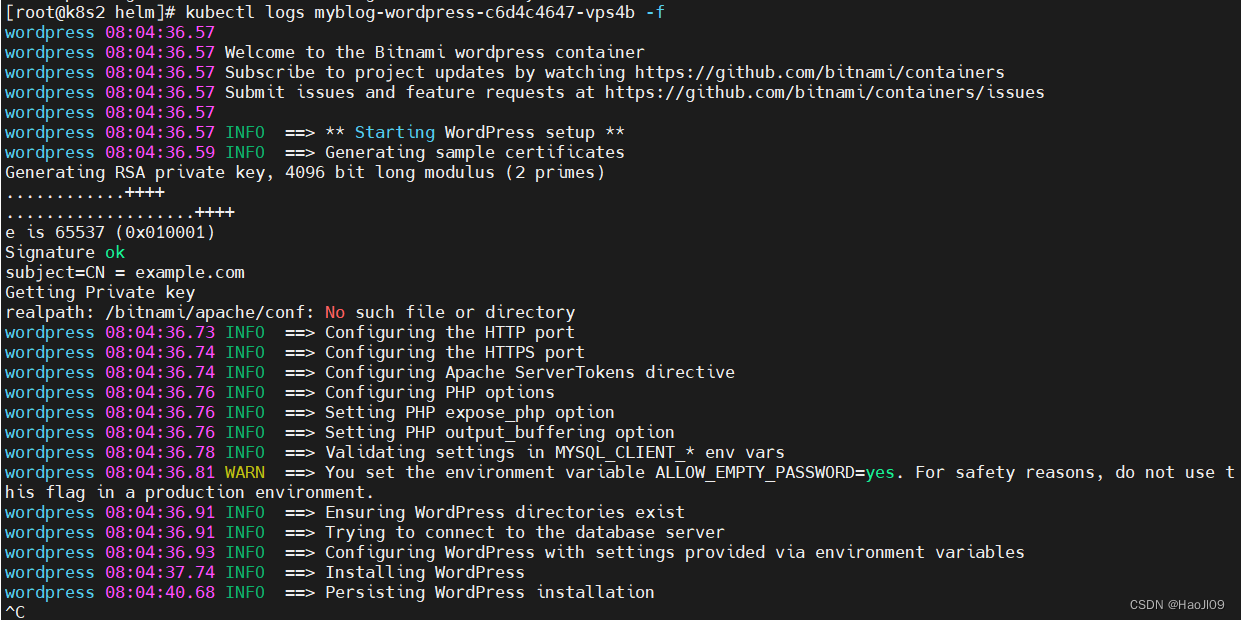

等待myblog初始化完毕

[root@k8s2 helm]# kubectl logs myblog-wordpress-c6d4c4647-vps4b -f

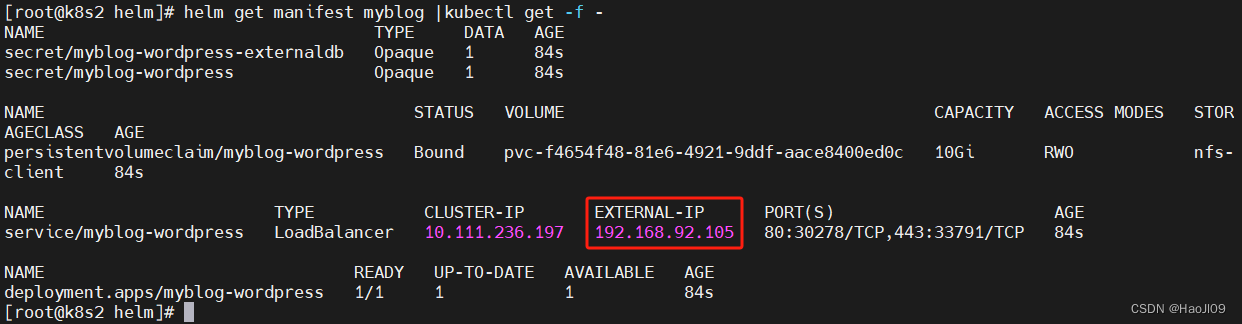

获取myblog 外部IP

[root@k8s2 helm]# helm get manifest myblog |kubectl get -f -

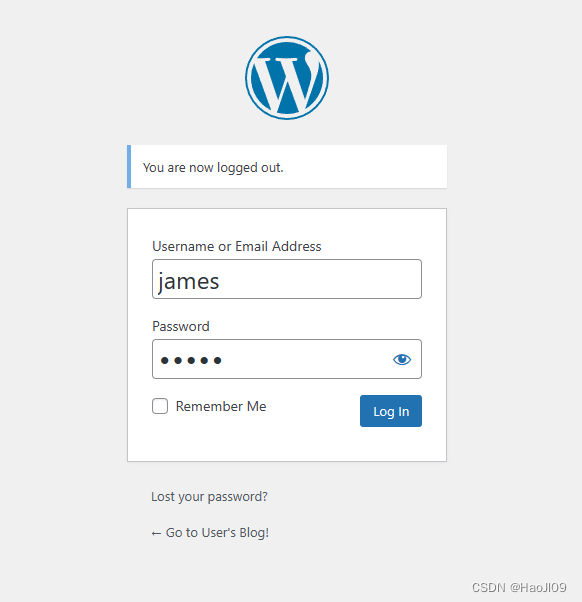

使用浏览器访问wordpress

http://192.168.92.105/admin

登录用户、密码： james/james

升级mydbcluster

[root@k8s2 values]# vim mysql-values-update.yaml

global:
  imageRegistry: reg.westos.org
architecture: replication
auth:
  rootPassword: westos
  database: wordpress
  username: wordpress
  password: wordpress
  replicationUser: replicator
  replicationPassword: westos
secondary:
  replicaCount: 2

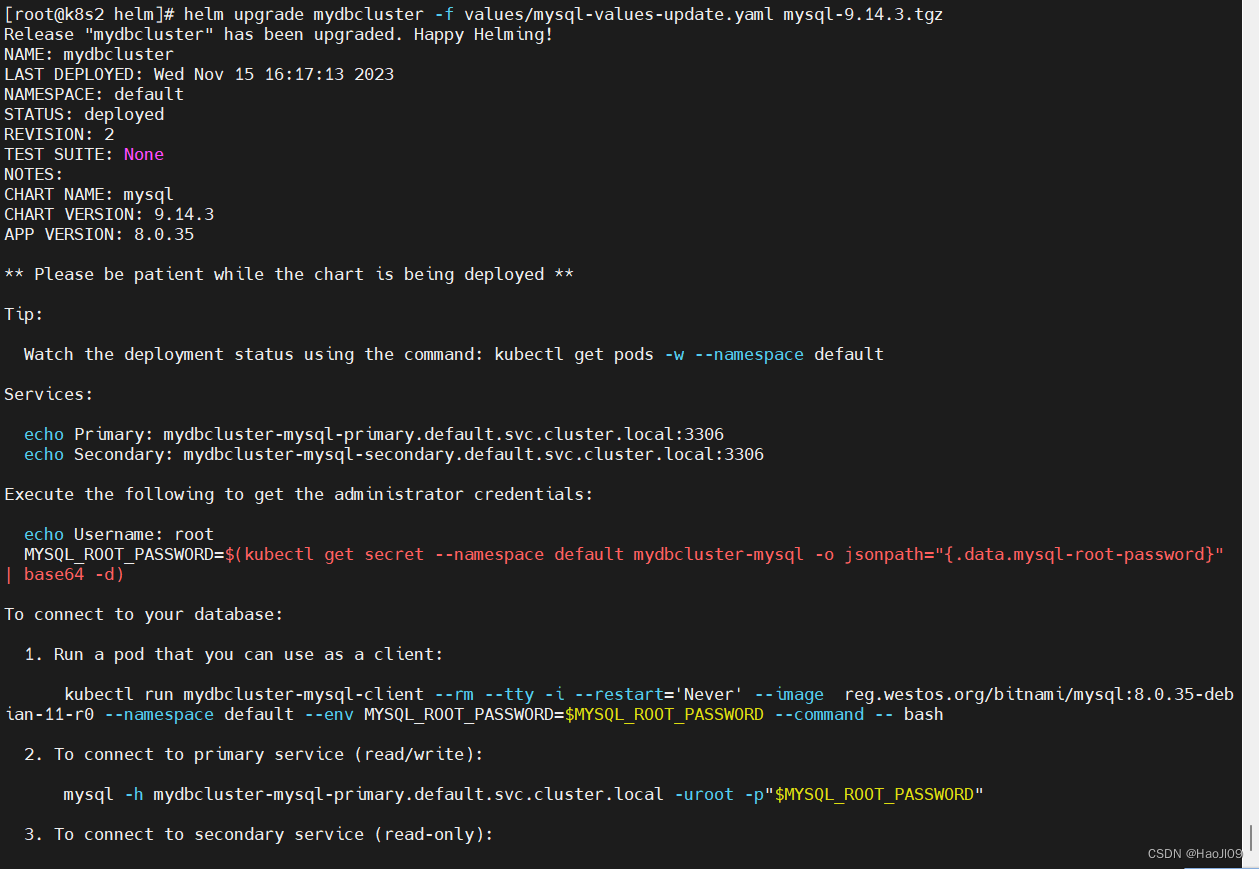

[root@k8s2 helm]# helm upgrade mydbcluster -f values/mysql-values-update.yaml mysql-9.14.3.tgz

查看历史修订

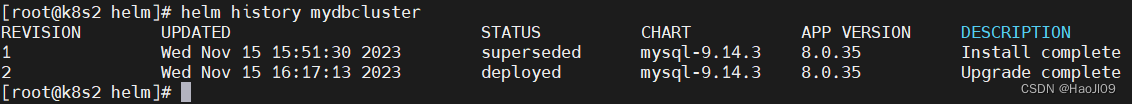

[root@k8s2 helm]# helm history mydbcluster

[root@k8s2 helm]# helm get manifest mydbcluster --revision 1

回滚版本

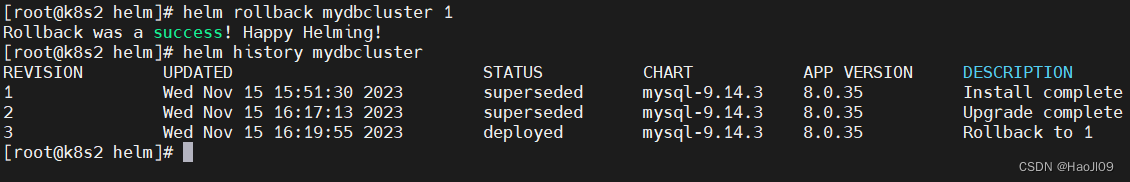

[root@k8s2 helm]# helm rollback mydbcluster 1

[root@k8s2 helm]# helm history mydbcluster

helm部署storageclass

删除原有的部署

[root@k8s2 storageclass]# ls

[root@k8s2 storageclass]# kubectl delete -f nfs-client.yaml

添加repo

[root@k8s2 helm]# helm repo add nfs-subdir-external-provisioner https://kubernetes-sigs.github.io/nfs-subdir-external-provisioner/

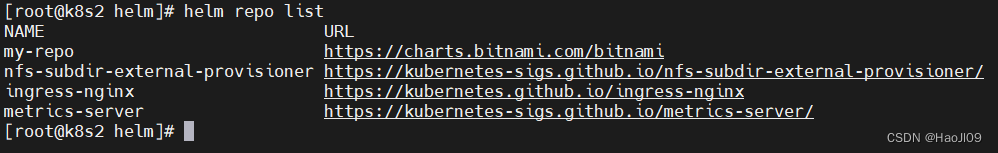

[root@k8s2 helm]# helm repo list

编写配置文件

[root@k8s2 values]# vim nfs-client-values.yaml

image:
  repository: sig-storage/nfs-subdir-external-provisioner
  tag: v4.0.2
nfs:
  server: 192.168.92.11
  path: /nfsdata
storageClass:
  defaultClass: true
  reclaimPolicy: Delete
  archiveOnDelete: false

创建ns

[root@k8s2 helm]# kubectl create namespace nfs-provisioner

部署

helm  -n nfs-provisioner install nfs-client --wait -f values/nfs-client-values.yaml nfs-subdir-external-provisioner-4.0.18.tgz

测试

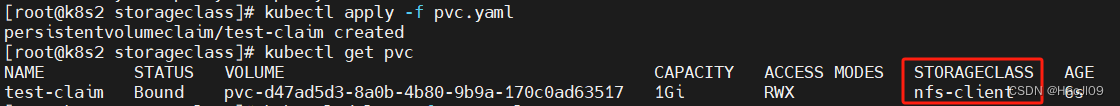

[root@k8s2 storageclass]# kubectl apply -f pvc.yaml

[root@k8s2 storageclass]# kubectl get pvc

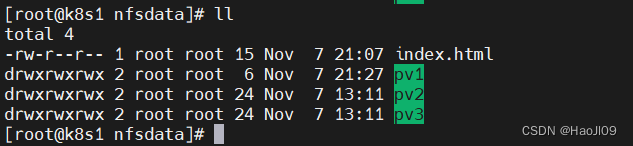

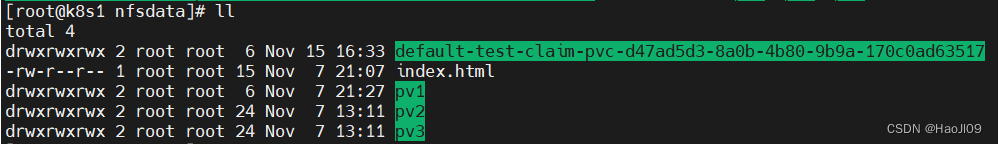

[root@k8s1 nfsdata]# ll

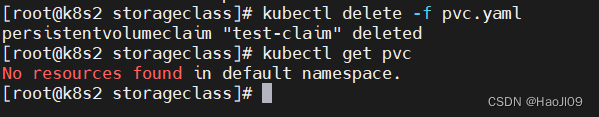

[root@k8s2 storageclass]# kubectl delete -f pvc.yaml

[root@k8s2 storageclass]# kubectl get pvc

[root@k8s1 nfsdata]# ll

helm部署ingress-nginx

回收原有部署

[root@k8s2 ingress]# kubectl delete -f deploy.yaml

添加repo

[root@k8s2 helm]# helm repo add ingress-nginx https://kubernetes.github.io/ingress-nginx

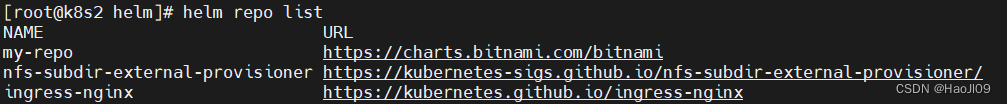

[root@k8s2 helm]# helm repo list

编写配置文件

[root@k8s2 values]# vim ingress-nginx-values.yaml

controller:
  image:
    registry: reg.westos.org
    image: ingress-nginx/controller
    tag: "v1.9.4"
    digest: ""
    digestChroot: ""
  ingressClassResource:
    name: nginx
    default: true
  service:
    type: LoadBalancer
  admissionWebhooks:
    patch:
      image:
        registry: reg.westos.org
        image: ingress-nginx/kube-webhook-certgen
        tag: v20231011-8b53cabe0
        digest: ""

创建ns

[root@k8s2 helm]# kubectl create namespace ingress-nginx

部署

helm  -n ingress-nginx install ingress-nginx -f values/ingress-nginx-values.yaml ingress-nginx-4.8.3.tgz

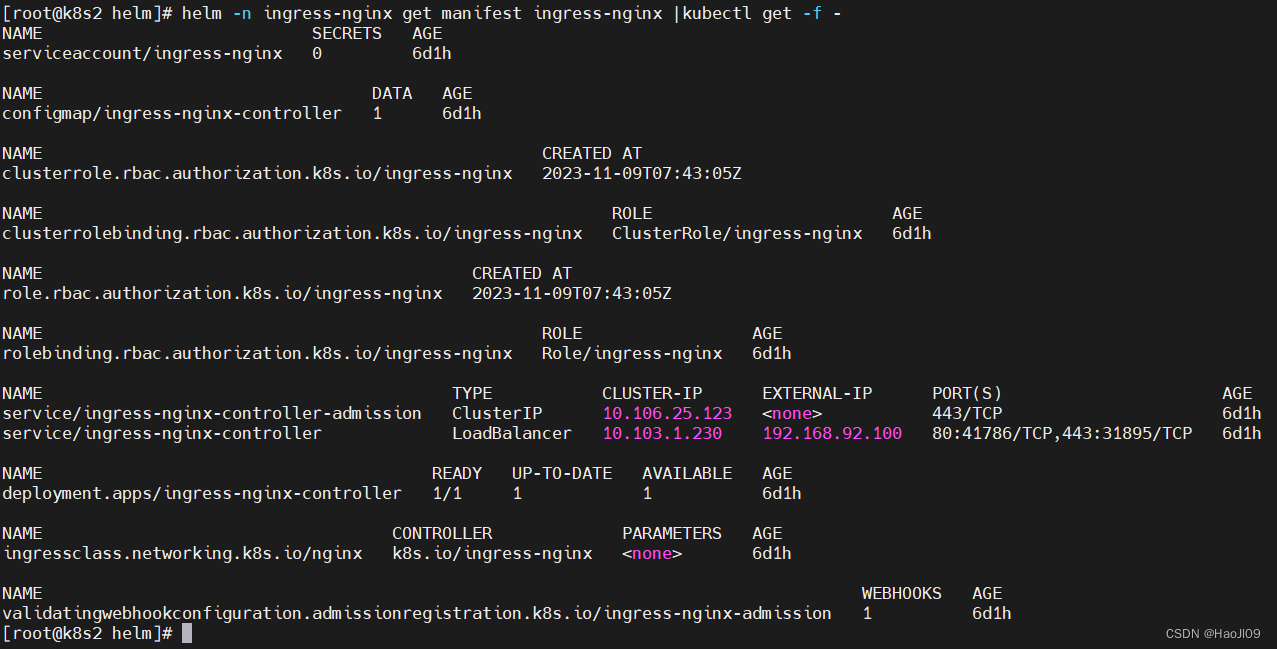

查看状态

[root@k8s2 helm]# helm -n ingress-nginx get manifest ingress-nginx |kubectl get -f -

测试

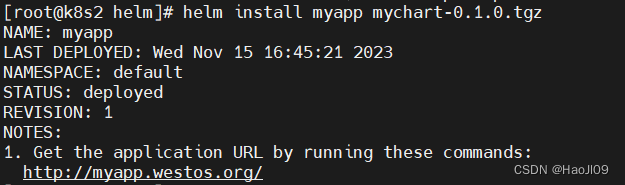

[root@k8s2 helm]# helm install myapp mychart-0.1.0.tgz

[root@k8s2 helm]# curl myapp.westos.org

回收

[root@k8s2 helm]# helm uninstall myapp

helm部署metrics-server

回收原有部署

[root@k8s2 metrics]# kubectl delete -f components.yaml

添加repo

[root@k8s2 helm]# helm repo add metrics-server https://kubernetes-sigs.github.io/metrics-server/


[root@k8s2 helm]# helm repo list

编写配置文件

[root@k8s2 values]# vim metrics-server-values.yaml

image:
  repository: metrics-server/metrics-server
  tag: "v0.6.4"
defaultArgs:
  - --cert-dir=/tmp
  - --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname
  - --kubelet-use-node-status-port
  - --metric-resolution=15s
  - --kubelet-insecure-tls

创建ns

[root@k8s2 helm]# kubectl create namespace metrics-server

部署

[root@k8s2 helm]# helm -n metrics-server install metrics-server -f values/metrics-server-values.yaml metrics-server-3.11.0.tgz

测试

[root@k8s2 helm]# kubectl top node

[root@k8s2 helm]# kubectl top pod -A

kubeapps

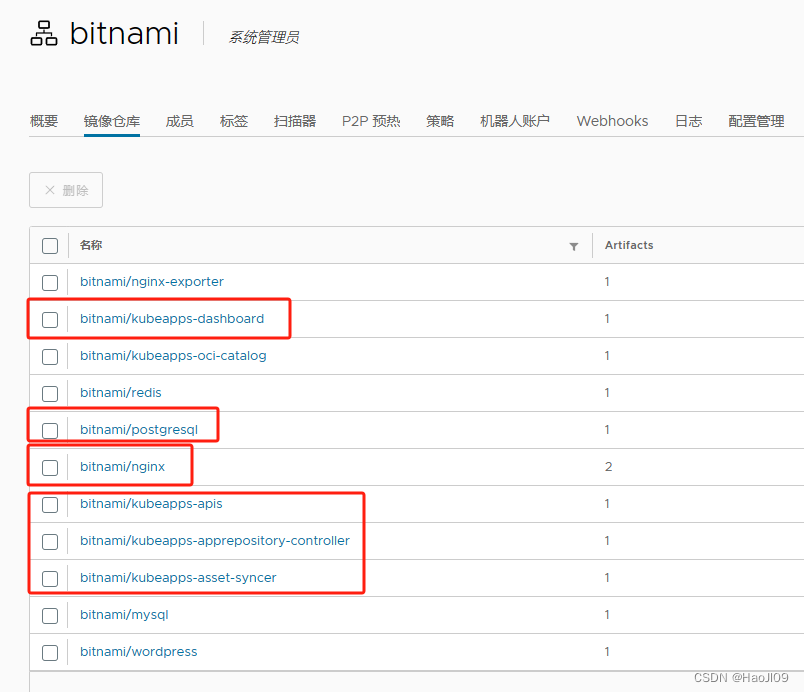

上传镜像

docker images |grep reg.westos.org/bitnami | awk '{system("docker push "$1":"$2"")}'

编写配置文件

[root@k8s2 values]# vim kubeapps-values.yaml

global:
  imageRegistry: reg.westos.org
frontend:
  service:
    type: LoadBalancer

创建ns

[root@k8s2 helm]# kubectl create namespace kubeapps

部署

[root@k8s2 helm]# helm  -n kubeapps install kubeapps -f values/kubeapps-values.yaml kubeapps-14.0.2.tgz

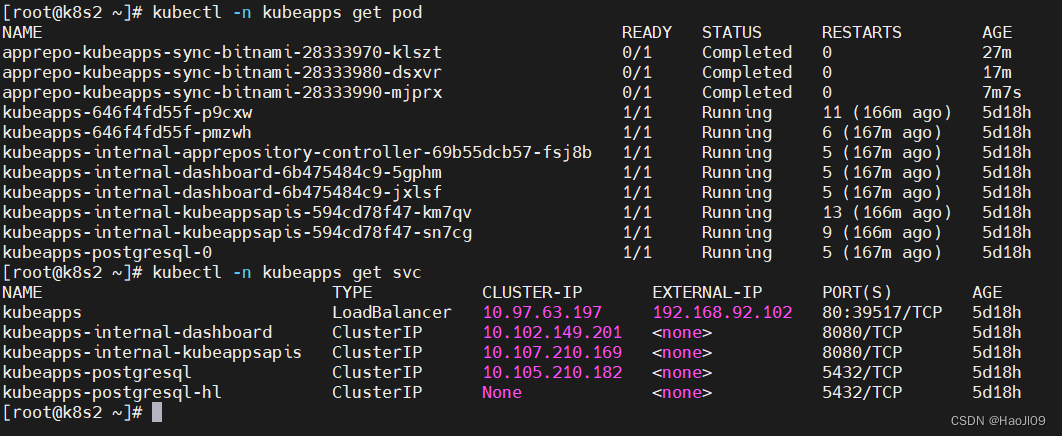

查看状态

[root@k8s2 ~]# kubectl -n kubeapps get pod

[root@k8s2 ~]# kubectl -n kubeapps get svc

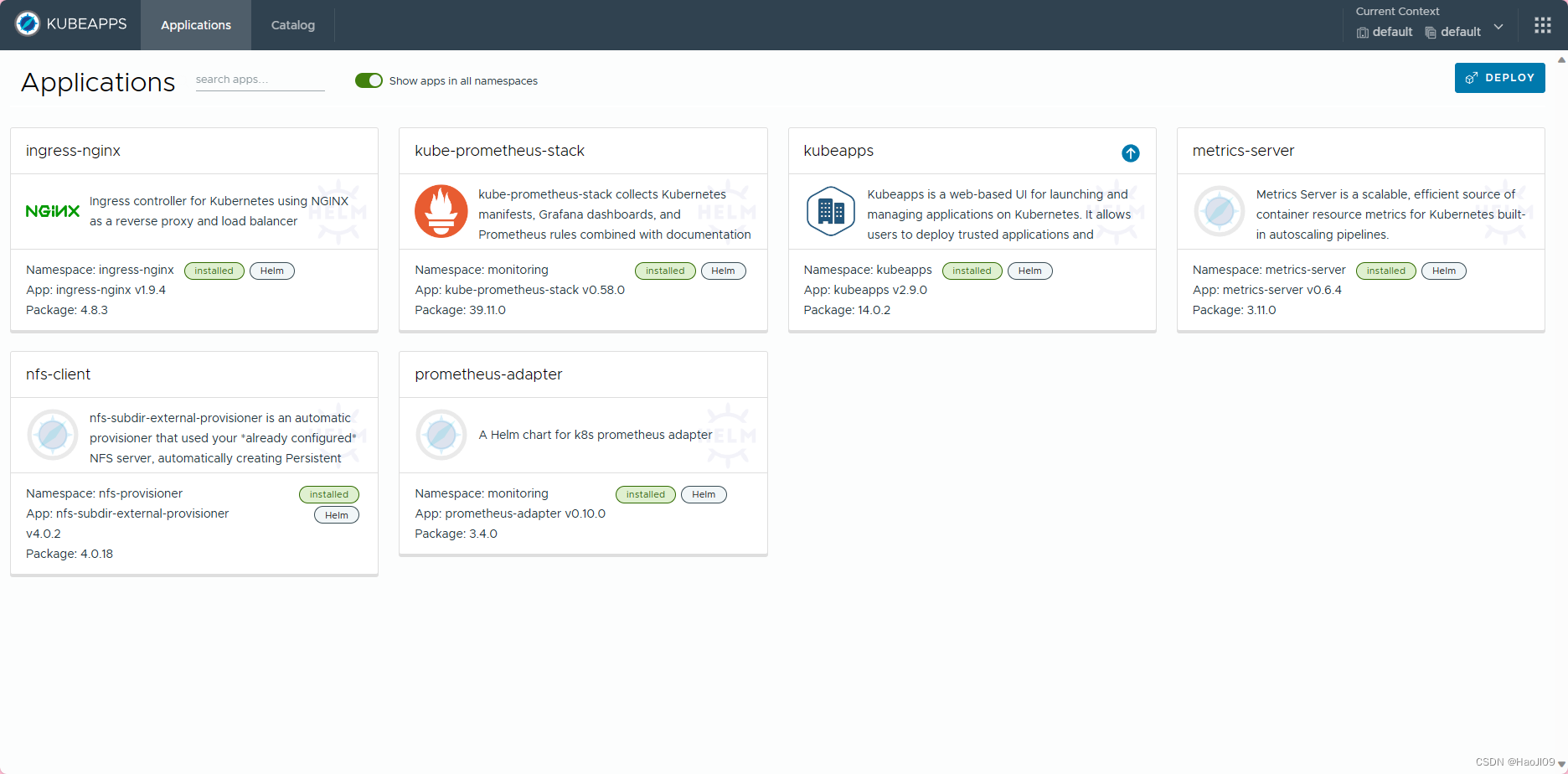

访问：http://192.168.92.102

授权并获取token

[root@k8s2 helm]# kubectl create serviceaccount kubeapps-operator -n kubeapps

[root@k8s2 helm]# kubectl create clusterrolebinding kubeapps-operator --clusterrole=cluster-admin --serviceaccount=kubeapps:kubeapps-operator

[root@k8s2 helm]# kubectl -n kubeapps create token kubeapps-operator

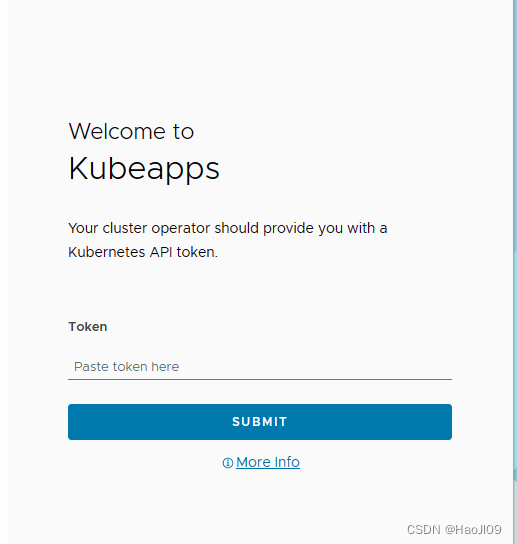

使用token登录web页面
