spring cloud turbine



参考博客:http://www.ityouknow.com/springcloud/2017/05/18/hystrix-dashboard-turbine.html



spring boot版本:2.0.3.RELEASE



pom.xml

<dependency>
  <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-netflix-turbine</artifactId> </dependency> <!-- hystrix --> <dependency> <groupId>org.springframework.cloud</groupId> <artifactId>spring-cloud-starter-netflix-hystrix</artifactId> </dependency> <!-- Hystrix-dashboard熔断器监控工具 --> <dependency>   <groupId>org.springframework.cloud</groupId>   <artifactId>spring-cloud-starter-netflix-hystrix-dashboard</artifactId> </dependency> <dependency>   <groupId>org.springframework.boot</groupId>   <artifactId>spring-boot-starter-actuator</artifactId> </dependency> <dependency>   <groupId>org.springframework.boot</groupId>   <artifactId>spring-boot-starter-test</artifactId>   <scope>test</scope> </dependency>



application.yml

spring:
  application:
    name: spring-cloud-turbine-wly
server:
  port: 8082
turbine:
  # 被监控服务的spring.application.name
  app-config: spring-cloud-consumer
  aggregator:
    cluster-config: default
  cluster-name-expression: new String("default")
  instanceUrlSuffix: hystrix.stream
eureka:
  client:
    service-url:
      defaultZone: http://localhost:8765/eureka



启动类

package com.wang.turbine;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.hystrix.dashboard.EnableHystrixDashboard;
import org.springframework.cloud.netflix.turbine.EnableTurbine;

@SpringBootApplication
@EnableHystrixDashboard
@EnableTurbine
public class TurbineApplication {

    public static void main(String[] args) {
        SpringApplication.run(TurbineApplication.class, args);
    }
}



访问服务

http://localhost:8082/hystrix

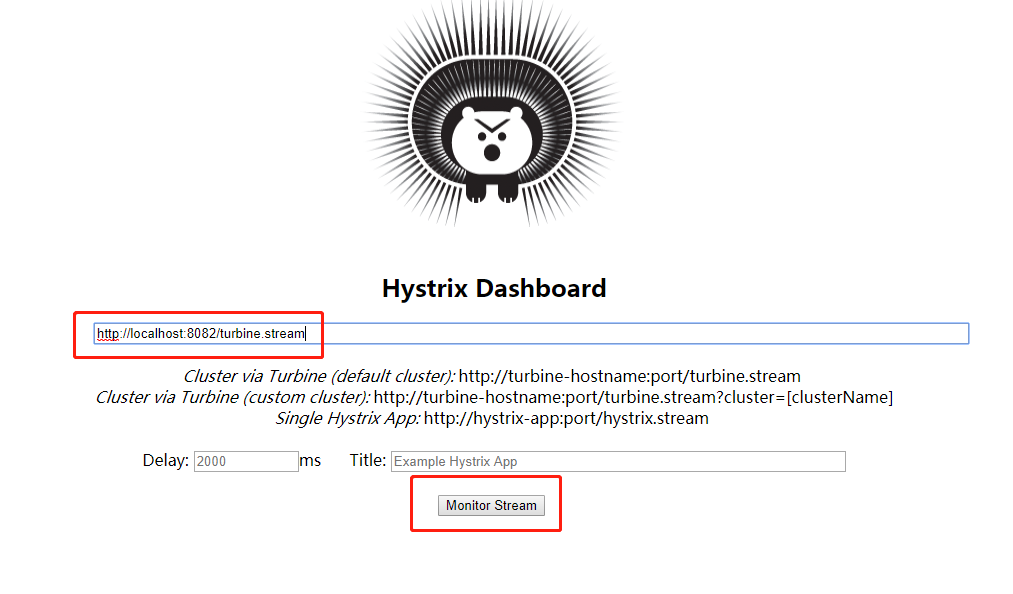

输入http://localhost:8082/turbine.stream,点击monitor stream,如下图



效果

测试项目代码

eureka:https://gitee.com/wlyfree/eurekaserver

provider:https://gitee.com/wlyfree/eurekaprovider(可以不下)

consumer:https://gitee.com/wlyfree/eurekaconsumer

turbine:https://gitee.com/wlyfree/turbine

使用

下载后依次启动eureka、provider、consumer、turbine即可~

转载于:https://www.cnblogs.com/douJiangYouTiao888/p/9252799.html
