（五十八）c#Winform自定义控件-管道阀门（工业）

前提

入行已经7,8年了，一直想做一套漂亮点的自定义控件，于是就有了本系列文章。

GitHub：https://github.com/kwwwvagaa/NetWinformControl

码云：https://gitee.com/kwwwvagaa/net_winform_custom_control.git

如果觉得写的还行，请点个 star 支持一下吧

欢迎前来交流探讨： 企鹅群568015492

麻烦博客下方点个【推荐】，谢谢

NuGet

Install-Package HZH_Controls

目录

https://www.cnblogs.com/bfyx/p/11364884.html

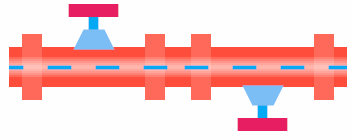

用处及效果

准备工作

请先了解GDI+和三角函数

开始

添加一个类UCValve，继承UserControl

添加一个阀门显示样式枚举

 1 /// <summary>
 2     /// Enum ValveStyle
 3     /// </summary>
 4     public enum ValveStyle
 5     {
 6         /// <summary>
 7         /// 横向，开关在上方
 8         /// </summary>
 9         Horizontal_Top,
10         /// <summary>
11         /// 横向，开关在下方
12         /// </summary>
13         Horizontal_Bottom,
14         /// <summary>
15         /// 纵向，开关在左侧
16         /// </summary>
17         Vertical_Left,
18         /// <summary>
19         /// 纵向，开关在右侧
20         /// </summary>
21         Vertical_Right,
22     }

添加一些属性

  1  /// <summary>
  2         /// The valve style
  3         /// </summary>
  4         private ValveStyle valveStyle = ValveStyle.Horizontal_Top;
  5
  6         /// <summary>
  7         /// Gets or sets the valve style.
  8         /// </summary>
  9         /// <value>The valve style.</value>
 10         [Description("阀门样式"), Category("自定义")]
 11         public ValveStyle ValveStyle
 12         {
 13             get { return valveStyle; }
 14             set
 15             {
 16                 valveStyle = value;
 17                 Refresh();
 18             }
 19         }
 20
 21         /// <summary>
 22         /// The valve color
 23         /// </summary>
 24         private Color valveColor = Color.FromArgb(255, 77, 59);
 25
 26         /// <summary>
 27         /// Gets or sets the color of the valve.
 28         /// </summary>
 29         /// <value>The color of the valve.</value>
 30         [Description("阀门颜色"), Category("自定义")]
 31         public Color ValveColor
 32         {
 33             get { return valveColor; }
 34             set
 35             {
 36                 valveColor = value;
 37                 Refresh();
 38             }
 39         }
 40
 41         /// <summary>
 42         /// The switch color
 43         /// </summary>
 44         private Color switchColor = Color.FromArgb(232, 30, 99);
 45
 46         /// <summary>
 47         /// Gets or sets the color of the switch.
 48         /// </summary>
 49         /// <value>The color of the switch.</value>
 50         [Description("开关把手颜色"), Category("自定义")]
 51         public Color SwitchColor
 52         {
 53             get { return switchColor; }
 54             set
 55             {
 56                 switchColor = value;
 57                 Refresh();
 58             }
 59         }
 60
 61         /// <summary>
 62         /// The axis color
 63         /// </summary>
 64         private Color axisColor = Color.FromArgb(3, 169, 243);
 65
 66         /// <summary>
 67         /// Gets or sets the color of the axis.
 68         /// </summary>
 69         /// <value>The color of the axis.</value>
 70         [Description("轴颜色"), Category("自定义")]
 71         public Color AxisColor
 72         {
 73             get { return axisColor; }
 74             set
 75             {
 76                 axisColor = value;
 77                 Refresh();
 78             }
 79         }
 80
 81         /// <summary>
 82         /// The asis bottom color
 83         /// </summary>
 84         private Color asisBottomColor = Color.FromArgb(3, 169, 243);
 85
 86         /// <summary>
 87         /// Gets or sets the color of the asis bottom.
 88         /// </summary>
 89         /// <value>The color of the asis bottom.</value>
 90         [Description("轴底座颜色"), Category("自定义")]
 91         public Color AsisBottomColor
 92         {
 93             get { return asisBottomColor; }
 94             set { asisBottomColor = value; }
 95         }
 96
 97         /// <summary>
 98         /// The opened
 99         /// </summary>
100         private bool opened = true;
101
102         /// <summary>
103         /// Gets or sets a value indicating whether this <see cref="UCValve" /> is opened.
104         /// </summary>
105         /// <value><c>true</c> if opened; otherwise, <c>false</c>.</value>
106         [Description("是否打开"), Category("自定义")]
107         public bool Opened
108         {
109             get { return opened; }
110             set
111             {
112                 opened = value;
113                 Refresh();
114             }
115         }
116
117         /// <summary>
118         /// The liquid direction
119         /// </summary>
120         private LiquidDirection liquidDirection = LiquidDirection.Forward;
121
122         /// <summary>
123         /// Gets or sets the liquid direction.
124         /// </summary>
125         /// <value>The liquid direction.</value>
126         [Description("液体流动方向"), Category("自定义")]
127         public LiquidDirection LiquidDirection
128         {
129             get { return liquidDirection; }
130             set
131             {
132                 liquidDirection = value;
133                 if (value == Conduit.LiquidDirection.None)
134                     m_timer.Enabled = false;
135                 else
136                     m_timer.Enabled = true;
137                 Refresh();
138             }
139         }
140
141         /// <summary>
142         /// The liquid speed
143         /// </summary>
144         private int liquidSpeed = 100;
145
146         /// <summary>
147         /// 液体流速，越小，速度越快Gets or sets the liquid speed.
148         /// </summary>
149         /// <value>The liquid speed.</value>
150         [Description("液体流速，越小，速度越快"), Category("自定义")]
151         public int LiquidSpeed
152         {
153             get { return liquidSpeed; }
154             set
155             {
156                 if (value <= 0)
157                     return;
158                 liquidSpeed = value;
159                 m_timer.Interval = value;
160             }
161         }
162
163         /// <summary>
164         /// The liquid color
165         /// </summary>
166         private Color liquidColor = Color.FromArgb(3, 169, 243);
167
168         /// <summary>
169         /// Gets or sets the color of the liquid.
170         /// </summary>
171         /// <value>The color of the liquid.</value>
172         [Description("液体颜色"), Category("自定义")]
173         public Color LiquidColor
174         {
175             get { return liquidColor; }
