NPOI 操作word 创建页眉页脚，页眉中插入图片

使用NPOI操作word，在制作页眉页脚中有个特殊的需求，在页眉中插入图片，在网上查找许久，终于是有个可以实现在也没中插入图片，但是是以inline方式在页眉中，这种方式不能很好的满足图片位置的调整，需要修改源码，加上可以设置锚点的方式插入图片（还没有实现，实现了再来记录）

1，在页眉中插入图片所使用的NPOI版本是 https://download.youkuaiyun.com/download/dengxt/10824550

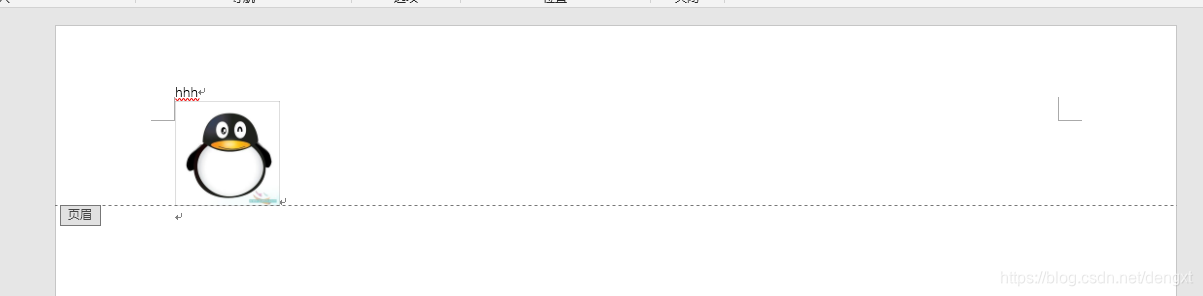

结果图如上：

2，非插入图片，页眉页脚都是文字

XWPFDocument m_Docx = new XWPFDocument();//创建文档
m_Docx.Document.body.sectPr = new CT_SectPr();
CT_SectPr m_SectPr = m_Docx.Document.body.sectPr;

//创建页脚
CT_Ftr m_ftr = new CT_Ftr();

m_ftr.AddNewP().AddNewR().AddNewT().Value = "我是页脚";
//创建页脚关系（footern.xml）
XWPFRelation Frelation = XWPFRelation.FOOTER;
XWPFFooter m_f = (XWPFFooter)m_Docx.CreateRelationship(Frelation, XWPFFactory.GetInstance(), m_Docx.FooterList.Count + 1);

//设置页脚
m_f.SetHeaderFooter(m_ftr);
CT_HdrFtrRef m_HdrFtr1 = m_SectPr.AddNewFooterReference();

m_HdrFtr1.type = ST_HdrFtr.@default;
m_HdrFtr1.id = m_f.GetPackageRelationship().Id;

//创建页眉
CT_Hdr m_Hdr = new CT_Hdr();
m_Hdr.AddNewP().AddNewR().AddNewT().Value = "我是页眉";//页眉内容
//创建页眉关系（headern.xml）
XWPFRelation Hrelation = XWPFRelation.HEADER;
XWPFHeader m_h = (XWPFHeader)m_Docx.CreateRelationship(Hrelation, XWPFFactory.GetInstance(), m_Docx.HeaderList.Count);
//设置页眉
m_h.SetHeaderFooter(m_Hdr);
CT_HdrFtrRef m_HdrFtr2 = m_SectPr.AddNewHeaderReference();
m_HdrFtr2.type = ST_HdrFtr.@default;
m_HdrFtr2.id = m_h.GetPackageRelationship().Id;


//保存文件
string docPath = Path.Combine(System.AppDomain.CurrentDomain.BaseDirectory, "DocxWord");
if (!Directory.Exists(docPath)) { Directory.CreateDirectory(docPath); }
string fileName = string.Format("{0}.doc", DateTime.Now.ToString("yyyyMMddHHmmssfff"));
FileStream out1 = new FileStream(Path.Combine(docPath, fileName), FileMode.Create);
m_Docx.Write(out1);
out1.Close();

3，页眉插入图片，页脚文字

XWPFDocument m_Docx = new XWPFDocument();
m_Docx.Document.body.sectPr = new CT_SectPr();

CT_SectPr m_SectPr = m_Docx.Document.body.sectPr;

//创建页脚
CT_Ftr m_ftr = new CT_Ftr();
m_ftr.AddNewP().AddNewR().AddNewT().Value = "im yejiao";//页脚内容

//创建页脚关系（footern.xml）
XWPFRelation Frelation = XWPFRelation.FOOTER;
XWPFFooter m_f = (XWPFFooter)m_Docx.CreateRelationship(Frelation, XWPFFactory.GetInstance(), m_Docx.FooterList.Count + 1);
 //设置页脚
m_f.SetHeaderFooter(m_ftr);
CT_HdrFtrRef m_HdrFtr1 = m_SectPr.AddNewFooterReference();
m_HdrFtr1.type = ST_HdrFtr.@default;
m_HdrFtr1.id = m_f.GetPackageRelationship().Id;

//创建页眉
CT_Hdr m_Hdr = new CT_Hdr();
// m_Hdr.AddNewP().AddNewR().AddNewT().Value = "im yemei";//页眉内容
//创建页眉关系（headern.xml）
XWPFRelation Hrelation = XWPFRelation.HEADER;
XWPFHeader m_h = (XWPFHeader)m_Docx.CreateRelationship(Hrelation, XWPFFactory.GetInstance(), m_Docx.HeaderList.Count);
//设置页眉
m_h.SetHeaderFooter(m_Hdr);
CT_HdrFtrRef m_HdrFtr2 = m_SectPr.AddNewHeaderReference();
m_HdrFtr2.type = ST_HdrFtr.@default;
m_HdrFtr2.id = m_h.GetPackageRelationship().Id;



m_Docx.Document.body.sectPr = new CT_SectPr();
m_SectPr = m_Docx.Document.body.sectPr;
//页面设置A4横向
//m_SectPr.pgSz.w = (ulong)16838;
//m_SectPr.pgSz.h = (ulong)11906;


// Add the picture + relationship
FileStream pictureData = null;
pictureData = new FileStream("../../image/3.jpeg", FileMode.Open, FileAccess.Read);


//设置页眉
m_h.SetHeaderFooter(m_Hdr);
m_h.AddPicture(pictureData, (int)PictureType.JPEG, "3.jpeg", 7000000, 1000000);
CT_HdrFtrRef m_HdrFtr = m_SectPr.AddNewHeaderReference();
m_HdrFtr.type = ST_HdrFtr.@default;
m_HdrFtr.id = m_h.GetPackageRelationship().Id;

//保存文件到磁盘WinForm
string docPath = Path.Combine(System.AppDomain.CurrentDomain.BaseDirectory, "DocxWord");
if (!Directory.Exists(docPath)) { Directory.CreateDirectory(docPath); }
string fileName = string.Format("{0}.doc", DateTime.Now.ToString("yyyyMMddHHmmssfff"));
FileStream out1 = new FileStream(Path.Combine(docPath, fileName), FileMode.Create);
m_Docx.Write(out1);
out1.Close();

收集的使用NPOI操作word的文档，还是比较适用的文档 https://download.youkuaiyun.com/download/dengxt/10823924
