文件收集框架 Flume


Flume 是一种分布式的,可靠且高效地收集、聚集和移动大量数据的工具。它具有基于流数据的简单灵活的体系结构。并且具有健壮性和容错性,可调整的可靠性机制和许多故障转移和恢复机制。它使用了一个简单的可扩展的数据模型,允许在线分析应用程序。

官网地址:http://flume.apache.org/
用户手册地址:http://flume.apache.org/FlumeUserGuide.html

Flume 可以实时收集数据,经常与 Storm/Spark 集成进行使用。其运行需求 JVM,且只能在 Linux 系统上运行。

在这里插入图片描述

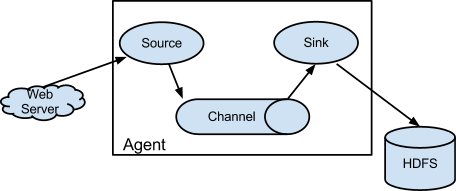

Flume 只有一个节点 Agent 的角色,其是 Flume 的核心,同时也是做小的运行单位。一个agent就是一个jvm。Agent 有三大组件:

收集数据:source
聚合数据: channel
移动数据:sink

角色简介
sourcesource 用于采集数据,source 是产生数据流的地方,同时 source 会将产生的数据流传输到 channel
channel连接 source 和sink,这个有点像一个队列
sink从 channel 收集数据,将数据写到目标源,可以是下一个 source 也可以是 HDFS,HBase,Kafka
  • source
    封装数据成 Event,并存入到 channel

  • channel
    扮演中间人角色,可以理解成数据的缓冲区,以队列的形式进行操作。
    将 Event 暂存在内存中,也可以持久化到本地磁盘,直到 sink 数据传递结束。

  • sink
    可以发送 Event 到其他 agent 的source。sink 必须达到下一个 agent 或者存入到外部目的地之后,才会将Event 移除。

Event 是 Flume 数据传输的基本单元,Flume 以 Event 的形式将数据从源头传送到最终的目标。Event 有可选的 header 头和载有字节数组 byte array 构成,载有的数据对 Flume 是透明的,header 头是容纳了 key-value 的无序集合,key 在集合内是唯一的,header 可以在上下文路由中使用扩展。

Flume 提供了三种方式处理数据丢失的错误:

  1. end-to-end:收到数据,Agent 首先会将数据写到磁盘,等待传输成功后在删除。如果传输失败,再次发送。
  2. store on failure:若接收方 crash,再把数据写到本地,等待对方回复之后继续发送。
  3. besteffort:等待数据发送到接收方之后,不会进行确认。

安装部署

下载地址:http://flume.apache.org/download.html

配置:

  1. 修改 flume-env.sh.template 为 flume-env.sh
  2. Flume 在 hadoop 集群中
    修改 flume-env.sh
    export JAVA_HOME=/opt/moduels/jdk1.7.0_67

如果 hadoop 配置了HA(HDFS 入口是个逻辑名称),将 Hadoop 的 core-site 和 hdfs-site 文件拷贝到 flume/conf 下
如果 Flume 不在 hadoop 集群中,将 Hadoop 相关 jar 包放到 lib 目录下 (flume-hdfs-jars.zip)。

格式

bin/flume-ng <command> [options]...
# -name Agent名称
# -conf 配置文件目录
#- conf-file 配置文件

最基本格式:
bin/flume-ng agent --conf conf --name agent-test --conf-file test.conf
# bin/flume-ng agent --conf conf --name agent_name --conf-file xxx.conf

简写后格式:
bin/flume-ng agent -c conf -n agent-test -f test.conf

案例

**需求:**读取 hive下的 log日志,采用 memory channel。

Flume 的 conf 文件夹下为我们提供了一份模板文件 flume-conf.properties.template 复制一份 cp flume-conf.properties.template hive_memory_logger.properties

  • 编辑 hive_memory_logger.properties

  • Memory channel

# define agent
a1.sources = s1
a1.channels = c1
a1.sinks = k1

# define sources
a1.sources.s1.type = exec
#推荐绝对路径
a1.sources.s1.command = tail -f /opt/cdh/hive-0.13.1-cdh5.3.6/logs/hive.log

# define channels
a1.channels.c1.type = memory   # memory channel
# 下面的配置的单位是event
#  transactionCapacity比capacity推荐1:10到1:100
a1.channels.c1.capacity = 100
a1.channels.c1.transactionCapacity = 10

# define sink
a1.sinks.k1.type = logger
# bind the soures and  sink to the channel
a1.sources.s1.channels = c1
a1.sinks.k1.channel = c1
  • 运行
bin/flume-ng agent --conf conf/ --name a1 --conf-file conf/hive_memory_logger.properties -Dflume.root.logger=INFO,console

# 要求必须在 --conf 参数指定的目录下有 log4j的配置文件
# 可以通过-Dflume.root.logger=INFO,console在命令启动时手动指定log4j参数
  • File channel
a1.channels.c1.type = file   # memory  修改为 file,其他地方不变
a1.channels.c1.checkpointDir = /opt/datas/flume/file/check
a1.channels.c1.dataDirs = /opt/datas/flume/file/data
  • hdfs sink
a1.sinks.k1.type = hdfs  # 修改Sink类型为hdfs sink
a1.sinks.k1.hdfs.path = hdfs://bigdata01:8020/flume/event/hdfs
# a1.sinks.k1.hdfs.path = /flume/event/hdfs
a1.channels.c1.capacity = 10000
a1.channels.c1.transactionCapacity = 10000

优化:
# 采集文件根据date进行区分
a1.sinks.k1.hdfs.path = hdfs://bigdata:8020/flume/event01/data/date=%Y-%m_%d
# 和时间相关的序列需要开启该功能
a1.sinks.k1.hdfs.useLocalTimeStamp = true

# 多久生成一个文件,0为不适用该配置,优先级高
a1.sinks.k1.hdfs.rollInterval = 0
# 文件大小进行回滚,单位kb,不建议设满128M
a1.sinks.k1.hdfs.rollSize = 10240
# 多少event生成一个文件,0为不使用该配置
a1.sinks.k1.hdfs.rollCount = 0

# 修改保存文件的前缀
a1.sinks.k1.hdfs.filePrefix = hivelog
  • Spooling Directory Source
a1.sources.s1.type = spooldir
a1.sources.s1.spoolDir = /opt/datas/flume/spooling/

# 忽略某些文件
a1.sources.s1.ignorePattern = ([^ ]*\.tmp$)
  • 扇入扇出

扇出:一个source对应多个channel

# define agent
a1.sources = s1
a1.channels = c1 c2   # 对应 c1,c2 两个 channel。
a1.sinks = k1 k2

# define sources
a1.sources.s1.type = exec
a1.sources.s1.command = tail -f /opt/cdh/hive-0.13.1-cdh5.3.6/logs/hive.log

# define channels
a1.channels.c1.type = memory
a1.channels.c1.capacity = 10000
a1.channels.c1.transactionCapacity = 10000

a1.channels.c2.type = memory
a1.channels.c2.capacity = 10000
a1.channels.c2.transactionCapacity = 10000

# define sink
a1.sinks.k1.type = hdfs
a1.sinks.k1.hdfs.path = hdfs://bigdata:8020/flume/event/hdfs1/date=%Y-%m_%d
a1.sinks.k1.hdfs.rollInterval = 0
a1.sinks.k1.hdfs.rollSize = 10240
a1.sinks.k1.hdfs.rollCount = 0
a1.sinks.k1.hdfs.filePrefix = hivelog1
a1.sinks.k1.hdfs.useLocalTimeStamp = true

a1.sinks.k2.type = hdfs
a1.sinks.k2.hdfs.path = hdfs://bigdata:8020/flume/event/hdfs2/date=%Y-%m_%d
a1.sinks.k2.hdfs.rollInterval = 0
a1.sinks.k2.hdfs.rollSize = 10240
a1.sinks.k2.hdfs.rollCount = 0
a1.sinks.k2.hdfs.filePrefix = hivelog2
a1.sinks.k2.hdfs.useLocalTimeStamp = true

# bind the soures and  sink to the channel
a1.sources.s1.channels = c1 c2
a1.sinks.k1.channel = c1
a1.sinks.k2.channel = c1

扇入:多个sink对应一个source (先启动服务端, 再启动客户端)

Client 端

# 创建 avro_client.properties,编辑:

a1.sources = s1
a1.channels = c1
a1.sinks = k1

# define sources
a1.sources.s1.type = avro
a1.sources.s1.command = tail -f /opt/cdh/hive-0.13.1-cdh5.3.6/logs/hive.log

# define channels
a1.channels.c1.type = memory
a1.channels.c1.capacity = 10000
a1.channels.c1.transactionCapacity = 1000

# define sink
a1.sinks.k1.type = avro
a1.sinks.k1.hostname = bigdata
a1.sinks.k1.port = 44444

# bind the soures and  sink to the channel
a1.sources.s1.channels = c1
a1.sinks.k1.channel = c1

# 运行

bin/flume-ng agent --conf conf/ --name a1 --conf-file conf/avro_client.properties -Dflume.root.logger=INFO,console

Collect端

# define agent
a1.sources = s1
a1.channels = c1
a1.sinks = k1

# define sources
a1.sources.s1.type = avro
a1.sources.s1.bind = lee01.cniao5.com
a1.sources.s1.port = 44444

# define channels
a1.channels.c1.type = memory
a1.channels.c1.capacity = 10000
a1.channels.c1.transactionCapacity = 10000

# define sink
a1.sinks.k1.type = hdfs
a1.sinks.k1.hdfs.path = hdfs://bigdata:8020/flume/event/avro
a1.sinks.k1.hdfs.rollInterval = 0
a1.sinks.k1.hdfs.rollSize = 10240
a1.sinks.k1.hdfs.rollCount = 0
a1.sinks.k1.hdfs.filePrefix = hivelog
a1.sinks.k1.hdfs.useLocalTimeStamp = true

# bind the soures and  sink to the channel
a1.sources.s1.channels = c1
a1.sinks.k1.channel = c1
  • TailDir

OG 中 tailsource/taildirsource 可以将文件的一行数据读取到 channel,在 NG 中,取而代之的是 ExecSource/spoolingdir,可以通过 tail -f 的命令来指定按照行读取文件内容,但是很难直接指定按照行读取文件夹中的内容。1.7之后的版本中,出现了 taildirsource 可以解决这一问题,不过很早之前,就已经开放了源码,需要编译并集成到 flume 中。

集成/环境配置:将flume-taildir-source-1.5.0-cdh5.3.6.jar 导入至lib目录。

# define agent
a1.sources = s1
a1.channels = c1
a1.sinks = k1

# define sources
# 非1.7+版本,需要完整的类名
a1.sources.s1.type = org.apache.flume.source.taildir.TaildirSource
# Json位置文件
a1.sources.s1.positionFile = /opt/datas/flume/taildir/position/taildir_position.json
# exec和sopplingdir抽取出来,分别用来监控文件和文件夹,fl对应exec,f2对应spoolingdir
a1.sources.s1.filegroups = f1 f2
# 文件地址
a1.sources.s1.filegroups.f1 = /opt/datas/flume/taildir/test.file
# 监控的文件的头部的值,用于标识,默认即可
a1.sources.s1.headers.f1.headerKey1 = value1
# 文件夹地址
a1.sources.s1.filegroups.f2 = /opt/datas/flume/taildir/test/.*
a1.sources.s1.headers.f2.headerKey1 = value2
a1.sources.s1.headers.f2.headerKey2 = value2-2
a1.sources.r1.fileHeader = true


# define channels
a1.channels.c1.type = memory
a1.channels.c1.capacity = 10000
a1.channels.c1.transactionCapacity = 1000

# define sink
a1.sinks.k1.type = hdfs
a1.sinks.k1.hdfs.path = hdfs://bigdata:8020/flume/event/taildir
a1.sinks.k1.hdfs.rollSize = 1024000
a1.sinks.k1.hdfs.rollInterval = 0
a1.sinks.k1.hdfs.rollCount = 0
a1.sinks.k1.hdfs.filePrefix = hivelog

# bind the soures and  sink to the channel
a1.sources.s1.channels = c1
a1.sinks.k1.channel = c1

重复读取相关 taildir_position.json,会把我们需要读取的文件和文件夹的信息统统记录到 taildir_position.json,下次读取的时候,会先读取该文件,从上次结束的位置再次读取。

事务

事务:保证我们任务要么完全执行完毕,要么就完全执行失败
结果: 成功,失败就重新来过
在这里插入图片描述

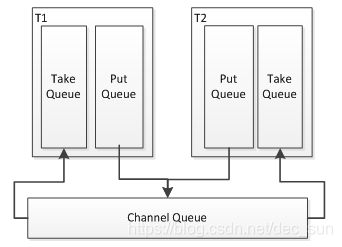

事务的分别:put / take, 需要保证我们这两个事务全部成功才算成功,失败的话,会将数据回滚到前一个组件。
