Element ui 穿梭框（2）改造之--左侧树结构

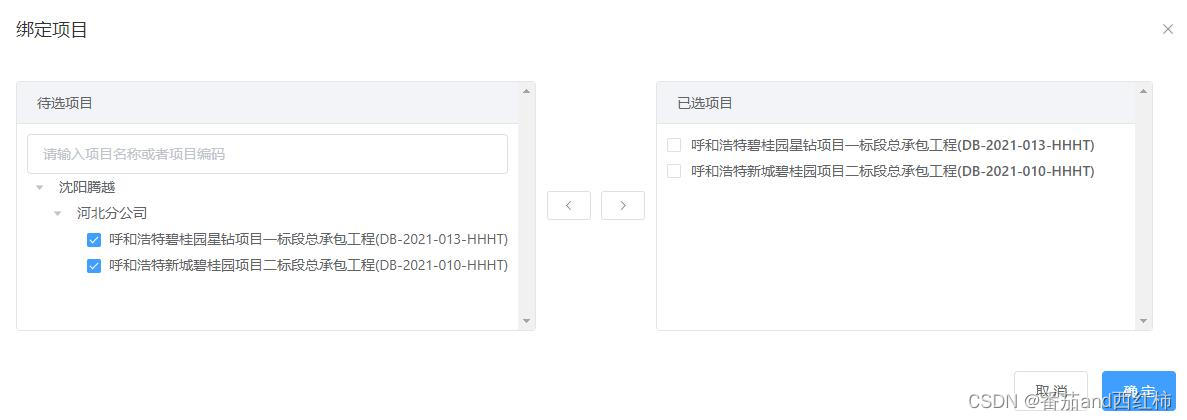

1、效果图

2、代码

2.1、建立一个vue文件，命名为：treeTransfer.vue, 改文件的代码如下

<template>
  <!-- 自定义树形穿梭框组件、理论上左右均可选择是否为树形结构，目前固定为左侧树形、右侧无层级结构 -->
  <div class="tree-transfer">
    <!-- 穿梭框左侧 -->
    <div class="tree-transfer-left">
      <div class="title">待选项目</div>
      <div class="transfer-content">
        <el-input placeholder="请输入项目名称或者项目编码" v-model="filterText">
        </el-input>
        <!-- 左侧采用element-ui的el-tree -->
        <el-tree
          ref="treeLeft"
          :data="dataLeft"
          show-checkbox
          :node-key="defaultProps.id"
          :props="defaultProps"
          default-expand-all
          :filter-node-method="filterNode"
        >
        </el-tree>
      </div>
    </div>
    <!-- 穿梭框中间按钮区域 -->
    <div class="tree-transfer-middle">
      <el-button
        icon="el-icon-arrow-left"
        @click="remove"
        size="mini"
      ></el-button>
      <el-button
        icon="el-icon-arrow-right"
        @click="add"
        size="mini"
      ></el-button>
    </div>
    <!-- 穿梭框右侧 -->
    <div class="tree-transfer-right">
      <div class="title">已选项目</div>
      <!-- 右侧直接放置结果 -->
      <div class="transfer-content">
        <el-checkbox-group class="transfer_group" v-model="rightChecked">
          <el-checkbox
            v-for="item in dataRight"
            :label="item"
            :key="item[defaultProps.id]"
          >
            <el-tooltip
              class="item"
              effect="dark"
              :content="item[defaultProps.label]"
              placement="bottom-start"
            >
              <span>{{ item[defaultProps.label] }}</span>
            </el-tooltip>
          </el-checkbox>
        </el-checkbox-group>
      </div>
    </div>
  </div>
</template>

<script>
export default {
 // data为原始树的数据，defaultProps默认设置字段，checkedList为初始选中的list集合
  props: ["datas", "defaultProps", "checkedList"],
  data() {
    return {
      filterText: "",// 搜索名
      yuansiData: [],
      dataLeft: [],
      dataRight: [],
      rightChecked: []
    };
  },
  watch: {
  	// 搜索
    filterText(val) {
      this.$refs.treeLeft.filter(val);
    },
    // 初始选中集合改变时，左侧的数据对应选中，右侧的列表加上
    checkedList() {
      this.$nextTick(() => {
        this.checkedList.map((item, index) => {
          this.$refs.treeLeft.setChecked(item[this.defaultProps.id], true);
        });
        this.dataRight = this.checkedList;
      });
    }
  },
  mounted() {
    this.dataLeft = this.filterTreeData(this.datas);
    this.yuansiData = JSON.parse(JSON.stringify(this.datas));
  },
  methods: {
    // 树筛选
    filterNode(value, data) {
      if (!value) return true;
      return data[this.defaultProps.label].indexOf(value) !== -1;
    },
    /**处理只能选择最后一级 */
    filterTreeData(treeData) {
      return treeData.filter(item => {
        if (
          item[this.defaultProps.children] &&
          item[this.defaultProps.children].length > 0
        ) {
          item.disabled = true;
          item.children = this.filterTreeData(item[this.defaultProps.children]);
        } else {
          item[this.defaultProps.label] = `${item[this.defaultProps.label]}(${
            item[this.defaultProps.pCode]
          })`;
        }
        return item;
      });
    },
    // 添加到右侧
    add() {
      // 获取所有选中的项,将最后一级选中的节点添加到右侧已选
      this.dataRight = [];
      let list = this.$refs.treeLeft.getCheckedNodes();
      list.map((item, index) => {
        if (
          !item[this.defaultProps.children] ||
          item[this.defaultProps.children].length == 0
        ) {
          this.dataRight.push(item);
        }
      });
    },

    // 移除到左侧
    remove() {
      let rightCheckedData = JSON.parse(JSON.stringify(this.rightChecked));
      rightCheckedData.map((item, index) => {
        this.$refs.treeLeft.setChecked(item[this.defaultProps.id], false);
        this.dataRight.map((right, rightIndex) => {
          if (item[this.defaultProps.id] == right[this.defaultProps.id]) {
            this.dataRight.splice(rightIndex, 1);
          }
        });
      });
    },
    // 重置数据
    reset() {
      // 重置左侧
      let list = this.$refs.treeLeft.getCheckedNodes();
      list.map((item, index) => {
        this.$refs.treeLeft.setChecked(item, false);
      });
      // 重置右侧
      this.dataRight = [];
      this.rightChecked = [];
    },
    // 返回当前选中的值
    getVal() {
      return this.dataRight;
    }
  }
};
</script>
<style>
.el-checkbox .is-disabled {
  display: none;
}
.el-checkbox-group {
  width: 100%;
  position: relative;
  overflow: auto;
  overflow-x: hidden;
}
</style>
<style scoped lang="scss">
.tree-transfer {
  display: flex;
  min-height: 250px;
  .title {
    padding: 10px 20px;
    border-bottom: 1px #e5e5e5 solid;
    background: #f3f4f7;
  }
  .transfer-content {
    padding: 10px;
  }
  .tree-transfer-left {
    max-width: 640px;
    min-width: 200px;
    border: 1px #e5e5e5 solid;
    border-radius: 4px;
    max-height: 540px;
    overflow-y: scroll;
  }
  .tree-transfer-middle {
    display: flex;
    justify-content: center;
    align-items: center;
    min-width: 120px;
  }
  .tree-transfer-right {
    min-width: 200px;
    border: 1px #e5e5e5 solid;
    border-radius: 4px;
    max-height: 540px;
    overflow-y: scroll;
    .el-checkbox {
      display: block;
      margin-bottom: 5px;
    }
  }
}
</style>

2、调用

2.1、父级引入上述组件

<template>
    <el-dialog
      title="绑定项目"
      :visible.sync="openDialog"
      width="1200px"
      class="newAsset"
    >
      <tree-transfer
        ref="insideChooseProject"
        :datas="treeTransferData"
        :defaultProps="defaultProps"
        :checkedList="treeChecked"
      ></tree-transfer>
       <span slot="footer" class="dialog-footer">
        <el-button @click="cancel">取 消</el-button>
        <el-button type="primary" @click="saveData">确 定</el-button>
      </span>
    </el-dialog>
</template>
<script>
 data() {
    return {
      // 穿梭框默认
      defaultProps: {
        id: "deptCode",
        children: "children",
        label: "deptName",
        pCode:"projectCode"
      },
      //穿梭框弹窗是否出现
      openDialog: false,
      // 穿梭框选中数据
      treeChecked: [],
      // 穿梭框数据
      treeTransferData: [],
    };
    },
     methods: {
     // 触发穿梭框显示
    handleEditProject() {
      this.openDialog = true;
      if (this.$refs.insideChooseProject) {
        this.$refs.insideChooseProject.reset();
      }
      // 处理初始化选中的项目,若有初始选中数据则，在此添加初始选中的值
       this.treeChecked =[];
    },
    // 弹框确认获取已选中的树的list
     saveData() {
     console.log(this.$refs["insideChooseProject"].getVal())
     }
  }
</script>

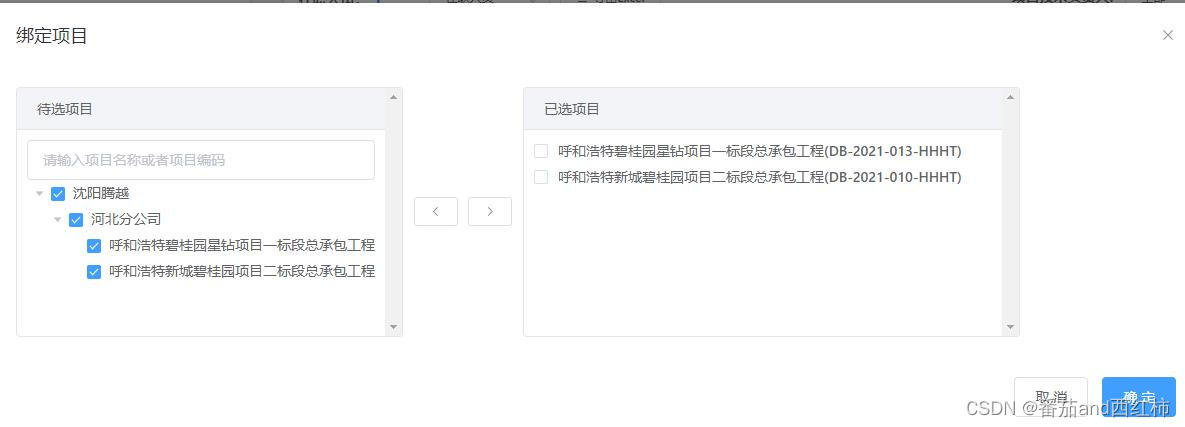

3、可以根据以上代码，改成如下效果

3.1 修改方法

// 将子组件的this.dataLeft = this.filterTreeData(this.datas);方法，替换成：this.dataLeft = this.datas;即可
// 同时，需要修改add()事件，有需要的自行即可；

希望读到这篇文章会对你有帮助~，有帮助请留下一个赞和关注(╹▽╹)
——————来自李易峰的小粉丝，凡凡同学
