设计模式:装饰器模式

意图:动态地给一个对象添加一些额外的职责。就增加功能来说,装饰器模式相比生成子类更为灵活。

主要解决:一般的,我们为了扩展一个类经常使用继承方式实现,由于继承为类引入静态特征,并且随着扩展功能的增多,子类会很膨胀。

何时使用:在不想增加很多子类的情况下扩展类。

如何解决:将具体功能职责划分,同时继承装饰者模式。

关键代码: 1、Component 类充当抽象角色,不应该具体实现。 2、修饰类引用和继承 Component 类,具体扩展类重写父类方法。

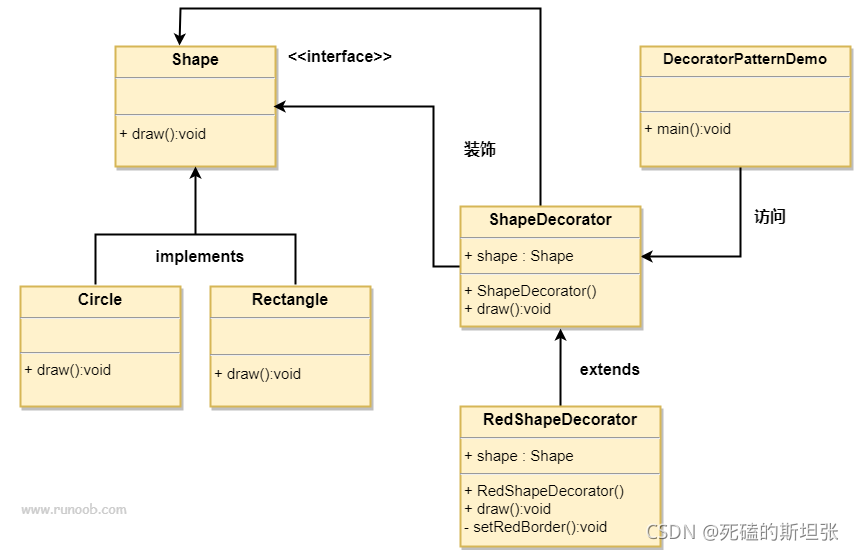

在这里插入图片描述
创建一个接口:

Shape.java

public interface Shape {
   void draw();
}

步骤 2
创建实现接口的实体类。

Rectangle.java

public class Rectangle implements Shape {

   @Override
   public void draw() {
      System.out.println("Shape: Rectangle");
   }
}

Circle.java

public class Circle implements Shape {

   @Override
   public void draw() {
      System.out.println("Shape: Circle");
   }
}

步骤 3
创建实现了 Shape 接口的抽象装饰类。

ShapeDecorator.java

public abstract class ShapeDecorator implements Shape {
   protected Shape decoratedShape;

   public ShapeDecorator(Shape decoratedShape){
      this.decoratedShape = decoratedShape;
   }

   public void draw(){
      decoratedShape.draw();
   }
}

步骤 4
创建扩展了 ShapeDecorator 类的实体装饰类。

RedShapeDecorator.java

public class RedShapeDecorator extends ShapeDecorator {

   public RedShapeDecorator(Shape decoratedShape) {
      super(decoratedShape);
   }

   @Override
   public void draw() {
      decoratedShape.draw();
      setRedBorder(decoratedShape);
   }

   private void setRedBorder(Shape decoratedShape){
      System.out.println("Border Color: Red");
   }
}

步骤 5
使用 RedShapeDecorator 来装饰 Shape 对象。

DecoratorPatternDemo.java

public class DecoratorPatternDemo {
   public static void main(String[] args) {

      Shape circle = new Circle();
      ShapeDecorator redCircle = new RedShapeDecorator(new Circle());
      ShapeDecorator redRectangle = new RedShapeDecorator(new Rectangle());
      //Shape redCircle = new RedShapeDecorator(new Circle());
      //Shape redRectangle = new RedShapeDecorator(new Rectangle());
      System.out.println("Circle with normal border");
      circle.draw();

      System.out.println("\nCircle of red border");
      redCircle.draw();

      System.out.println("\nRectangle of red border");
      redRectangle.draw();
   }
}
